Manufacturing Cement Bulk Carriers for Sale
Manufacturing Cement Bulk Carriers for Sale1.The related Specification for Bulk Cement tanker semi trailer:Length:10,700mmWidth:2,500mmHeight:3,950mm(The above dimension will be adjusted according to the tractor specification.)Weight: Tare weight:Approx. 9,800kgFrame & Structure:Main beam:Heavy ......
Send Inquiry
Product Description

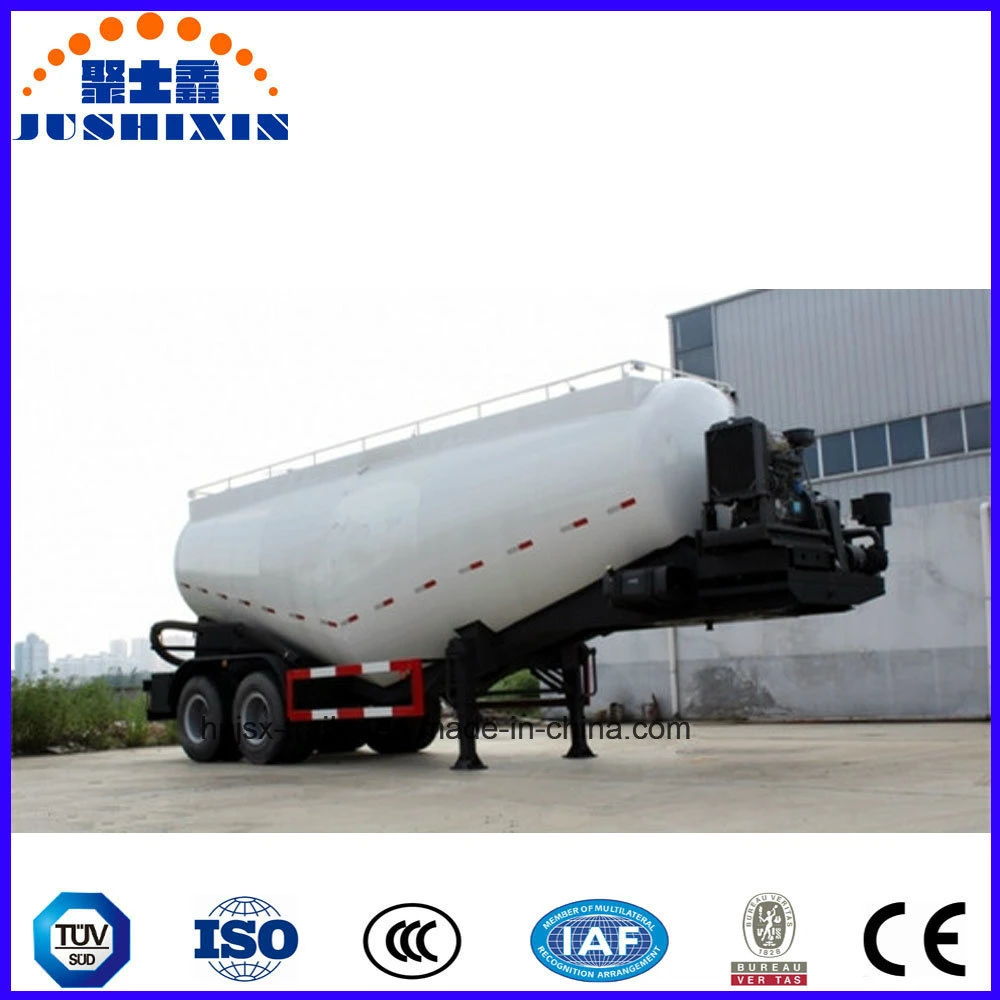

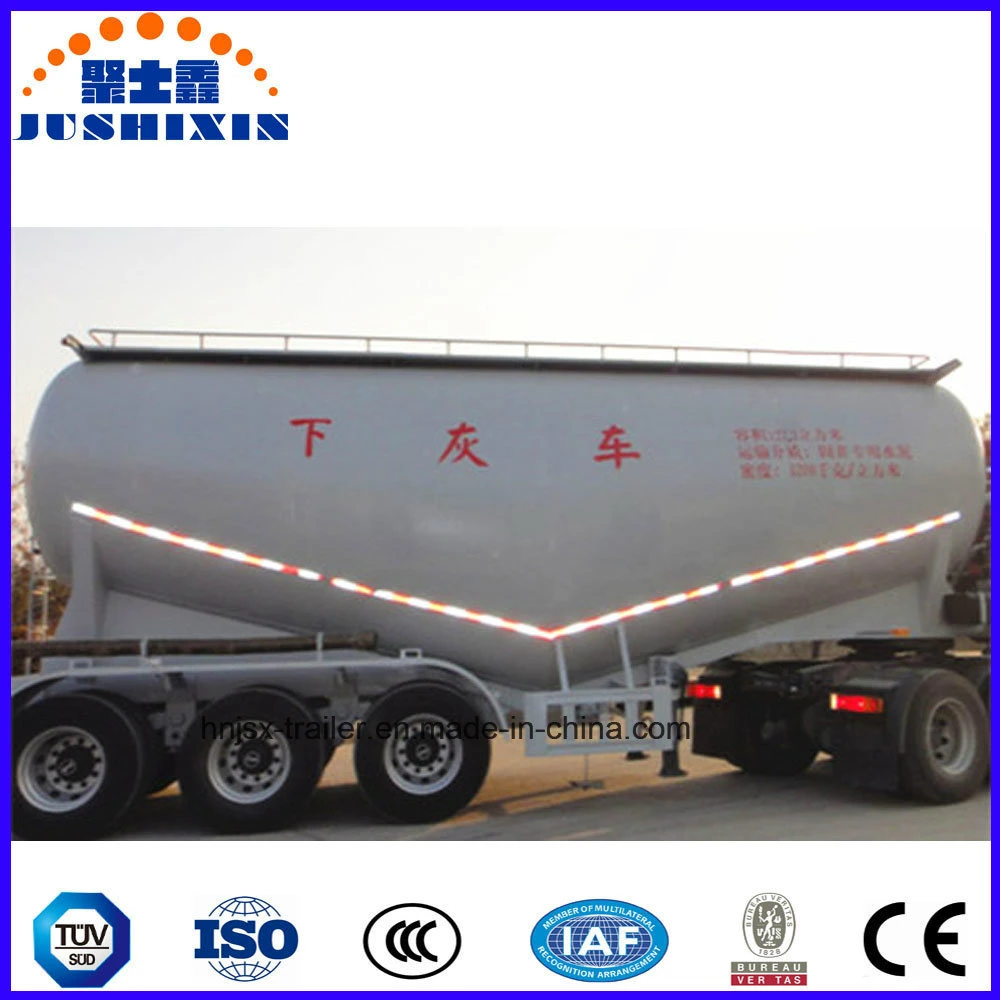

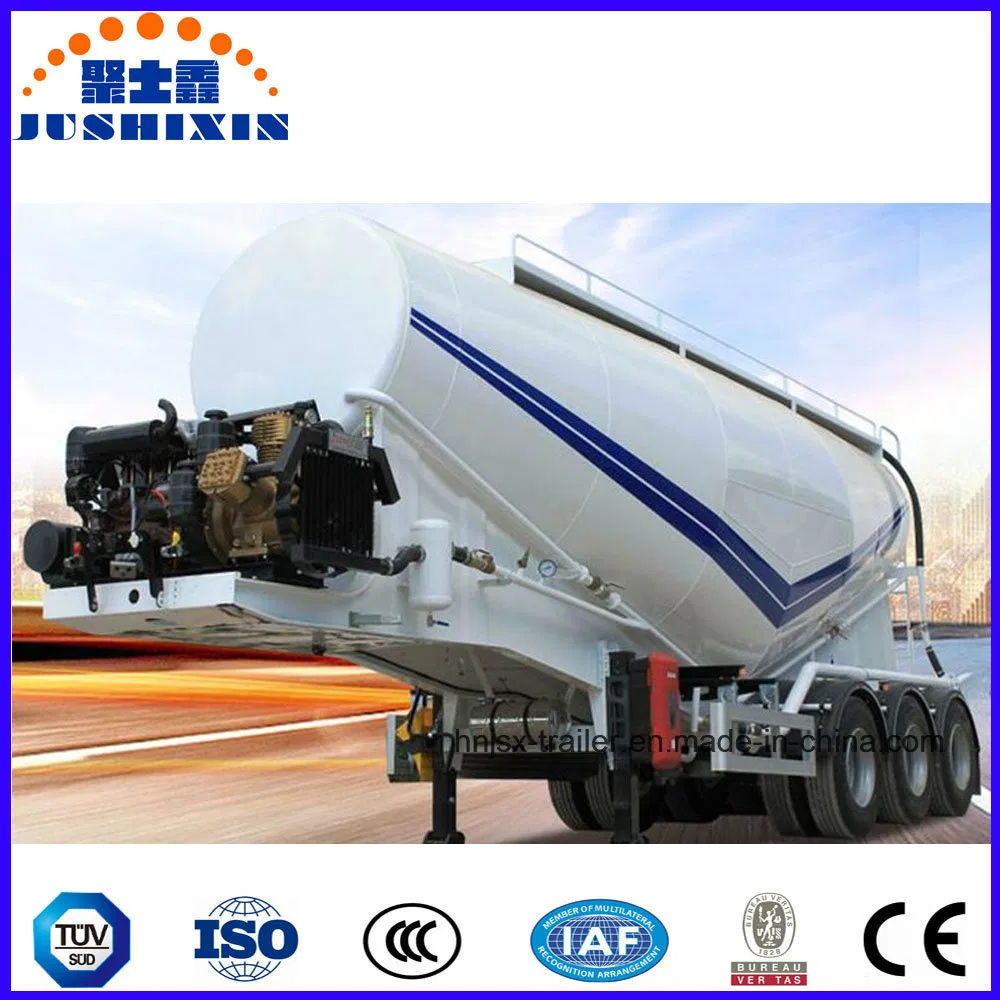

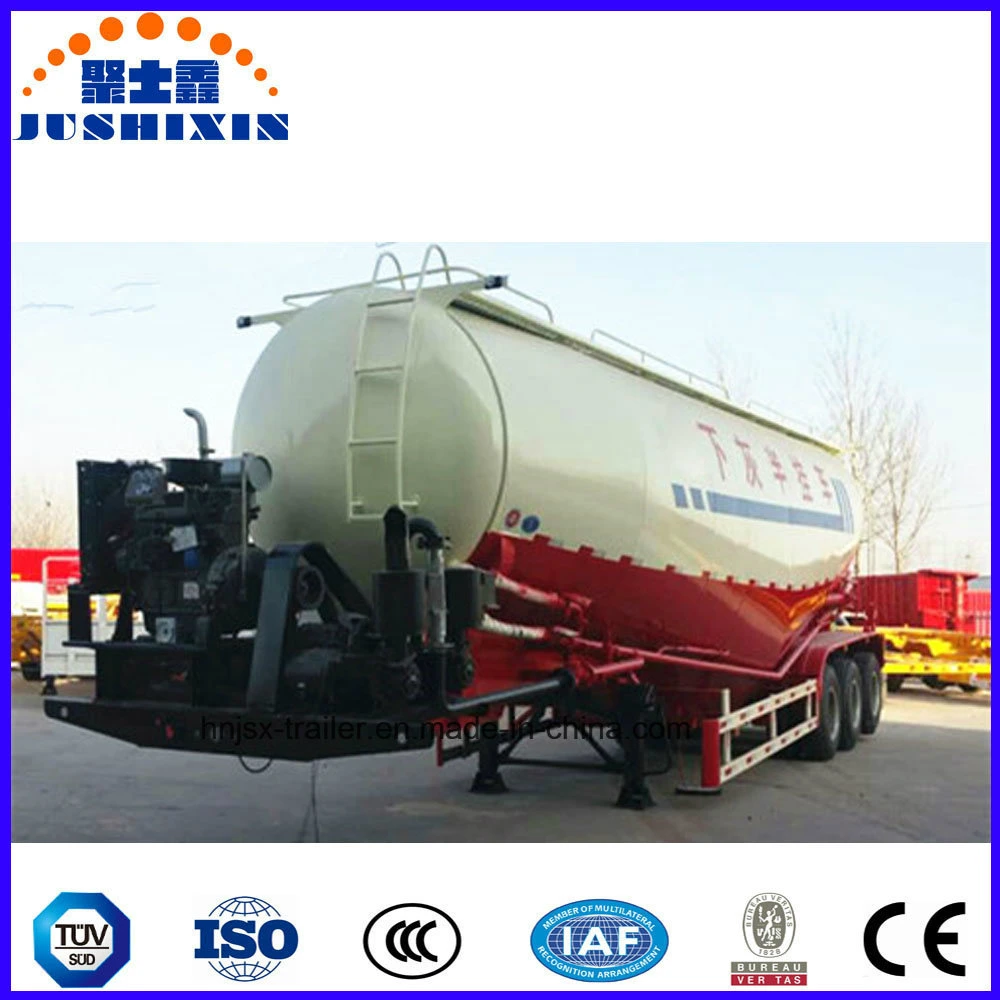

Manufacturing Cement Bulk Carriers for Sale
*** With well experienced semi trailer production company to offer high quality and competitive prices semi trailer to our worldwide valuable customers.
***An professional team which is experienced with international market has strong technical capability to customized cost effective.
***Sell well in the international markets, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market.
***2 years guarantee for all the beam of trailers, timely shipment

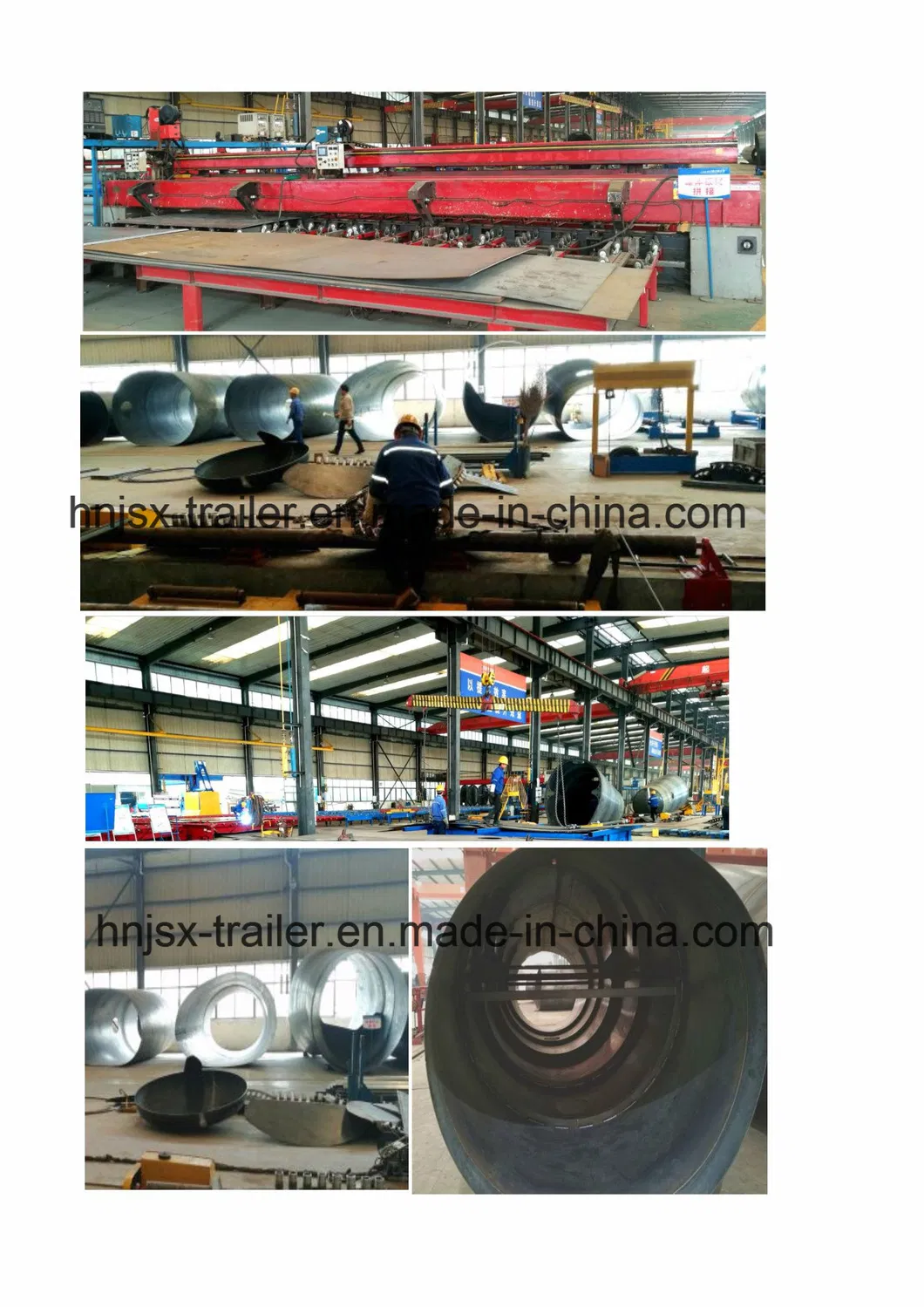

Cutting,Forming:

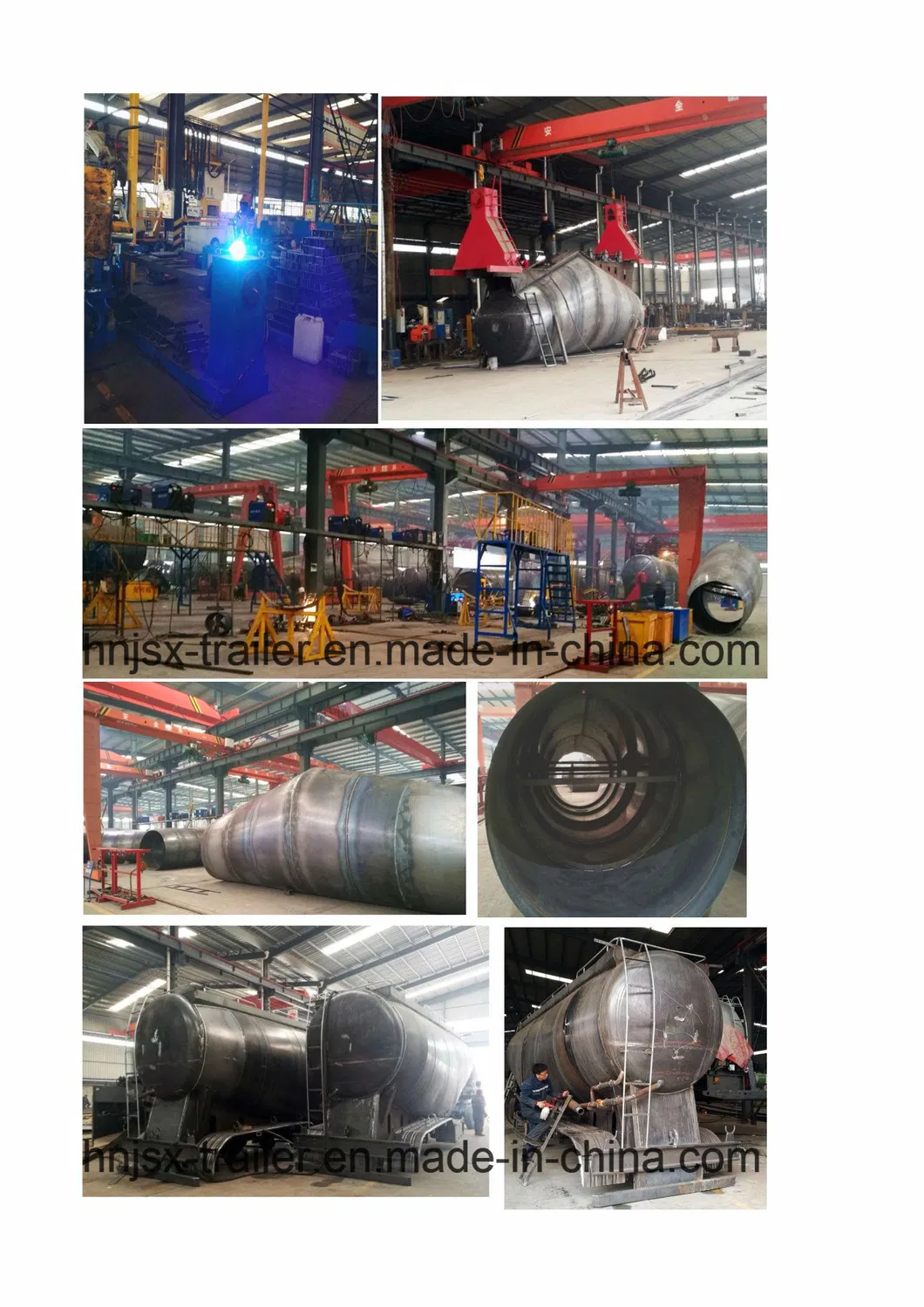

Welding:

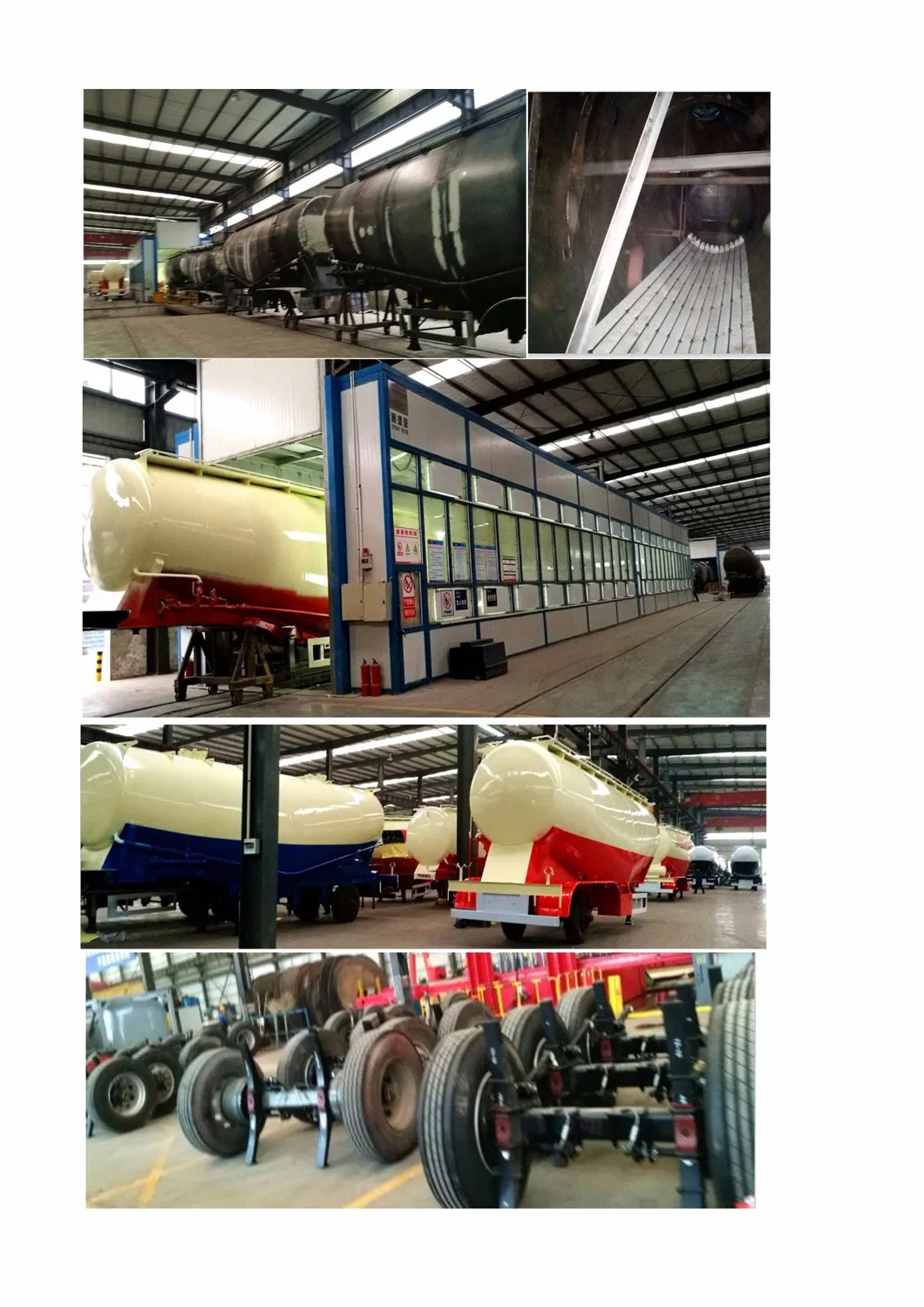

Polishing,Painting,Assembling:

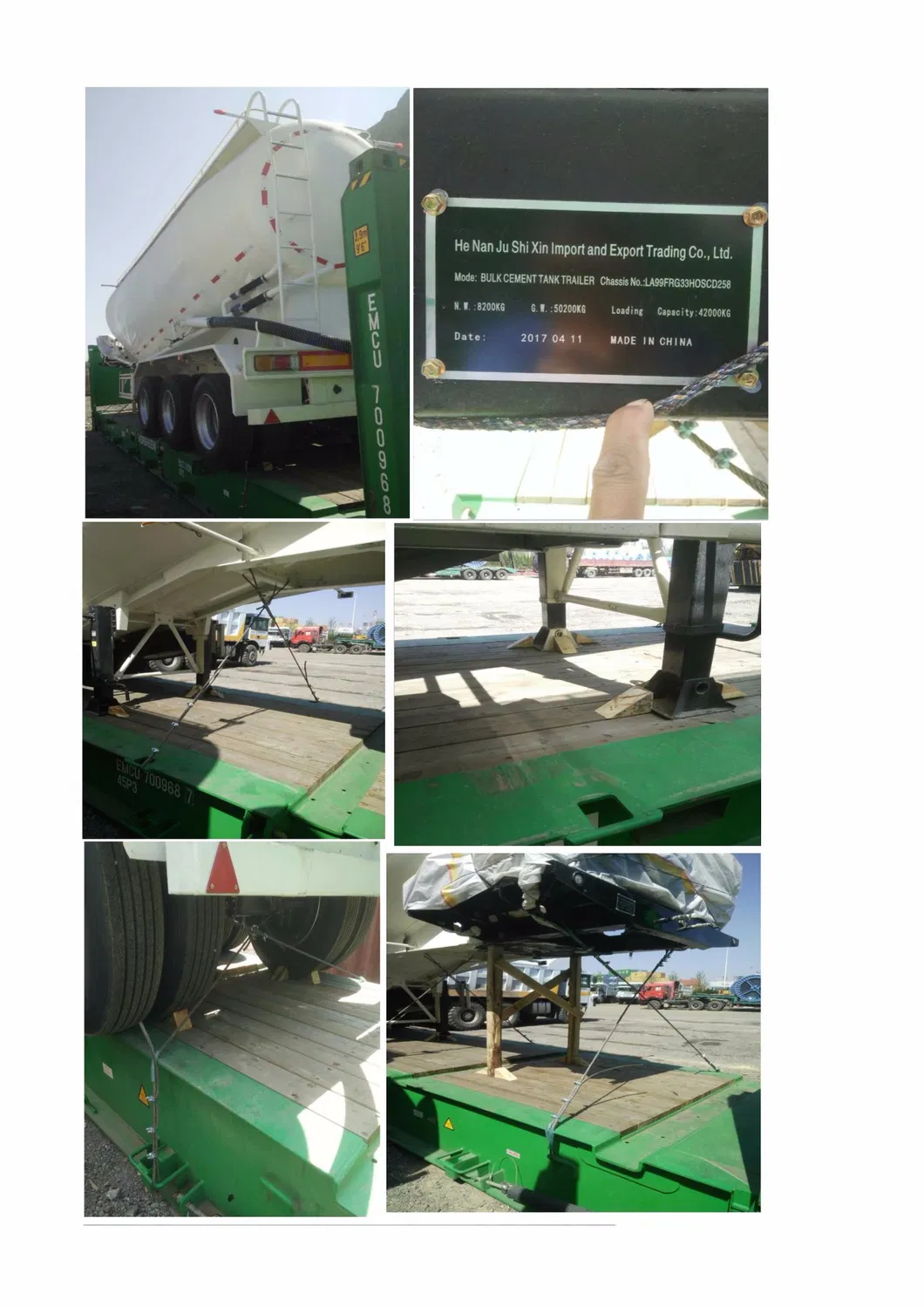

6.Ready to ship by the flat Rack:
7.Guarrantee for the parts of the tanker traielr:
8.Buying Guides
**You please send us your enquiry;
**We shall reply you with the quotation within 12 hours;
**We negotiate on the configuration that you need;
**Confirmation of the tech data → sign contract (P/I) → 30% deposit (or L/C issuing)→ production;
**Manufacturing process updated news → completing production;
**Balance payment → ex works → shipment → custom clearance → A/S service for 1 year.
1.The related Specification for Bulk Cement tanker semi trailer:
| Length: | 10,700mm | |||||
| Width: | 2,500mm | |||||
| Height: | 3,950mm | |||||
| (The above dimension will be adjusted according to the tractor specification.) | ||||||
| Weight: | ||||||
| Tare weight: | Approx. 9,800kg | |||||
| Frame & Structure: | ||||||
| Main beam: | Heavy duty and extra durability designed I beam;opting for high tensile steel Q345,welded by automatic submerged-Aac processes.Top flange 14mm;Middle Flange 8mm;bottom flange16mm. | |||||
| Kingpin: | 2'' JOST bolt-in king pin | |||||
| Welding standard: | All welding are to be done by qualified welder per applicable national standard | |||||
| Painting: | Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um | |||||
| Spray Wax | Anti-rust Wax Sprayed before Shipment | |||||
| Running gear: | ||||||
| Suspension: | Mechanical suspension 60#,Leaf spring 90x16mm 10 pcs | |||||
| Axle: | Axle 3pcs*13 ton Fuwa capacity, China | |||||
| Brake system: | RE6 relay valve ;T30/30 spring brake chamber;40L air tanks .24V | |||||
| Emergency relay valve: | WABCO relay valve | |||||
| Tire: | 12R22.5 Triangle TIRE 13pcs | |||||
| Rim: | 9.0-22.5, 13 pcs. China | |||||
| Landing gear: | JOST C200T | |||||
| Tank: | ||||||
| Tank Shape | V-type | |||||
| Thickness of the body | 5MM | |||||
| Thickness of the Cover | 6MM | |||||
| Air Compressor | Bohai 12CBM | |||||
| Power | Weichai 4102 | |||||
| Butterfly valve | 4inch | |||||
| Manhole | 3pcs of 500mm Diameter | |||||
| Length for the Discharge Hose | 6Meter 1pc | |||||
| Electrical System: | ||||||
| Voltage: | 24 Volt | |||||
| Receptacle: | 7 ways(7wire harness)and quick change type | |||||
| Front marker lamp: | White | |||||
| Side marker lamp: | White & Red | |||||
| Rear lamp: | Red | |||||
| Turn signal lamp: | Amber | |||||
| Reflector: | Per customer requirement | |||||
| Accessories: | ||||||
| Mud guard: | Assembled | |||||
| Spare wheel carriers: | 1 pc | |||||
| Tool box: | 1 piece | |||||
| Tools for trailer | Head wrech ;spare wheel crank ; one fire extinguisher; Operation Manual | |||||
2.Optional parts for the tanker semi trailer:
Axle quantity: 2 axle 3 axle 4 axle
Axle brand: FUWA / BPW and so on, 12ton, 13ton, 16ton, 18ton, 20ton.
Volume: 10 cube meters to 70 cube meters
Suspension: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
3.Product Characteristic
***Cement bulker tank trailer is used to transport bulk powder such as cement, flyash, and other powder which is smaller than 1mm.
***The cement bulker trailer is able to delivery more cement by one trip, and save packaging cost for the user.

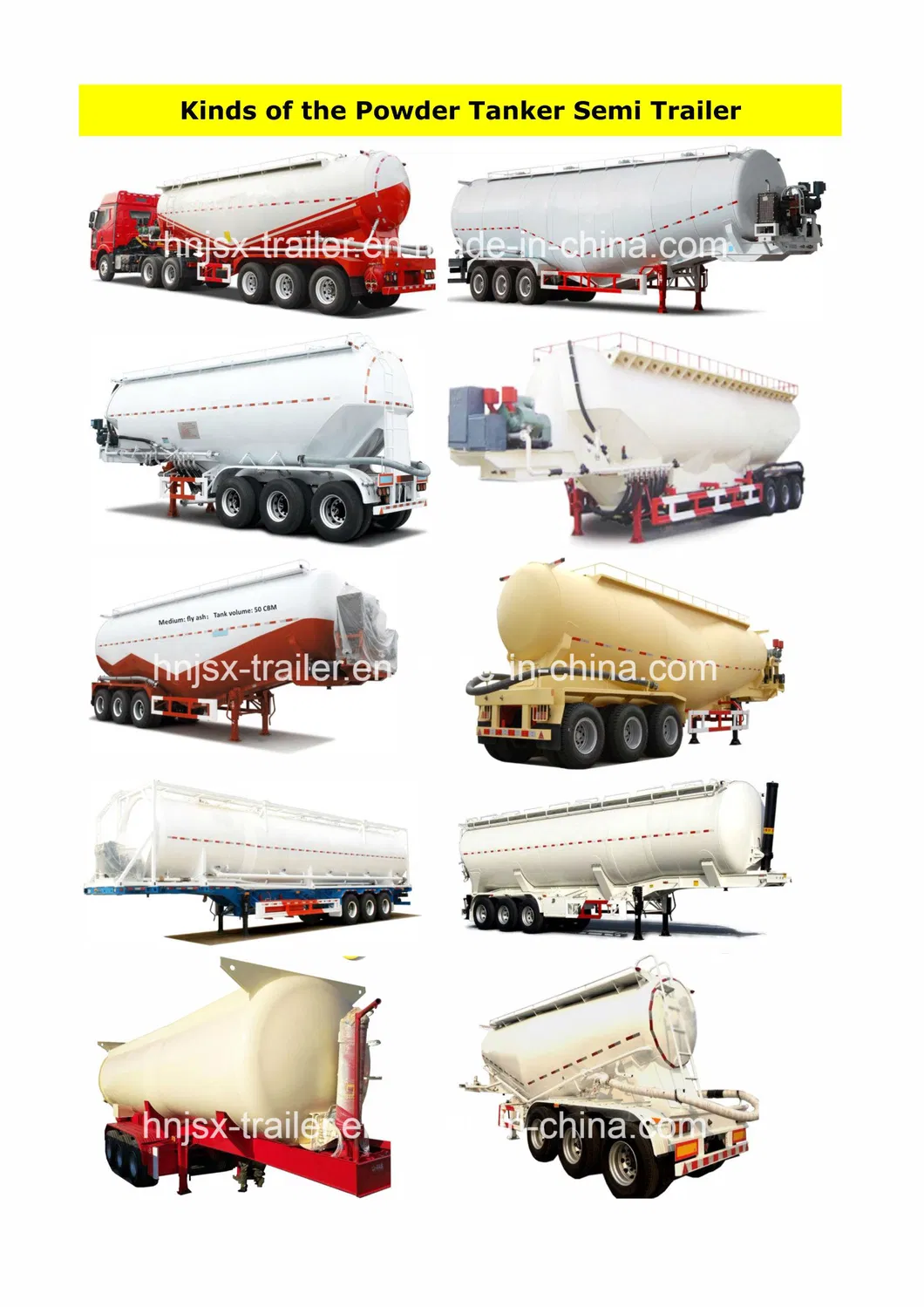

4.More styles for the powder tanker trailer:
*** With well experienced semi trailer production company to offer high quality and competitive prices semi trailer to our worldwide valuable customers.
***An professional team which is experienced with international market has strong technical capability to customized cost effective.
***Sell well in the international markets, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market.
***2 years guarantee for all the beam of trailers, timely shipment
Cutting,Forming:
Welding:
Polishing,Painting,Assembling:
6.Ready to ship by the flat Rack:
7.Guarrantee for the parts of the tanker traielr:
| ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
| MAIN FRAME | FRAME | 1 YEAR | RUNNING GEAR | AXLE | 6 MONTHS | |
| SUSPENSION | 6 MONTHS | AXLE BEARING | 3 MONTHS | |||
| KING PIN | 1 YEAR | WHEEL HUB | 3 MONTHS | |||
| BALANCE ARM | 3 MONTHS | TIRE | 6 MONTHS | |||
| ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
| BRAKING DEVICE | BRAKE DRUM | 3 MONTHS | SUPPORT DEVICE | LANDING GEAR | 6 MONTHS | |
| BRKE CHAMBER | 3 MONTHS | SPARE WHEEL CARRIER | 6 MONTHS | |||
| AIR RESERVOIR | 6 MONTHS | |||||
| ITEM NAME | WARRANTY | |||||
| OTHERS | LEAF SPRING | 3 MONTHS | ||||
| BRAKE CHAMBER DIAPHRAGM | 3 MONTHS | |||||
| EMERGENCY RELAY VALVE | 3 MONTHS | |||||
| BRAKE SHOE | 3 MONTHS | |||||
| RELAY VALVE | 3 MONTHS | |||||
**You please send us your enquiry;
**We shall reply you with the quotation within 12 hours;
**We negotiate on the configuration that you need;
**Confirmation of the tech data → sign contract (P/I) → 30% deposit (or L/C issuing)→ production;
**Manufacturing process updated news → completing production;
**Balance payment → ex works → shipment → custom clearance → A/S service for 1 year.
