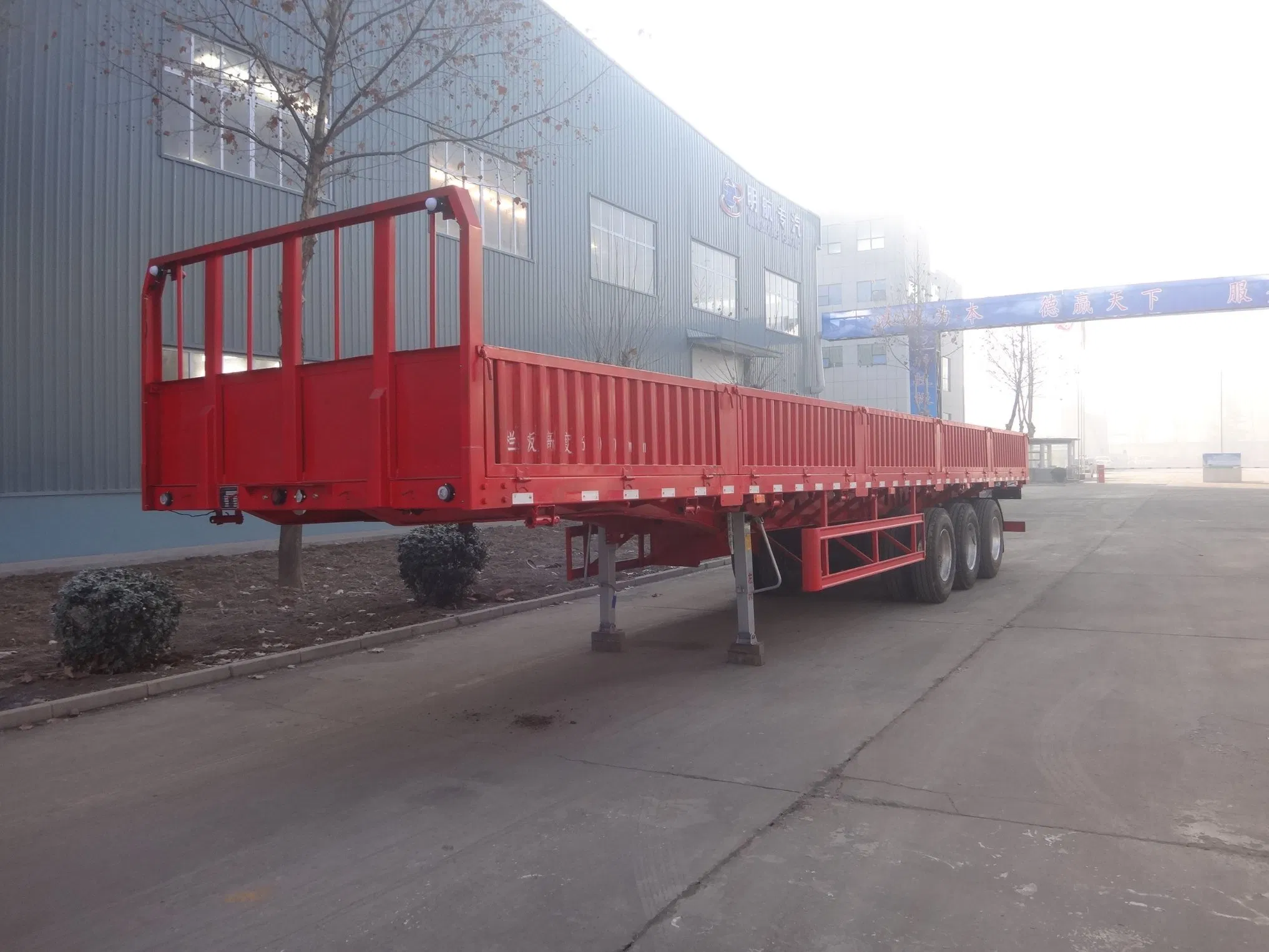

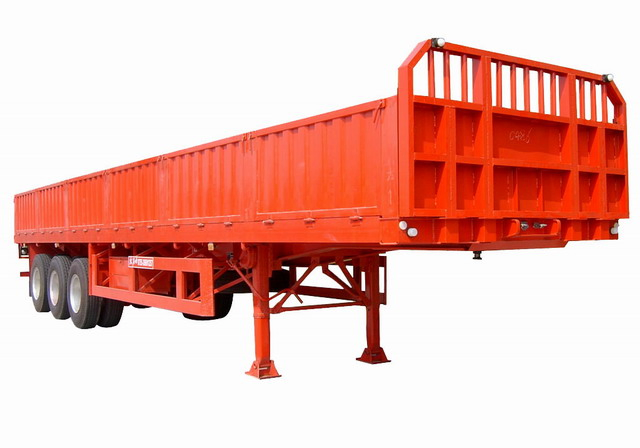

Jupiter Brand 40FT 3-Axle Dropside Semi Trailer with Fuwa Axle
SPECIFICATION40FT tri-axle Dropside/Side Wall semi trailerFeature: Carry 1X20FT,1X40FT,or 2X20FT container;Carry Bulk cargoDimension(L*W*H):12400*2500*2300mmThe Height of Wall800mmMain frame:Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded......
Send Inquiry
Product Description
SPECIFICATION
| 40FT tri-axle Dropside/Side Wall semi trailer | ||
| Feature: | Carry 1X20FT,1X40FT,or 2X20FT container; Carry Bulk cargo | |
| Dimension(L*W*H): | 12400*2500*2300mm | |
| The Height of Wall | 800mm | |
| Main frame: | Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process | |
| Model: | JS9402TJZW | JS9400TJZW |
| No. of axle: | 3 | 2 |
| Payload(kgs): | 50000 | 40000 |
| Tare weight(kgs): | 8200 | 7300 |
| Kingpin: | The world-famous JOST brand bolt-in/welded type 3.5"/2" | |
| Landing gear: | JOST brand two-speed manual operation 19" | |
| Tire size: | 11.00R20,11R22.5,12R22.5,315/80R22.5,385/65R22.5 | |
| Rim size: | 8.25*22.5,9.00*22.5,11.75*22.5 | |
| Axle: | Original BPW-12T/ FUWA-13T | |
| Suspension | Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension | |
| Brake system: | Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank | |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable | |
| Container locks | 12(for 1x20GP,2X20GP,1X40HQ) | |
| Painting: | S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting | |
| Accessory: | One tool box; one set of standard tool | |
| We can build the trailers according to customer's design and requirement | ||
