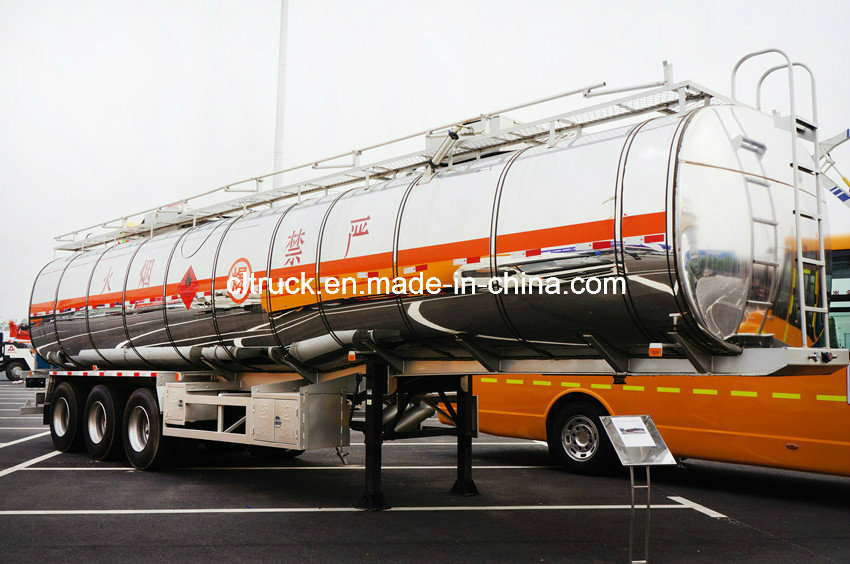

High Quality Plastic-Lined Trailer Chemical Liquid Semi Trailer
HIGH quality plastic-lined trailer Chemical liquid semi trailerFeatures:1, Axle: 3 pieces, BPW 13ton. FUWA or L1 brand is optional.2, Suspension: German design heavy mechanical suspension or air bag.3&co......
Send Inquiry
Product Description
HIGH quality plastic-lined trailer Chemical liquid semi trailer
Features:
1, Axle: 3 pieces, BPW 13ton. FUWA or L1 brand is optional.
2, Suspension: German design heavy mechanical suspension or air bag.
3,Aluminum alloy fuel tank trailer: 40000 liters, 42000 liters, 44000 liters, 46000 liters, 48000liters, can be divided to several compartments as your requirement.
4, API Manhole, discharge valve, safty valve.
5, Europe standard bottom loading system.
6, SASO DOT ISO ADR standard for Saudi Arabia .
Any needed please contact with me directly :+8618858011948
Company Information
Chengli Special Automobile Co, ltd which is appointed by Ministry of Industry and Information Technology of China, We are a Professional manufacturer and exporter which is concerned with the design, development and production of more than 300 kinds of trucks.
Our company cooperates with famous chassis manufactureer, such as DONGFENG, FAW,SINOTRUK, JAC, SHACMAN, FOTON and etc.
Chengli Special automobile Co., Ltd also provide products as follows:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck,sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
China Manufactured Chemical tanker Trailer Good Quality Chemical trailer low Price Chemical tanker
EXPORT
Chengli take customer's satisfaction as the top requirement. All of the trucks and semi-trailer sell to Africa, South-east Aisa, Australia, Middle-east and other place.They mainly from below country:Angola,Algeria,Kenya,Nigeria,Rwanda,Sudan,Zambia,Libya,Congo, Indonesia, Malaysia, Philippines,Vietnam,Turkey,Yemen,Syria.
PACKAGING & SHIPPING
1, Naked or waxed .
2, Delivery time: 30 days after official order.
3. By RORO or Bulk ship.
Service
The extremely considerate and sincerely service would be provided to our customers immediately . This including:
1.Operator Training;
2.Spare Parts Supply.
3.Life-long Technical-support.
FAQ
Q:What is your payment term?
A:We accept payment by T/T,L/C.
Q :How many trucks do you sell in 1 year?
A :Almost 20000-30000sets
Q:Is your factory a manufacturer or trading company?
A:we are the manufacturer , we are the biggest special trucks factory in china special truck base.
Q:Where is your factory located,can we visit your factory?
A: Our factory is located in South Suburb Chengli Auto-mobile Industry Park,suizhou city,Hubei Province,China,nearby Wuhan airport,we sincerely welcome you to visit!
Contact Information
Sale Manager: Yuki
Tel/Fax: 0086-27-83796298
Mobile :+008613872880232
+008618858011948
HIGH quality plastic-lined trailer Chemical liquid semi trailer
Welcome to visit our Factory!
Features:
1, Axle: 3 pieces, BPW 13ton. FUWA or L1 brand is optional.
2, Suspension: German design heavy mechanical suspension or air bag.
3,Aluminum alloy fuel tank trailer: 40000 liters, 42000 liters, 44000 liters, 46000 liters, 48000liters, can be divided to several compartments as your requirement.
4, API Manhole, discharge valve, safty valve.
5, Europe standard bottom loading system.
6, SASO DOT ISO ADR standard for Saudi Arabia .
Any needed please contact with me directly :+8618858011948
Main Technical Parameter | |||
Product name | 3 axle chemical liquid trailer 40cbm 35ton trailer for chemical liquid | Overall Dimension(LxWxH)(mm) | 11000x2500x3600 |
Tank Volume(cbm) | 40 cbm | Tank Dimension(mm) | / |
Gross weight (kg) | 45000 | Approach/ departure angle (° ) | -/18 |
Payload(kg) | 34800 | Front/ rear suspension(mm) | -/1500 |
Curb weight(kg) | 10200 | Leaf Spring number: | -/8/8,-/10/10 |
Axle number | 3 | Front/Rear axle load(Kg) | -/24000 (three axles combined) |
Wheelbase(mm) | 5700+1310+1310 | Rear tread(mm) | -/1840 |
Tire size | 11.00R20 12.00R20 | Tire No: | 12 pieces with a spare tire |
Warranty | one year for three key parts, from the date of supply. | ||
Remarks | 1.Traveling mechanism:13T FUWA axle | ||
2.tank inner lining plastic, tank thickness is 6mm carbon steel | |||
3.The distance from the floor to rear protective is 540mm, protect material: Q235 carbon steel. With ABS | |||
4.This semi trailer truck mainly used in transport Ethylene, etc corrosive liquid | |||
Company Information
Chengli Special Automobile Co, ltd which is appointed by Ministry of Industry and Information Technology of China, We are a Professional manufacturer and exporter which is concerned with the design, development and production of more than 300 kinds of trucks.
Our company cooperates with famous chassis manufactureer, such as DONGFENG, FAW,SINOTRUK, JAC, SHACMAN, FOTON and etc.
Chengli Special automobile Co., Ltd also provide products as follows:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck,sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
China Manufactured Chemical tanker Trailer Good Quality Chemical trailer low Price Chemical tanker
EXPORT
Chengli take customer's satisfaction as the top requirement. All of the trucks and semi-trailer sell to Africa, South-east Aisa, Australia, Middle-east and other place.They mainly from below country:Angola,Algeria,Kenya,Nigeria,Rwanda,Sudan,Zambia,Libya,Congo, Indonesia, Malaysia, Philippines,Vietnam,Turkey,Yemen,Syria.
PACKAGING & SHIPPING
1, Naked or waxed .
2, Delivery time: 30 days after official order.
3. By RORO or Bulk ship.
Service
The extremely considerate and sincerely service would be provided to our customers immediately . This including:
1.Operator Training;
2.Spare Parts Supply.
3.Life-long Technical-support.
FAQ
Q:What is your payment term?
A:We accept payment by T/T,L/C.
Q :How many trucks do you sell in 1 year?
A :Almost 20000-30000sets
Q:Is your factory a manufacturer or trading company?
A:we are the manufacturer , we are the biggest special trucks factory in china special truck base.
Q:Where is your factory located,can we visit your factory?
A: Our factory is located in South Suburb Chengli Auto-mobile Industry Park,suizhou city,Hubei Province,China,nearby Wuhan airport,we sincerely welcome you to visit!
Contact Information
Sale Manager: Yuki
Tel/Fax: 0086-27-83796298
Mobile :+008613872880232
+008618858011948
HIGH quality plastic-lined trailer Chemical liquid semi trailer
Welcome to visit our Factory!
