Heavy Duty 3 Axle 40FT Semi-Trailer/Semitrailer/Semi Trailer with Container Lock
Heavy Duty 3 Axle 40FT Semi-Trailer/Semitrailer/Semi Trailer with Container LockTrailer show:Introduction of production processA.Steel auto cuttingB.Main beam auto submerged arc weldingC.Chassis reversalD.Shot blasting for rust cleaningE,F.Welding by experienced workerG.Final cleaning welding slag ......
Send Inquiry
Product Description
Heavy Duty 3 Axle 40FT Semi-Trailer/Semitrailer/Semi Trailer with Container Lock

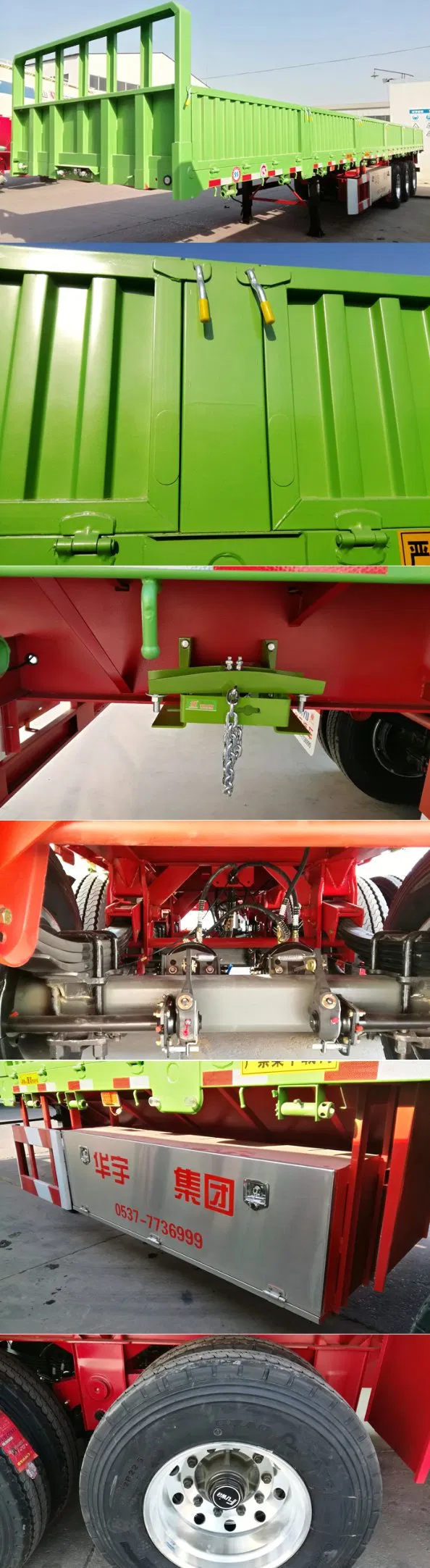

Trailer show:

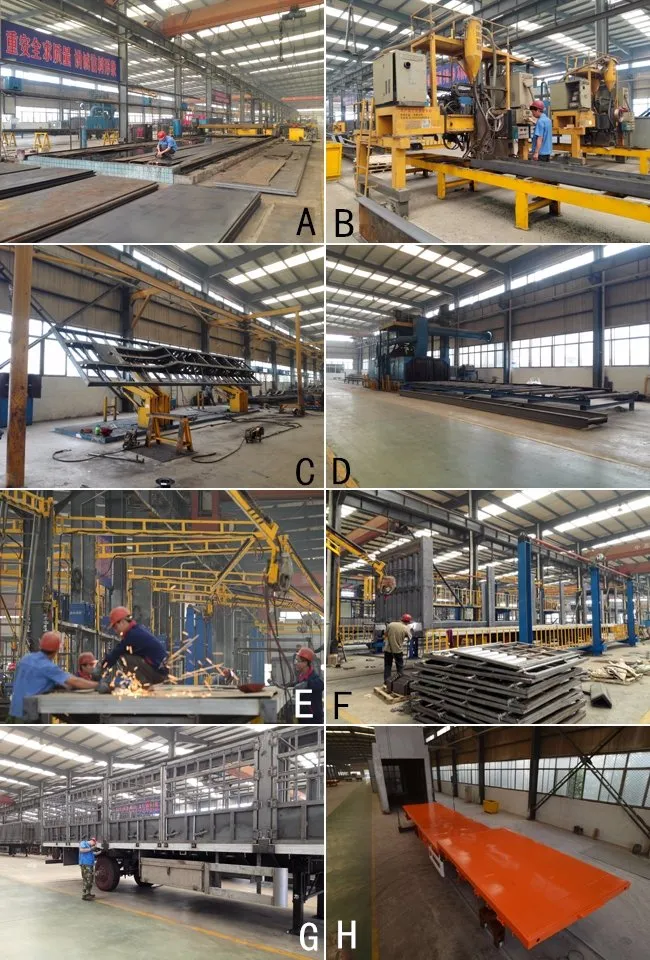

Introduction of production process
A.Steel auto cutting
B.Main beam auto submerged arc welding
C.Chassis reversal
D.Shot blasting for rust cleaning
E,F.Welding by experienced worker
G.Final cleaning welding slag by worker
H.Dust-free painting
Specifacition
Trailer advantages description
· More than 20 years professional design and production experience.
· Choose Regular manufacturers purchase materials,like Q235 baoshan.
· Use Domestic first-class production equipment.Main beam is useing Submerged arc welding process.
· Famouse brand trailer parts used,like bpw/fuwa axle,triangle/double star/double coin and so on tires.
· Strict quality control system ensure that each semi trailer is qualified.
Delivery
Wax spray and one stack of 3 sets to reduce shipping fee.
Take apart by one 40HQ to load 2 sets

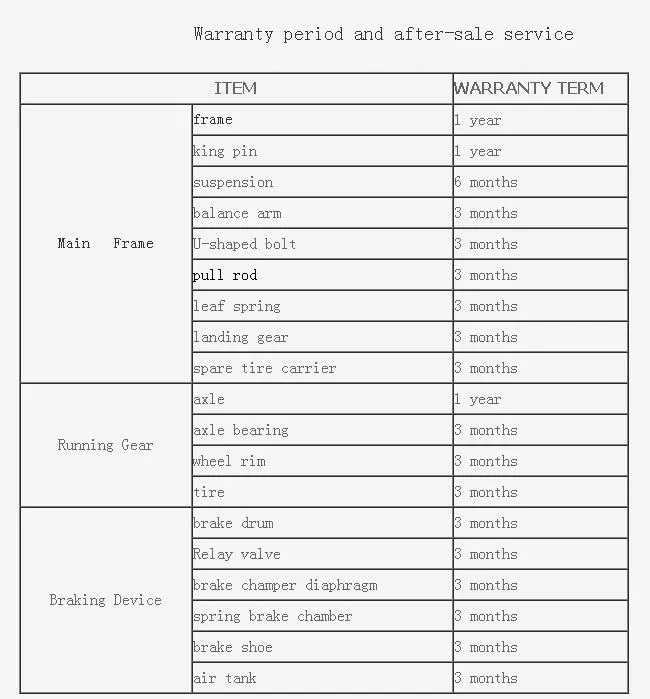

Warranty period and after sale service
FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2. 40% contract value as the deposit by T/T,60% contract value made by irrevocable L / C at sight.
Trailer show:
Introduction of production process
A.Steel auto cutting
B.Main beam auto submerged arc welding
C.Chassis reversal
D.Shot blasting for rust cleaning
E,F.Welding by experienced worker
G.Final cleaning welding slag by worker
H.Dust-free painting
Specifacition
| Tare weight | 7000kg |
| Size | 12500mm*2500mm*1500mm |
| Payload | 50T |
| Main beam | Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm |
| Side beam | 16#/18# channel steel(Q235) |
| Cross member | 10#/w shape channel steel(Q235) |
| Floor | 3mm checkered plate |
| Side wall | height 600mm thickness 1.5-2.5mm |
| Front board | 1500mm |
| Axle | 3 axle FUWA brand 13T |
| Suspension | American type suspension |
| Leaf spring | 10pcs*13mm*90mm |
| Tire | 12R22.5 double star brand 13pcs |
| Wheel rim | 9.0-22.5 jingu brand 13pcs |
| Kingpin | 2" bolt-in king pin |
| Landing gear | two-speed, manual operating ,heavy duty landing gear 28T |
| Twist lock | Optional |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | Optional |
| Light | LED 8 side lights and 2 rear lights 2 width lamp |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Accessories | One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light |
| Date of delivery | 20 workdays after we received 30% of contract value T/T down payment. |
Trailer advantages description
· More than 20 years professional design and production experience.
· Choose Regular manufacturers purchase materials,like Q235 baoshan.
· Use Domestic first-class production equipment.Main beam is useing Submerged arc welding process.
· Famouse brand trailer parts used,like bpw/fuwa axle,triangle/double star/double coin and so on tires.
· Strict quality control system ensure that each semi trailer is qualified.

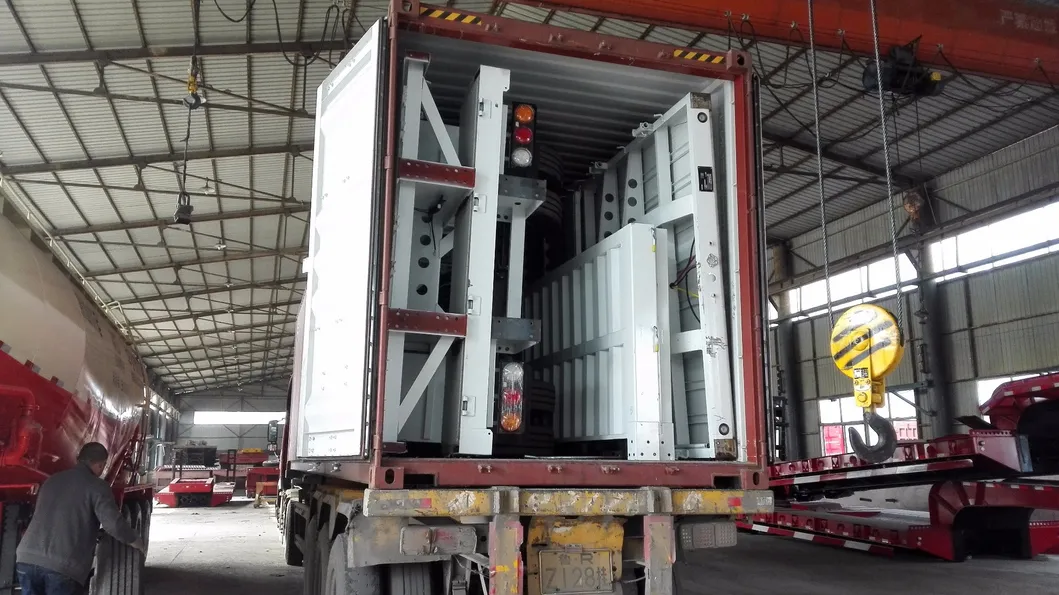

Delivery

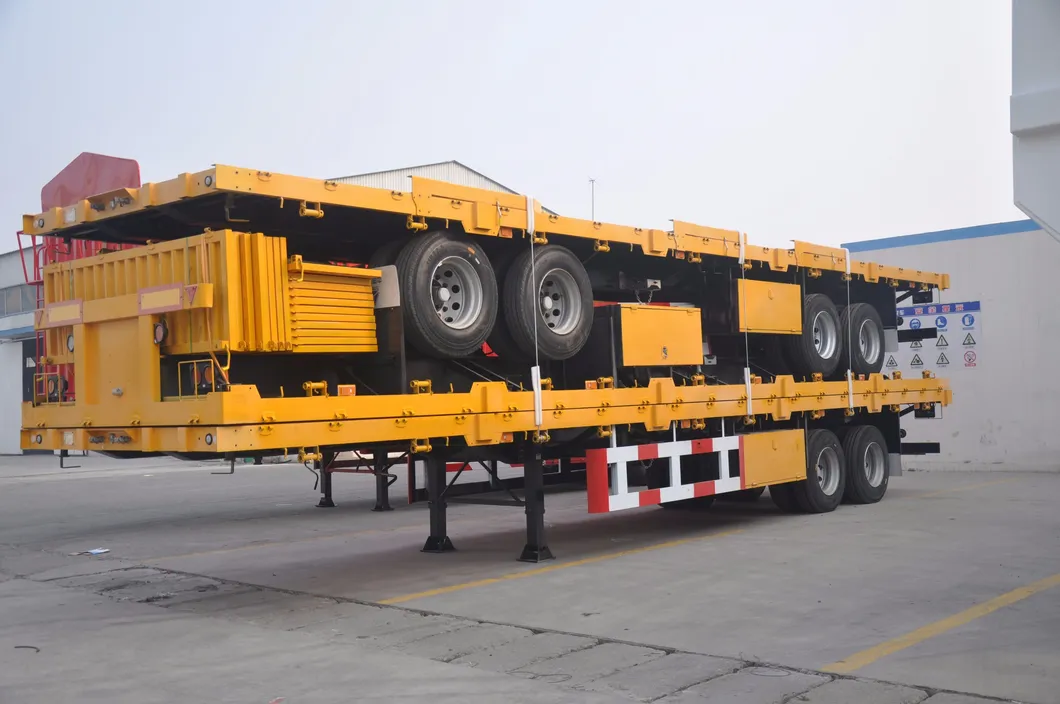

Wax spray and one stack of 3 sets to reduce shipping fee.
Take apart by one 40HQ to load 2 sets
Warranty period and after sale service
FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2. 40% contract value as the deposit by T/T,60% contract value made by irrevocable L / C at sight.
Welcome your inquiry and visit our factory.
