China 3 Axle 35cbm Export Semi Cement Tank Trailer

Product Description

China 3 Axle 35cbm Export Semi Cement Tank Trailer

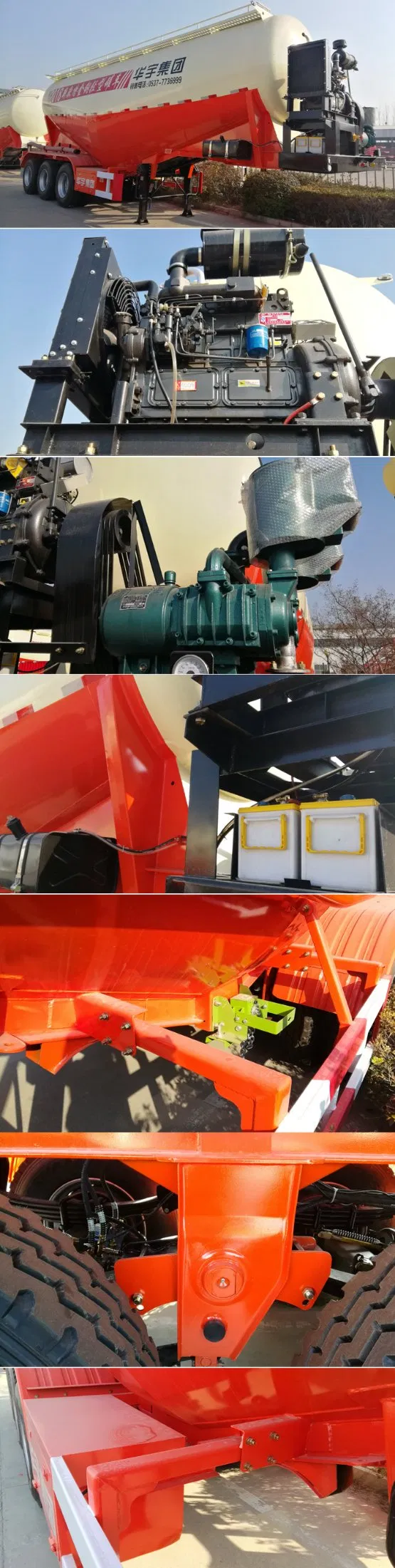

Trailer Details show:
China 3 Axle 35cbm Export Semi Cement Tank Trailer

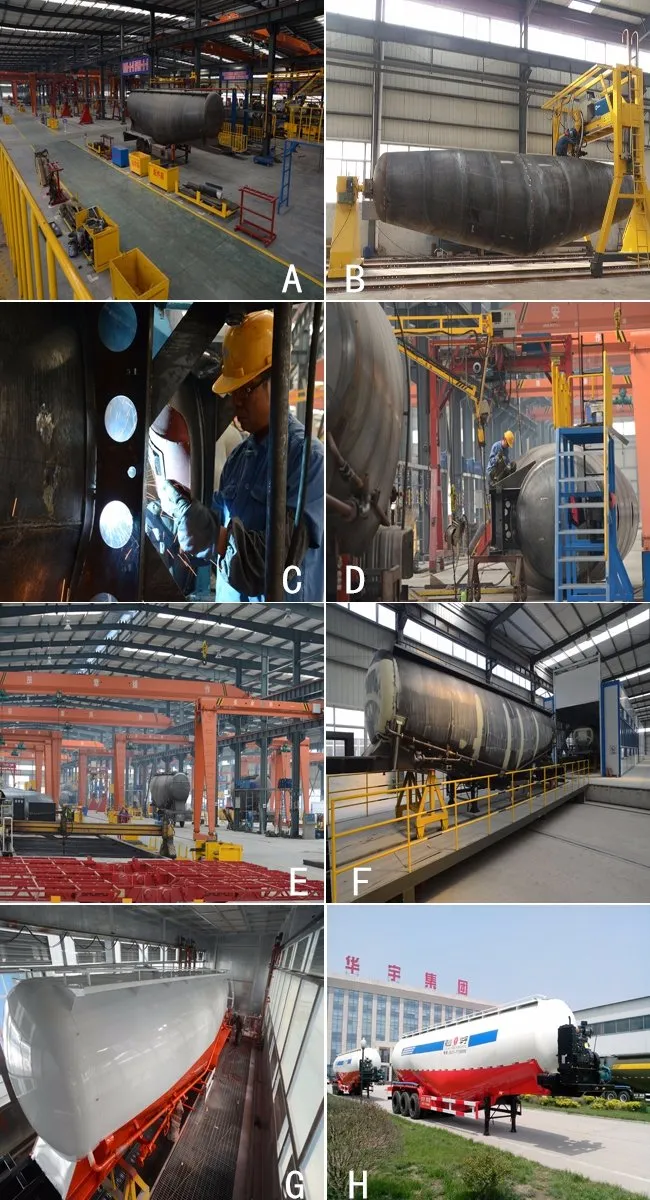

Introduction of production process
A.Tanker workshop overview
B,Tanker body auto welding
C,D.Chassis welding by experienced worker
E.Production line
F.Shot blasting for rust cleaning
G.Dust-free painting
H.Finished trailer
China 3 Axle 35cbm Export Semi Cement Tank Trailer

Specifacition

Tare weight	9000kg
Size	10000mm2500mm4000mm
Volume	35M3
Tank body	Q235A/5mm steel sheet
End plate	Q235A/6mm .ball shape
Axle	3 axle FUWA brand 13T
Suspension	Mechanical suspension American type local brand
Leaf spring	Leaf spring 10pcs9013mm
Manhole cover	500mm manhole cover .2 sets
Tire	12R22.5 double star brand 12pcs
Wheel rim	9.0-22.5 better brand 12pcs
Discharge valve	4"disc valve
Discharge pipe	4"seamless steel tube
Outlet pipe	4"rubber hose.6m
Kingpin	JOST brand 2" bolt-in king pin
Landing gear	JOST brand two-speed, manual operating ,heavy duty landing gear 24T
Engine	Diesel engine: weichai brand model: 4102.
Air compressor	37 KW, 0.2Mpa. 1000r/Min
Compartment	Single
Braking system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS	Optional
Light	LED 8 side lights and 2 rear lights 2 width lamp
Air-charging system	2"main hole.2"check valve .1.5"safe valve.0.4Mpa.gauge
Quadratic blow	1" diameter check valve
Painting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
Accessories	One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light
Date of delivery	20 workdays after we received 30% of contract value T/T down payment.

Trailer advantages description
·More than 20 years professional design and production experience.
·Choose Regular manufacturers purchase materials,like Q235 baoshan.
·Use Domestic first-class production equipment.
·Famouse brand trailer parts used,like bpw/fuwa axle,triangle/double star/double coin and so on tires,Air pressure test for each tanker.
·Strict quality control system ensure that each semi trailer is qualified.

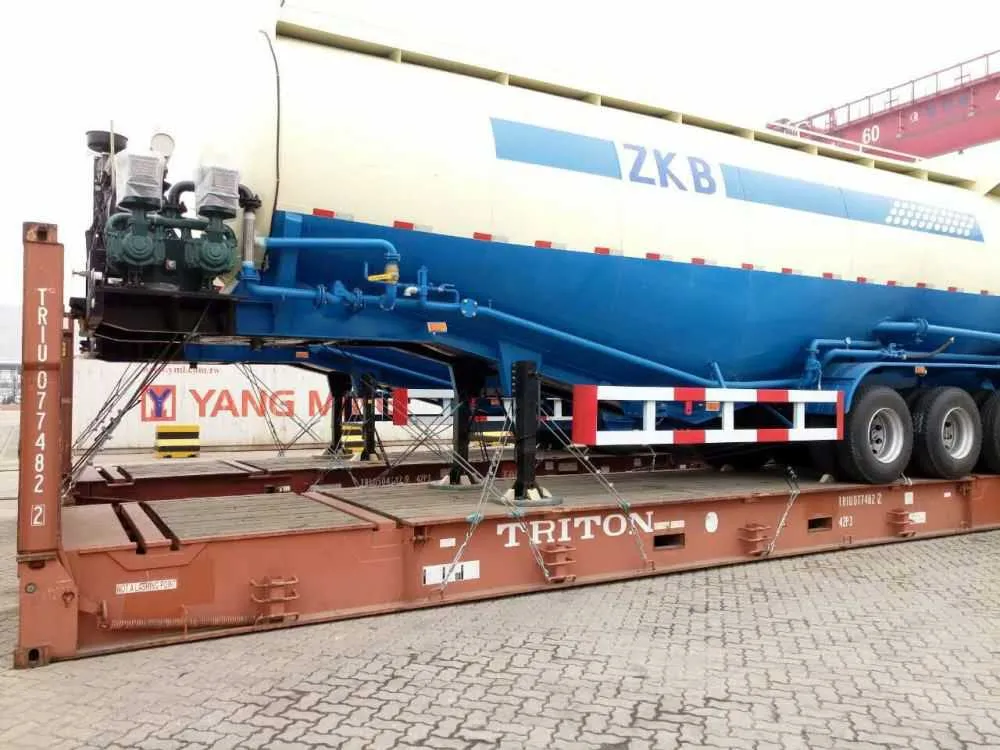

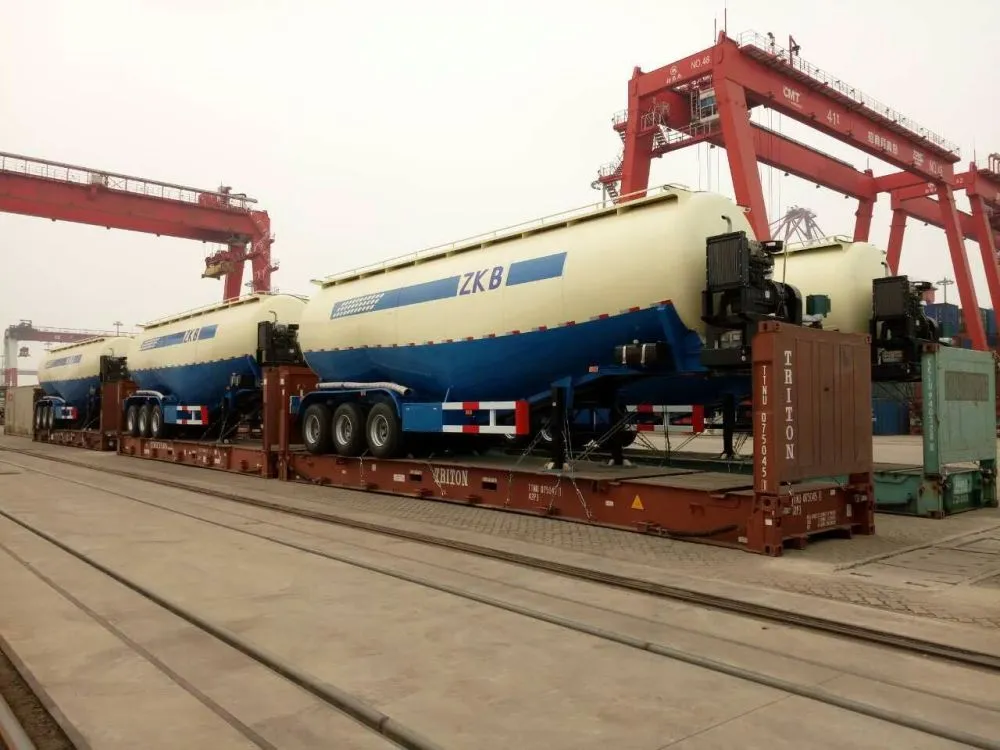

Delivery
Wax spray by frame container

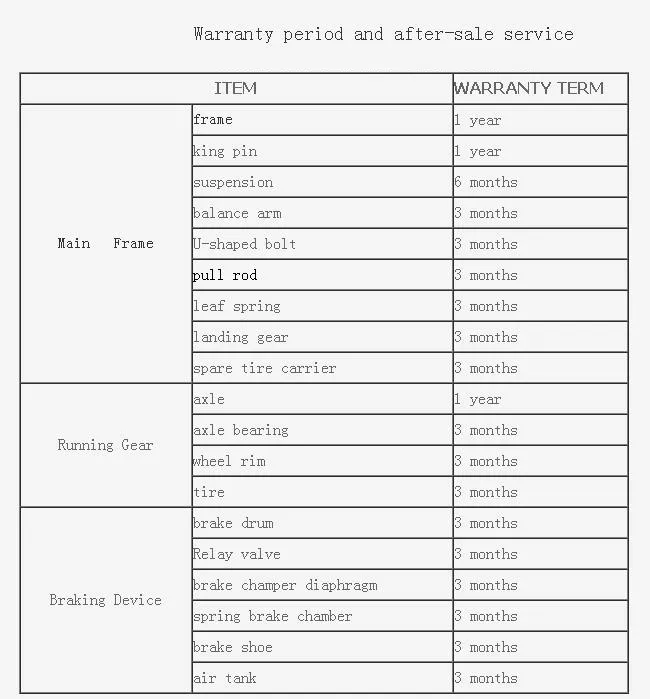

Warranty period and after sale service
China 3 Axle 35cbm Export Semi Cement Tank Trailer

FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:1.30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish. 2.40% contract value as the deposit by T/T,60% contract value made by irrevocable L / C at sight.
