China 12 Wheeler Enclosed Box Cargo Fence Semi Trailer
Product descriptionschina 12 wheeler enclosed box cargo fence semi trailerTrailer Model3 Axle Livestock TrailersPayload45,000kgDimension12500mm*2520mm*1600mmBasket & ladderBasket at the top,access ladder fixed at the side foreasy access to basketSide wallsUnits: 5 on each sideTotal height:1200mm......
Send Inquiry
Product Description
Product descriptions
china 12 wheeler enclosed box cargo fence semi trailer
china 12 wheeler enclosed box cargo fence semi trailer
| Trailer Model | 3 Axle Livestock Trailers | |
| Payload | 45,000kg | |
| Dimension | 12500mm*2520mm*1600mm | |
| Basket & ladder | Basket at the top,access ladder fixed at the side for easy access to basket | |
| Side walls | Units: 5 on each side Total height:1200mm,thereof 800mm made from corrugated steel in 3mm thickness plus 400mm steel skeleton extension | |
| Each side wall foldable and detachable with 3 hinges and 4 quick-locks. Each side 4 reinforced middlestanchions, removable. Chain between Each sidewall pair | ||
| Running gear/Spring | Leaf spring suspension | |
| Wheels and Tyres | 1200R20, 12pcs, Triangle brand | |
| Thickness(mm) | Bottom: 3mm, Side: 2mm | |
| Wheelbase(mm) | 6260+1310+1310 | |
| The Material of Main beam | The height of the beam is 450/500 mm, upper plate is 14mm, down plate is 16mm,middle plate is 8mm. Q345B manganese plates, automatic submerged arc welded | |
| Side Beam | 16mm channel steel ( Material is Q235steel ) | |
| Platform plate | 3mm chequered steel plate | |
| Traction Pin | 2'' or 3.5'', additional second mounting position | |
| Rear Wall | Height:1200mm therof 800mm made from corrugated steel in 3mm thickness plus 400mm steel skeleton extension,4+2 quick-locks, rear wall foldable and detachable. upper skeleton opengs to the right side. | |
Securing Winches And Hooks | On right side:2 winches and 3 hooks On left side:3 winches and 2 hooks | |
Landing Gear | Standard 28ton, single speed one | |
| Brake System | Dual Line braking system, none ABS. Air vessle volume 80litre. Parking brake as spring brake | |
| Brake Air Chamber | Two double and two single chamber | |
| Side Guard | Steel sheet mudguards with rubber mud flaps | |
| Standard Accessories | 1 portable ladder fixed under the semi trailer | |

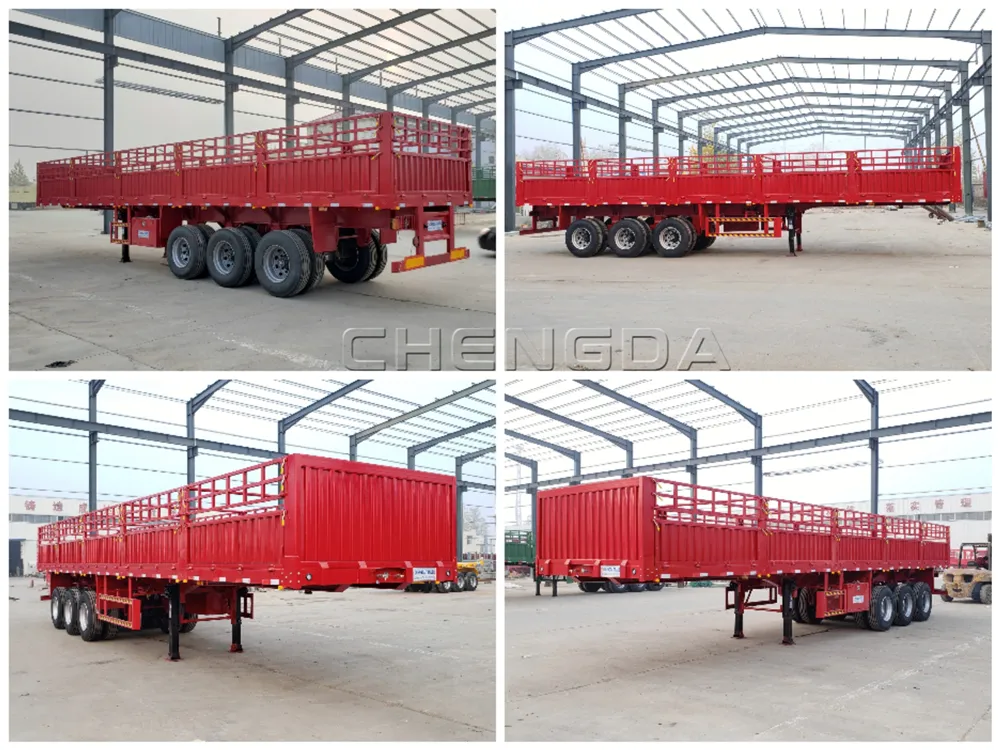

More views
Detail images
Packaging & Shipping :
Export record

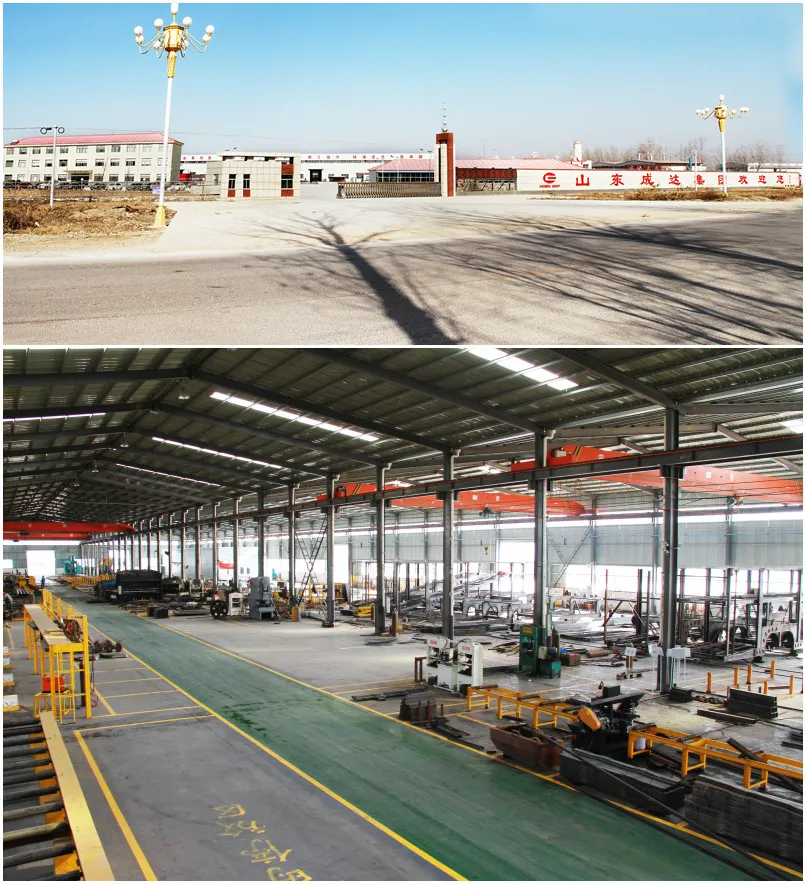

Company profile
Verificate
Customer visiting
FAQ:
1. Q: Are you a manufacturer or trading company?
A: We are trailer manufacturer.
2. Q: What's you delivery time?
A:25-30days after advance deposit.
3.Q:What payment do you accept?
A: we accept T/T and L/C at most ;other payment is negotiable
4.Q:What is warranty time?
A:Main frame,one year; vulnerable parts, three month; other parts,half year.
5.Q:What's your after sale service?
A:We provide technical support for our products and whole life parts supply.
Welcome you and your friends to visit our factory at any time !!!
