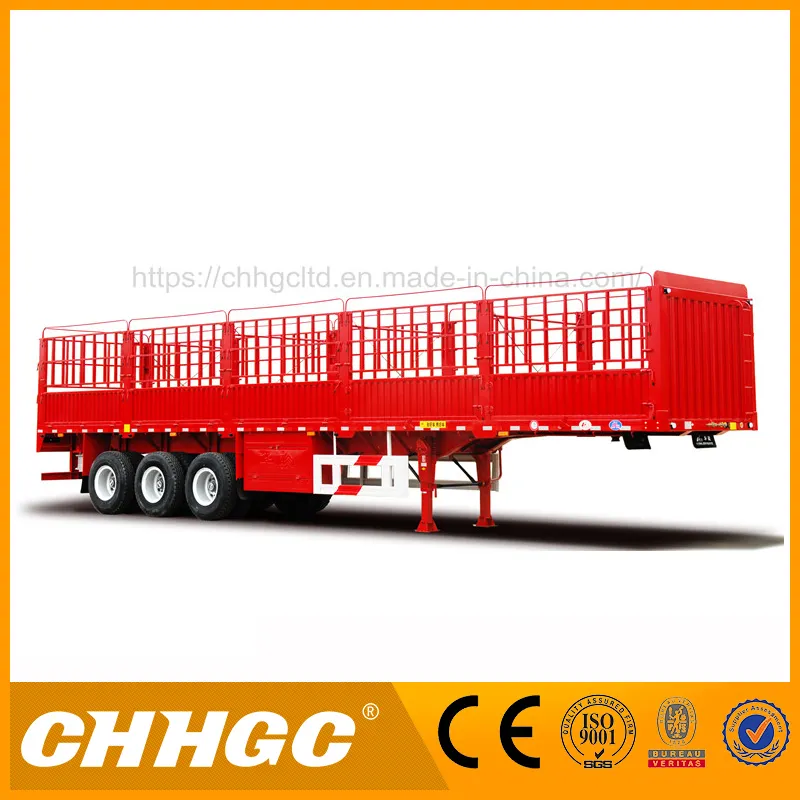

Chhgc Van-Type Truck Cargo Semi-Trailer
Chhgc Van-Type Truck Cargo Semi-TrailerProduct DescriptionItem No.HHZ9402XXYHJDBatch254BrandCHHGCTypeVan semi trailerRated weight31500Total Weight(kg)40000Curb weight(kg)8500Axles' Quantity3Axle base(mm)8030+1310+1310,8530+1310+1310Axle load24000(3 axles installed side by side)Q'ty of the st......
Send Inquiry
Product Description

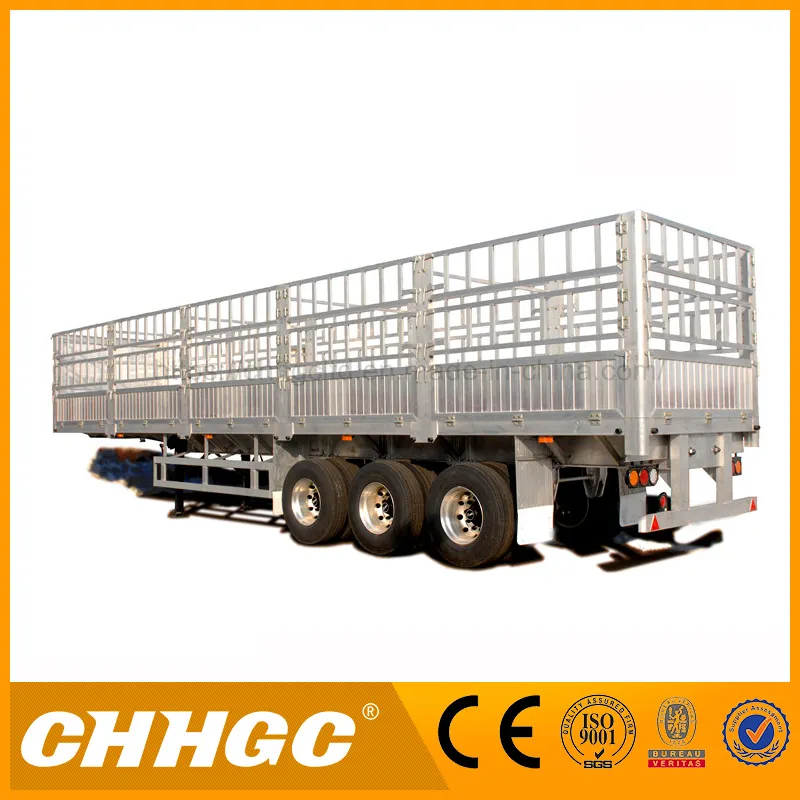

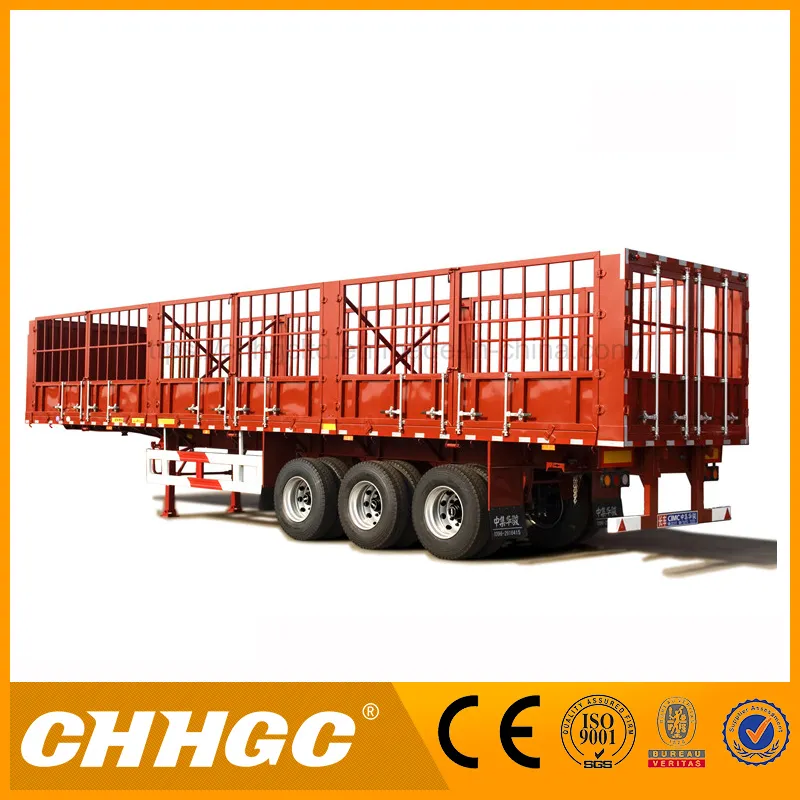

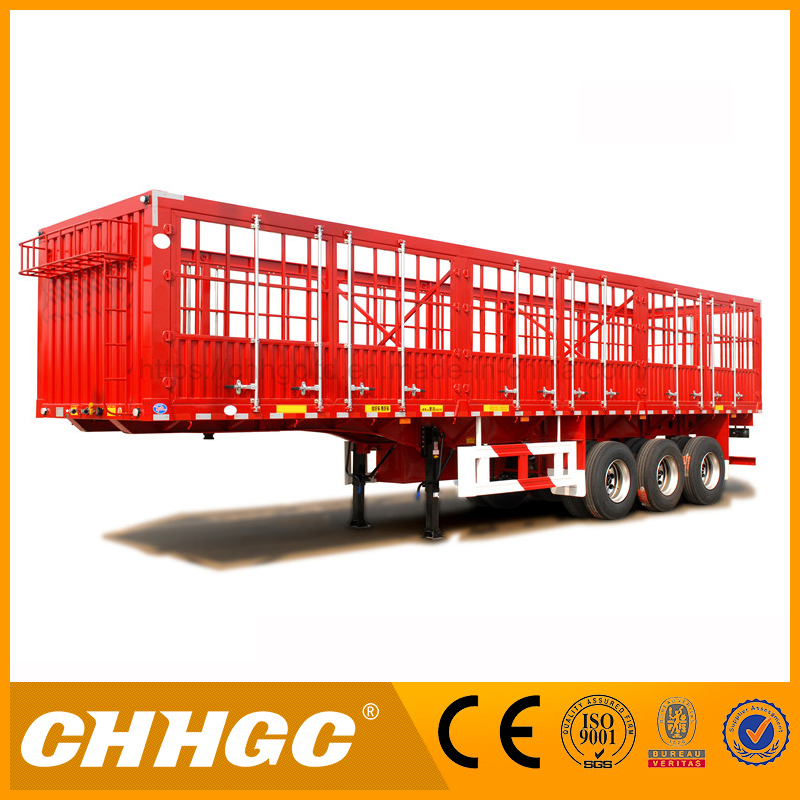

Chhgc Van-Type Truck Cargo Semi-Trailer
Product Description
| Item No. | HHZ9402XXYHJD | Batch | 254 |
| Brand | CHHGC | Type | Van semi trailer |
| Rated weight | 31500 | Total Weight(kg) | 40000 |
| Curb weight(kg) | 8500 | Axles' Quantity | 3 |
| Axle base(mm) | 8030+1310+1310,8530+1310+1310 | Axle load | 24000(3 axles installed side by side) |
| Q'ty of the steel plate spring | -/10/10/10,-/4/4/4,-/-/-/- | Tyre Quantity | 12 |
| Tyre size | 11.00R20 12PR,12R22.5 12PR | Approach/Departure angle | -/16 |
| Front/rear suspension(mm) | -/2550 | Wheel base(mm) | 1820/1820/1820,1840/1840/1840 |
| Overall length | 14600 | Overall wide | 2550 |
| Overall height | 3350/3550/3750/3950 | Van length | 14440 |
| Van wide | 2450/2400 | Van height | 1800/2000/2200/2400 |
| Max loading of the saddle | 16000 | ||
| Configuration tables | |||
| ******************************************************************************************************************************** | |||
| Light coal semi trailer | Standard coal semi trailer | Heavy coal semi trailer | |
| Height of longitudinal beam | 500 | 500 | 500 |
| Thickness of | 810 | 14/14 | 16/20 |
| upper/lower wing plates | |||
| Longitudinal beam web | 85 | 86 | δ5 |
| specification of side beam | 14# profile steel | 16# profile steel | 20# light channel steel |
| Thickness of baseplate(flat-bed) | high strengh steel δ1.5 | δ3 | δ4 |
| Specification of throughout beam | W-shaped throughout beam | Rectangular tube | 14# light channel steel |
| Door operation mode | seven or five hinged doors | 13m seven hinged door | four hinged doors |
| 11m five hinged door | |||
| Specification and number of tookit | one 1 m tookit | one 1 m tookit | one 2.5m toolkit |
| specification of leaf spring | 4*10 plate type I | 10-plate type II | 12-plate type II |
| diameter of balance arm pin | 500mm | 50mm | 75mm |

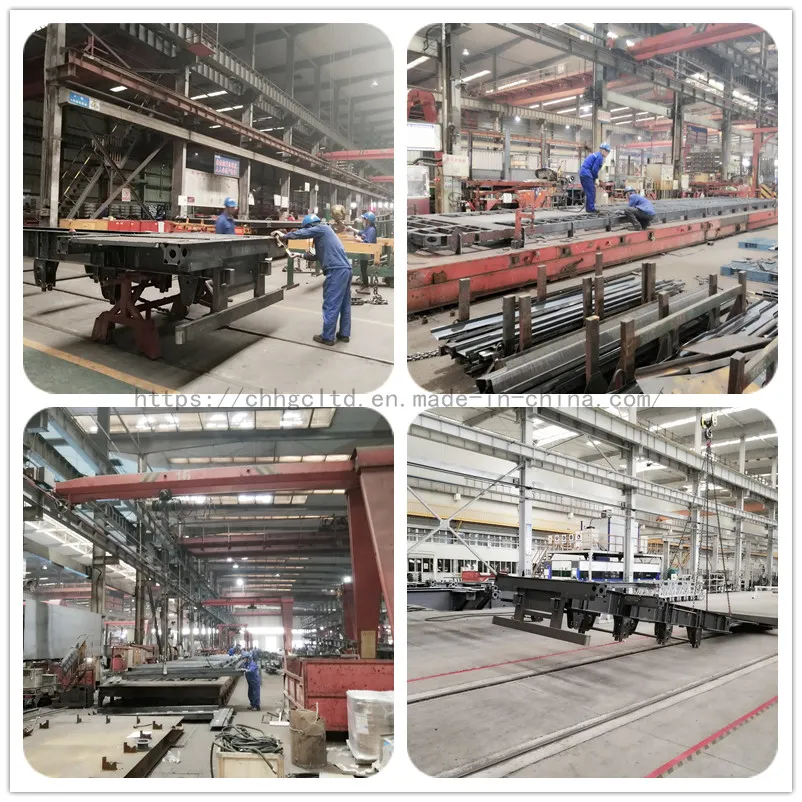

Workshop
Business Partners
FAQ:

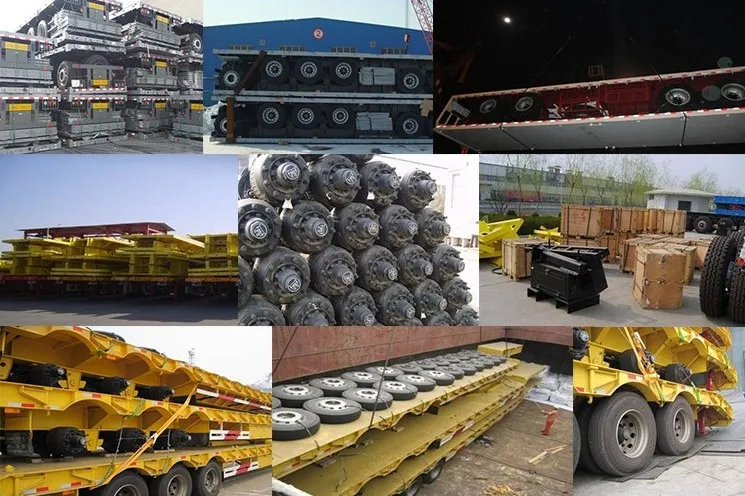

Q1. How to ship the vehicles?
A: By container, bulk ship, RORO.
Q2. Do you have RHD(right hand driving) vehicles?
A: Yes, noramlly we supply all LHD vehicles, and we have some RHD model vehicles.
Q3. What is your payment term?
A: We usually accept T/T or L/C depends on the quantity.
T/T, deposit in advance, and balance paid before delivery from factory.
Q4. Which model vehicles do you supply?
A: We supply all kinds of vehicles such as SUV, MPV, Pickup,van,truck, bus etc,.
Q5. What is your terms of delivery?
A: FOB, CIF.
Q6. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: What can you guarantee to your business partner?
A: Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
