3axle 4 Axles 5 Compartments 30cbm -70cbm Diesel Fuel Oil Fuel Tanker Truck Trailer

Product Description

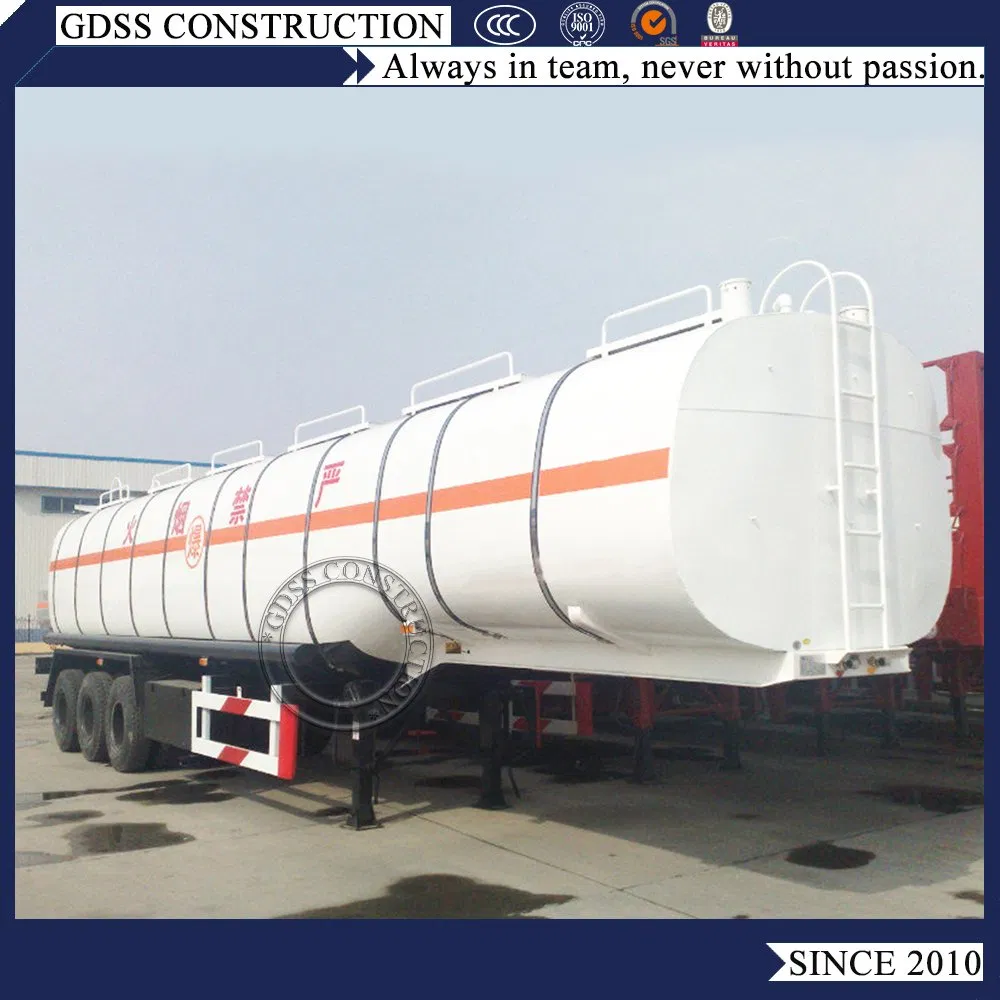

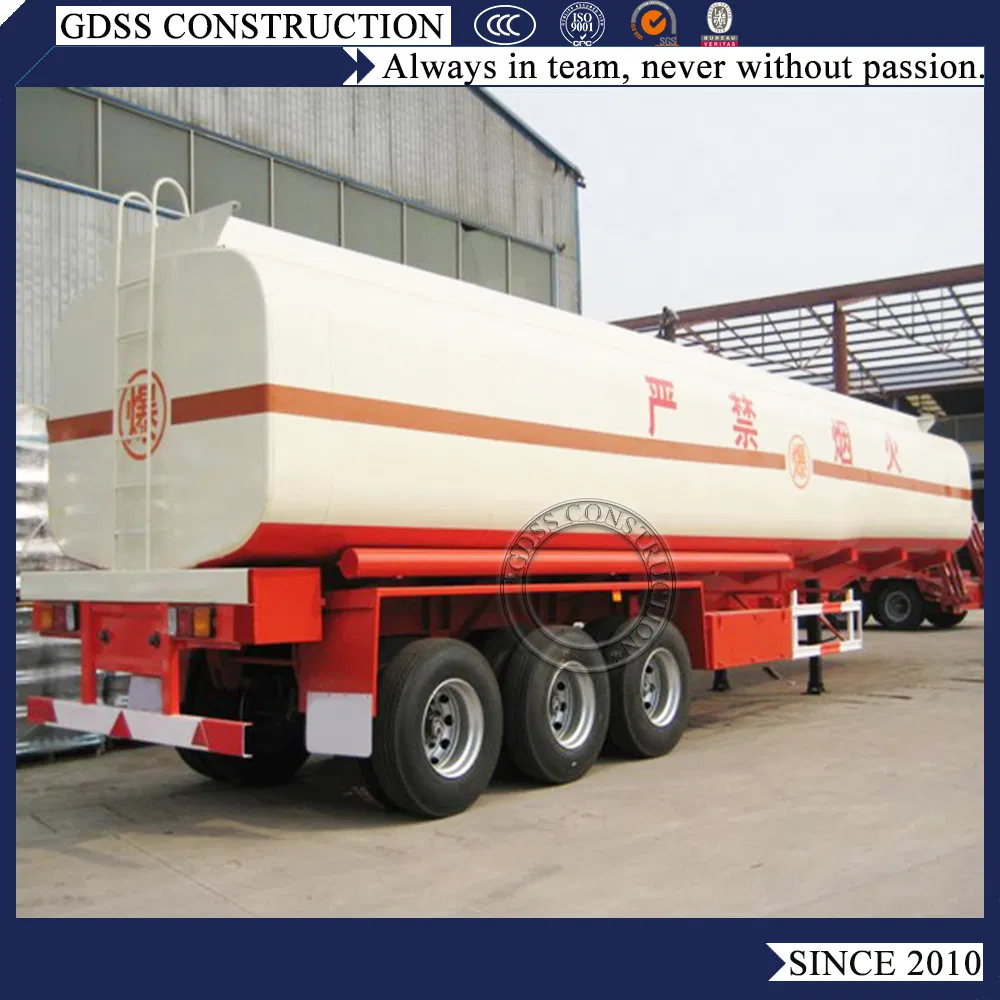

FUEL TANK SEMI TRAILER

1. Specifications

Main sizes
Overall length: 11500 mm
Overall width: 2500 mm
Overall height: 3800 mm
Loading volume: 40000 liters

Basic structure

Tank body:

Material of carbon steel Q235B, tank body thickness 5mm;
End thickness of 6mm.
Oval or round shape tank body.
Two compartments with two manholes 500mm in dimension.
Two sets of ball valves.
Two sets of discharge valves

Chassis:

Main beam height of 500mm, material of high tensile steel Q345B, welded by automatic submerged-arc processes;
Constructed of original main beams electrically welded with corresponding extra strong cross members, material of Q345B.

Running system:

King pin size 2 inches.
3 sets of 13T brand new axles.
Mechanical steel tri-axle suspension system installed on the trailer.
Tire size 12R22.5, 12 pcs per trailer.
Wheel rim sized 9.00*22.5, 12 pcs per trailer.
Dual line air brake system with T30/30 type double brake chambers on each axle.
12V Electrical wiring & Lighting systems, LED lights, including side, rear, turning.

Others:

Color optional.
One set of standard tools in toolbox.
Valves designed in valve box.
Two sets of fire extinguishers.
One piece of discharge pipe enclosed with the tank.

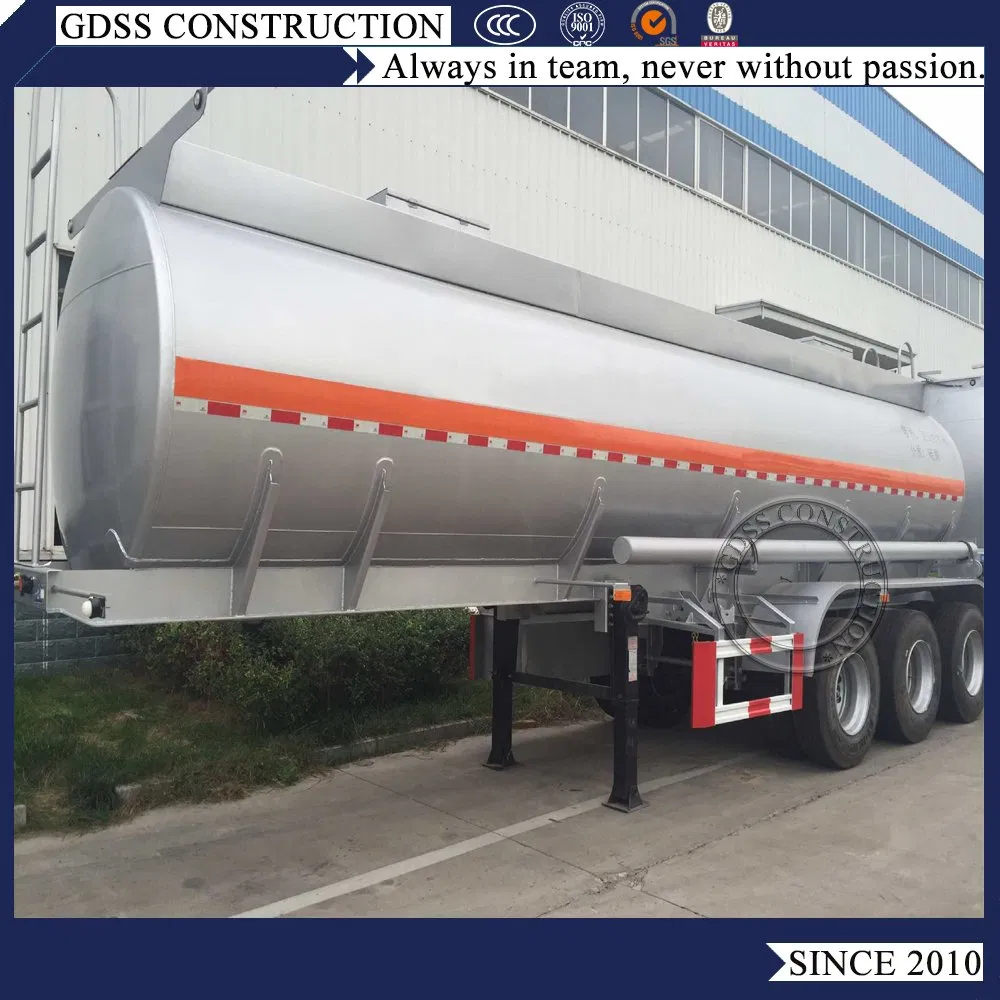

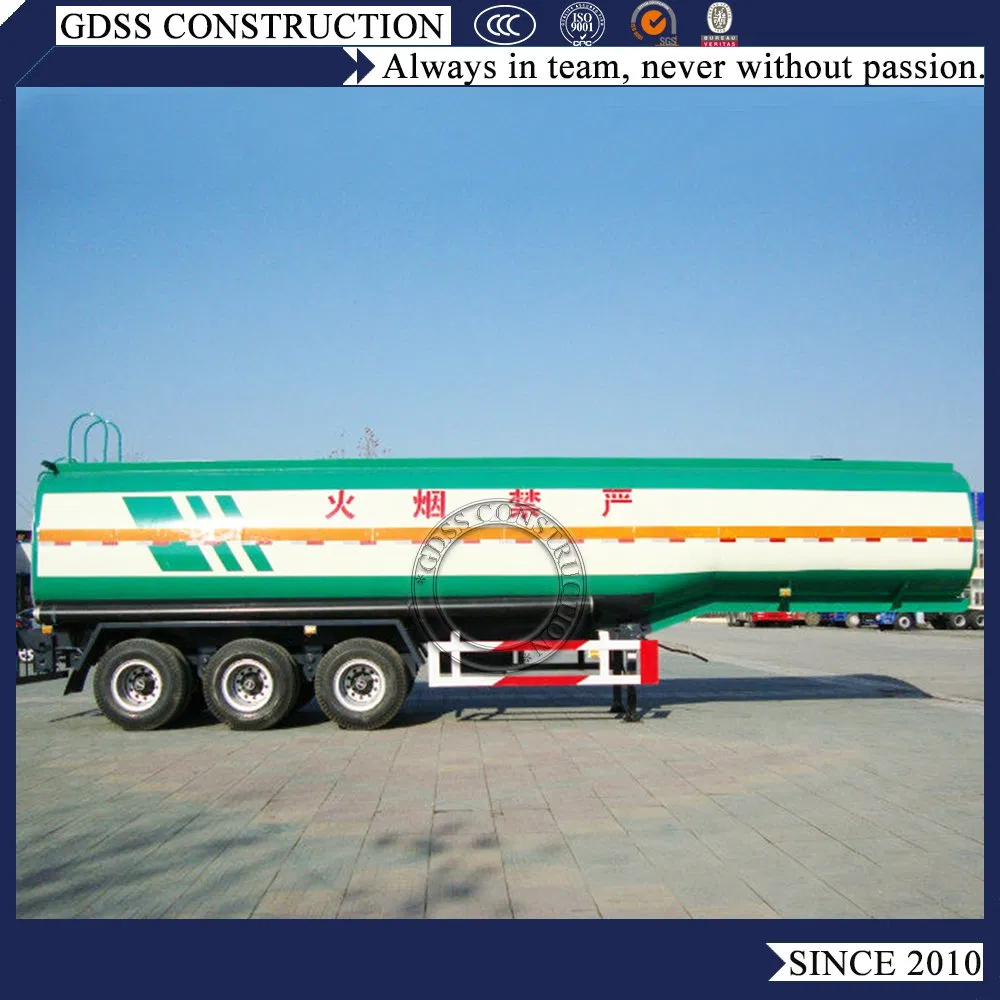

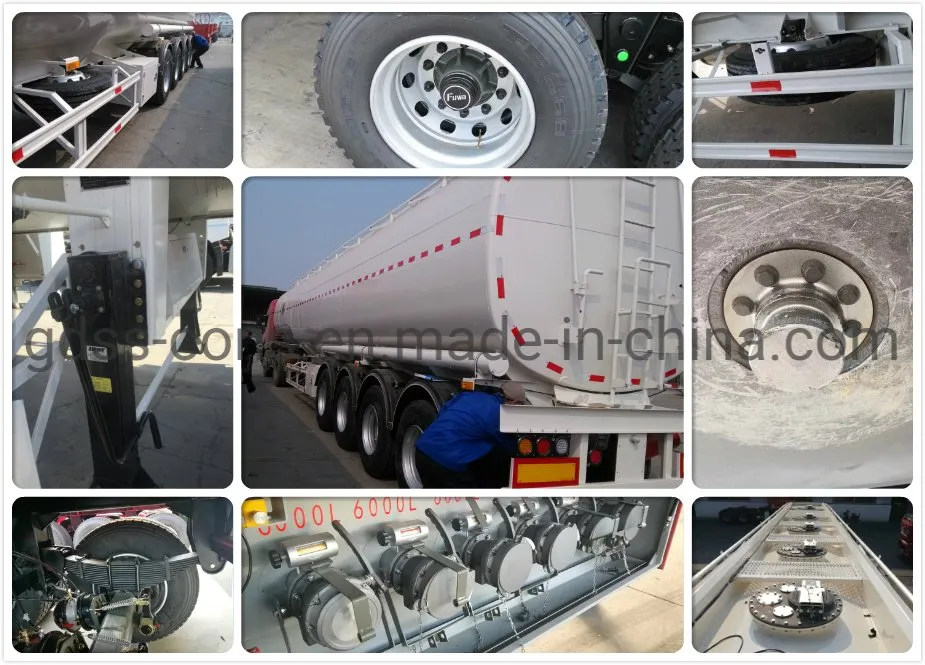

2. Trailer detail

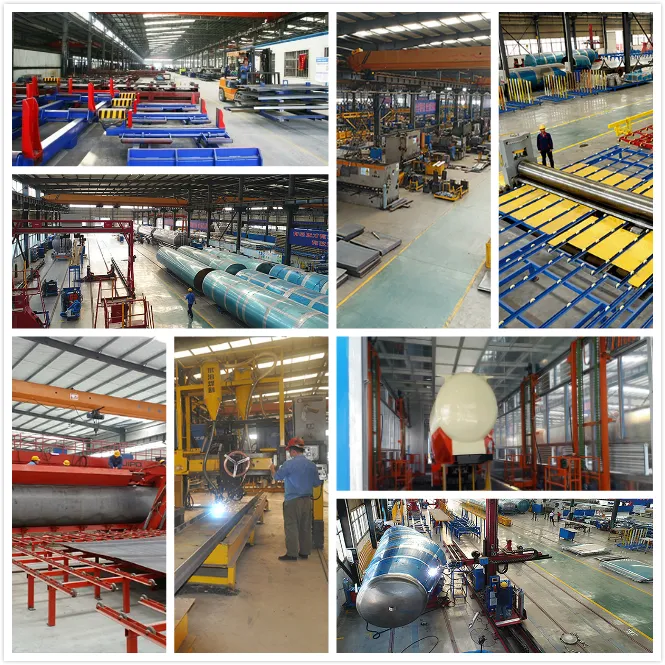

3. Workshop View
3axle 4 Axles 5 Compartments 30cbm-70cbm Diesel Fuel Oil Fuel Tanker Truck Trailer

4. Customer visit&feedback
3axle 4 Axles 5 Compartments 30cbm-70cbm Diesel Fuel Oil Fuel Tanker Truck Trailer

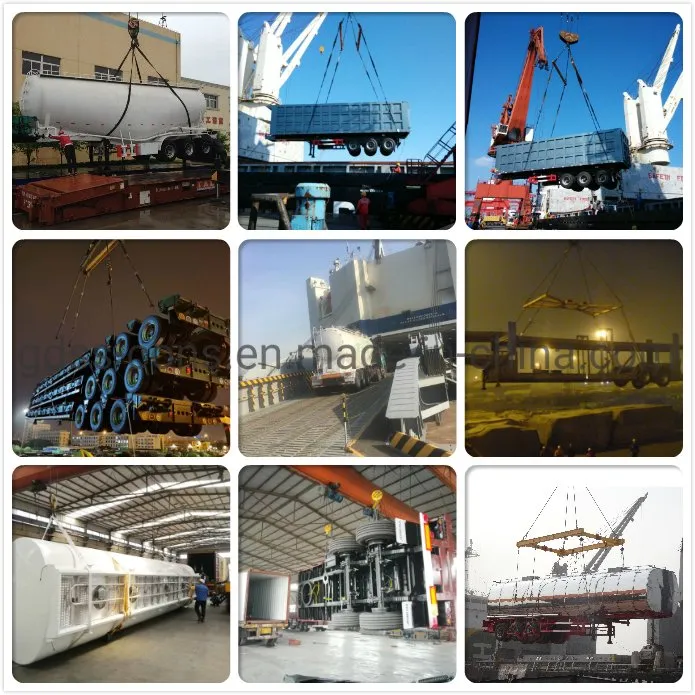

5. Shipping reference
3axle 4 Axles 5 Compartments 30cbm-70cbm Diesel Fuel Oil Fuel Tanker Truck Trailer

6. Exhibition
7. FAQ
1) Can we first order one unit for a test?
--Yes, it is no problem.
2) We have our wanted sizes, can you make it?
-- Yes, the design can be made as per your requirement.
3) How long it will take to complete the production?
   -- Normally it will take 35 days around.
4) We want to put our logo on the trailer, can you do it?
-- Yes, we can paint your logo on the vehicle.
5) How will you delivery the trailers?
   -- We will delivery them by container, bulk cargo ship or roro ship. And will try to find the best way to delivery them and save freight.
6) What about the warrantity?
   -- We provide you a warrantity of two years of main beam, other parts like axle will be one year.

8. Welcome to pay a visit to us. We will provide you the best transport solutions.
