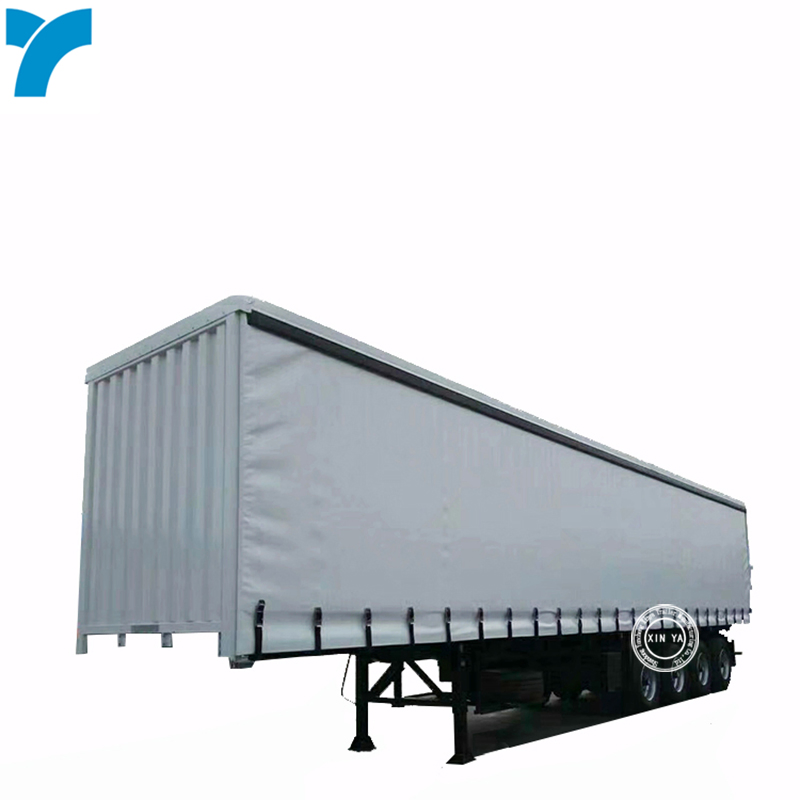

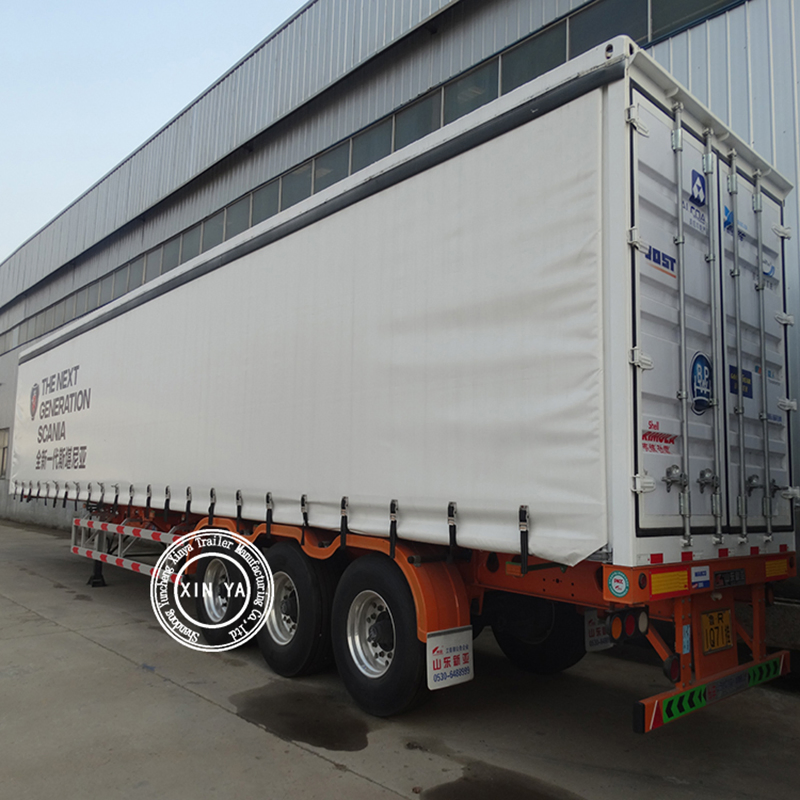

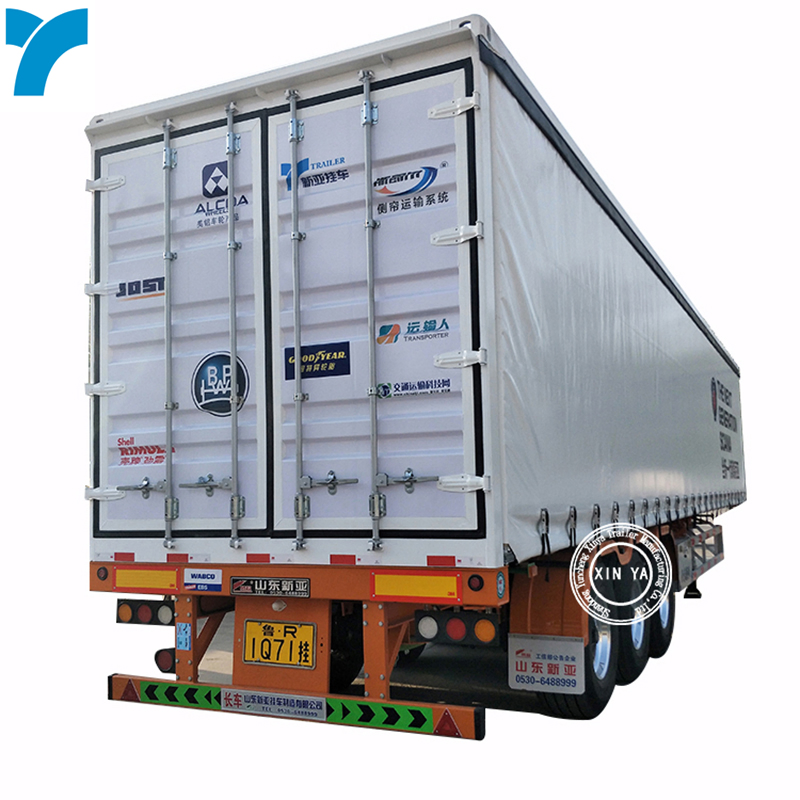

3 Axles Van Semi Trailer 45FT Cargo Box Semi Trailer for Bulk Material and Mine Cargos, Drop Side Semi Trailer
3 axles van semi trailer 45ft cargo box semi trailer for bulk material and mine cargos,Drop side semi trailerProduct DescriptionFeatures:1. Usage: items such as auto parts, paper, household appliances, clothing, chemical, drinks, food2. Rain proof, dust proof, sunscreen, guard against theft, corrosi......
Send Inquiry
Product Description
Features:
1. Usage: items such as auto parts, paper, household appliances, clothing, chemical, drinks, food…
2. Rain proof, dust proof, sunscreen, guard against theft, corrosion resistance.
3. Load and unload 2 sides, high efficiency, less manpower, save cost.
Overall Dimension(L*W*H) | 13750*2550*3650 |
| 60Tare Weight | 6000KG |
| Loading Weight | 10-20 Ton |
| Main beam | Material: Q345B fabricated carbon steel; Type: straight type; Height: 480mm; Upper plate: 14mm: Bottom plate: 16mm Middle plate:8mm Process: welded by automatic submerged-acr |
| cross beam | 10# C type: Q235 |
| Twist lock | 12 units |
| King pin | 50# |
| Axle | Brand: Xinya; Capacity: 13T16P QTY: 3 units |
| Tyre | Brand: Linglong; Type: 12R22.5-18PR: double mounted: QTY: 12 units |
| Rim | 22.5*9.0-14. 12 units or 6 units |
| Landing gear | 28T total Lifting capacity and 50T static capacity; double speed; large pad feet; |
| Suspension | Mechanical system with beams equaliser |
| Leaf spring | Germany type; Qty: 90mm*13mm*10+10+10 layers |
| Brake system | Type: Dual line braking system Brake air chamber: 6 in total, T30/30*4 + T30*2 Air tank: 40L*2 unit ABS: none |
| Electric system | 24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
FUNCTIONS YOU NEED, FUNCTIONS WE HAVE!!!
XINYA have been in truck trailer field for more than 20 years.
Our products are famous in aftermarket.
We've export to Europe, South America, South Africa and Southeast Asia;
We've passed ISO9001:2000 & BV & SGS & CCC certificates;
We've set up unified technical departments and testing standards;
We've invested in trailer parts (axle, suspension, fifth wheel, kingpin, landing gear, twist lock etc) ;
We've take part in international exhibitions;
Multiple production lines, able produce multiple types truck trailers and spare parts;
XINYA IS THE SOLE COATING FACTORY IN TRUCK TRAILER FIELD IN CHINA!!!
Production Lines
Plenty trucks and trailers for your choice!!!
Plenty trucks and trailers for your choice!!!
We can produce goods according to customers' requests or drawings;
Short delivery & Safe packing;
Small order quantity is acceptable;
More details for these trucks, please feel free to contact us!!!
