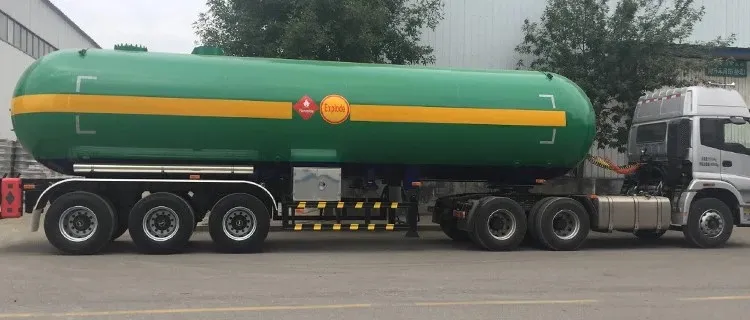

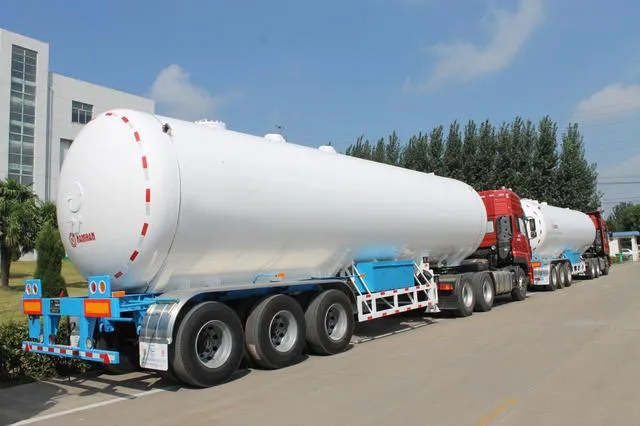

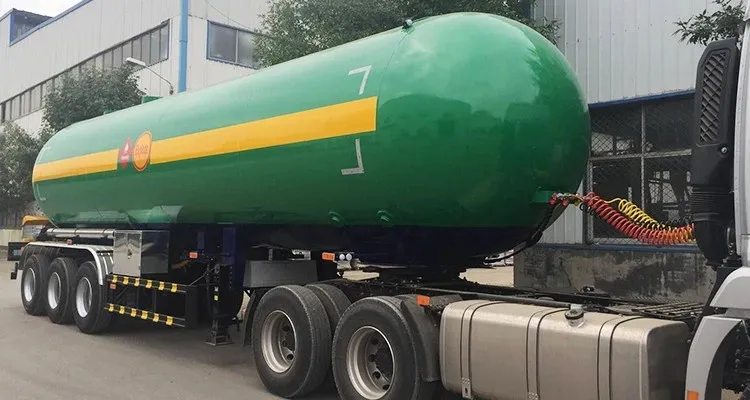

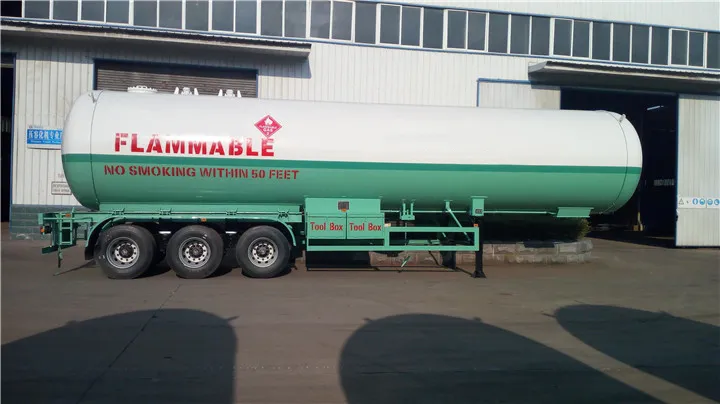

3 Axles 56000L LPG Tank Trailer
Product DescriptionSpecification for LNG tanker semi trailerProduct Namelpg gas tank truck semi trailerTare WeightAbout13.977TOuter Side Dimension12460mm*2500mm*3980mmTotal Volume49.1m³ (26.023T)Tanker Body MaterialQ370REnd PlateQ370RWork Temperature-20~50 ºCWorking Pressure&le......
Send Inquiry
Product Description
Product Description
Specification for LNG tanker semi trailer

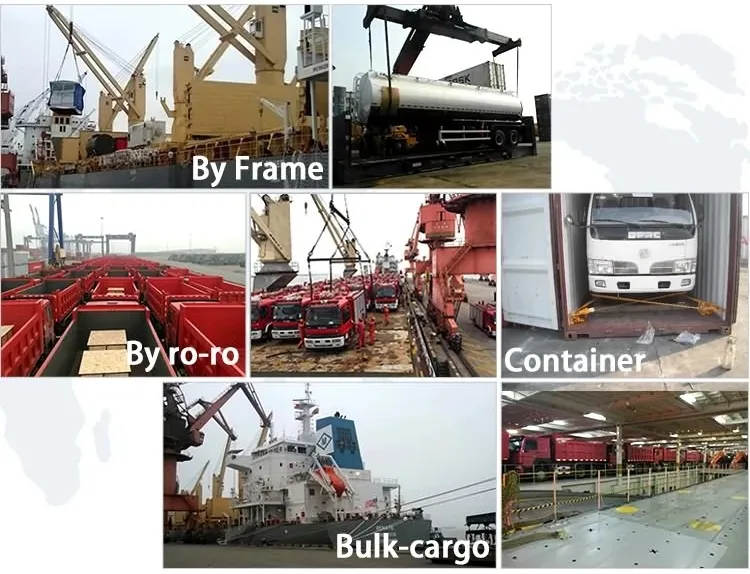

Packaging & Shipping
Waxed before delivery ,Packaging is naked and shipped by sea ,Delivery is related to the destination
40ft and 20ft Container shipment

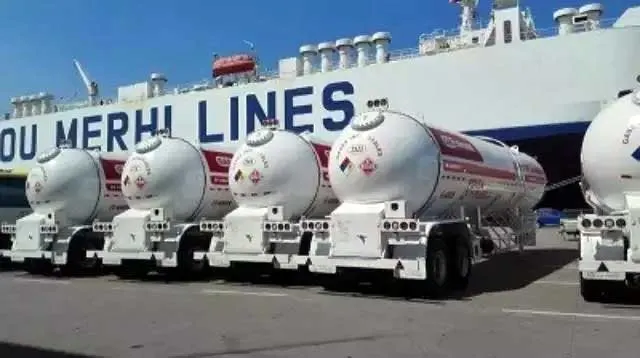

Bulk shipment and Roll-Roll shipment

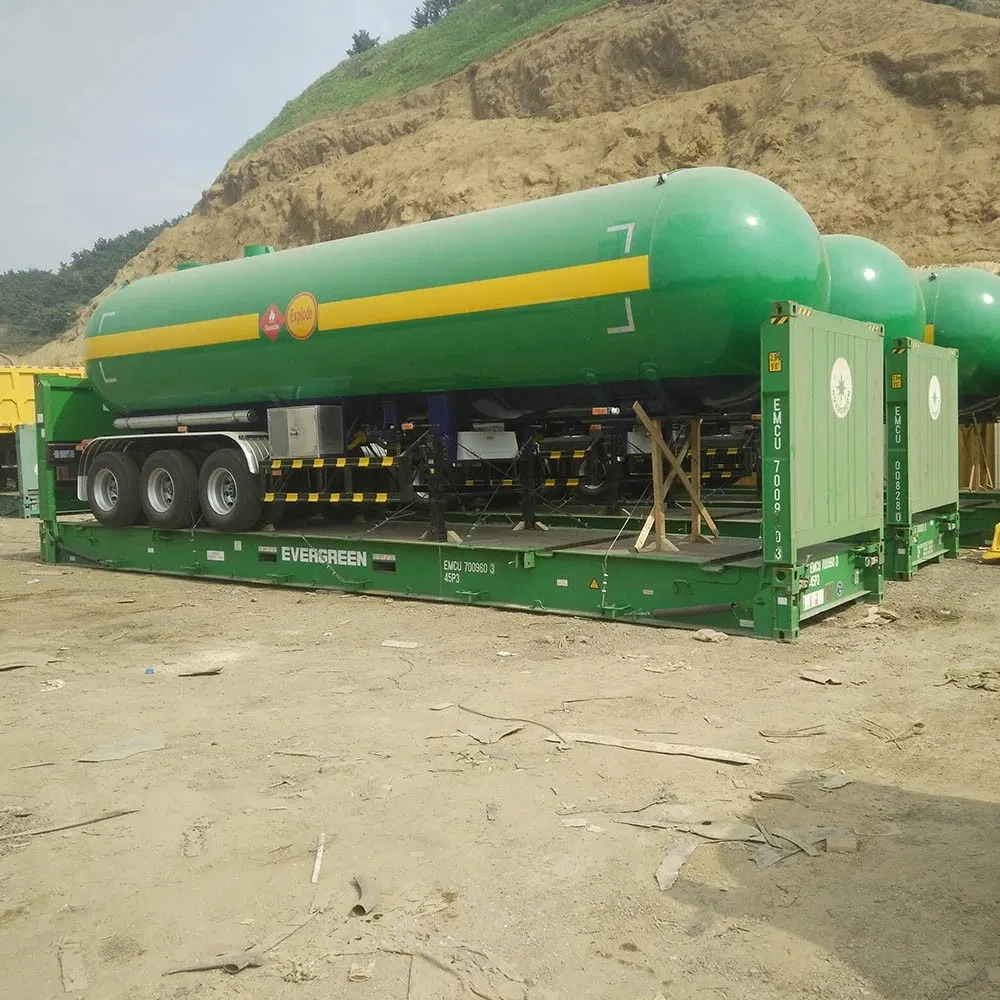

Flat rack shipment or others
Our Services
Products--100% First Class!
Transportation--100% Convenience, Efficient!
Services--Obtaining a satisfied smile!
1.we can do the designs according to the your requirement and idea.
2.we can offer you the high quality & reasionalble price
3.we can offer your a good after-sell service
4.we have strong professinal design team
5. promptly delivery. small order is welcome
We also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with
3% off discount and nice quality to ensure our customers's trucks and trailers being in good working
conditions.
Company Information
CHENGDA TRAILER,
PROVING YOUR SATISFIED TRAILERS AND SERVICE!
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are manufacturer.
2. Q: What about your products quality?
A:"Quality is priority." We always attach great importance to quality controlling from the very beginning.
3.Q:What payment do you accept?
A: T/T, L/C, Trade assurance;
4.Q:What is the MOQ of your products?
A: 1 unit.
Tell us your needs and we'll let you know how we can help. Click "send" Now!
Contacts: Ava Yang
Company Name: Shandong Yuncheng Chengda Trailer Manufacturing Co., Ltd.
Address: Jingdu Guoji Building,Shunhedong Street,Shizhong Zone, Jinan City, Shandong Province, P.R.China
Specification for LNG tanker semi trailer
| Product Name | lpg gas tank truck semi trailer | ||
| Tare Weight | About13.977T | ||
| Outer Side Dimension | 12460mm*2500mm*3980mm | ||
| Total Volume | 49.1m³ (26.023T) | ||
| Tanker Body Material | Q370R | ||
| End Plate | Q370R | ||
| Work Temperature | -20~50 ºC | ||
| Working Pressure | ≤1.91 MPa | ||
| Safety Valve | A412F-25-16(For ammonia / Gas) Rated Discharge Pressure: ≤2.29 MPa | ||
| Unit charge of medium | 530 kg/m³ | ||
| Emergency Stop Valve | QGJ43F-25-8(Liquid ammonia gas phase)DN25 QGJ43F-25-7(liquid ammonia)DN50 Stop time: within 5 seconds Stop Temperature: 75±5 ºC | ||
| Loading Unloading Equipment | YKAG-33-6 / DN25 Liquid ammonia gas phase YKAG-33-7 / DN50 liquid ammonia Nominal pressure:3.3 MPa | ||
| Chassis Parts |
| Fir extinguisher | TWO pieces |
| Axle | FUWA/ brand 10T / three axles |
| Landing Gear | FUWA 28T |
| King Pin | JOST 2.00 inch bolt-in king pin |
| Suspension | Mechanical suspension |
| Leaf Spring | 4 pcs |
| Pneumatic Braking System | 6 relay valves; Spring brake chamber; one piece of 45L air tanks. |
| Rim | 9.00-22.5 China Brand 12 pcs |
| Tire | 12.00R22.5 12 pcs |
| ABS | Optional |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint. |
| Accessories | One standard Aluminum tool box Aluminum Mud Guard |
Packaging & Shipping
Waxed before delivery ,Packaging is naked and shipped by sea ,Delivery is related to the destination
40ft and 20ft Container shipment
Bulk shipment and Roll-Roll shipment
Flat rack shipment or others
Our Services
Products--100% First Class!
Transportation--100% Convenience, Efficient!
Services--Obtaining a satisfied smile!
1.we can do the designs according to the your requirement and idea.
2.we can offer you the high quality & reasionalble price
3.we can offer your a good after-sell service
4.we have strong professinal design team
5. promptly delivery. small order is welcome
We also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with
3% off discount and nice quality to ensure our customers's trucks and trailers being in good working
conditions.
Company Information
CHENGDA TRAILER,
PROVING YOUR SATISFIED TRAILERS AND SERVICE!
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are manufacturer.
2. Q: What about your products quality?
A:"Quality is priority." We always attach great importance to quality controlling from the very beginning.
3.Q:What payment do you accept?
A: T/T, L/C, Trade assurance;
4.Q:What is the MOQ of your products?
A: 1 unit.
Tell us your needs and we'll let you know how we can help. Click "send" Now!
Contacts: Ava Yang
Company Name: Shandong Yuncheng Chengda Trailer Manufacturing Co., Ltd.
Address: Jingdu Guoji Building,Shunhedong Street,Shizhong Zone, Jinan City, Shandong Province, P.R.China
