3 Axles 40cbm Chemical Liquid Tank Trailer
3 Axles 40cbm Chemical Liquid Tank TrailerProduct featuresMultiple structures and mutiple materials of tank body to meet individual loading demands!Choice of multiple models and multiple series to meet transport demands of different medium! ** It's applicable for the transport of all kinds of li......
Send Inquiry
Product Description

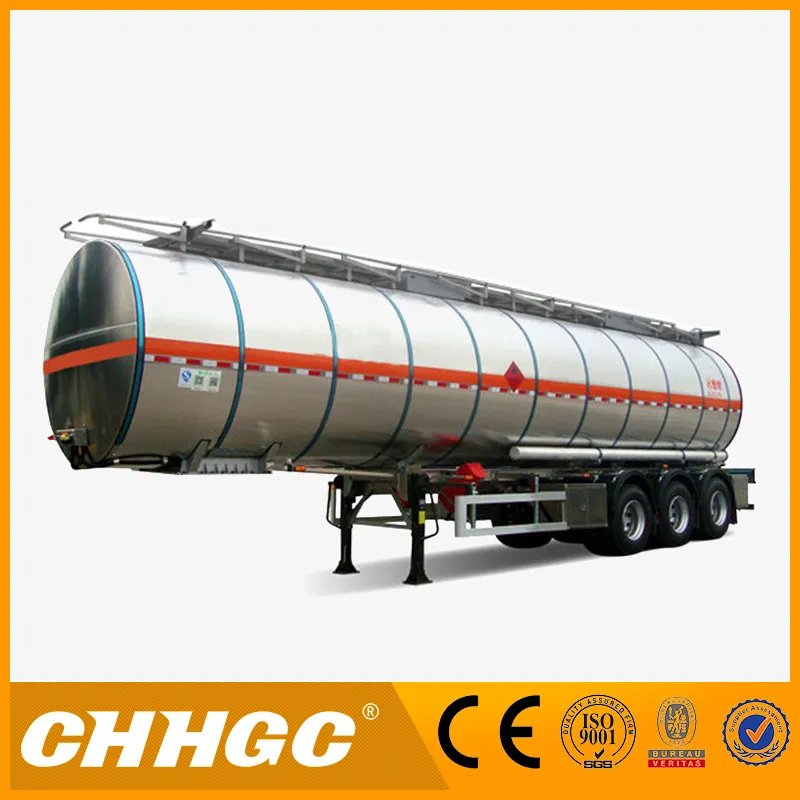

3 Axles 40cbm Chemical Liquid Tank Trailer
Product features
Product features
Multiple structures and mutiple materials of tank body to meet individual loading demands!
Choice of multiple models and multiple series to meet transport demands of different medium!
** It's applicable for the transport of all kinds of liquid chemical products, such as diesel, gasoline, caustic soda, concentrated sulfuric acid, and crude oil. the inside of tank body is corrosion-proof treated to meet the transport demands for all kinds of liquid foods and chemical liquids.
** The tank body is in shape of oval, rounded rectangle, or circle and is designed as per requirements of national standard to improve the operation safety.
** The OEM parts from domestic and foreign renowned brands are adopted, featuring elegance, durability, and reduction of operation cost and repair cost.
** The liquid tanker semi-trailer obtained multiple national patents, featuring light dead weight and low gravity center of whole vehicle.
** The traveling mechanism of semi-trailer products adopts high strength national standard steel to guarantee the resistance against distortion, vibration, and bump and meet the loading requirements on different roads.
** The tank body adopts the shot blasting, phosphating, and derusting processes and high grade polyester powder coasting, featuring high paint adhesion and elegant, shining, and lasting performance.
** The whole vehicle adopts special electric harness with explosion-proof and contamination-proof to guarantee circuit safety.
Remark:
The above trailer is just one product we producing according to customer's requirements.
As the requirements of the customers in different countries are different, we can supply the customer any type trailer he need, based on our brother factory's 60 years experiences of producing trailer.
| Item number | ZCZ9401GRYHJC | Batch | 249 |
| Trade Mark | CIMC | Product name | Inflammable Chemical liquid semi trailer |
| Rated Weight | 29500 | Total Weight | 39980 |
| Curb Weight | 10480 | Fuel Type | |
| Emission standard | Number of the Axles | 3 | |
| Wheelbase | 5480+1310+1310, 5300+1310+1310 | Axle load | -/24000(three axles installed side by side), -/23980(three axles installed side by side) |
| The spring number | -/4/4/4,-/7/7/7,-/10/10/10, -/12/12/12,-/-/-/- | Tyre Number | 12 |
| Tyre Size | 12R22.5 12PR,11R22.5 12PR, 11.00-20 12PR,11.00R20 12PR | Approach/Departure Angle | -/20 |
| Front/Rear overhang(mm) | -/1400,-/1430 | Front tread | - |
| Rear wheel base | 1840/1840/1840,1820/1820/1820 | ||
| The overall length | 10650 | The overall width | 2500 |
| The overall Height | 3650,3750 | The van length | |
| The van width | The van height | ||
| Max payload of the saddle | 15980,16000 | The company | HENAN HAIHENG IMPORT AND EXPORT CO.,LTD |

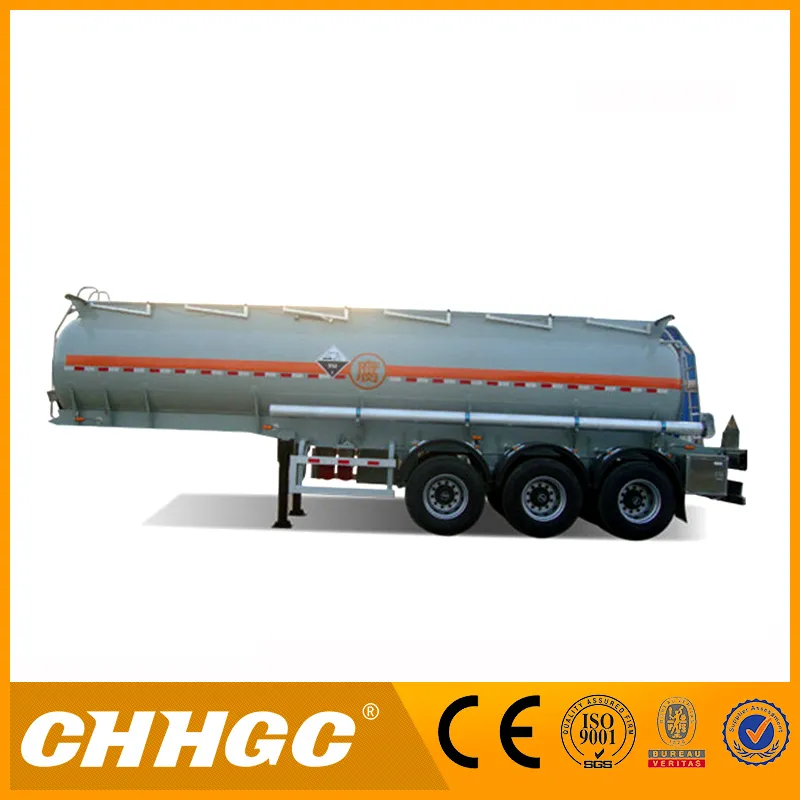

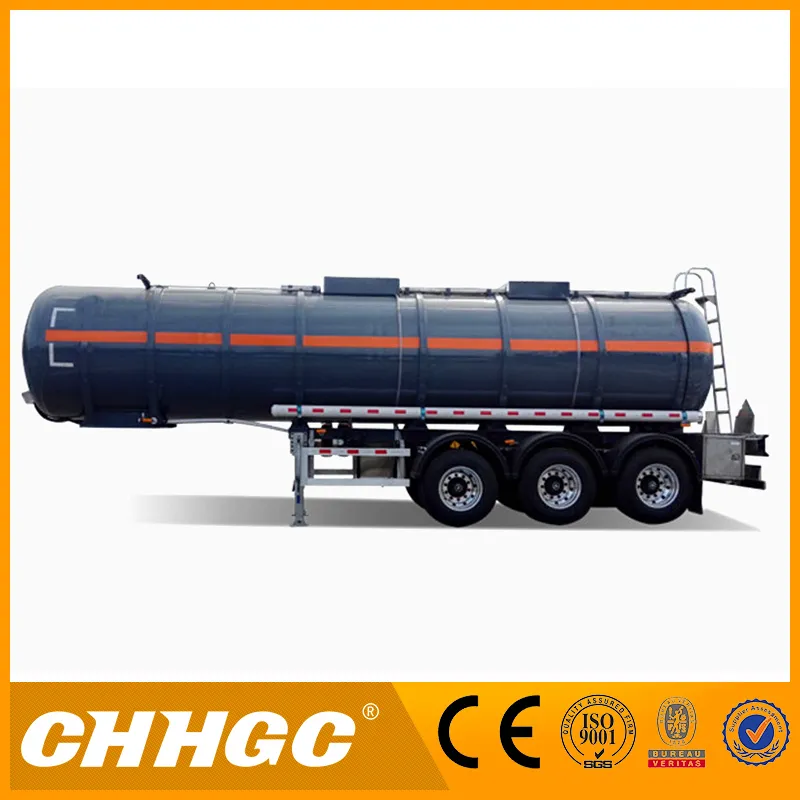

Some typical chemical semi trailer +++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++ | |||
40m³ liquid chemical tank semi trailer | 32 m³ liquid chemical tank semi trailer | ||
| Model | ZCZ9401GHYHJB | Model | ZJV9400GHYHT |
| Overall dimensions(mm) | 10650*2500*3490,3690 | Overall dimensions(mm) | 10650*2500*3490 |
| Sizes of tank body | 10200*2490*1950mm | Sizes of tank body | 3700/6500 in lengths of tank body(front/ rear), 3460 in width, and 1450/1700 in height(front/rear) |
| Nominal capacity | 40.3m³ | Nominal capacity | 32.2m³ |
| Number of axle | 3 | Number of axle | 3 |
| Wheelbase(mm) | 5480+1310+1310 | Wheelbase(mm) | 5480+1310+1310 |
| Nominal front/rear suspension | 1150/1400 | Nominal front/rear suspension | 1150/1400 |
| Bearing capacity(kg) | 31500 | Bearing capacity(kg) | 29000 |
| Curb Weight(kg) | 8300 | Curb Weight(kg) | 10680 |
| Number of leaf spring plate | 7 \10\12 | Number of leaf spring plate | 10 \12 |
51 m³ liquid chemical tank semi trailer | 40 m³ liquid chemical tank semi trailer | ||
| Model | ZCZ9400GHYHJB | Model | ZCZ9403GRYHJC |
| Overall dimensions(mm) | 12000*2500*3850 | Overall dimensions(mm) | 12000*2500*3520, 3620,3720 |
| Sizes of tank body | 11800mm in length, 2484mm in width(maximum), and 2350mm in height(maximum) | Sizes of tank body | 11440 in straight segment of tank body, with maximum width at 3495 and maximum height at 1950 |
| Nominal capacity | 51m³ | Nominal capacity | 51m³ |
| Number of axle | 3 | Number of axle | 3 |
| Wheelbase(mm) | 6300+1310+1310 | Wheelbase(mm) | 6300+1310+1310 |
| Nominal front/rear suspension | 1300/1780 | Nominal front/rear suspension | 1300/1780 |
| Bearing capacity(kg) | 31000 | Bearing capacity(kg) | 31000 |
| Curb Weight(kg) | 9000 | Curb Weight(kg) | 9000 |
| Number of leaf spring plate | 7 \ 10 \ 12 | Number of leaf spring plate | 7 \ 10 \ 12 |
small liquid chemical tank semi trailer | |||
| Model | ZJV5312GYYHJCA | ZCZ5311GYYDF | ZCZ5310GYYZZ |
| Overall dimensions(mm) | 11980*2500*3850,3550 | 11890*2500*3600,3850 | 11990*2500*3950,3650 |
| Sizes of tank body | 9300mm in exterior length of tank body, 2460mm in width, and 1890mm in height | 9300mm in exterior length of tank body, 2460mm in upper width, 2460mm in lower width, and 1890mm in height | 8950mm in exterior length of tank body, 2350mm in major length of cross section and 1450mm in minor length |
| Nominal capacity | 23.1m³ | 23.1m³ | 22m³ |
| Rated Bearing capacity(kg) | 15500 | 15500 | 14000 |
| Curb Weight(kg) | 15260 | 15290 | 16520 |
| Total mass | 30890 | 30985 | 30650 |
20/24 m³ liquid chemical tank semi trailer | |||
| Model | ZCZ9400GHYHJA | ZCZ9401GRYHJC | |
| Overall dimensions(mm) | 10650*2500*3620 | 10650*2500*3650,3750 | |
| Sizes of tank body | 1750mm in diameter of tank body, 959mm in straight segment, and 10200mm in total length | 1716mm in front segment diameter of tank body, 1966mm in rear segment diameter, and 9222mm in total straight length of tank body | |
| Nominal capacity | 20m³ | 24m³ | |
| Number of axle | 3 | 3 | |
| Wheelbase(mm) | 5480+1310+1310 | 5480+1310+1310, 5300+1310+1310 | |
| Nominal front/rear suspension | 1150/1400 | 1150/1400,1300/1430 | |
| Bearing capacity(kg) | 29800 | 29500 | |
| Curb Weight(kg) | 10200 | 10480 | |
| Number of leaf spring plate | 4 \10\12 | 4 \7\10\12 | |

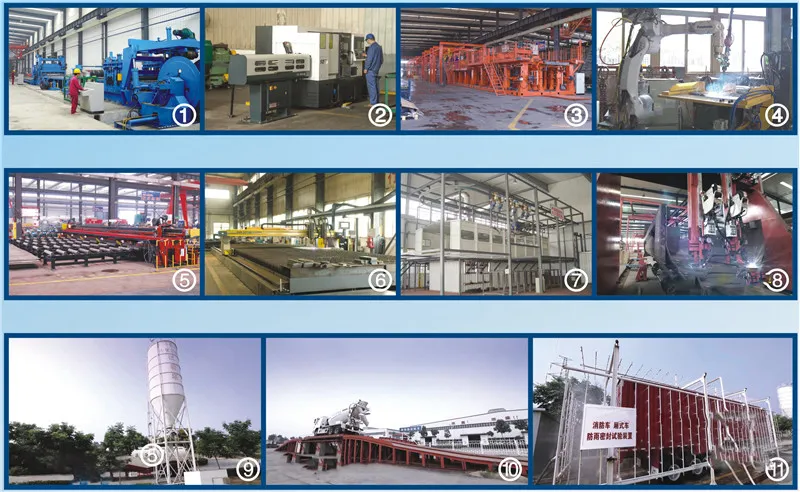

Production Workshop
Certificate
Business Partners
FAQ
Q1. How to ship the tank trailer?
A: By container, bulk ship, RORO.
Q2. Do you have different tank trailer?
A: Yes,we supply different model tank trailers and exported to many countries.
Q3. What is your payment term?
A: We usually accept T/T or L/C depends on the quantity.
T/T, deposit in advance, and balance paid before delivery from factory.
Q4. Which type tank trailer do you supply?
A: We supply all kinds of tank trailer such as cement, fuel,powder tank etc,.
Q5. What is your terms of delivery?
A: FOB, CIF.
Q6. How about your delivery time?
A: Generally, it will take 35 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: What can you guarantee to your business partner?
A: Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
