3 Axle Steel Petrol/Diesel/Oil/Fuel/Flammable Liquid Semi Tank Trailer

Product Description

Specification

OIL TANK SEMI TRAILER
Shape	Monoblock cylinder
Tare weight	9000KG
Color	Customized
Volume	40m³ customized
Tank body	Q235/5mm steel
End plate	Q235A/6mm steel sheet
Axle	2/3/4 axle FUWA/BPW/HJ brand optional 13T-16T
Tire	11.00R20/12.00R20/11R22.5/12R22.5 triangle, linglong, double star brand optional optional
Wheel rim	8.5-20/9.0-20/8.25-22.5/9.0-22.5/9.75 optional
Suspension	Mechanical suspension or air suspension
Leaf spring	10 pcs9013mm
Manhole cover	500mm manhole cover 2 sets with 2 breather value
Discharge valve	2-4 sets of $ 100mm discharge values
Discharge pipe	4'' rubber hose, 2pcs, 6m long
Kingpin	JOST 2"/3.5" bolt-in king pin
Landing gear	JOST two-speed, manual operating, heavy duty landing gear
Bottom value	1-2 sets of bottom value
Outside sheet	1.2mm steel sheet
Compartment	Optional upon choice
Braking system	WABCO RE6 relay value, T30/30 spring brake chamber; 40L air tanks
Painting	Complete chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box, one spare tire carrier, one crank, one shaft head wrench, four side lights, two rear lights
Main beams	Opting for high tensile steel Q345B welded by automatic submerged-arc processes

3 Axle Steel Petrol/Diesel/Oil/Fuel/Flammable Liquid Semi Tank Trailer

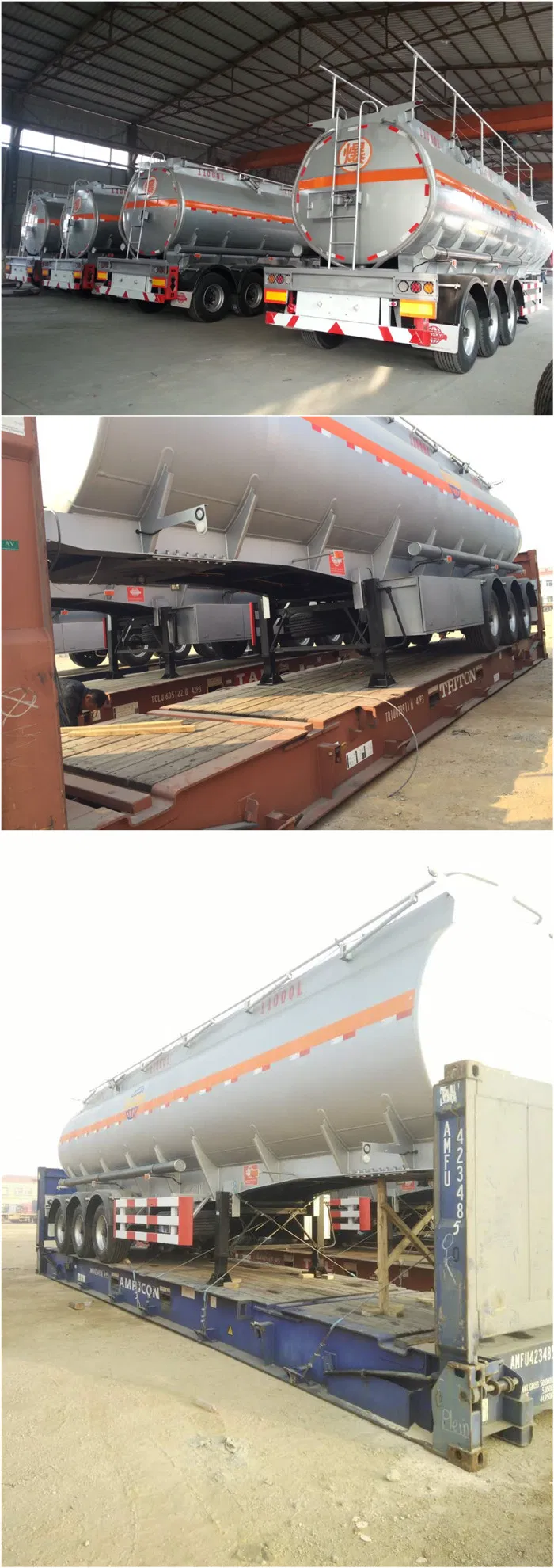

Delivery
1. The whole trailer will be waxed before shipment, it can prevent our trailers suffering from seawater corrosion during the shipping.
2. We will transport our trailers by bulk cargo carrier, RO-RO ship or 40/45 HQ

3 Axle Steel Petrol/Diesel/Oil/Fuel/Flammable Liquid Semi Tank Trailer

Warranty and after-sale service
1. We have more than 20 years of experience and a strong team of engineers, we are manufacturer, we could design the product according to your special requirements.
2. Strict quality inspection. For each trailer, we will do the testing and inspect the quality.
3. We have good after-sales service.

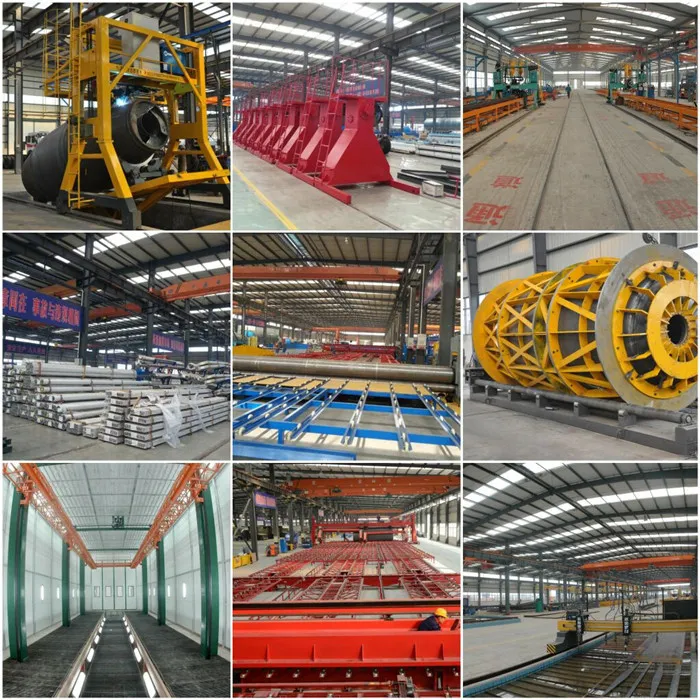

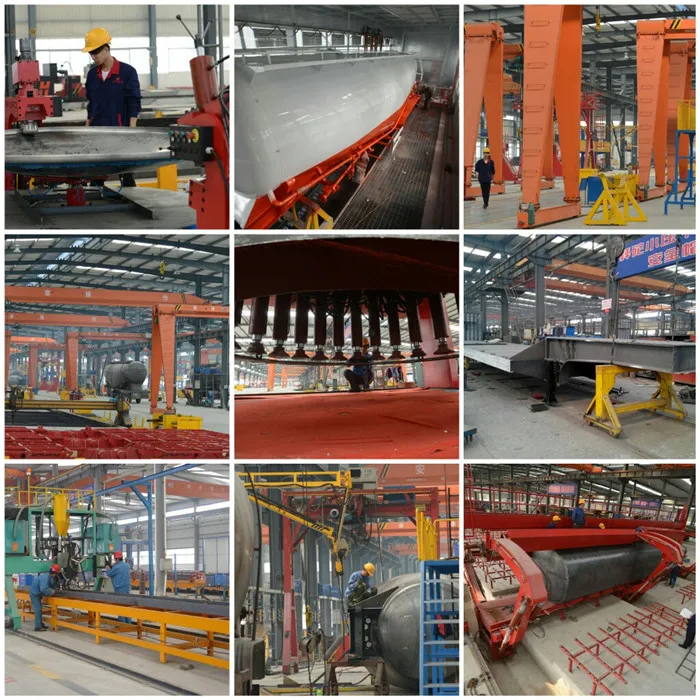

Our workshop

Competitive advantages:

1. It's our own factory, advanced equipment and rich experienced workers are applied during the whole producing process to ensure the quality of semi trailers.

2. Optional trailer sizes and styles are available.

3. Certificate/quality approvals: ISO9001:2008, CCC, BV, etc.

4. Small order quantity can be accepted. MOQ is 1 set.

5. Exported to many countries, such as Russia, France, Southeast Asia, Africa and more than 20 countries.

FAQ
1. MOQ: 1 set
2. Payment Term: T/T with 30% deposit, and 70% of balance will be paid before delivery
3. Delivery date: 25 workdays after we received 30% of contract value T/T down payment

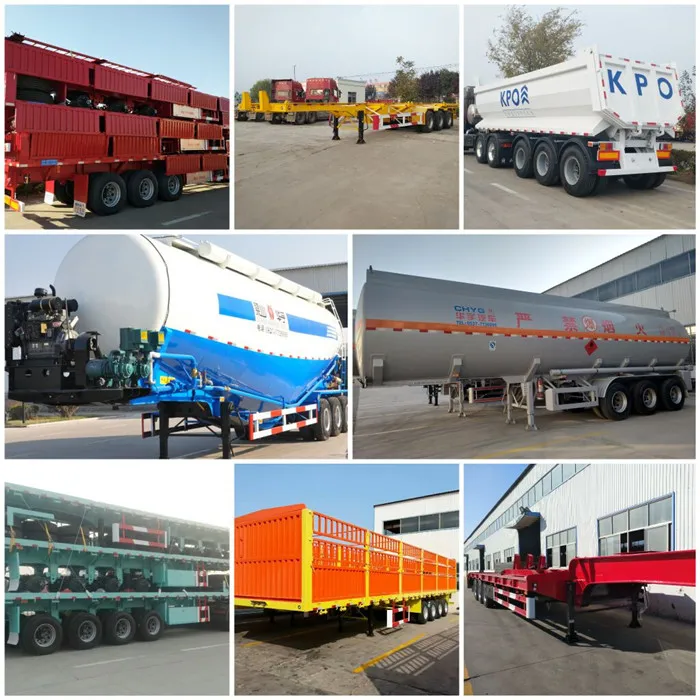

Diversity of products
3 Axle Steel Petrol/Diesel/Oil/Fuel/Flammable Liquid Semi Tank Trailer

We are manufacturer, we could design the product according to your special requirements. If you are interested in our products, pls feel free to contact with me! Thank you!
