2 Axle/3 Axle 5 Compartments 42 Cbm Oil Tank Trailer 42000L Fuel Tank Trailer
TOTAL standard 3 axle oil tank trailer 42000L-55000L fuel tank trailer for sale, TOTAL Standard Tri-axle 45cbm diesel/gasline/oil tanker 36 tons fuel tank trailer, 2 axle/3 axle 5 compartments 42 cbm oil tank trailer 42000L fuel tank trailergasoline tank trailers, gasoline trailer, fuel tank semi tr......
Send Inquiry
Product Description
TOTAL standard 3 axle oil tank trailer 42000L-55000L fuel tank trailer for sale, TOTAL Standard Tri-axle 45cbm diesel/gasline/oil tanker 36 tons fuel tank trailer, 2 axle/3 axle 5 compartments 42 cbm oil tank trailer 42000L fuel tank trailer
gasoline tank trailers, gasoline trailer, fuel tank semi trailer
Oil tanker truck, fuel tanker truck, petroleum tanker truck, which are mainly used for transporting oil.
some oil tanker truck could be also a refueling tank truck, with refueling device.
Our company also produce the oil tank trailer,the manufactuere standard could be according to European standard.
API device.
Currently our company produce the oil tanker truck form 3000~ 35000 liters
Oil tank trailer from 40000~70000 liters.
2 axle/3 axle 5 compartments 40M3 oil tank trailer 40000L fuel tank trailer

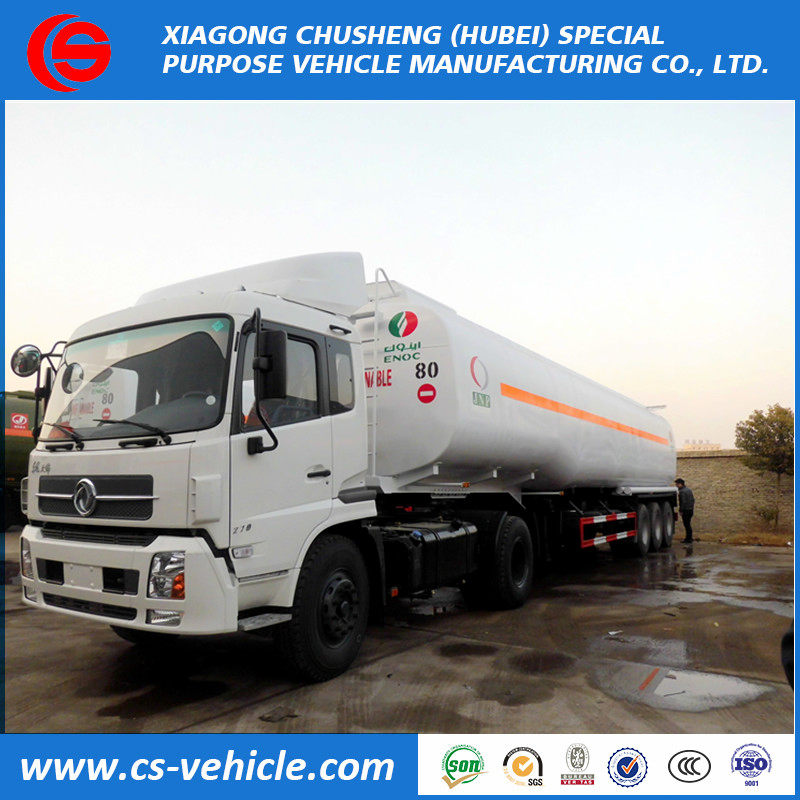

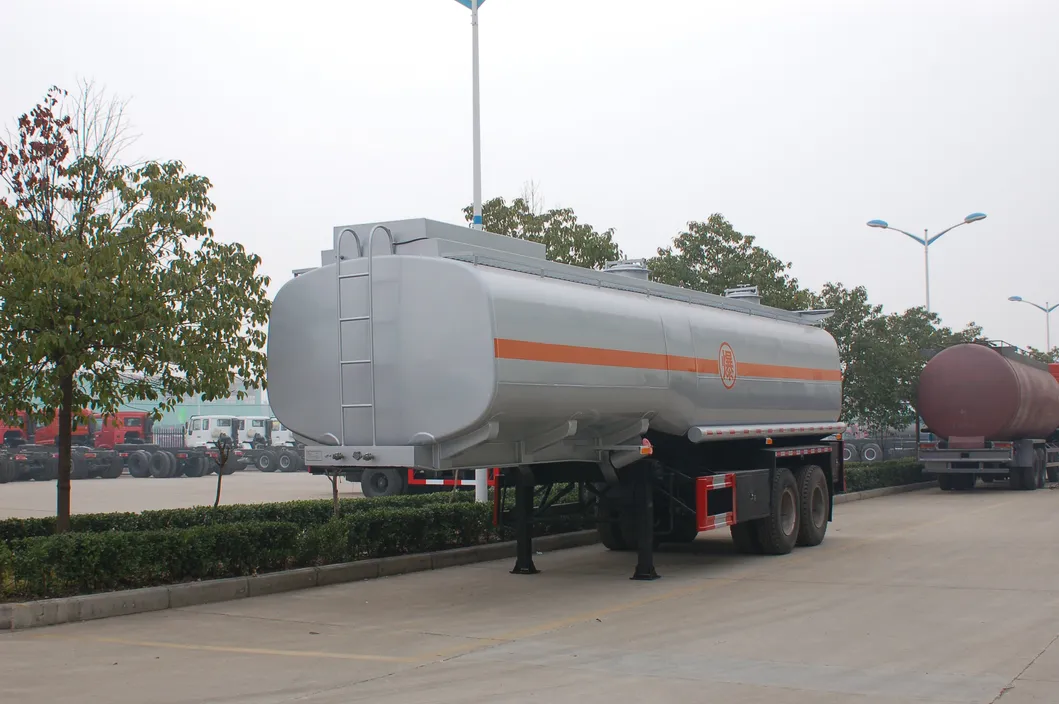

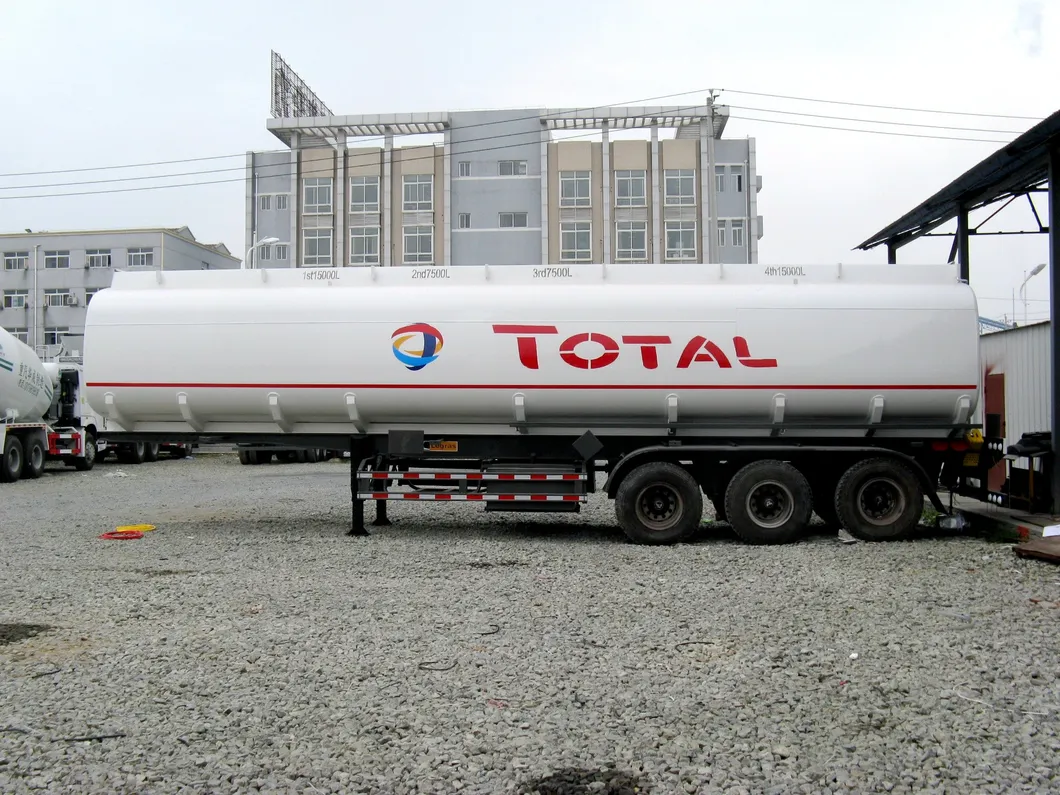

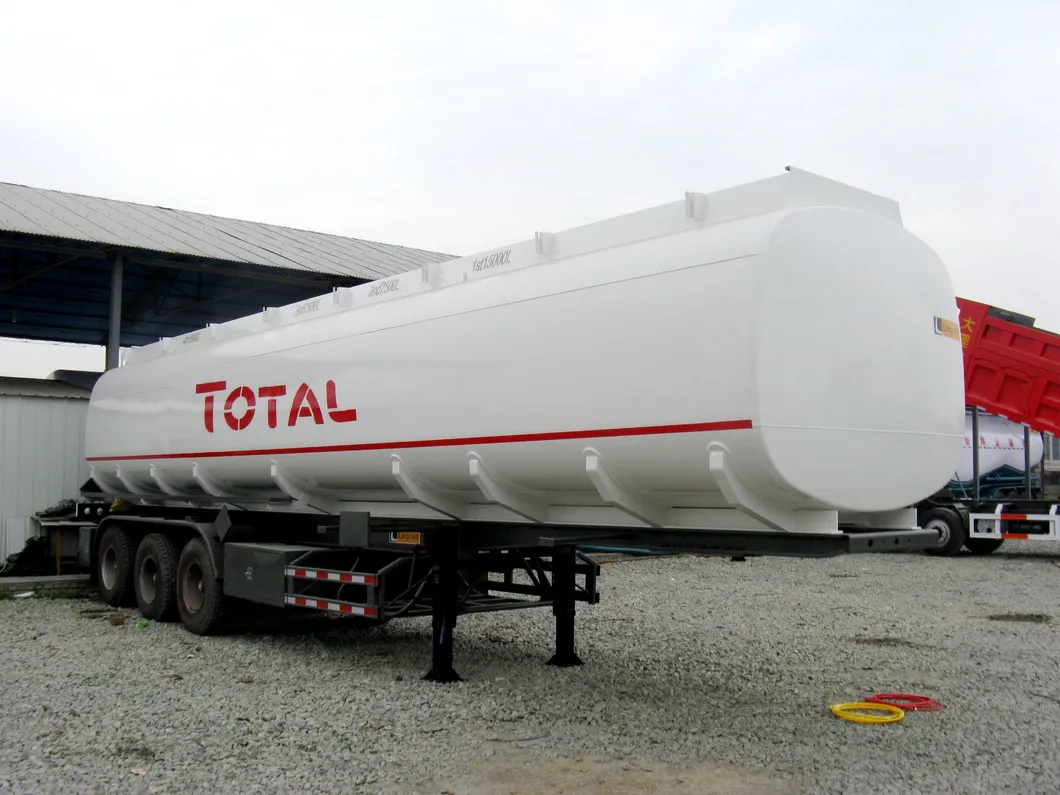

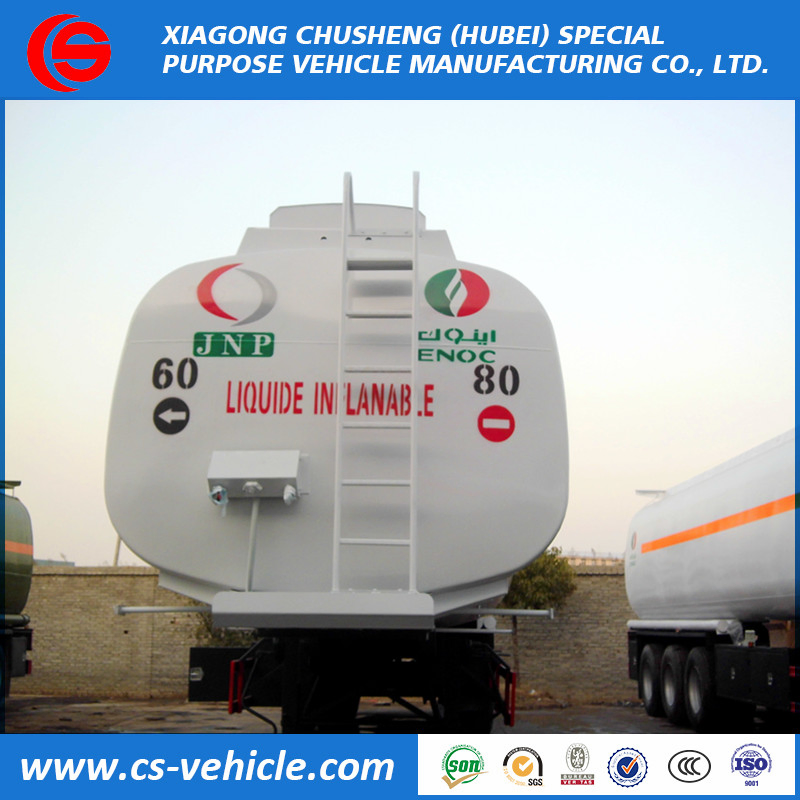

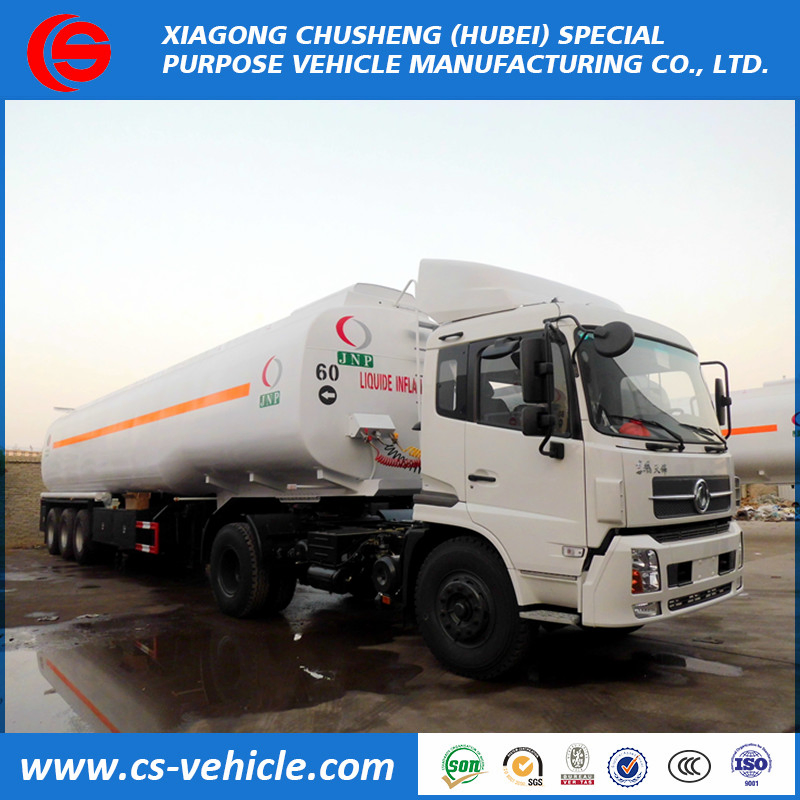

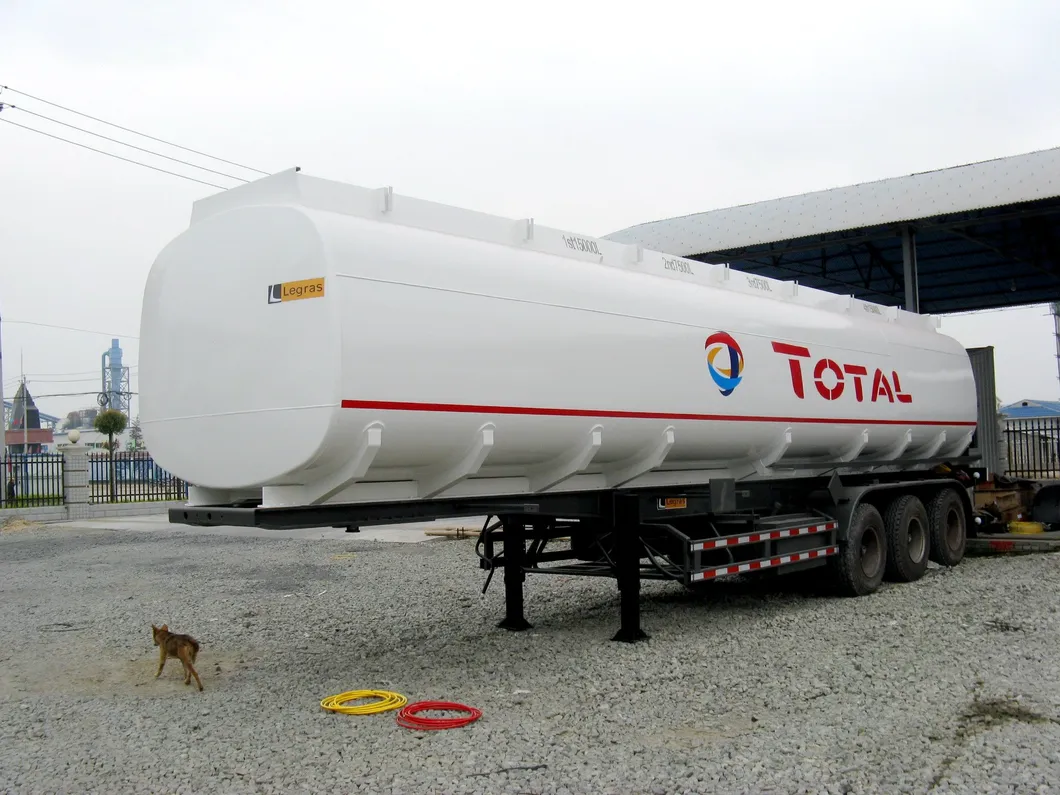

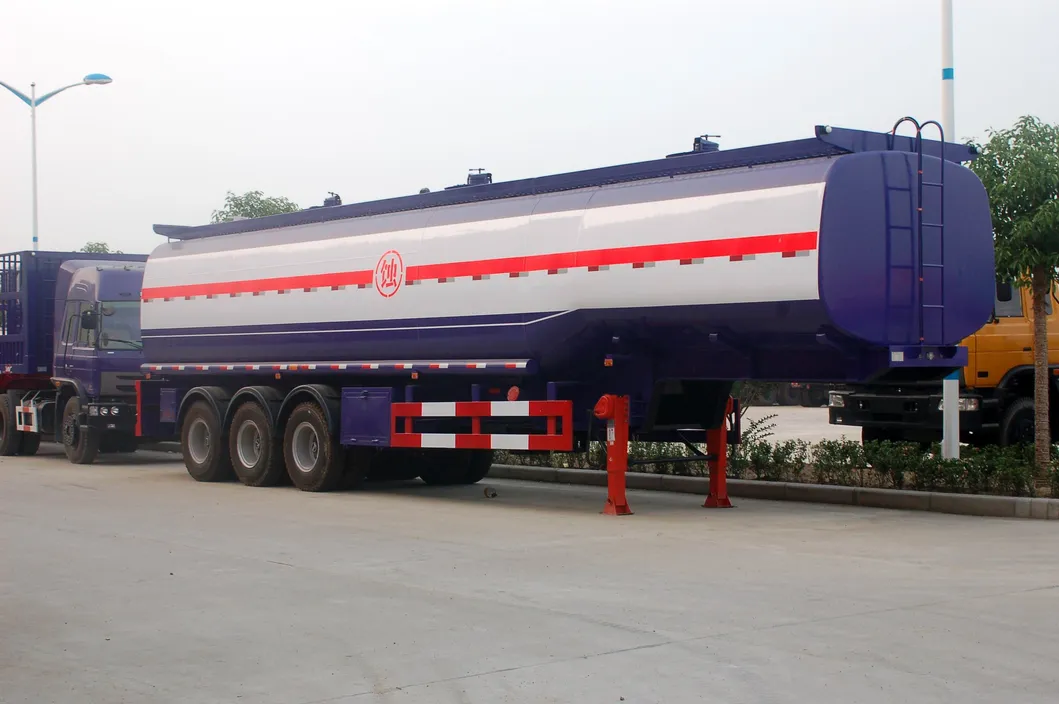

The pictures of TOTAL Standard Tri-axle 36 tons gasline/oil tanker 36 tons fuel tank trailer for sale.
Parameters of factory sale 42cbm fuel/oil tank trailer 42000L aluminum alloy fuel/oil tank semi trailer
Company information:
1. Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is a famous and the biggest manufacturer with very professional experience in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.
2. Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.
3. We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.
We have strict quality control of raw material, professional management team and technical workers, advanced equipments, strict inspection before delivery, excellent packing and shipping team.
Our main products:
1.Water Truck 2.Insulation Truck and Milk Truck 3.Sewage Suction Truck 4.Garbage Truck
5.Manlift Truck/Aerial Platform Truck 6.Truck with Crane 7.Fuel Truck/ 8.Chemical Truck
9.Bulk Cement Truck 10.Concrete Mixer Truck 11.Fire Truck 12.Dump Truck
13.Van Truck/Refrigerated Truck, 14.Wrecker/Tow Truck, 15.Flatbed Truck/Low Bed
16.Tractor, 17.LPG Truck; 18.Trailers
For more information for trucks and trailers, please contact:
Helen Jiang
Sales Manager
Xiagong Chusheng (Hubei) Special Purpose Vehicle Manufacturing Co., Ltd.
Factory: NO.9, Jiliang Avenue, Suizhou Economic Development Zone,Suizhou, Hubei, China
Office: Room 1108, Eurasia Plaza, No.20 Jinyinhu Road, East- west lake District, Wuhan, Hubei, China.
Web: csctruck.en.made-in-china.com
gasoline tank trailers, gasoline trailer, fuel tank semi trailer
Oil tanker truck, fuel tanker truck, petroleum tanker truck, which are mainly used for transporting oil.
some oil tanker truck could be also a refueling tank truck, with refueling device.
Our company also produce the oil tank trailer,the manufactuere standard could be according to European standard.
API device.
Currently our company produce the oil tanker truck form 3000~ 35000 liters
Oil tank trailer from 40000~70000 liters.

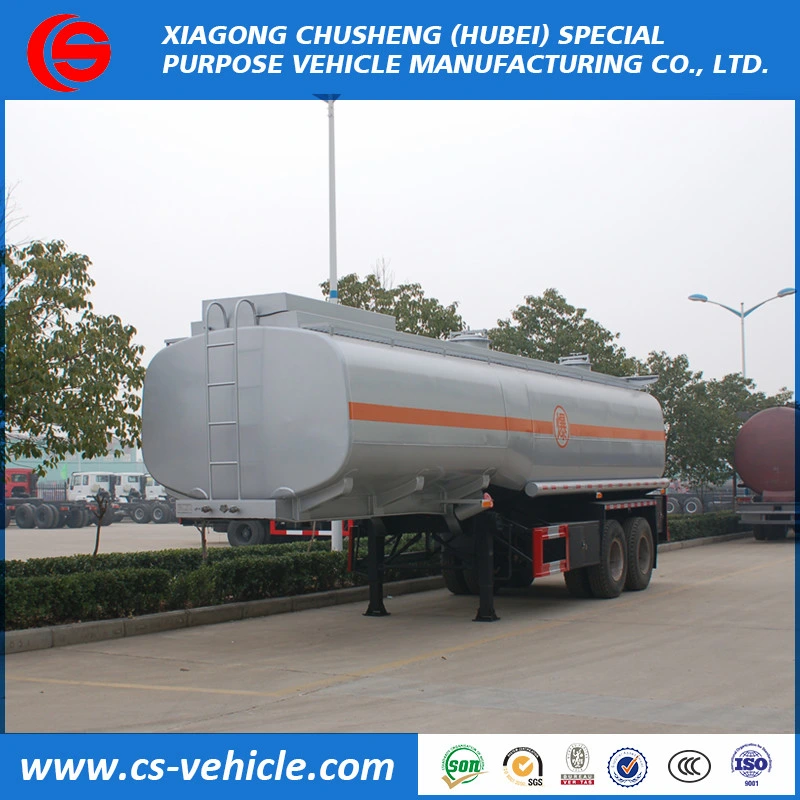

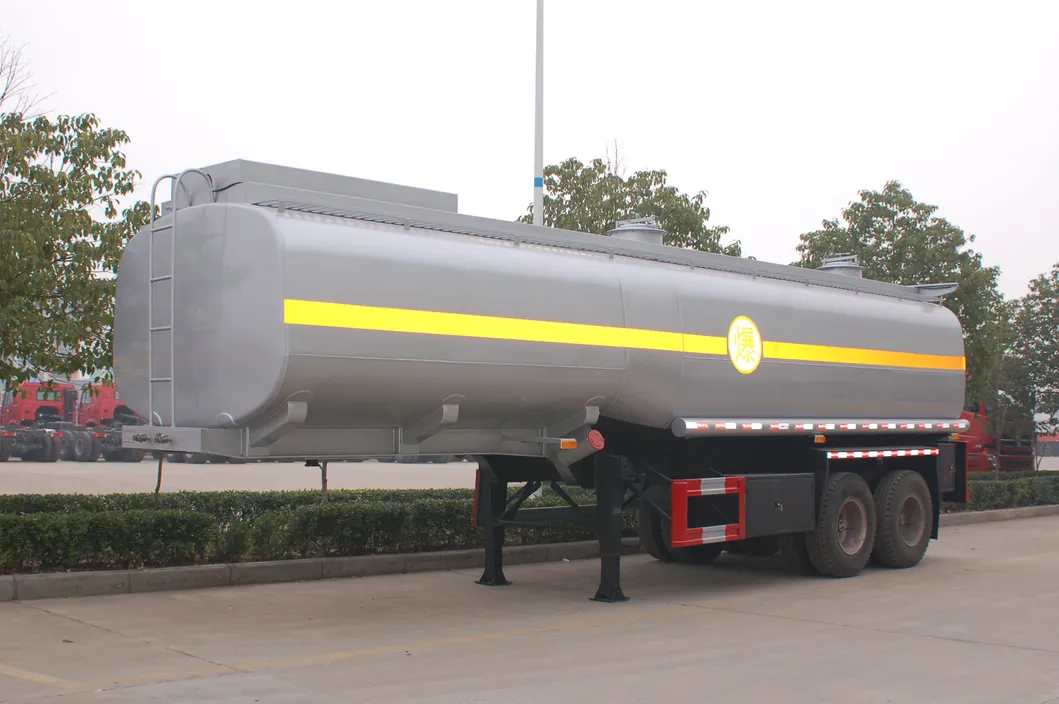

2 axle/3 axle 5 compartments 40M3 oil tank trailer 40000L fuel tank trailer
The pictures of TOTAL Standard Tri-axle 36 tons gasline/oil tanker 36 tons fuel tank trailer for sale.
Parameters of factory sale 42cbm fuel/oil tank trailer 42000L aluminum alloy fuel/oil tank semi trailer
| Main Dimensions | |||||
| Overall Length | 11800mm | ||||
| Overall Width | 2500mm | ||||
| Overall Height | 3600mm | ||||
| Tare Weight | 12800 kg | ||||
| Curb Payload | 36000 kg | ||||
| Loading Capacity | 42m3 | ||||
| Photo only for reference, final product can be made according to exact requirements. Client Logo on Tank body | |||||
| Tank Body | |||||
| Shape | Elliptical | ||||
| Total Volume(m3) | 42CBM | ||||
| Tanker Body Material | 6mm carbon steel | ||||
| End plate Material | 6mm carbon steel | ||||
| Baffles Material | carbon steel | ||||
| Manhole of Baffles | 500mm | ||||
| Manhole cover | 3 nos. API aluminum manhole covers, ∮500mm 3 sets with 3 breather valves,fitted with high flow vapor vent and sensing probe, three oil gauges. | ||||
| Bottom Valve | 3 set of API Pneumatic Bottom Valve, Pneumatic control | ||||
| Top Safety Rail | 1 Set | ||||
| Walkway | Aluminum Non-slip walkways | ||||
| Discharging valve | 3 set ∮100mm discharging valves | ||||
| Vapor Return System | Aluminum line through barrel with section outboard of shell with vapor adapt-or and dust cover to be provided | ||||
| No.of Compartment | 3 | ||||
| Discharging Pipe | 4"rubber hose, 2 pc, 6m long | ||||
| Anti-static wire loop | 1 | ||||
| Chassis | |||||
| Main Beams | Full Aluminum frame including outrigger and cross members.Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation; | ||||
| Overturn Protection | Full length structural extrusion each side on top | ||||
| Axle | 3 axles | ||||
| BPW 13 Ton. | |||||
| Suspension | A complete set of BPW Air bag suspension | ||||
| Landing Gear | JOST brand C205 Two-speed, manual operating, heavy duty landing gear | ||||
| King Pin | JOST brand 2" or 3.5'' bolt-in king pin | ||||
| Suspension | air bag suspension | ||||
| Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. | ||||
| Wheel rim | 11.75-22.5 aluminum wheel rim, 7 pieces including one spare | ||||
| Tire | 385/65R22.5 tubeless tire with one spare tire, 7 pieces | ||||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint | ||||
| Ladder | Aluminum Ladder at rear | ||||
| Lights &Sound | Reverse light and buzz to be installed | ||||
| Wiring | 24V,7 wire system | ||||
| Accessories | One standard tool box | ||||
| Stickers ass required | |||||
| Fire Extinguisher 2 no. | |||||
