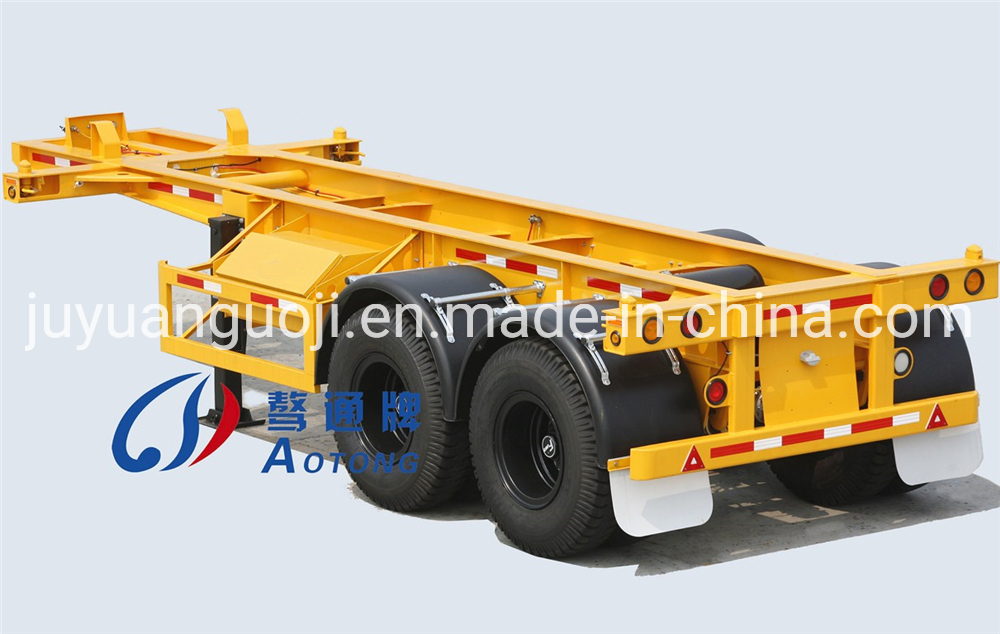

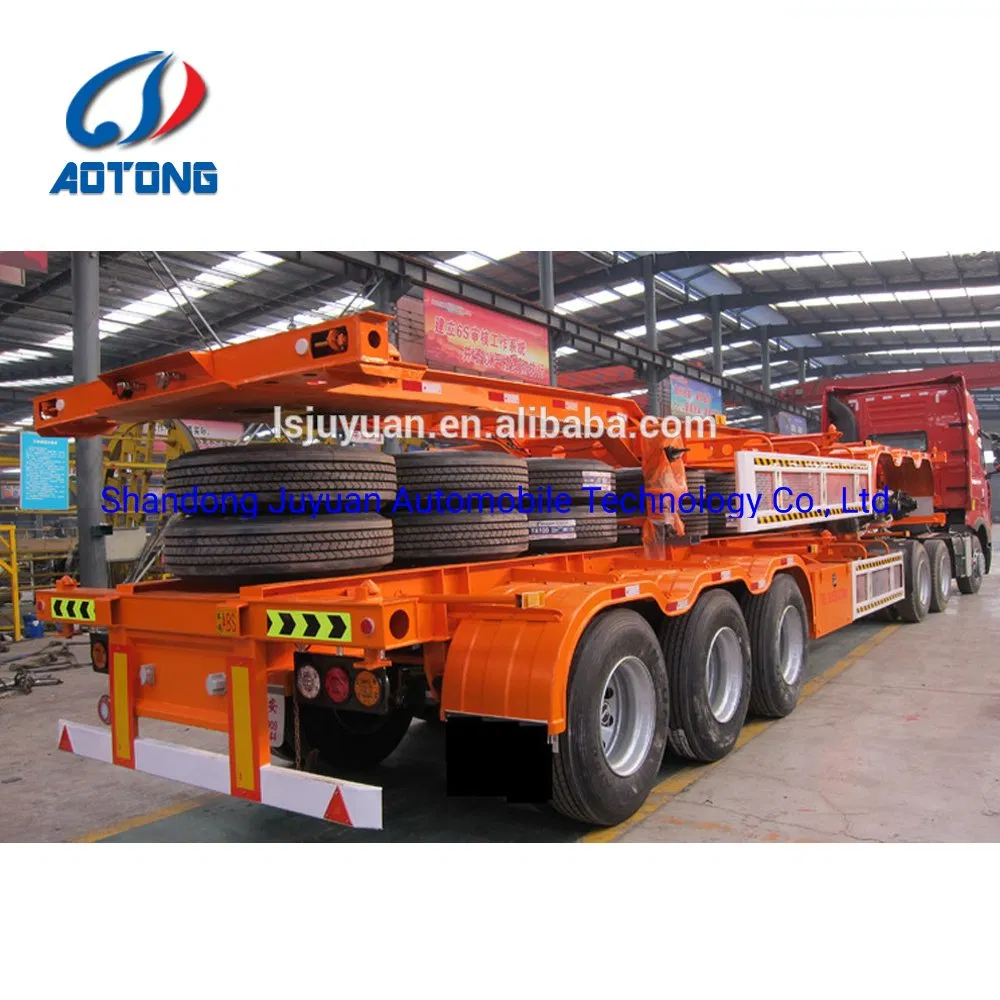

2/3/4 Axles Skeleton Container Semi Trailer/ 4 Axles Container Trailer
AOTONG TRAILER has been in designing, researching developing,Main products include: Skeletal-container-chassis, Platform-(Flatbed) trailer, Van-trailer, Side-fender-trailer, Liquid-tank, Bulk-tank, Dump-trailer, Low-bed-trailer, Port equipment and other special vehicles, totally 10 products group mo......
Send Inquiry
Product Description
Main products include: Skeletal-container-chassis, Platform-(Flatbed) trailer, Van-trailer, Side-fender-trailer, Liquid-tank, Bulk-tank, Dump-trailer, Low-bed-trailer, Port equipment and other special vehicles, totally 10 products group more than 160 model.

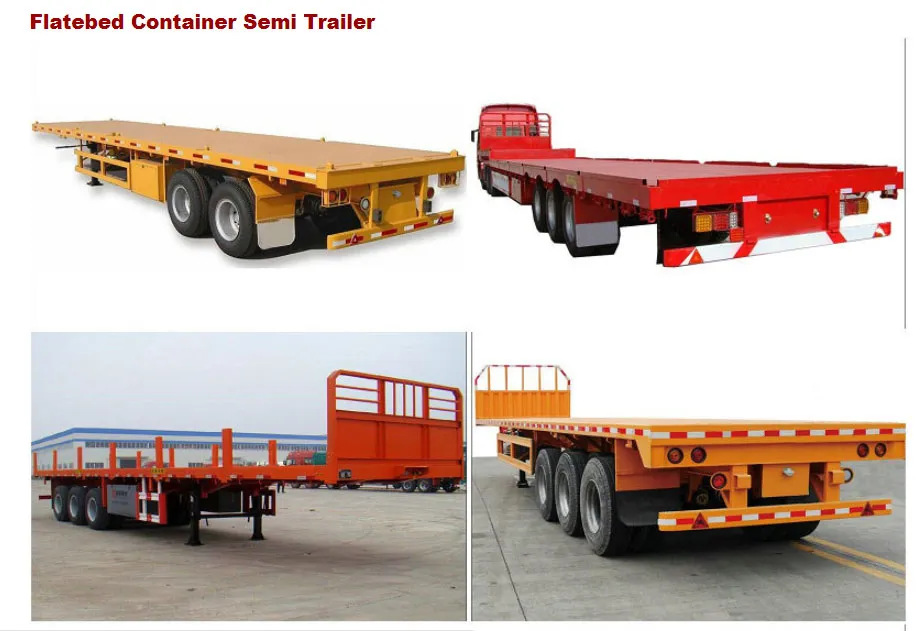

2 axles 20ft flatbed semi trailer------ Specification
| Model | LAT9310TJZG |
| Size | 7000*2500*1500 (mm) |
| Payload | 30000KG |
| Main beam | Heavy duty I beam. |
| Side beam | 140mm channel beam |
| Axles | 2 * 13ton capacity (Brand optional) |
| Suspension | Mechanical suspension (Air suspension optional) |
| Leaf spring | 10pcs |
| Tire | 12R22.5 8pcs (Other size optional) |
| Rim | 9.00-22.5 8pcs (Other size optional) |
| Kin pin | 2''/3.5'' bolt type |
| Landing gear | 28 Ton two speed |
| Twist locks | 4 pcs |
| Braking system | Double air chamber ,brake valve,32L air tanks ;ABS optional |
| Electrical | LED light , 7 ways ,24V |
| Painting | Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting |
2 axles 40ft flatbed semi trailer Specification
| Model | LAT9330TJZG |
| Size | 12500*2500*1500 (mm) |
| Payload | 40000KG |
| Main beam | Heavy duty I beam. |
| Side beam | 140mm channel beam |
| Axles | 2 * 13ton capacity (Brand optional) |
| Suspension | Mechanical suspension (Air suspension optional) |
| Leaf spring | 10pcs |
| Tire | 12R22.5 8pcs (Other size optional) |
| Rim | 9.00-22.5 8pcs (Other size optional) |
| Kin pin | 2''/3.5'' bolt type |
| Landing gear | 28 Ton two speed |
| Twist locks | 4 pcs |
| Braking system | Double air chamber ,brake valve,32L air tanks ;ABS optional |
| Electrical | LED light , 7 ways ,24V |
| Painting | Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting |
3 axles 40ft flatbed semi trailer
| Model | LAT9390TJZG |
| Size | 12500*2500*1500 (mm) |
| Payload | 50000KG |
| Main beam | Heavy duty I beam. |
| Cross beam | 160mm |
| Axles | 3 * 13ton capacity (Brand optional) |
| Suspension | Mechanical suspension (Air suspension optional) |
| Leaf spring | 10pcs |
| Tire | 12R22.5 12pcs (Other size optional) |
| Rim | 9.00-22.5 12pcs (Other size optional) |
| Kin pin | 2''/3.5'' bolt type |
| Landing gear | 28 Ton two speed |
| Twist locks | 12 pcs |
| Braking system | Double air chamber ,brake valve,40L air tanks ;ABS optional |
| Electrical | LED light , 7 ways ,24V |
| Painting | Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting |
Application
Design drawing: Before production, we will send the design drawing to the customer to confirm the details of the vehicle. We
hope to provide the best products for our customers. According to the needs of overseas customers, we could customize it.
We use high quality steel and professional technical design, the production of trailer bearing capacity will not be deformed,
we use the best quality of trailer accessories and durable and beautiful, let you use at ease and save the heart.
Cutting and welding: I profile cutting adopts CNC plasma cutting machine. H beam welding using the gantry main bottom welding
machine
Beam welding: Both the main beam and the side beam adopt i-beam, which can ensure the trailer is more durable. The
reinforced tailgate can prevent the tailgate from breaking when the ramp of the heavy machinery climbing trailer.
Surface treatment: In order to remove the rust of the trailer body, we use sand spraying technology to return the trailer surface.
The trailer has beautiful appearance, uniform coating, strong and durable, high gloss
Paint: One coat of rust proof paint, two coats of paint
Testing: We will test the quality of the trailer before delivery

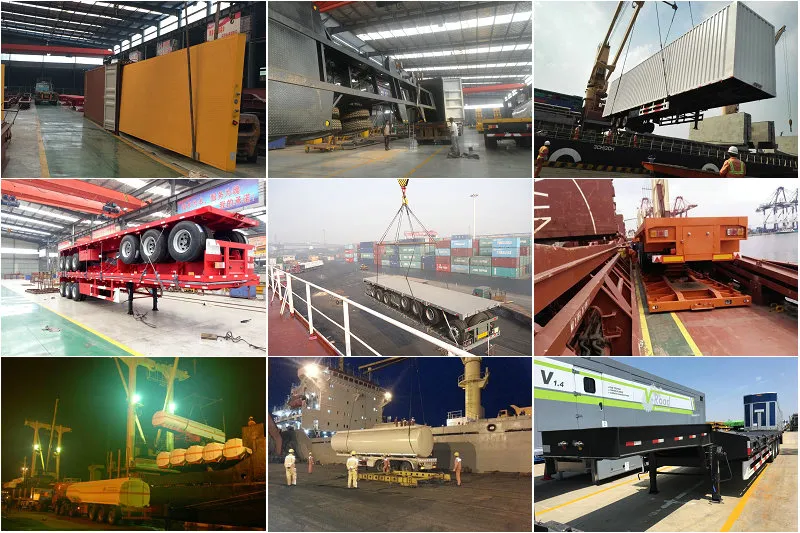

2.Bulk cargo shipment or Ro-Ro shipment.
FAQ
1. How do you make the shipment?
We will transport the trailers by bulk or cotainer,we have possess longterm cooperation with ship agency who can provide you lowest shipping fee.
2. Can you satisfy my spacial requirement?
Sure! We are direct manufacturer with 20 years experience and we have strong producing capacity and R&D capacity.
3. How can you guarantee quality?
Our raw material and OEM parts including axle, suspension,tyre are purchased centralized by ourselves,every part will be inspected strictly.Moreover,advanced equipment rather than only worker is been applied during the whole producing process to ensure the welding quality.
4. Can I have samples of this type of trailer to test the quality?
Yes, you can buy any samples to test the quality,our MOQ is 1 set.
5. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is 15 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lowered.
6.Can I customize the painting and the logo?
Yes, we offer customized logo for any type.
7.What's the payment method?
TT 30% as Deposit, Balance Before shipment by TT or L/C at sight.
8. Why choose us?
a. Over 17 years manufacturing experiences provide qualified truck trailers & competitive price.
b.. Rest assured after-sale service.
c.. Experienced Design & QC team, strict quality control.
d. CCC, ISO9001, SGS, BV, WMI and other certificates.
