Product Description

1.1 Brief introduction:

WE-GW-10 gateway is a full-duplex data communication industrial-grade outdoor gateway based on LoRaWAN protocol, which is of high-performance, low-power and wide range networking. It is waterproof and of wide voltage input to be the key equipment for building low-power WAN. It can support all kinds of equipments two-way wireless communication services, LoRaWAN, 2G/3G/4G wireless communication and 100M Ethernet wired communication. It can also meet the networking requirements of high-speed communication, low power consumption, and many nodes access. More importantly, this industrial-grade communication device can work stably in harsh environments so it is an ideal gateway to apply to smart lighting, smart city, smart community, smart bus station and other fields when supports frequency bands of CN470-510, US915, AU915, AS923, KR920, IN865.

1.2 Features

Follow LoRoWAN wireless transmission protocol to support transmission and reception of full-duplex LoRa communication
12V~36V wide voltage DC input
Support multiple network access methods such as 2G/3G/4G and LAN
Adaptive data transfer rate
Output power up to 23dBm
Sensitivity dropped to -142.5dBm
Support 8 channels of concurrent, the number of accessible nodes is up to 2000
The farthest transmission distance is 15Km (line of sight), 3Km (city distance)
Supports various operating frequencies such as CN470MHz/ US915MHz/ EU868MHz
Effective lightning protection grounding protection

1.3 Performance parameters:

Communication parameters	Notes
Operating frequency	CN470MHz/US915MHz/EU868MHz
Transmit power	< 23dBm
Receive sensitivity	> -142.5dBm
Transmission distance	City: 2Km line of sight: 15Km
Access method	LAN, 2G/3G/4G
Data Protocol	UDP/TCP/MQTT
LoRa antenna	T-NC female interface
4G antenna	T-NC female interface

1.4 Hardware parameters

Hardware parameters	Notes
Supply voltage	12V~36V Recommended: 12V/1A
Power consumption	<1W
Working temperature	-40~80°C
Network / power interface	RJ45 + DC
Waterproof rating	IP66

1.5 Structural parameters

Weight: 2.85Kg
Size: 640x340x100 (mm)

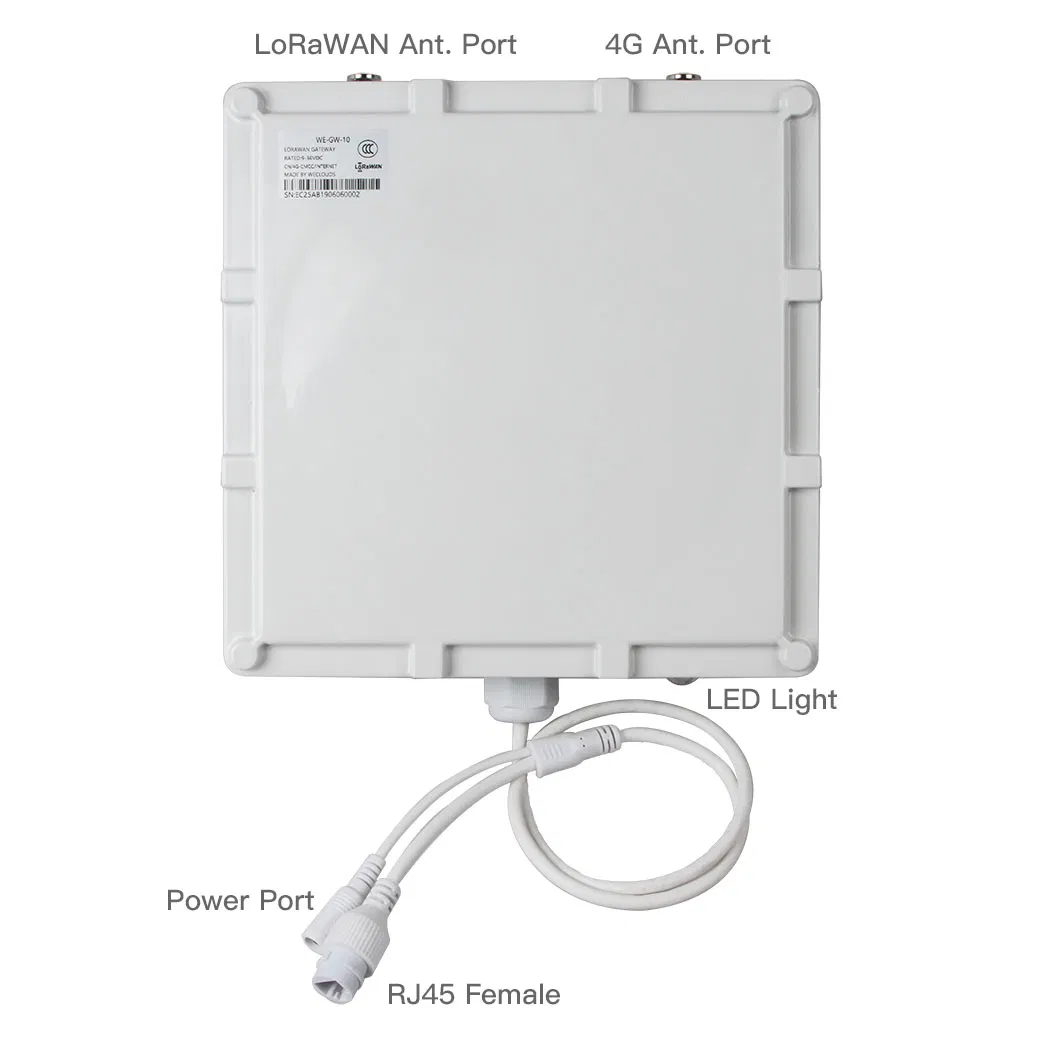

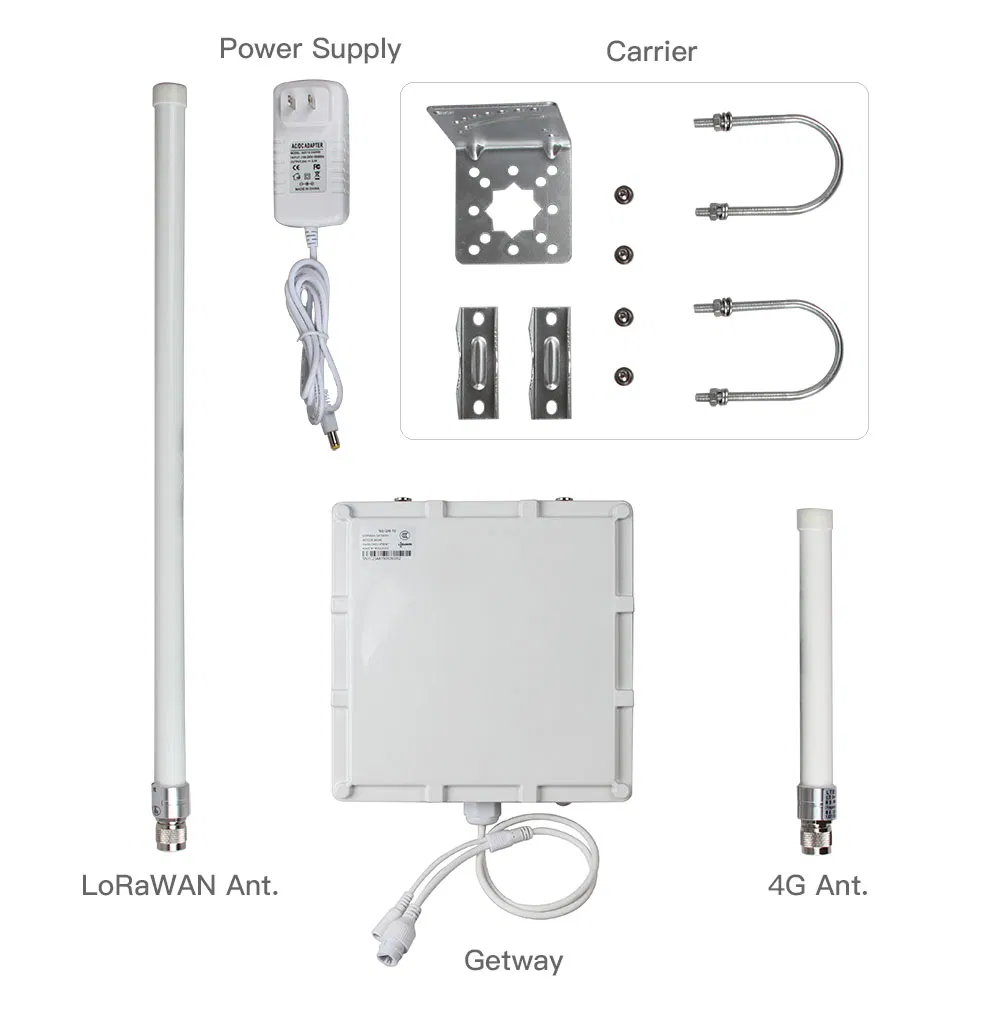

2.1 Accessory schematic diagram

Waterproof IP66 Lora Transceiver Gateway for Street Lighting Management

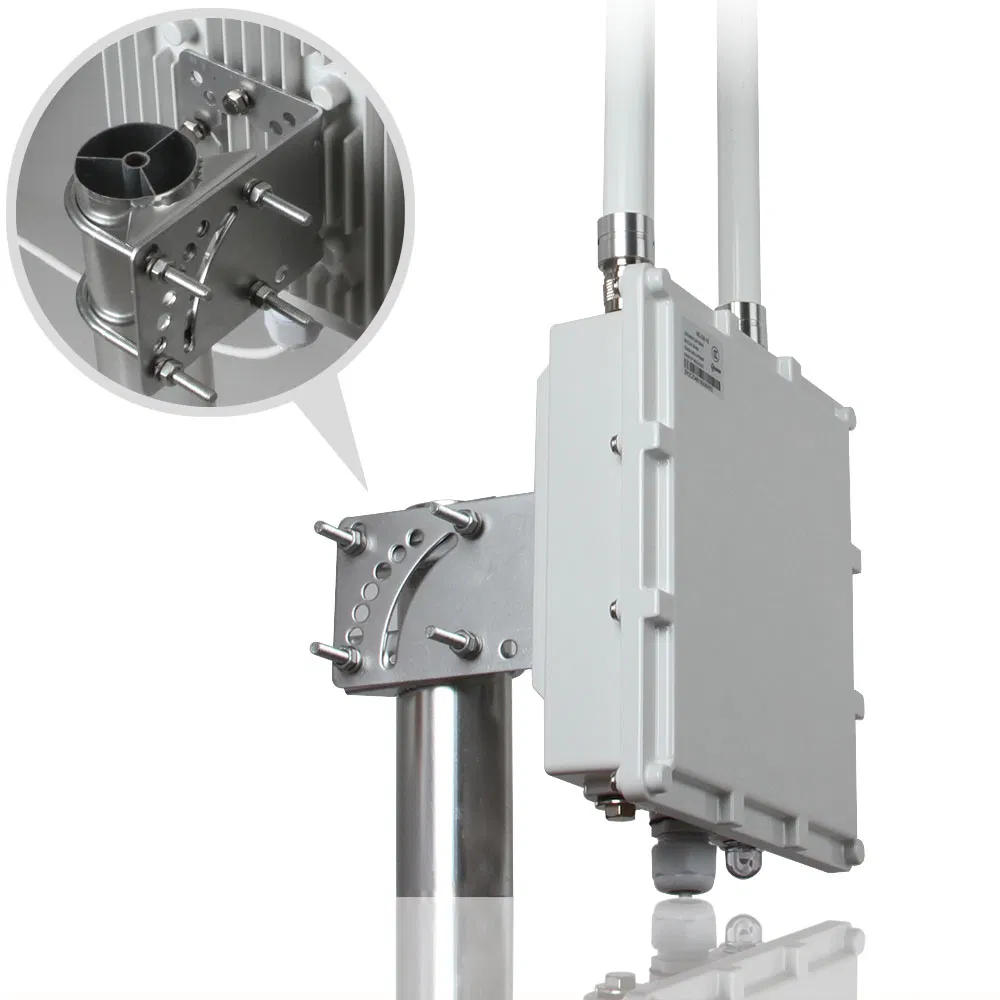

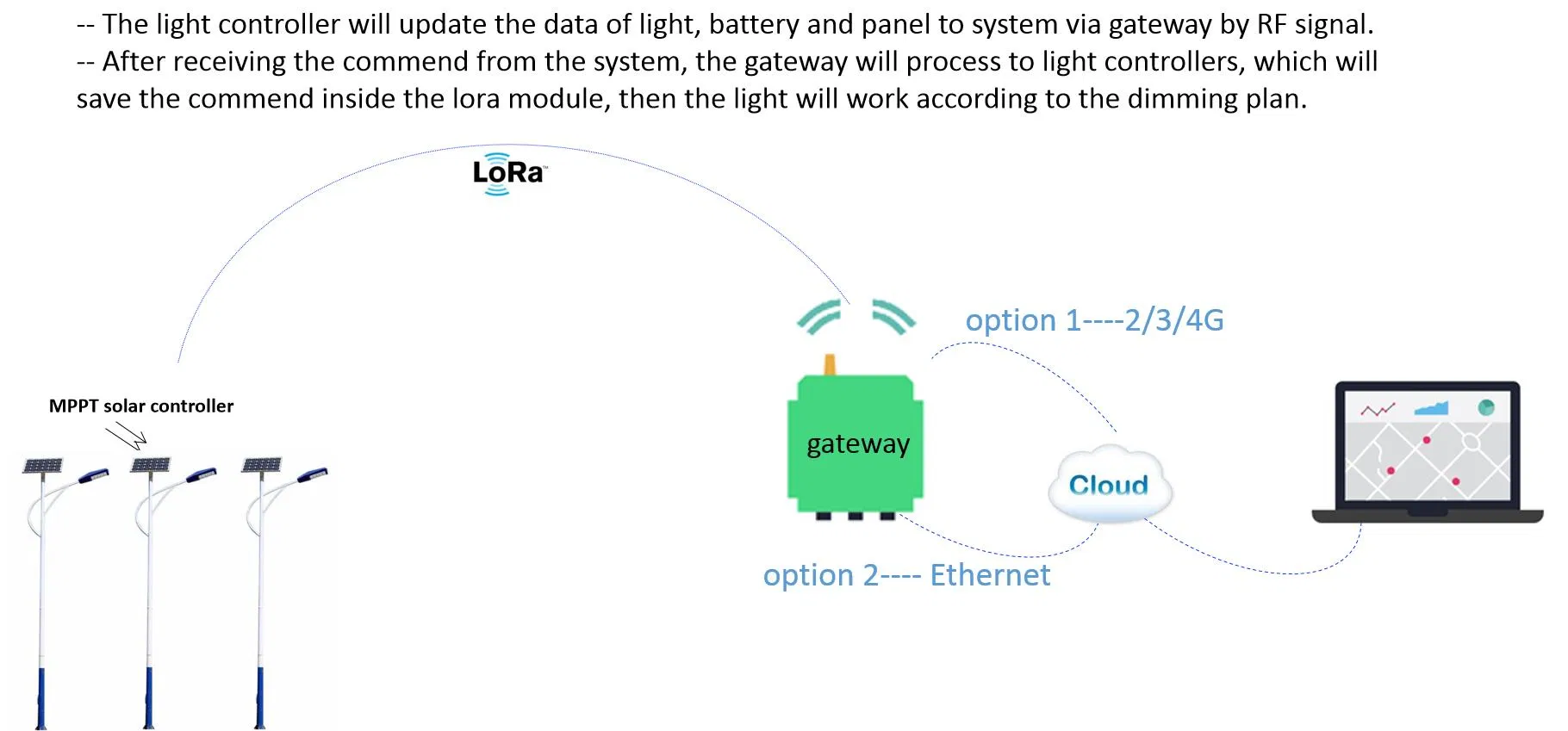

2.2 Schematic diagram after installation

2.3 Sim card installation

2.3.1 Unscrew and open the gateway

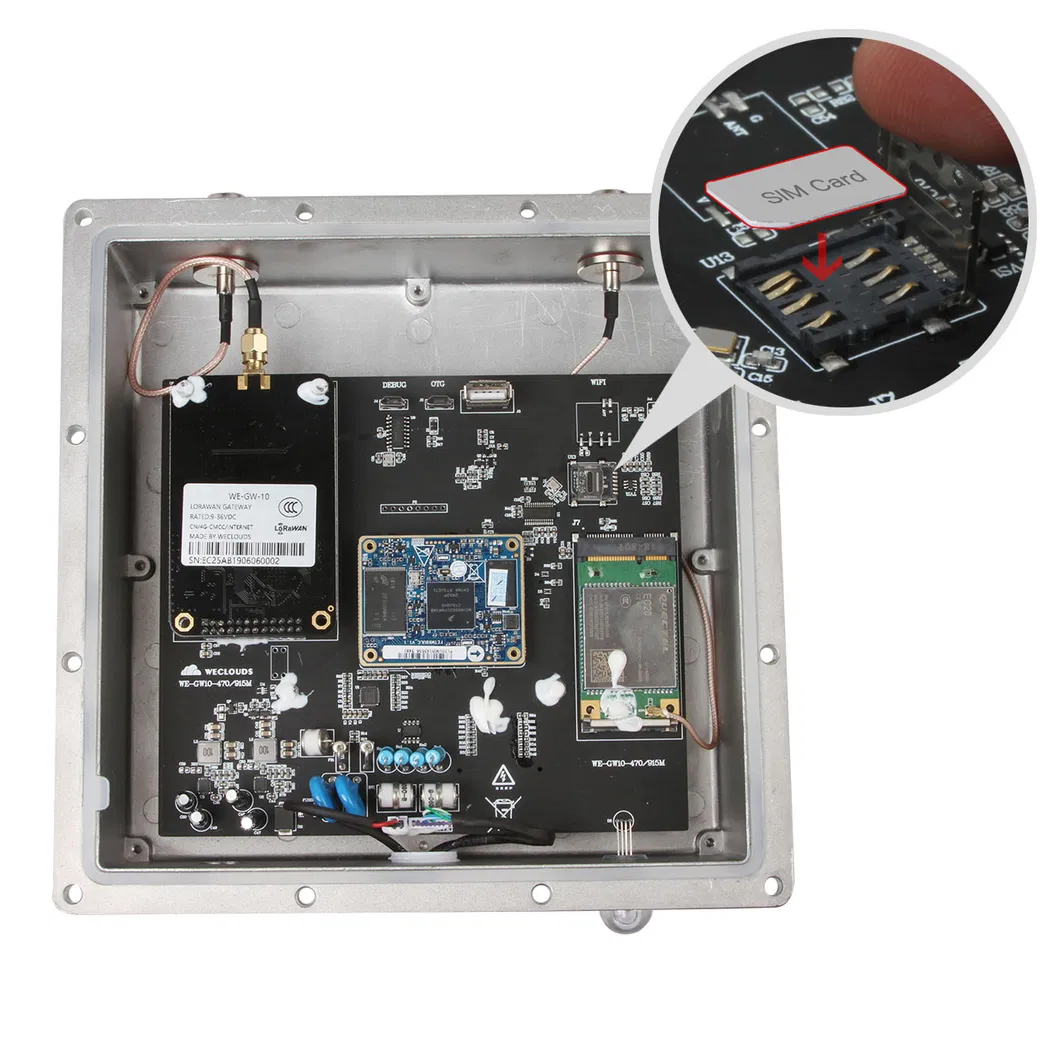

2.3.2 Find the SIM card holder location

2.3.3 Insert the sim card

2.3.4 Close the gateway and tighten all the screws

2.4 Antenna installation

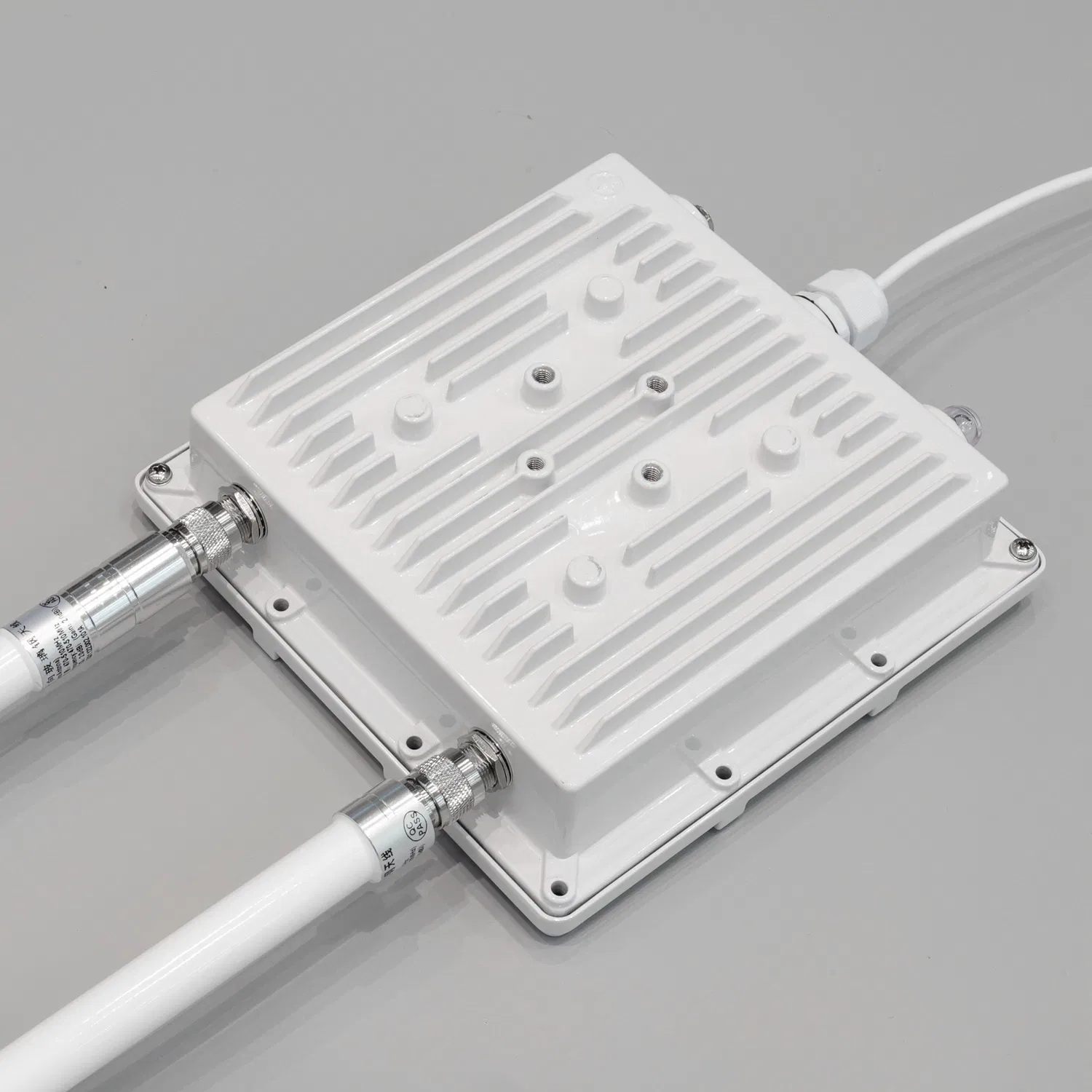

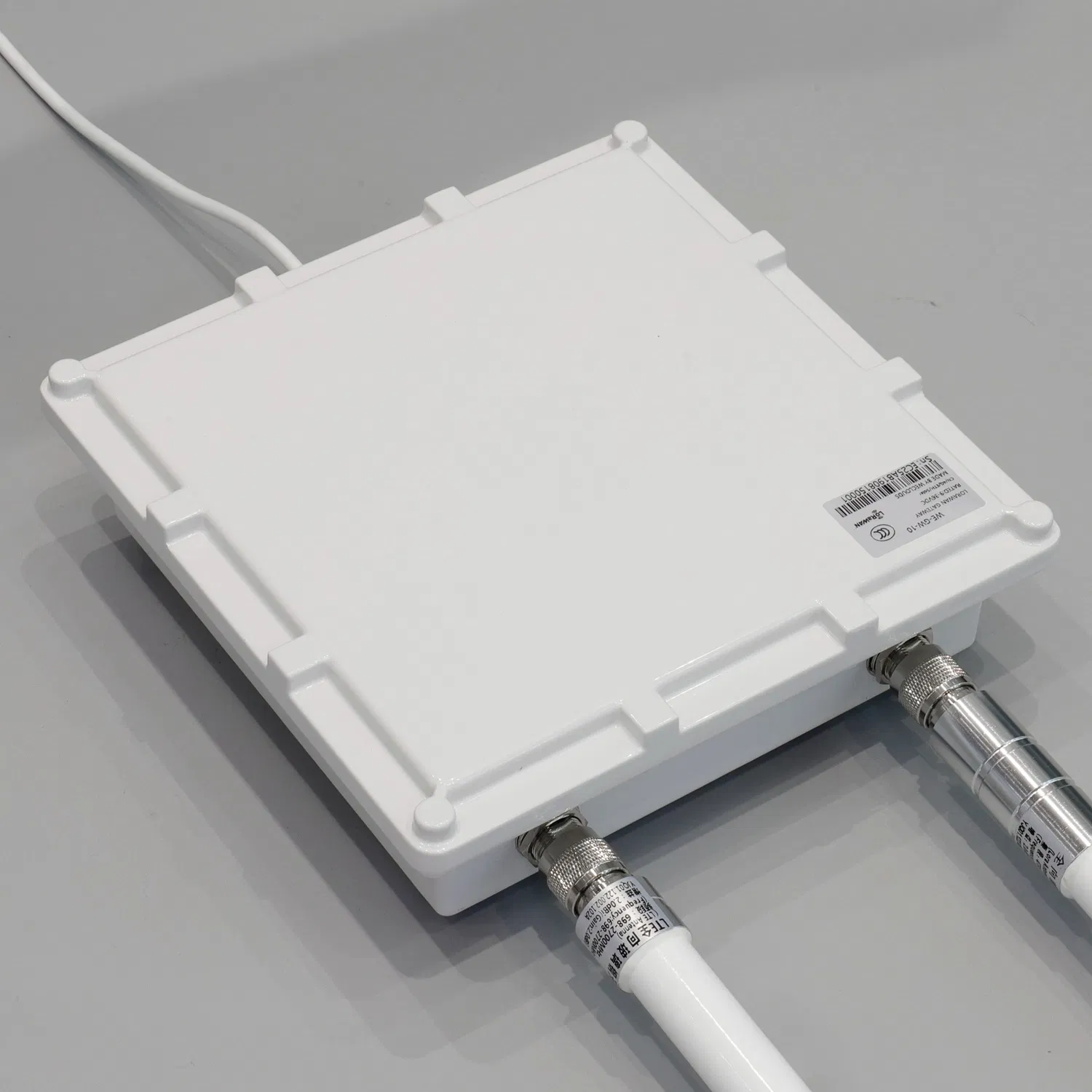

2.5.1 LoRaWAN has 2 antennas of different lengths, and the short is 4G antenna, which is connected to the right side of the front of the gateway. The long is the LoRaWAN antenna, which is connected to the left side of the front of the gateway. As shown below:

2.5 Adaptor connection

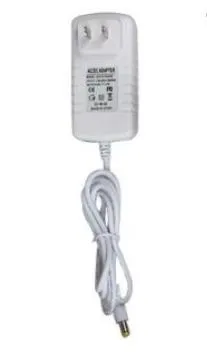

WE-GW-10 is typically used in complex external environments. In order to adapt to the complex application environment and improve the stability of the system, the gateway uses advanced power technology. Users can either use the standard 24VDC/2A power adapter or directly use the DC 12~36V power supply to power the gateway. If user use external power supply, the stability of the power supply must be ensured (the ripple should be less than 300mV and the instantaneous voltage does not exceed 36V), and the power of supply should be bigger than 5W. A standard 24VDC/2A power supply is recommended.

   Waterproof IP66 Lora Transceiver Gateway for Street Lighting Management

3. Operation

After the above installation, the gateway can be powered on normally, and the user can grasp the running status of the gateway according to the indicators of the gateway.

3.1 Power-on

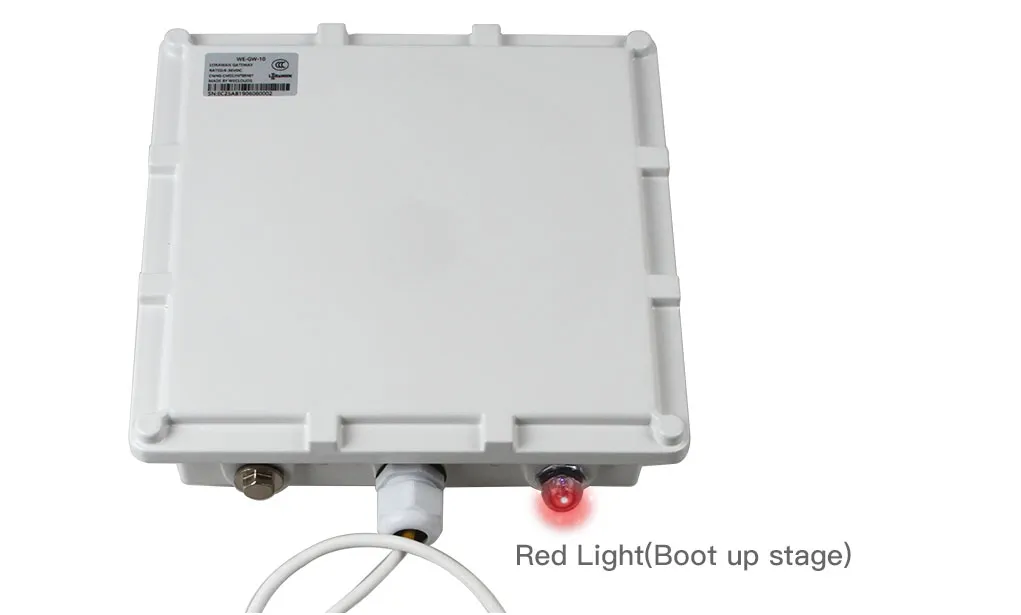

The indicator light is red during the power-on of the gateway.
Waterproof IP66 Lora Transceiver Gateway for Street Lighting Management

3.2 Networking connection

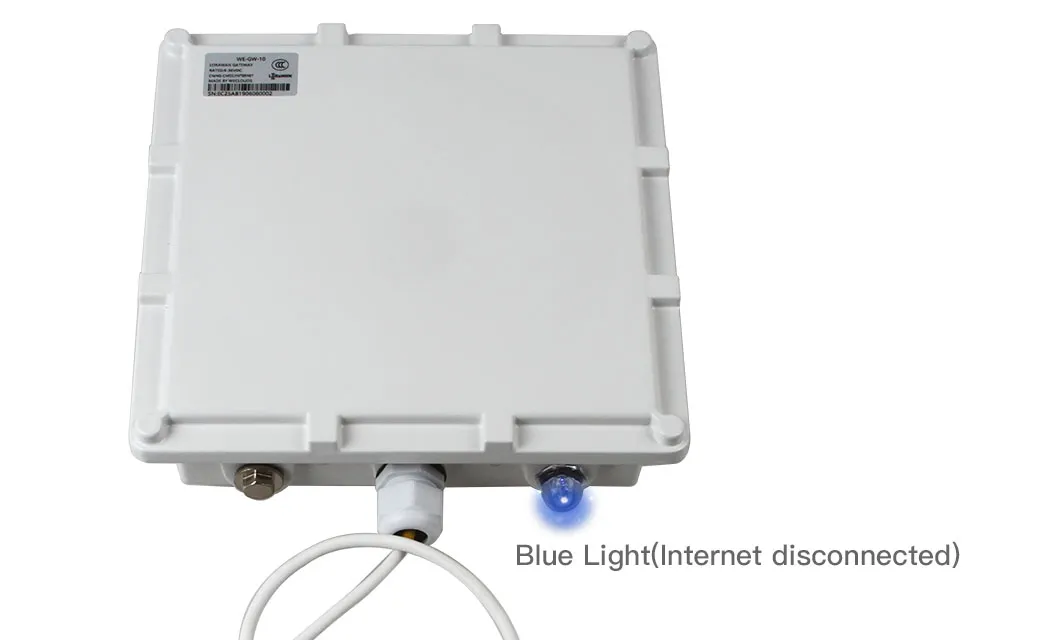

When the network is connecting, the indicator light flashes blue.
Waterproof IP66 Lora Transceiver Gateway for Street Lighting Management

3.3 Successful networking

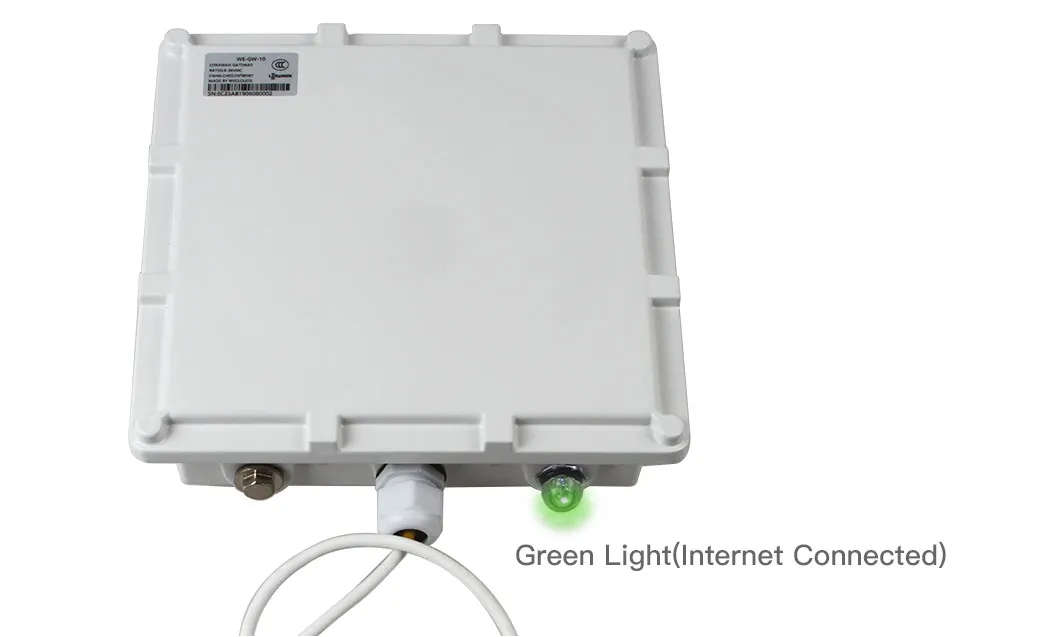

When successful to connect to network and establish with the cloud platform, the indicator light is green.

Waterproof IP66 Lora Transceiver Gateway for Street Lighting Management

4. Case show

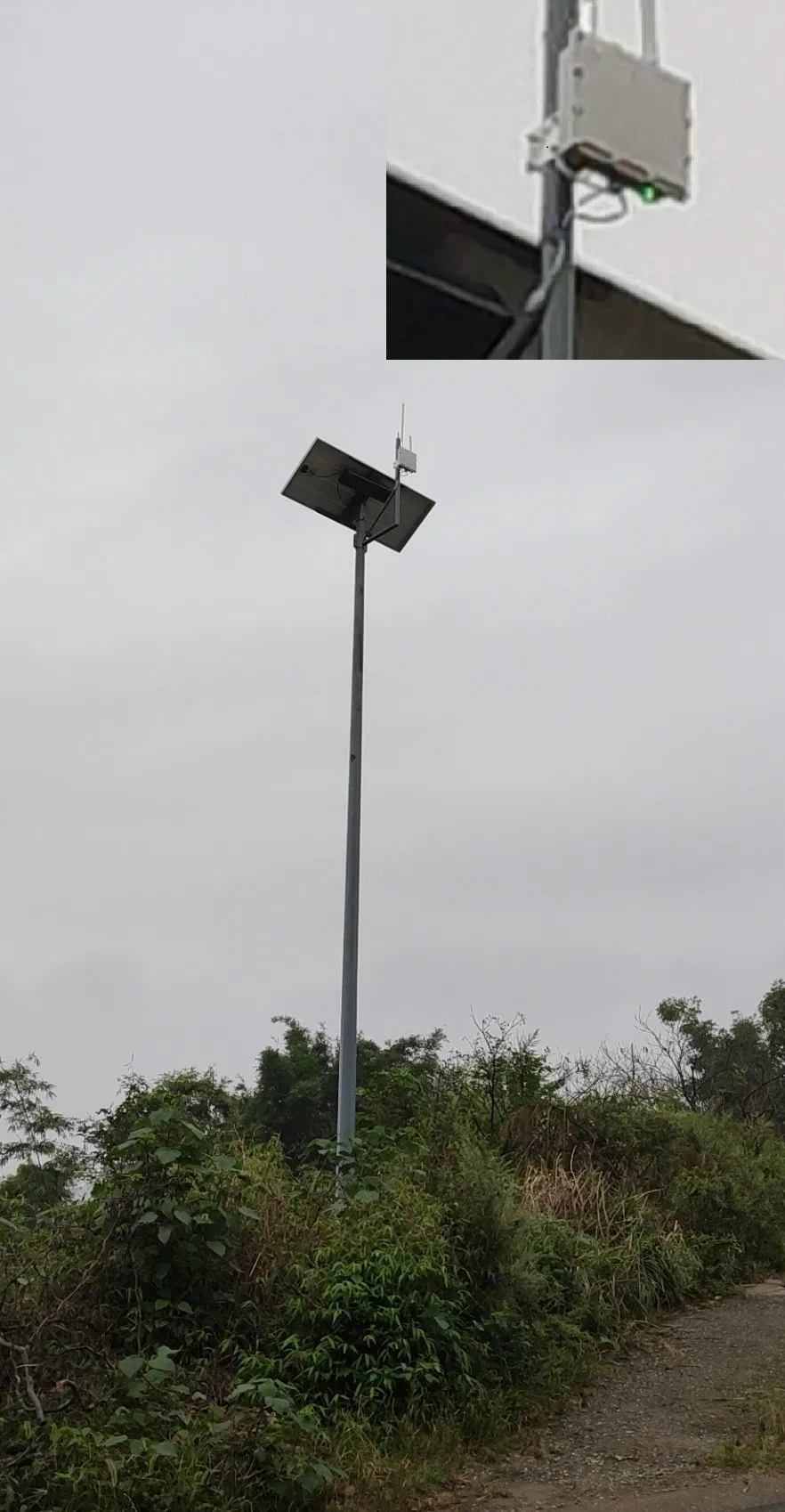

In order to get good signal, the gateway should be put as high as possible.
Waterproof IP66 Lora Transceiver Gateway for Street Lighting Management

Company&Factory info:

Guangdong HonorInsight IoT Technology Co., Ltd. is a high-tech enterprise dedicated to the research and development of the key technologies of the Internet of Things and big data as well as the promotion of industrialization, and to improve the intelligence level of enterprises, institutions and cities. The company chooses "simple and trustworthy, open and win-win" as its purpose, and always helps the government and enterprises to achieve efficient information management and zero emissions.

At present, the company mainly provides smart city lighting management system based on Internet of Things like LoRa, NB-IoT and other communication technologies, photovoltaic power generation off-grid and grid-connected systems, environmental monitoring systems, smart city platforms, private cloud construction and other services.

With ahead hardware and software solutions, supply chain channel integration capabilities, data value development capabilities and complete vertical service genes, we focus on the four major segments of smart PV, smart community, smart site and smart agriculture, together bringing a group of professional background talents from Baidu, Huawei, Tencent, Jinli, Yangzhi, Cisco, etc. In product planning, big data analysis, hardware access, UI design, mobile development, cloud building, system integration, data products and applications.
Waterproof IP66 Lora Transceiver Gateway for Street Lighting Management

Exhibition show:
Waterproof IP66 Lora Transceiver Gateway for Street Lighting Management

FAQ:

1. What's the protocol controller and gateway used?
Standard LoRaWAN protocol. Thus they can be integrated to devices or platforms that use the same protocol.

2. What frequency controller and gateway support?
470MHz/510MHz/868MHz/915MHz.

3. What's the maximum number of lamps that the gateway can carry?
All nodes within radius of 3km, usually 200 nodes.

4. Where can be installed network gateway?
Gateway can be installed any highest location within radio coverage of light controllers network.
