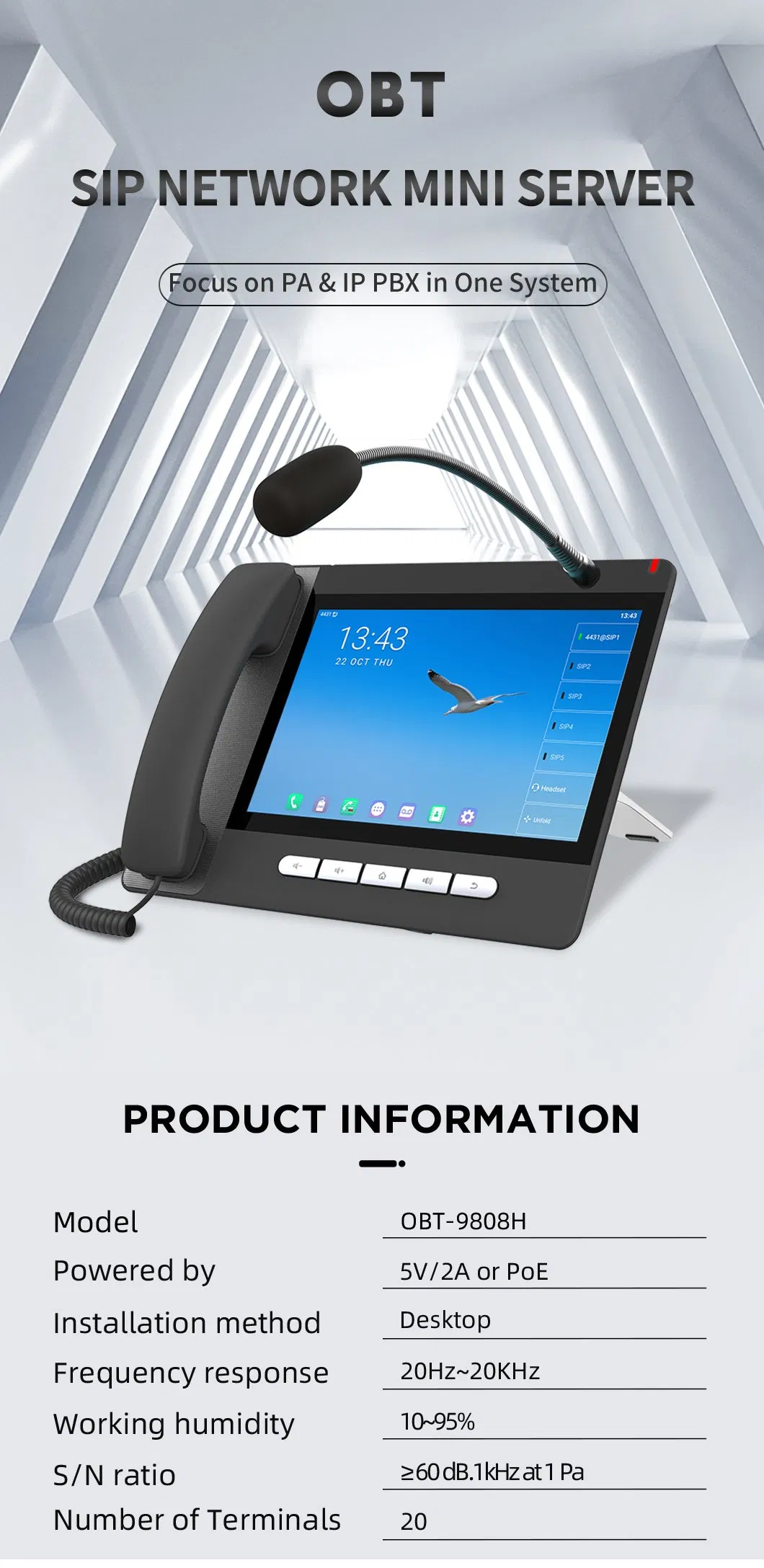

Broadcast Paging System SIP Network Intercom IP PA Telephone Console
Broadcast Paging System SIP Network Intercom IP PA Telephone ConsoleDescription Display: 10280*800 (10.1-inch) pixel LCD capacitive touch screen, the new interface adopts a menu that combines text and graphics, and the operation is simple and easy to understand; built-in bluetooth 4.2 module and 2.......
Send Inquiry
Product Description
Broadcast Paging System SIP Network Intercom IP PA Telephone Console

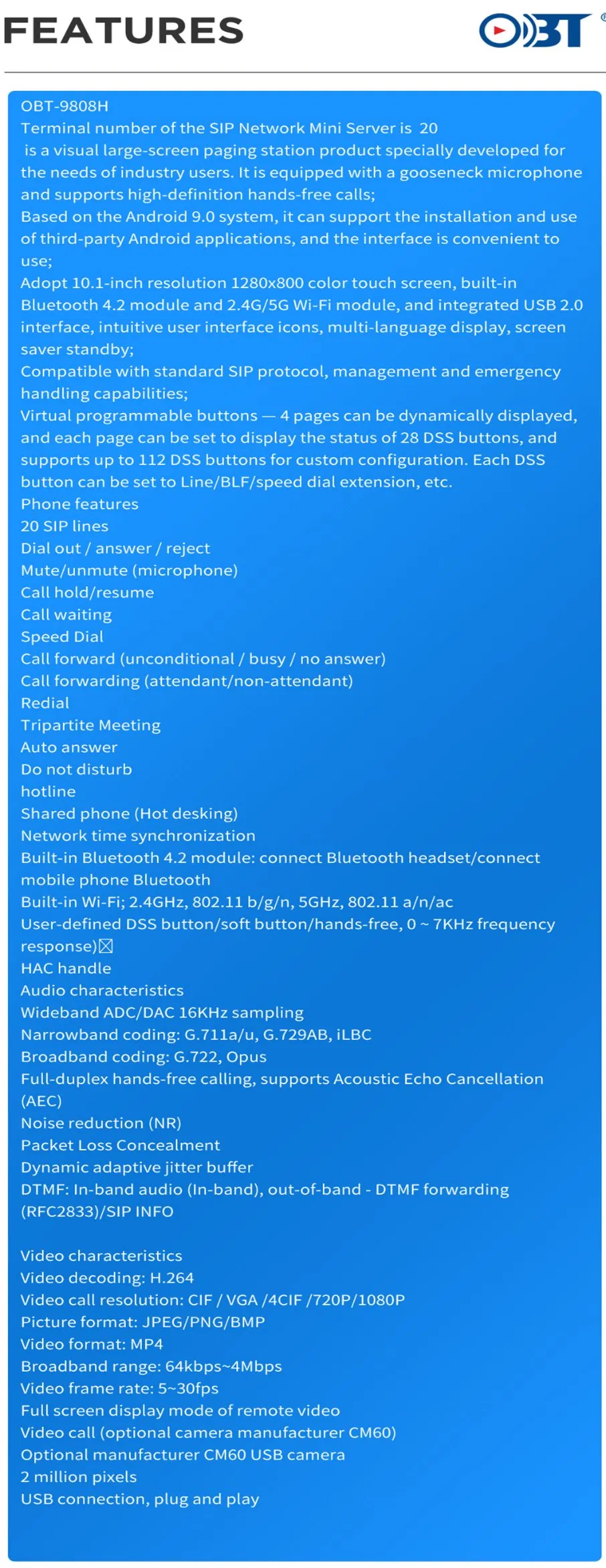

Description

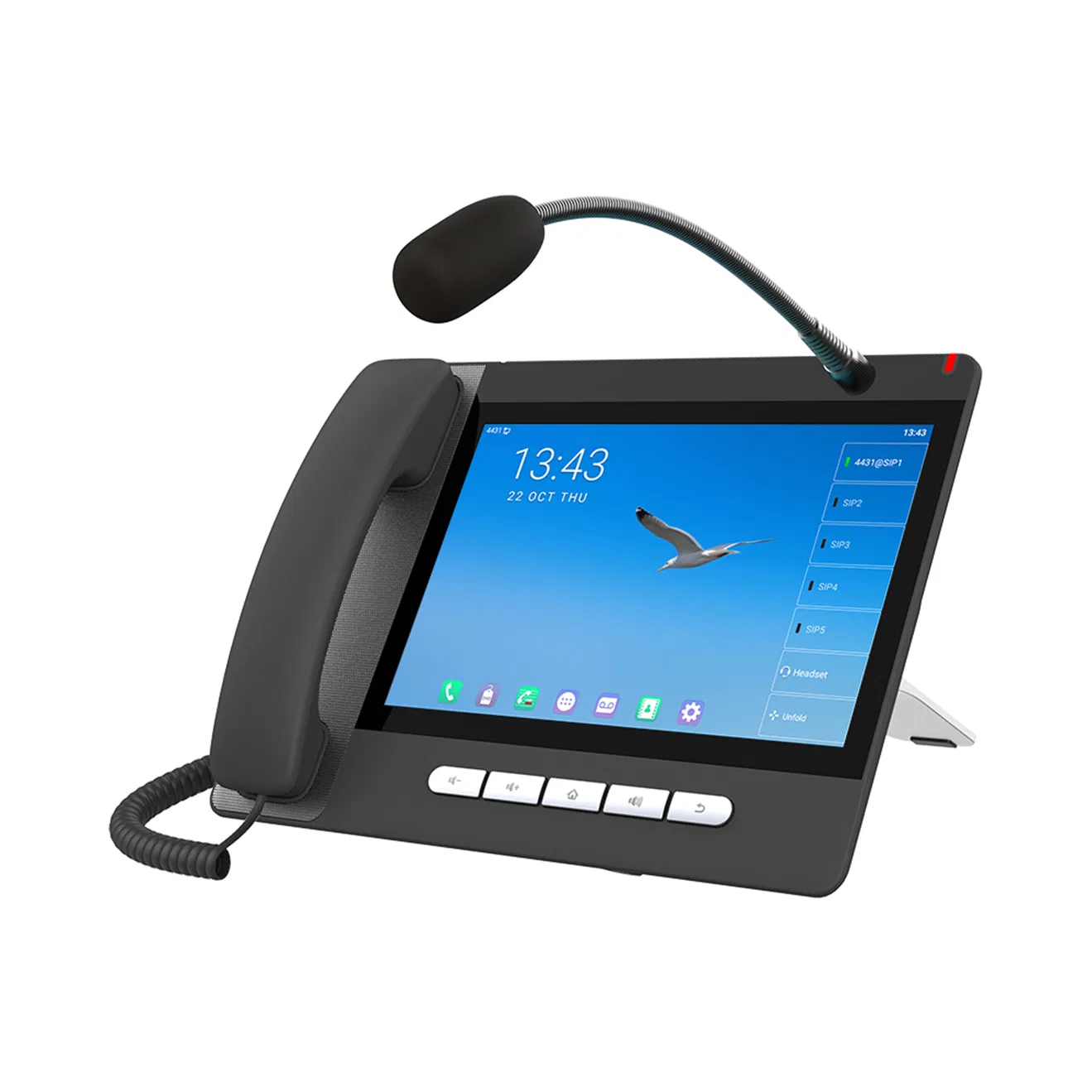

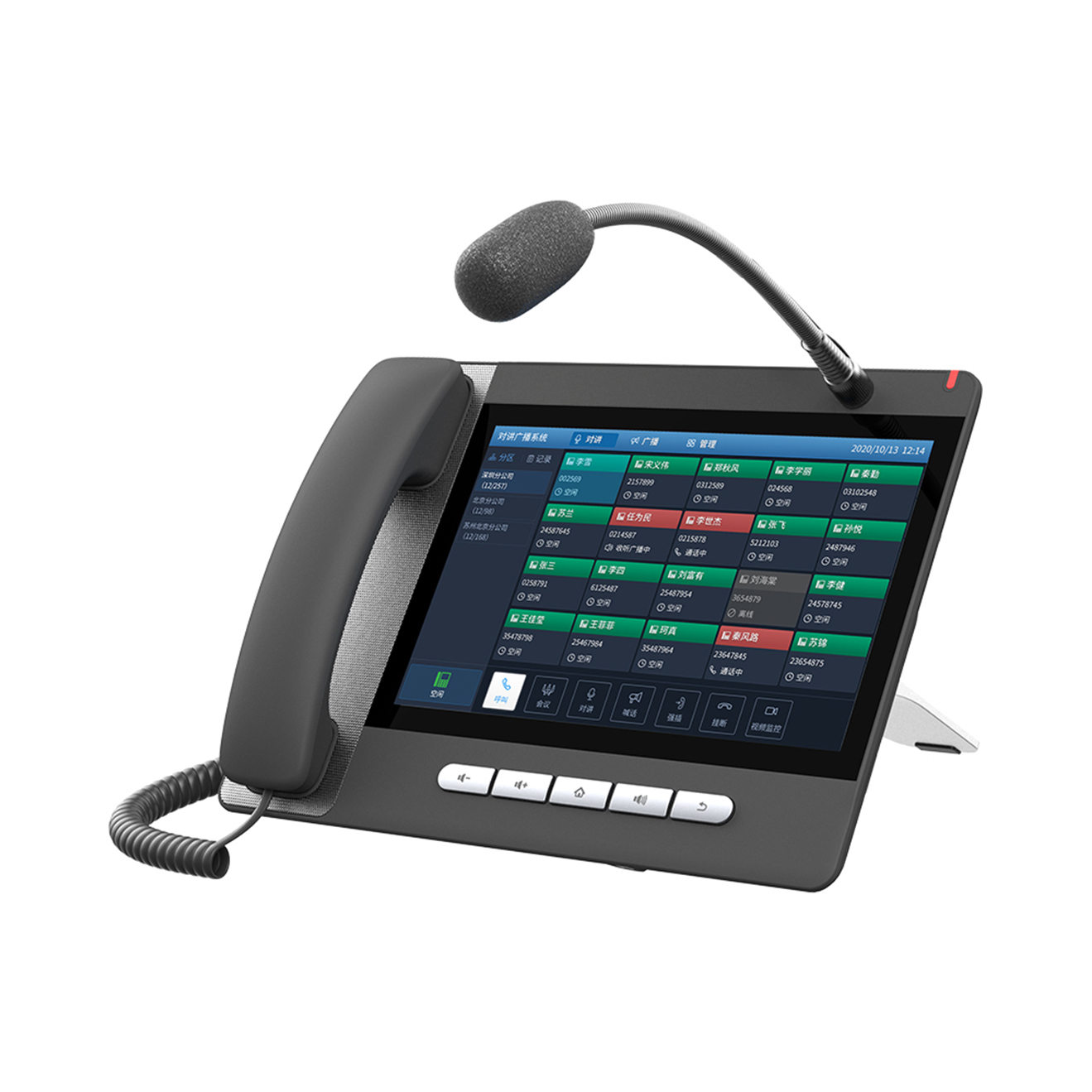

Display: 10280*800 (10.1-inch) pixel LCD capacitive touch screen, the new interface adopts a menu that combines text and graphics, and the operation is simple and easy to understand; built-in bluetooth 4.2 module and 2.4G / 5G WIFI module
Industrial-grade touch operation mode, touch feel is very sensitive, graphic display interface, operation status is clear at a glance;
Support one-key calling zone, one-key calling the whole zone broadcast, support direct operation call or intercom any terminal;
Support full-duplex two-way intercom function, two-way two-way intercom between two-way terminals, built-in network echo cancellation module, network delay is less than 300ms, and network echo howling is completely suppressed;
Parameter
Built-in IP PBX;Support 20 terminals; Broadcast as a single microphone;BLF (Busy Lamp Field)
Call park / pick up (need to cooperate with the server)
Voice mailbox (requires server)
Call recording (server recording)
Intercom function: multicast
Voice message waiting prompt (VMWI)
Anonymous call
Network characteristics
10/100/1000Mbps Ethernet (bridge mode)
IP mode: IPv4
IP obtaining method: static IP setting / DHCP
Support 802.1x network access authority authentication
Virtual Private Network (VPN): OpenVPN (requires third-party App support)
Virtual Local Area Network (VLAN)
Link Layer Discovery Protocol (LLDP)
Cisco Discovery Protocol (CDP)
Quality of Service (QoS)
Primary backup SIP server
Related agreements
SIP2.0 over UDP/TCP/TLS
DNS A/SRV/NAPTR
RTP/RTCP/SRTP
STUN
DHCP
LLDP
CDP
PPPoE
802.1x
OpenVPN (requires third-party App support)
SNTP
FTP/TFTP
TR-069
Action URL / Active URI
uaCSTA
Configuration management
Automatic deployment configuration (Auto-Provisioning) via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PnP/TR-069
Web management interface
Support third-party apps
Support Web
Support configuration file encryption download (AES)
Support web page upgrade
Support factory reset
System Log (Syslog)
Technical Parameters
Color: dark gray
Power supply: 5V/2A or PoE
Power consumption (PoE): 2.6~9W
Power consumption (power adapter): 2.4~8W
Installation method: desktop
Product Size
Desktop (angle 1): 309 x 214 x 187mm
Desktop (angle 2): 309 x 226 x 167mm
Working temperature: 0~45ºC
Working humidity: 10~95%
Frequency response: 20Hz~20KHz
Signal to noise ratio: ≥60 dB.1kHz at 1 Pa
Quantity/Box: 10 units
Packing size: 323 x 301 x 71mm
Carton size: 624 x 383 x 348mm
Description
Display: 10280*800 (10.1-inch) pixel LCD capacitive touch screen, the new interface adopts a menu that combines text and graphics, and the operation is simple and easy to understand; built-in bluetooth 4.2 module and 2.4G / 5G WIFI module
Industrial-grade touch operation mode, touch feel is very sensitive, graphic display interface, operation status is clear at a glance;
Support one-key calling zone, one-key calling the whole zone broadcast, support direct operation call or intercom any terminal;
Support full-duplex two-way intercom function, two-way two-way intercom between two-way terminals, built-in network echo cancellation module, network delay is less than 300ms, and network echo howling is completely suppressed;
Parameter
Built-in IP PBX;Support 20 terminals; Broadcast as a single microphone;BLF (Busy Lamp Field)
Call park / pick up (need to cooperate with the server)
Voice mailbox (requires server)
Call recording (server recording)
Intercom function: multicast
Voice message waiting prompt (VMWI)
Anonymous call
Network characteristics
10/100/1000Mbps Ethernet (bridge mode)
IP mode: IPv4
IP obtaining method: static IP setting / DHCP
Support 802.1x network access authority authentication
Virtual Private Network (VPN): OpenVPN (requires third-party App support)
Virtual Local Area Network (VLAN)
Link Layer Discovery Protocol (LLDP)
Cisco Discovery Protocol (CDP)
Quality of Service (QoS)
Primary backup SIP server
Related agreements
SIP2.0 over UDP/TCP/TLS
DNS A/SRV/NAPTR
RTP/RTCP/SRTP
STUN
DHCP
LLDP
CDP
PPPoE
802.1x
OpenVPN (requires third-party App support)
SNTP
FTP/TFTP
TR-069
Action URL / Active URI
uaCSTA
Configuration management
Automatic deployment configuration (Auto-Provisioning) via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PnP/TR-069
Web management interface
Support third-party apps
Support Web
Support configuration file encryption download (AES)
Support web page upgrade
Support factory reset
System Log (Syslog)
Technical Parameters
Color: dark gray
Power supply: 5V/2A or PoE
Power consumption (PoE): 2.6~9W
Power consumption (power adapter): 2.4~8W
Installation method: desktop
Product Size
Desktop (angle 1): 309 x 214 x 187mm
Desktop (angle 2): 309 x 226 x 167mm
Working temperature: 0~45ºC
Working humidity: 10~95%
Frequency response: 20Hz~20KHz
Signal to noise ratio: ≥60 dB.1kHz at 1 Pa
Quantity/Box: 10 units
Packing size: 323 x 301 x 71mm
Carton size: 624 x 383 x 348mm
