China Professional CE Approved Log Chipper Wood Logs Chipping Shredder Machine

Product Description

Professional Ce Approved Log Chipper wood logs chipping shredder machine

Products introduction of wood chipper:

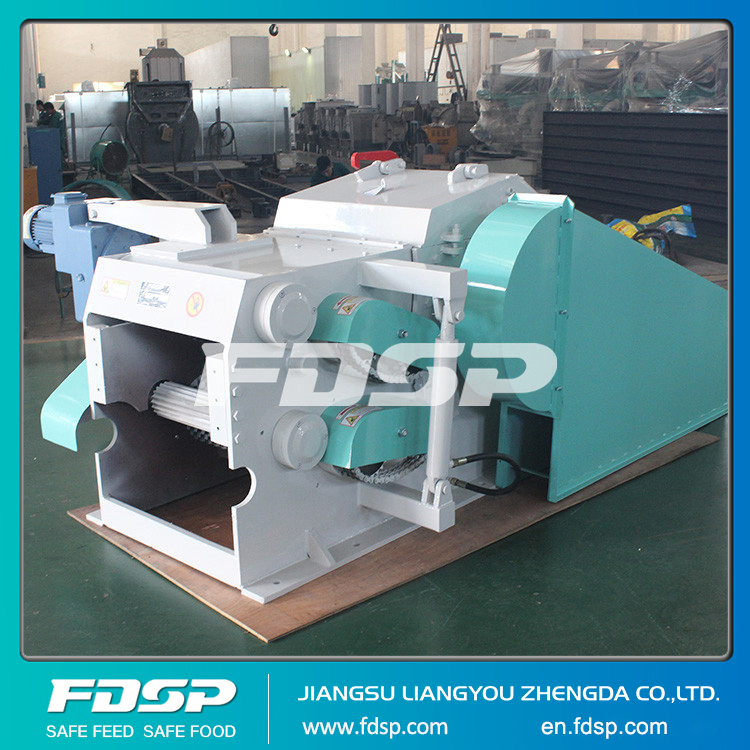

1. The wood chipper is a machine cutting the tree into chips, which is widely used in the paper mill, paper pulp mill or chipboard mill. The whole set of wood chipper equipment usually including 3 parts, the log feeding structure, the wood chipper( tree chipper) and the chips discharging structure.
2. The log feeding structure usually adopted two ways, the conveyor or handwork. For the big log or high capacity model chipper, it usually uses the conveyor feeding the logs into the chipper. For the small model chipper, it usually feeding the logs into chipper by hand work, which could reduce the cost of the conveyor.
3. For the chips discharging structure, it usually adopted the two ways, the chips discharging tube or the discharging conveyor. The discharging tube could blow the chips to about five meters high and spray into the truck directly or the designated place. The discharging conveyor could transport the chips for a longer way to the designated place, such as warehouse.
Professional CE Approved Log Chipper Wood Logs Chipping Shredder Machine

Main technical parameters:

Data Model	LYGX213/5	LYGX216	LYGX218	LYGX218D	LYGX2110
Rotor Dia(mm)	300	650	800	800	1000
Number of flying knives(pcs)	2	2	2	2	2*2
Feed opening size(mm)	120*300	180*500	225*680	240*780	330*1050
Knife rotor speed(rpm)	730	590	650	650	550
Feed speed(m/min)	38	37.2	37	38	33
Max dia of log	Cutting bark	120	160	160	190
Wood chips length(mm)	26	30	30	30	30
Capacity(m³/h)	8-16	10-18	15-20	38	75
Main motor power(kw)	45	55	110	132	220
Feed roller motor power(kw)	2*1.1	2*3	2*4	2*5.5	2*7.5
Weight(kg)	1200	4070	7000	8000	12500
Overall dimension(LWH)	3681870900	434820561258	467021501500	467022501515	285027901497

WHY CHOOSE US?
Our products have passed the SGS,ISO9001:2008,CE certifications.Moreover,we own several patents,such as "utility model patents certificate"and "high-tech products certificate",etc.Our goods exported to many countries and won the good reputation by the high quality and superior service.
