Identification /Mark Cable Tie Tags
Identification /mark cable tie tagsDescriptionMTVLU-Identification /mark cable tie tags are made by means of bombardment and cross-linking of the environmentally friendly polyolefin with high energy electron beams. Market tags are attached on large cables and wire b......
Send Inquiry
Product Description

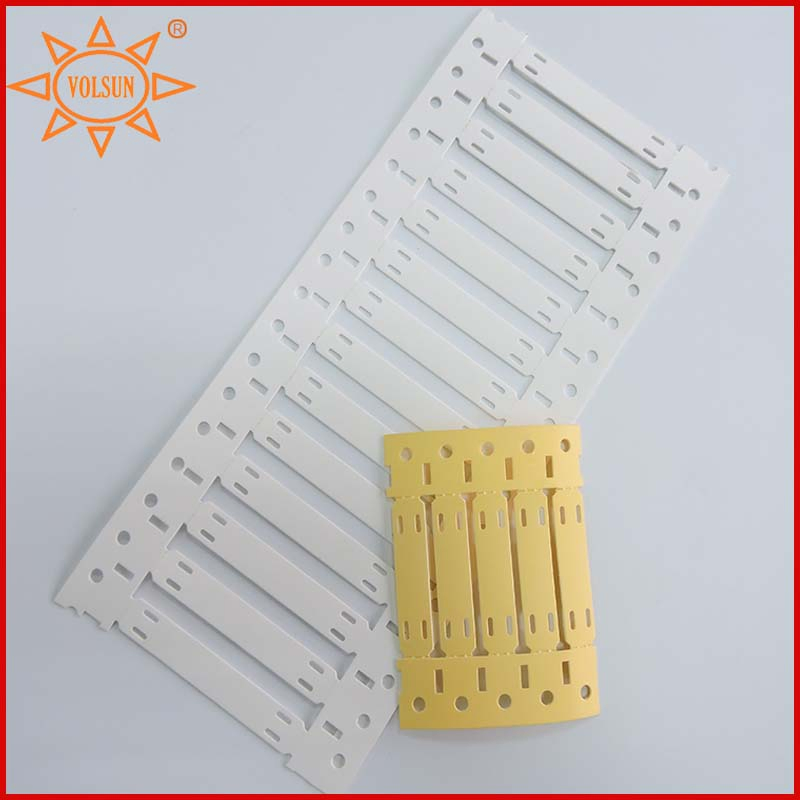

Identification /mark cable tie tags
Description
MTVLU-Identification /mark cable tie tags are made by means of bombardment and cross-linking of the environmentally friendly polyolefin with high energy electron beams. Market tags are attached on large cables and wire bundles with cable ties to meet environment protection and economical identification needsinelectronics, communications, electric power industries.
Features
Halogen free materials, ideal for identifying purposes in electronics/electrical power, communications, architectural industries
Not necessary to disconnect the electrical return circuit when installing, dismantling, or maintenance
Using standard cable ties, no extra work required, easy to handle
Temperature resistance, rated temperature, 125°C
High flame resistance, VW-1
RoHS compliant, meets SONY SS-00259
Permanent identification, not melting in high temp, not turning fragile in low temp, resistant to scrape, rub, abrasion
Computer-printable, any character and logo are easy to design.
Rated Temperature
Materials Standards: UL224, CAN/CSA C22.2
Color code soundness: SAE-AS 81531 and MIL-STD-202F/215J
Standards
Material standards: ASTM D 2671/DIN5510-2
British/French smoke toxicity standards: BS 6853/NF F 16-101
Color code soundness: SAE-AS 81531 and MIL-STD-202G/215K
Structure
Dimension
Physicochemical & Electrical Performance
Description
MTVLU-Identification /mark cable tie tags are made by means of bombardment and cross-linking of the environmentally friendly polyolefin with high energy electron beams. Market tags are attached on large cables and wire bundles with cable ties to meet environment protection and economical identification needsinelectronics, communications, electric power industries.
Features
Halogen free materials, ideal for identifying purposes in electronics/electrical power, communications, architectural industries
Not necessary to disconnect the electrical return circuit when installing, dismantling, or maintenance
Using standard cable ties, no extra work required, easy to handle
Temperature resistance, rated temperature, 125°C
High flame resistance, VW-1
RoHS compliant, meets SONY SS-00259
Permanent identification, not melting in high temp, not turning fragile in low temp, resistant to scrape, rub, abrasion
Computer-printable, any character and logo are easy to design.
Rated Temperature
Materials Standards: UL224, CAN/CSA C22.2
Color code soundness: SAE-AS 81531 and MIL-STD-202F/215J
Standards
Material standards: ASTM D 2671/DIN5510-2
British/French smoke toxicity standards: BS 6853/NF F 16-101
Color code soundness: SAE-AS 81531 and MIL-STD-202G/215K
Structure
Dimension
| Order description | Width G(mm) | L Length(mm) | Printed Characters | Cable OD(mm) | |
| Height G | Length l | ||||
| MT-VLU-10.4-45/4- | 10.4 | 45 | 10.4 | 25 | 5.08~12.7 |
| MT-VLU-10.4-53/4- | 10.4 | 53 | 10.4 | 33 | 5.08~12.7 |
| MT-VLU-10.4-64/4- | 10.4 | 64 | 10.4 | 44 | 5.08~12.7 |
| MT-VLU-10.4-76/6- | 10.4 | 76 | 10.4 | 56 | 5.08~12.7 |
| MT-VLU-10.4-90/6- | 10.4 | 90 | 10.4 | 70 | 5.08~12.7 |
| MT-VLU-15.0-45/4- | 15.0 | 45 | 15.0 | 25 | 12.7~19.1 |
| MT-VLU-15.0-53/4- | 15.0 | 53 | 15.0 | 33 | 12.7~19.1 |
| MT-VLU-15.0-64/4- | 15.0 | 64 | 15.0 | 44 | 12.7~19.1 |
| MT-VLU-15.0-76/6- | 15.0 | 76 | 15.0 | 56 | 12.7~19.1 |
| MT-VLU-15.0-90/6- | 15.0 | 90 | 15.0 | 70 | 12.7~19.1 |
| MT-VLU-20.3-45/4- | 20.3 | 45 | 20.3 | 25 | 19.1~25.4 |
| MT-VLU-20.3-53/4- | 20.3 | 53 | 20.3 | 33 | 19.1~25.4 |
| MT-VLU-20.3-64/4- | 20.3 | 64 | 20.3 | 44 | 19.1~25.4 |
| MT-VLU-20.3-76/6- | 20.3 | 76 | 20.3 | 56 | 19.1~25.4 |
| MT-VLU-20.3-90/6- | 20.3 | 90 | 20.3 | 70 | 19.1~25.4 |
| MT-VLU-25.4-45/4- | 25.4 | 45 | 25.4 | 25 | ≥25.4 |
| MT-VLU-25.4-53/4- | 25.4 | 53 | 25.4 | 33 | ≥25.4 |
| MT-VLU-25.4-64/4- | 25.4 | 64 | 25.4 | 44 | ≥25.4 |
| MT-VLU-25.4-76/6- | 25.4 | 76 | 25.4 | 56 | ≥25.4 |
| MT-VLU-25.4-90/6- | 25.4 | 90 | 25.4 | 70 | ≥25.4 |
Physicochemical & Electrical Performance
| Performance | Indicators | Test Method | ||
| Typical properties | Unit | States | ||
| Tensile Strength | Mpa | Unaged | ≥10.3 | ASTM G 154,MIL-DTL-23053E ISO 37,500mm/min 175°C,168h,ISO 188 |
| Heat aged/ After fluids/UV aged | ≥6.9 | |||
| Elongation at break | % | Unaged | ≥200 | |
| Heat aged/ After fluid | ≥100 | |||
| Secant Modulus | Mpa | Unaged | <173 | ASTM D 882 |
| Voltage Withstand | V | Unaged / After aged | 2500V, No breakdown in 60 sec. | IEC 243,ASTM G 154 175°C,168h,ISO 188 |
| Dielectric Strength | MV/m | Before aged | ≥19.7 | |
| Heat aged/ After fluid/ UV aged | ≥15.8 | |||
| Volume Resistivity | Ω.cm | Unaged | ≥1014 | IEC 93 |
| Dielectric constant | - | Unaged | - | ASTM 150 |
| Water Absorption | - | Unaged | ≤1.0 | ASTM 570,23°C,24h |
| Bare Copper Corrosion | - | Unaged | No corrosion | 23°C,Rh 95±5%,24h 175°C,16h |
| Heat Shock | - | Unaged | No cracks, flowing, dripping | Wind to the specified mandrel, 225°C, 4h |
| Cold Flexibility | - | Unaged | No cracks | Wind to the specified mandrel, -30°C, 1h |
| Flammability | - | Unaged | VW-1 | IEC 60332-1-3 Ed.1.0 b:2004 |
| Smoke Density | - | Unaged | - | DIN 5510-2 |
| Toxcity Index | - | Unaged | - | BS 6853:1999 |
