            Saic-Iveco Hongyan 6X4 High Roof 50t 430 HP Prime Mover
            • Saic-Iveco Hongyan 6X4 High Roof 50t 430 HP Prime MoverSaic-Iveco Hongyan 6X4 High Roof 50t 430 HP Prime Mover

            Saic-Iveco Hongyan 6X4 High Roof 50t 430 HP Prime Mover

            AdvantagesItaly Iveco advanced design and manufacture techniques .Cursor 9 Engine: Light weight, low consumption, low maintain cost, low noises, economical.Advanced Cabin Anti-Corrosion & Welding Technic Free for Ten Years.The punching, cutting, and bending procedures of the beam are all done b......

            Send Inquiry

            Product Description

            Advantages
            1. Italy Iveco advanced design and manufacture techniques .

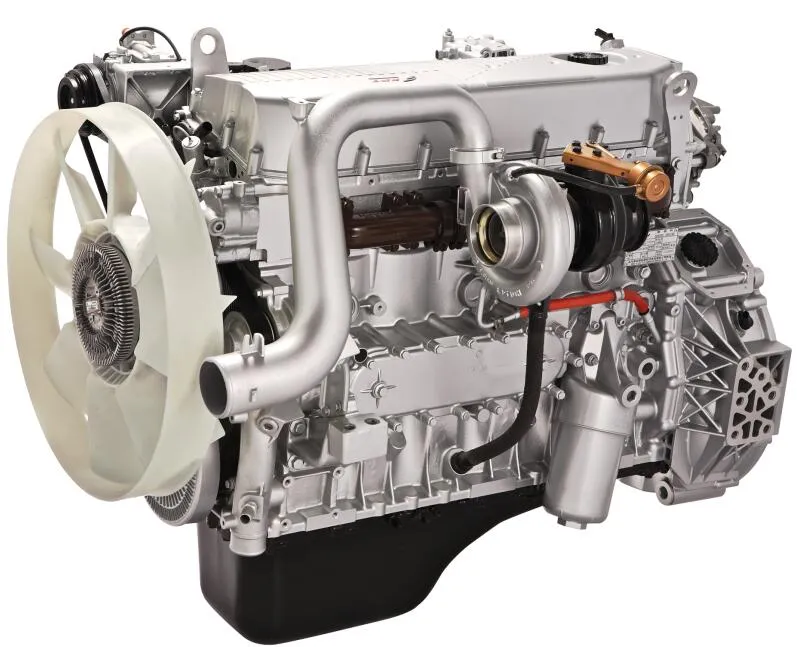

            2. Cursor 9 Engine: Light weight, low consumption, low maintain cost,  low noises, economical.
            3. Advanced Cabin Anti-Corrosion & Welding Technic Free for Ten Years.
            4. The punching, cutting, and bending procedures of the beam are all done by the world's most advanced machines.
            5. Currently the fist four-axle testing line in China and can conduct power, ABS braking, sideslip, noise, tail gas, top speed and road test.
            6. All Italian equipments for the truck testing line. Quality control far surpass that of Chinese standard. Testing items close to that of first grade European truck manufacturers.
            7. The first Truck Brand in China which come through the European ECER29 Test.
            8. Excellent quality, competitive price, with mature spare parts system.
            ECHNICAL SPECIFICATION
            TECHNICAL SPECIFICATION
            NO.SPECIFICATIONPARAMETERNOTE
            1Model                   CQ4254HXVG334
            2Cab                     Genlyon C100 Cab Left Hand Drive, High-Roof,  with ACYellow/Red/White
            3Drive                    6x4
            45th Wheel Rated Payload(kg)                    11400
            5Kerb Weight(kg)              6470
            6Gross Vehicle Weight(kg)    18000
            7Hualage Weight(kg)      35400
            8Overall Dimension(mm)5913×2500×3797(L*W*H)
            95th Wheel Diameter(mm)  90
            10Max Speed(km/h)120
            11Wheelbase(mm)                3500
            12Engine             C13 430Euro 3
            13Engine Output(HP)             430
            14Max. torque/speed (N.m/(r/min))1550/1100-1800
            15Gearbox        12JSD220TAFuller technology
            16Steering gearZ06 Hydraulic Steering Gear
            17Drive Axle       Double reduction with differential, Punching-welding steel driving axle
            18Tyre                       12.00 R20
            19Oil Tank          400L    Aluminum-Magnesium Alloy

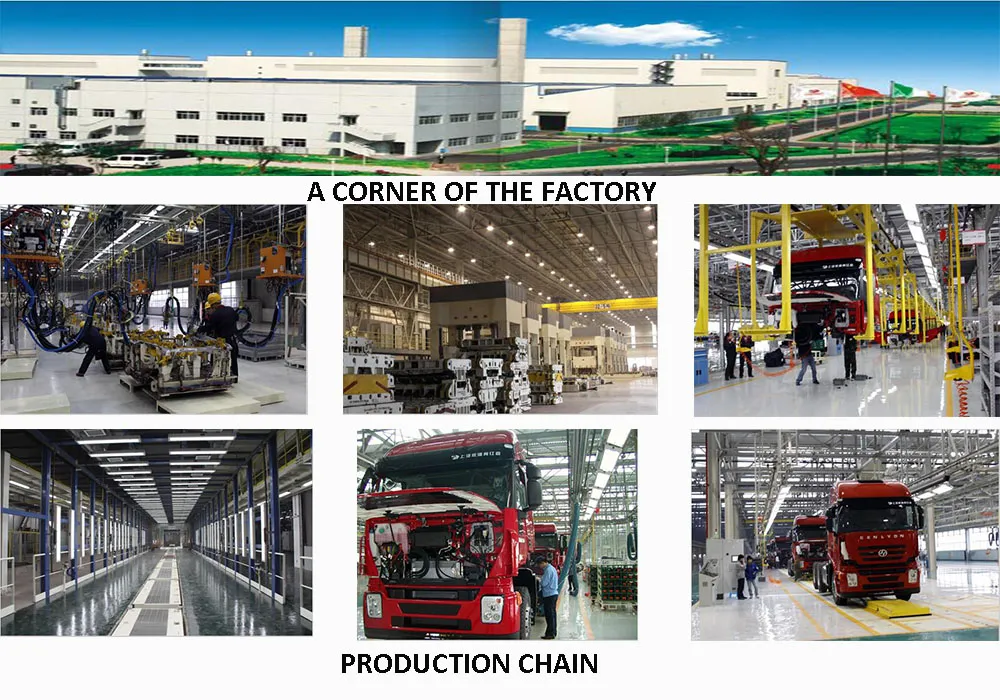

            Manufacturing:

            SAIC-IVECO HONGYAN Company is an experienced heavy duty truck manufacturer. Based in Chongqing city, China, we design, manufacture a wide range of heavy duty trucks and special trucks based on heavy duty trucks such as tractor unit, dump truck, cargo truck, tanker truck, and some construction engineering vehicles like concrete mixer truck. SIH is based on China state owned enterprise.

            SIH implemented a series of effective quality control measures , introduced advanced IVECO prototype vehicle technology, acquired state-of-the-art production and inspection equipment, employed experienced staff, and strictly implemented the ISO9001:2000 quality management system to monitor every production process. In addition, we provide continuous training to improve employee efficiency, which greatly reduces our production costs, thus enabling us to provide our heavy trucks at lower price.

            Saic-Iveco Hongyan 6X4 High Roof 50t 430 HP Prime Mover


            Saic-Iveco Hongyan 6X4 High Roof 50t 430 HP Prime Mover Saic-Iveco Hongyan 6X4 High Roof 50t 430 HP Prime Mover

            Saic-Iveco Hongyan 6X4 High Roof 50t 430 HP Prime Mover

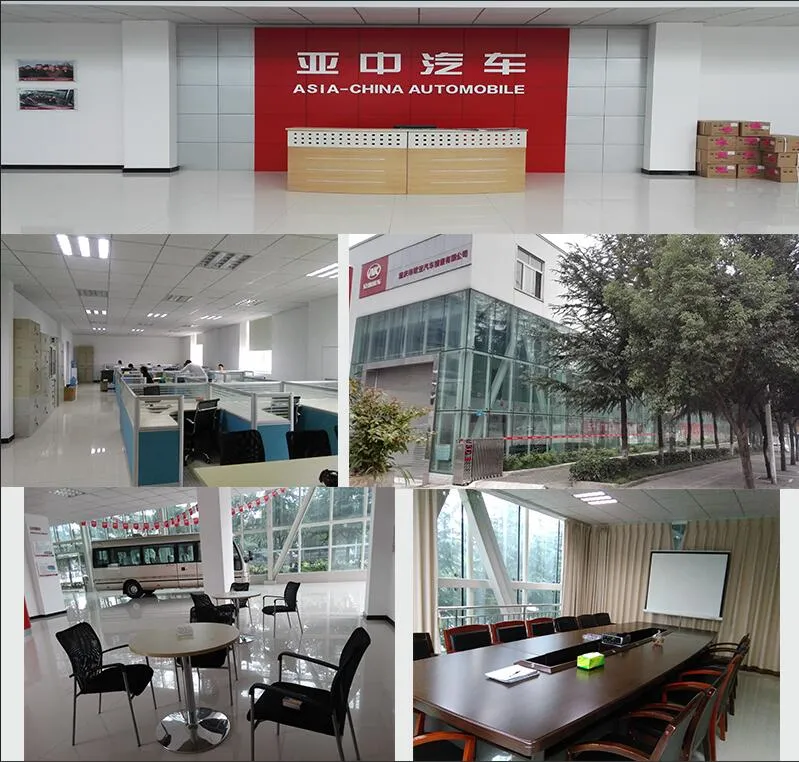

            About US



            We have twelve subsidiary company and offices in China and overseas. The average sales has reached to 2500 units per year in china while the export amount is more than thousands units. And the annual income has surpassed 80 million dollars.Because of excellent quality, flexible sales model, complete unit of accessories, our company set up impressive image in China automobiles field. Recent years, our company is dedicating in extending overseas market. Our products have exported to more than 20 countries, primarily to markets in Vietnam, Tadzhikistan, Saudia Arabia, Algeria, Congo, Nigeria and etc. At the same time, our sales and service team accumulated a lot of experience in international trade and established complete sales and service network in Africa and Central Asia. What's more, we enjoyed excellent reputation among our customers.Saic-Iveco Hongyan 6X4 High Roof 50t 430 HP Prime Mover
