New Zowell Truck Head Electric Tugger Xt40

Product Description

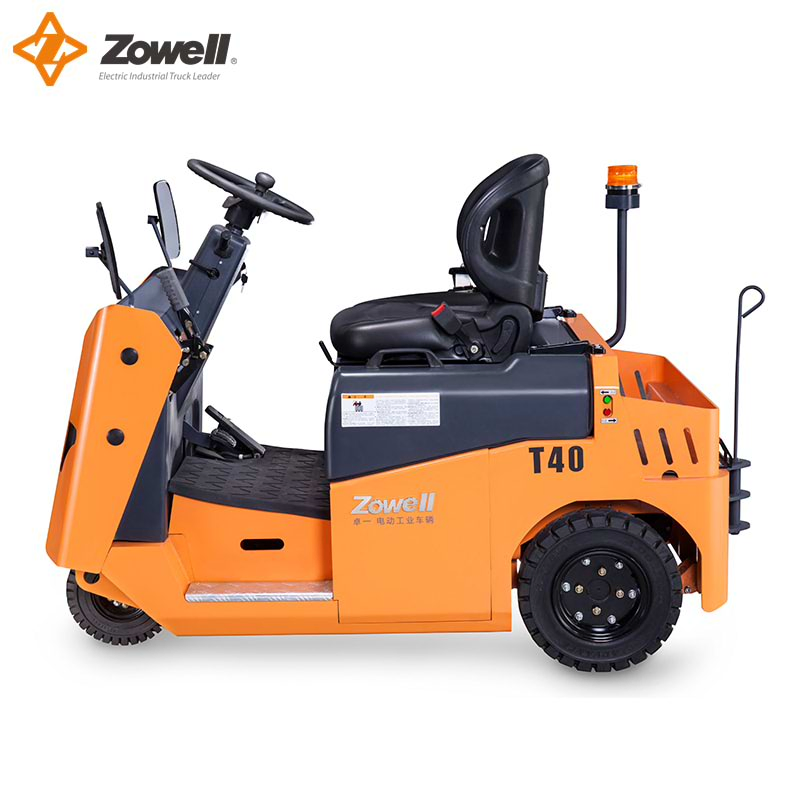

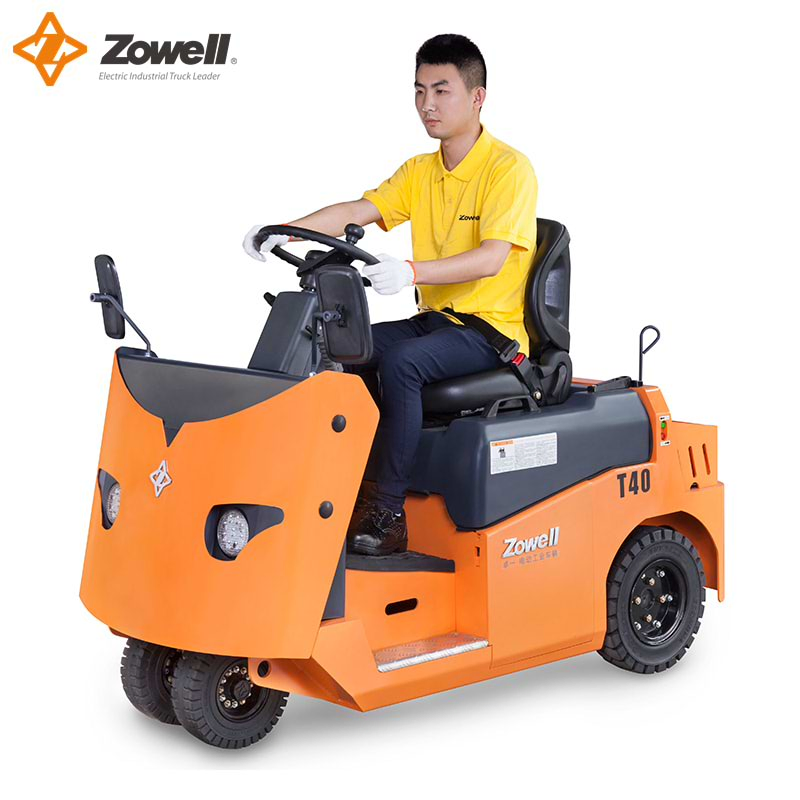

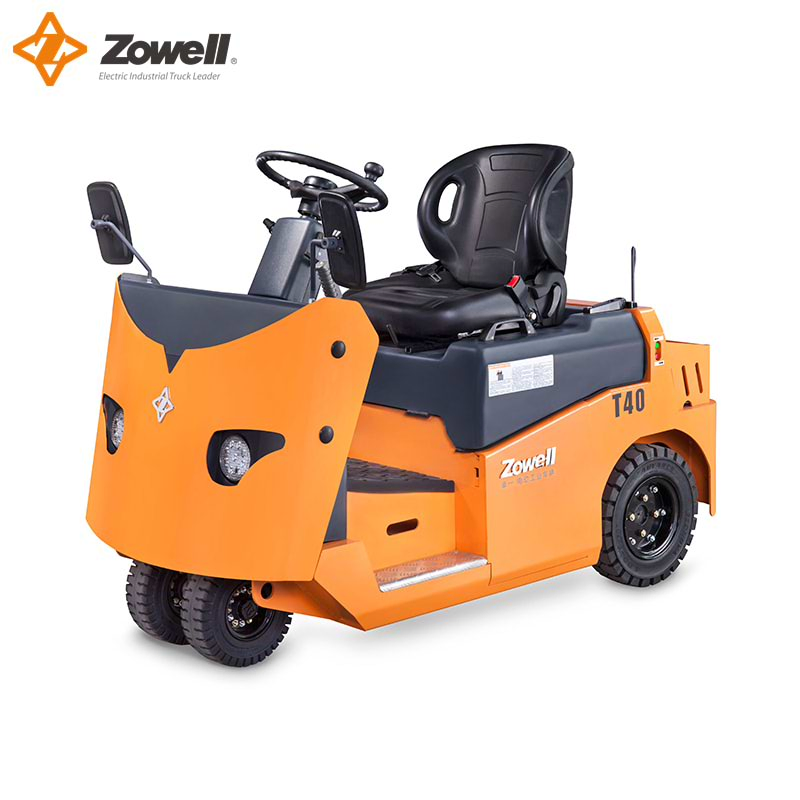

New Zowell Truck Head Electric Tugger Xt40

Rated load: 4000 kg
Operating mode: sitting type operation
HS code: 8709111000
Certificate: CE/SGS/ISO9001
Zowell XT40 4 ton tow tractor is superbly versatile and manoeuvrable.It is an ideal choice for applications requiring the rapid and efficient transfer of multiple trailer loads in various industrial and commercial application well as specialized repair workshops.This electric tow tractor is mainly used for towing and order packing and it is especially suitable for goods that move in the continous flow. 4 ton towing tractor has a loading capacity up to 4,000kgs.This towing tractor advanced integrated drive and control system ensure reliable performance and high efficiency.

Detail features
1. Humanized Traction mechanism
The drivers can operate the traction mechanism without getting off the tugger, thus improving working efficiency.

2. Side loading and unloading of storage battery
Side loading and unloading of storage battery can effectively reduce the changing time of batteries so that the maintenance and changing of batteries can be more convenient. This is suitable for working conditions which require high working intensity. There are optional batteries such as FAMM, GS, HOPPECKE, Trojan.

3.Regenerative braking
This tugger adopts regenerative braking which can generate highly efficient and powerful braking force, thus shortening braking length of the tugger. This can be a compensation of poor braking effect caused by brake pad wear of pure mechanical brake.

Technical Data

Characteristics	1.1	Manufacturer			ZOWELL
	1.2	Manufacturer's type designation			XTA40
	1.3	Drive			Battery
	1.4	Operator type: hand, pedestrian, stand-on, seat-on, order-picker			Seat-on
	1.5	Load capacity/rated load	Q (t)		4
	1.7	Rated drawbar pull	F (N)	≥F	1000
	1.9	Wheelbase	y (mm)	±1%	1231
Weight	2.1	Dead weight	kg	±3%	783
	2.2	Axle loading, laden front/rear	kg	±3%	-
	2.3	Axle loading, unladen front/rear	kg	±3%	279/504
Tyres/chassis	3.1	Tyres			P
	3.2	Tyre size, front	Ø x w(mm)		3.50-5-6PR
	3.3	Tyre size, rear	Ø x w(mm)		4.00-8-6PR
	3.4	Additional wheels (dimensions)	Ø x w(mm)		-
	3.5	Wheels, number front/rear (x = driven wheels)			1/2x
	3.6	Tread , front	b10 (mm)	±2%	245
	3.7	Tread , rear	b11 (mm)	±2%	744
Dimension	4.7	Height of overhead guard(cabin)	h6 (mm)	±1%	1232
	4.8	Seat height relating to SIP/stand height	h7 (mm)		816/412
	4.9	Height of tiller in drive position min. / max.	h14 (mm)		-
	4.12	Coupling height	h10 (mm)	±2%	283/333/358/408
	4.13	Loading height,unladen	h11 (mm)		-
	4.17	Overhang	l5 (mm)	±3%	-
	4.19	Overall length	l1 (mm)	±1%	1876
	4.21	Overall width	b1/b2 (mm)	±1%	860
	4.32	Ground clearance, centre of wheelbase	m2 (mm)	-5%	92
	4.33	Load dimension b 12 × l 6 crossways	b 12 × l 6 (mm)		1447
	4.34	Aisle width predetermined load dimensions	Ast (mm)		-
	4.34.1	Aisle width for pallets 1000 × 1200 crossways )	Ast (mm)		-
	4.34.2	Aisle width for pallets 800 × 1200 crossways	Ast (mm)		-
	4.35	Turning radius	Wa (mm)	≤Wa	1590
	4.36	Minimum pivoting point distance	b13 (mm)		-
Performance	5.1	Travel speed, laden/unladen	km/h	± 10 %	7/13
	5.1.1	Travel speed, laden/unladen, backwards	km/h		-
	5.5	Drawbar pull,laden/unladen	N		1000
	5.6	Max. drawbar pull, laden/unladen	N		4000
	5.7	Gradeability, laden/unladen	%		5.6/14
	5.8	Max. gradeability, laden/unladen	%		-
	5.9	Acceleration, laden/unladen	s		-
	5.10	Service brake			Hydraulic
Electric-engine	6.1	Drive motor rating	kW		4
	6.3	Battery according to DIN 43531/35/36 A,B,C,no			Special case
	6.4	Battery voltage/nominal capacity	V/Ah		24/280
	6.5	Battery weight	kg		285
	6.6	Energy consumption	kWh/h		-
Addition	8.1	Type of drive control			AC
Addition	10.7	Noise	dB (A)		< 70
