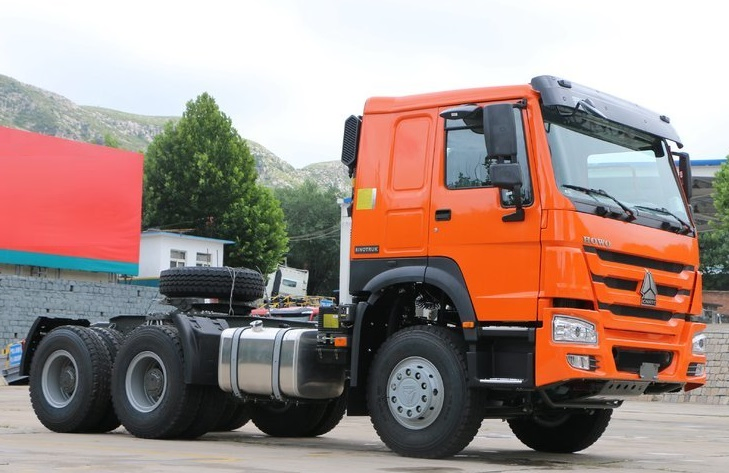

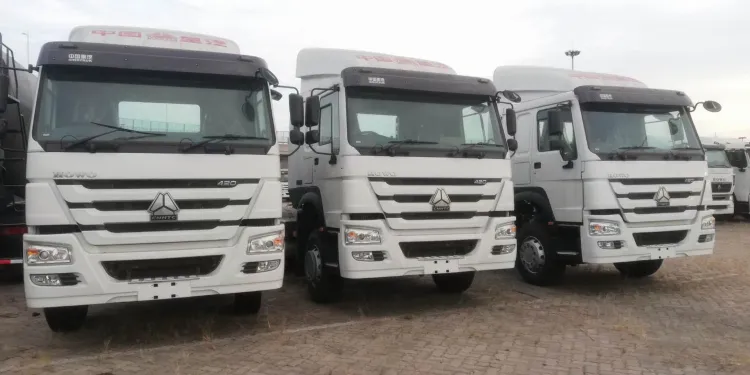

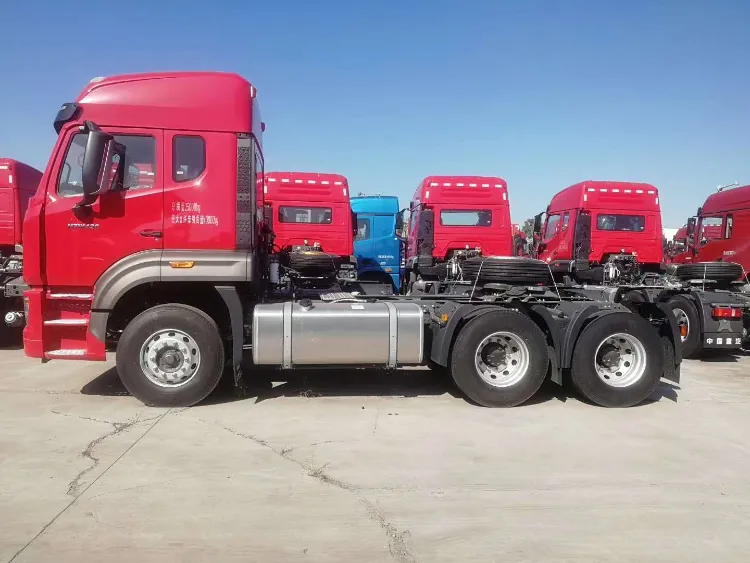

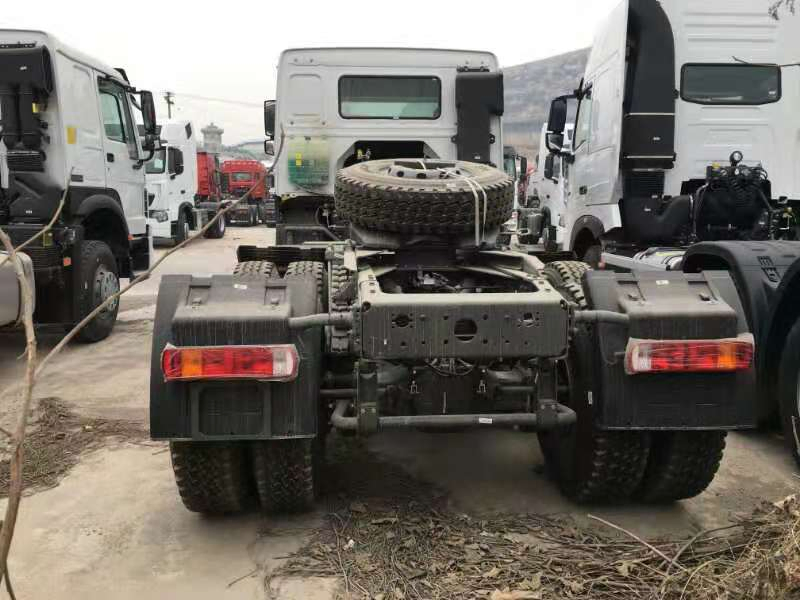

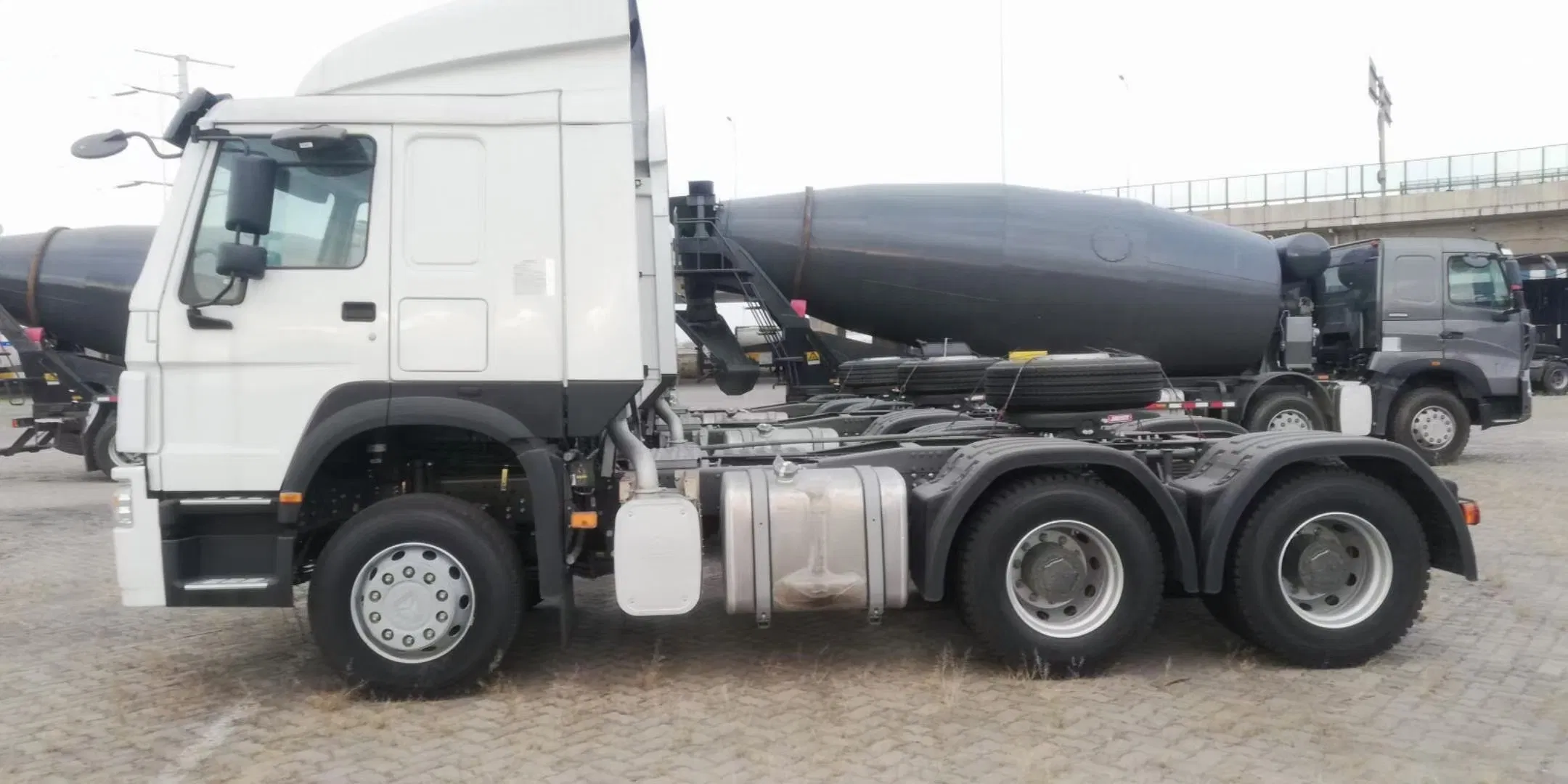

HOWO 420HP Tractor Truck 6X4
TRACTOR TRUCK 420HP SPECIFICATION VEHICLE SPECIFICATIONDESCRIPTIONTruck ModelZZ4257V3247C1Type of VehicleTRACTOR TRUCK Truck Type 6x4Driving PositionLeft hand Driving Fuel tanker capacity(L)400LCurb weight(KG)8800Color OptionalChassis & Add Components Frame DetailsHigh-Strength U-profile ladder......
Send Inquiry
Product Description
TRACTOR TRUCK 420HP SPECIFICATION
| VEHICLE SPECIFICATION | DESCRIPTION | |
| Truck Model | ZZ4257V3247C1 | |
| Type of Vehicle | TRACTOR TRUCK | |
| Truck Type | 6x4 | |
| Driving Position | Left hand Driving | |
| Fuel tanker capacity(L) | 400L | |
| Curb weight(KG) | 8800 | |
| Color | Optional | |
| Chassis & Add Components | ||
| Frame Details | High-Strength U-profile ladder frame with section of 300*90*8mm and reinforced sub frame, all cold riveted cross members. | |
| Dimension(Lx W xH)(unloaded)(mm) | 6900*2560*3100 | |
| Approaching angle/Departure angle(°) | 16/70 | |
| Overhang(front/rear) (mm) | 1500/725 | |
| Wheel base (mm) | 3225+1350 | |
| Engine | ||
| Model | D12.42-30 | |
| Power | 420HP | |
| Emission | EURO III | |
| Displacement(L) | 11.726 | |
| Type | water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection | |
| Kind of Fuel | Diesel | |
| Clutch & Gear Box System | ||
| Clutch | SINOTRUKΦ430mm diaphragm spring clutch | |
| Gear Box | HW19710 10 forwards and 2 reverse | |
| Axles | ||
| Front Axle Model | HF9 axle Loading capacity:1*9000KG | |
| Rear Axle | HC16 axle Loading capacity:2*16000KG | |
| Electrical System | ||
| Battery | 2X12V/165Ah | |
| Alternator | 28V-1500w | |
| Starter | 7.5Kw/24V | |
| Brake System | ||
| Service brake | Dual circuit compressed air brake | |
| Parking brake | spring energy, compressed air operating on rear wheels | |
| Auxiliary brake | Engine exhaust brake | |
| Steering system | ||
| Model | 8198 | |
| Type | hydraulic steering with power assistance | |

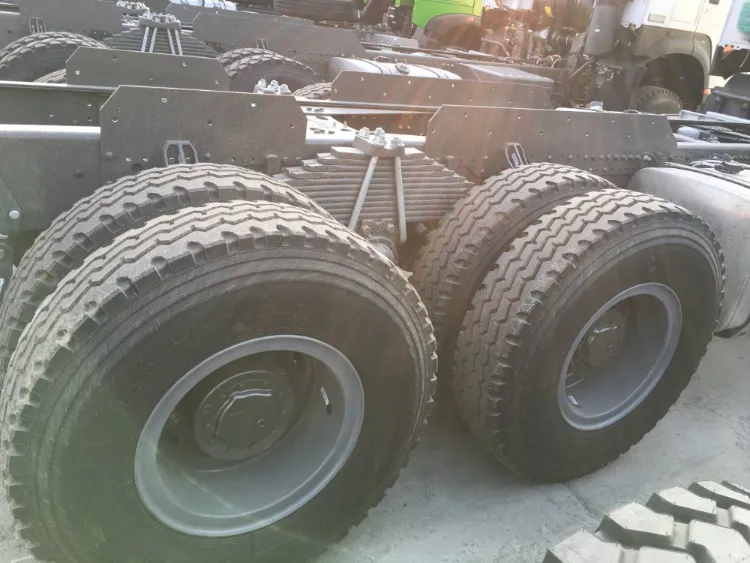

| Wheels & Tyres | ||
| Type | 12.00R20 Steel wire tire | |
| Brand | Common Brand | |
| Quantity | 10+1 spare | |
| Kin pin | 50mm or 90mm | |
| Cabin | ||
| Type | HW76 Standard cabin | |
| Single sleeper with air conditioner, all-steel forward control,55ºhydraulically tillable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | ||

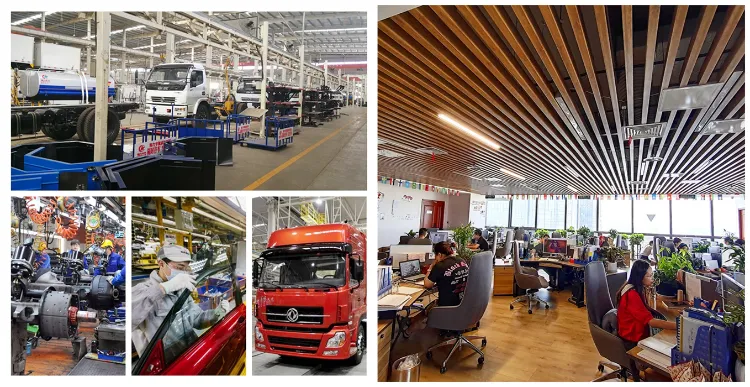

Our Company
We have devoted ourselves in international export business for Commercial Vehicle & Passenger Vehicle, Engineering Machinery, Construction Machinery and Agricultural Machinery, Spareparts etc.
With open mind, global perspective and innovation, our manufacturing base cover various commercial vehicle products, including dump trucks, concrete mixing stations, cranes, wheel loaders, excavators, engineering equipment, agricultural machinery and other wide range product series. With high quality, excellent service marketing strategy, we're ready to meet your requirements, welcome to contact us.
Our Service
1. Different kinds of trucks / buses can be provided ( New / Used)
2.Timely reply for your inquiry within 12 working hours
3. Experienced staffs answer all your questions
4. Customer's design is available for certain products(OEM)
5. Spareparts for all types of Engineering Machinery with reasonable price
6. Different kinds of Dump Truck, Cargo Truck, Tractor Truck, Semi Trailer etc. can be provided.
We also supply Spareparts (original, OEM, and replacement) for all types of trucks and trailers and nice quality to ensure the trucks and trailers being in good working conditions.
