China 10 Wheeler 20 Cubic Meter 30 Ton HOWO New Dump Truck 371HP Tipper Trucks for Sales
China 10 wheeler 20 cubic meter 30 ton howo new dump truck 371hp tipper trucks for salesProduct Introduction:We are semi trailer manufacturerQUEST Trailer ,Less maintenance, more attendance. 1. 42 years International Trailer Engineer Team Experiences2. 2 Years main beam warrranty3. American SAE stan......
Send Inquiry
Product Description

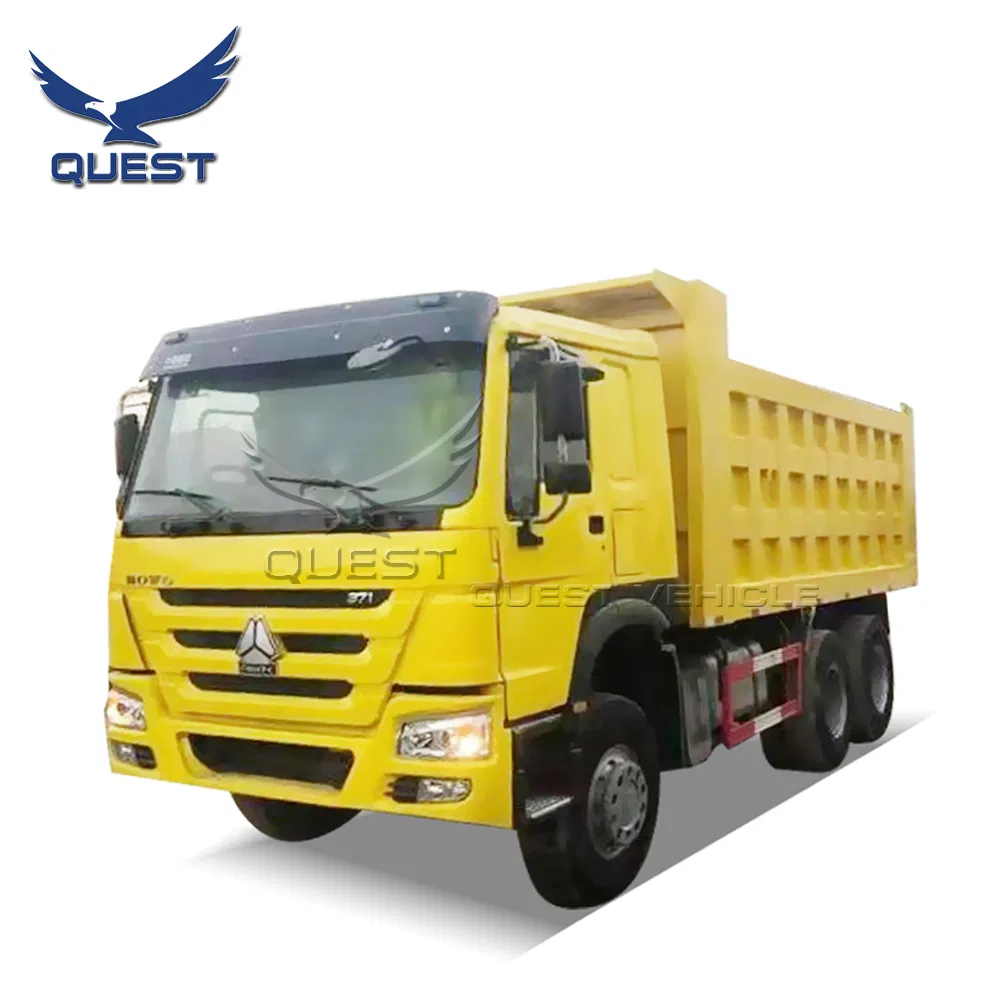

China 10 wheeler 20 cubic meter 30 ton howo new dump truck 371hp tipper trucks for sales
Product Introduction:
We are semi trailer manufacturer
QUEST Trailer ,Less maintenance, more attendance.
1. 42 years International Trailer Engineer Team Experiences
2. 2 Years main beam warrranty
3. American SAE standard design
4. Provide after sales service to clients
Main Features
---& Torsion - resistan of side beam and Main Beam are with "I" high strengh steel. more durable than normal trailer steel , ensure low bed trailer driving stability and handle bed roads.
---& Heavy duty type box: U shape,Square box shape,manganese plate butt welding, This design that ensure the support the heavy duty marchine safely.
---& Stability when loading heavy duty marchine. The QUEST dump trailer with HYVA hyraulic cylinder can equipped with extra legs on the rear of trailer. This ensures loading machines more safety.
Technical information:
| SINOTRUK HOWO TRACTOR TRUCK | ||||||
| SPECIFICATION | ||||||
| Engine | Modal | WD615.69 | WD615.47 | D12,42 | ||
| Emission | Euro 2 | Euro 2 | Euro 2 | |||
| Displacement | 9.726L | 9.726L | 11.596L | |||
| Max Torque ( Nm/rpm) | 1350/1100-1600 | 1500/1100-1600 | 1820/1100-1600 | |||
| Type | water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection | water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection | water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection | |||
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance. | |||||
| Transmission | SINOTRUK HW series 10/12 speed transmission, main and auxiliary transmission structure, main transmission with double countershaft, auxiliary transmission with planetary reducer. HW19712, 12 forward, 2 reverse HW19710, 10 forward, 2 reverse | |||||
| Chassis | Three layers frame 8+8+8mm,U-profile parallel ladder frame and reinforced subframe, all cold riveted cross members | |||||
| Front Axle | HF9 for heavy truck, rated load of 9t. drum-type | |||||
| Rear Axles | HC16 with double reduction, central single reduction plus planetary wheel reduction and with differential lock | |||||
| Drive Shaft | Double universal joint propeller shaft with gear-shaped coupling flange | |||||
| Fuel Tank | 400 L Aluminum fuel tank with locking fuel cap, fitted to the off side of the chassis | |||||
| Steering | ZF power steering, model ZF8118,hydraulic steering with power assistance. | |||||
| Braking System | Service brake: dual circuit compressed air brake. Parking brake(emergency brake):spring energy, compressed air operating on rear wheels | |||||
| Auxiliary brake: engine exhaust brake | ||||||
| Tyres | Standard is 12.00R20, with spare parts radial tyres 315/80R22.5, 295/80R22.5, 12R22.5 tubeless tire is optional | |||||
| Electrical System | Operating voltage | 24V,negative grounded | ||||
| Starter | 24V.7.5Kw | |||||
| Alternator | 3-phase,28V,1500W | |||||
| Batteries | 2*12V,165Ah/180Ah | |||||
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light | ||||||
| Instrument | Active check central controller with indicators, with this integral instrument the daily manual checks on the vehicle | |||||
| combined indicators of compressed air pressure, coolant temperature, engine oil pressure | ||||||
| battery charging | ||||||
| Dimensions (mm) | Wheelbase | 3225+1350,3200+1400 | ||||
| Front overhang | 1500 | |||||
| Rear overhang | 725 | |||||
| Approach angle(°) | 16 | |||||
| Departure angel(°) | 70 | |||||
| Overall (L*W*H) mm | 6800*2496*3835 | |||||
| Weight(kg) | Curb weight | 8800 | ||||
| Front axle loading capacity | 9000 | |||||
| Rear axle loading capacity | 18000/18000 | |||||
| Towable Total Mass(kg) | 40000 | |||||
| Performance Parameters | Maximum driving speed(km/h) | 90-102 | ||||
| Economic Speed(km/h) | 72-82 | |||||
| Maximum Gradability(%) | 35 | |||||
| Minimum Turning Diameter(m) | 15 | |||||
| Consumption(L/100km) | 30-40 | |||||

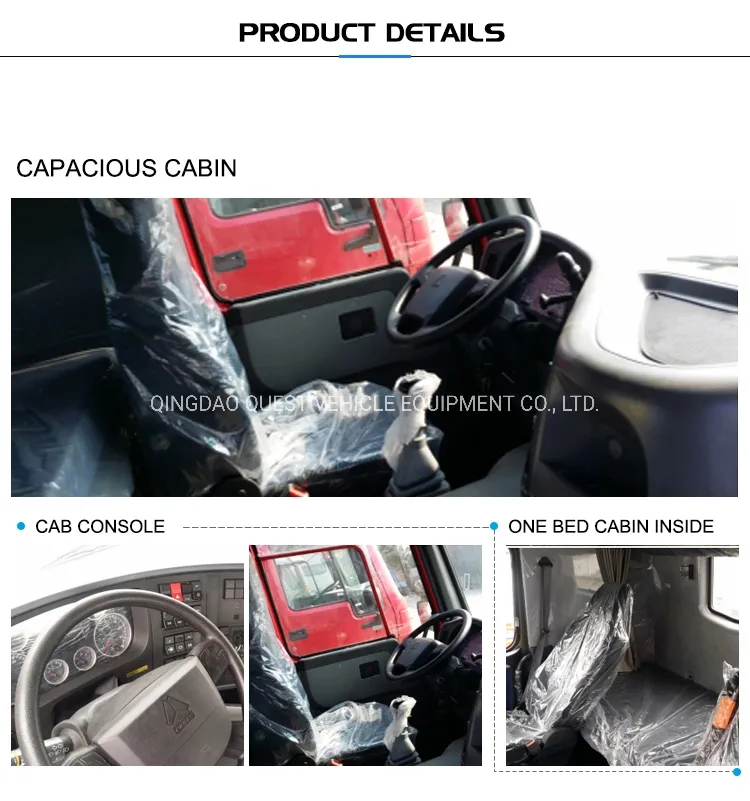

| Cab | HOWO 76 New face cab(one bed,with air conditioner), all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers. HW 79 (two bed) HW70(No bed) | |||||
More details:

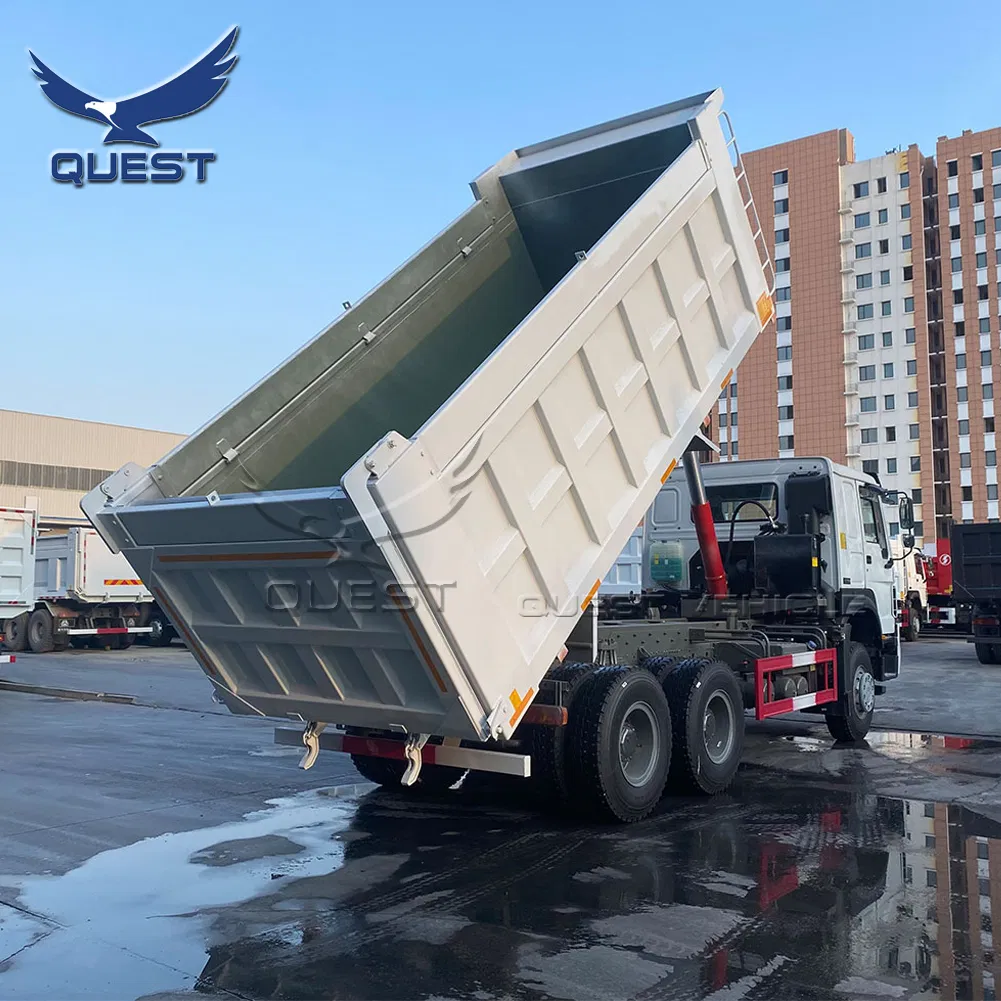

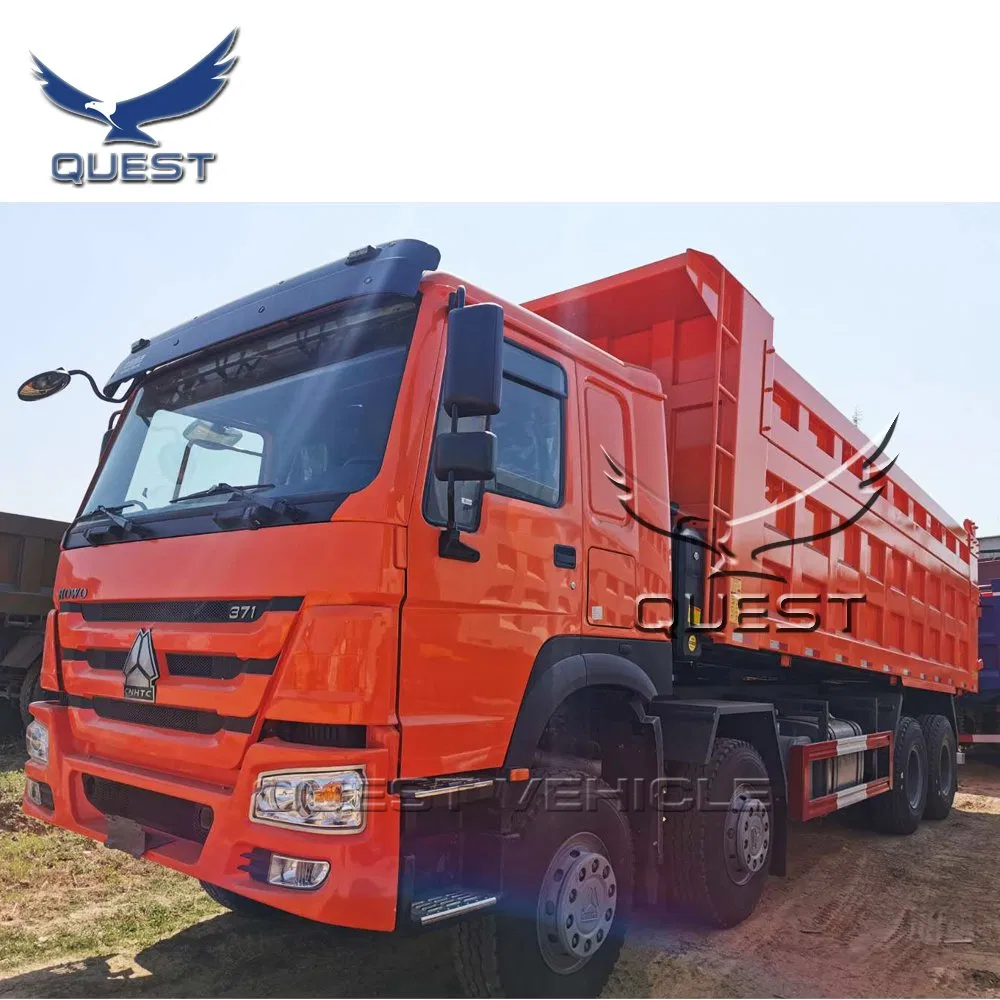

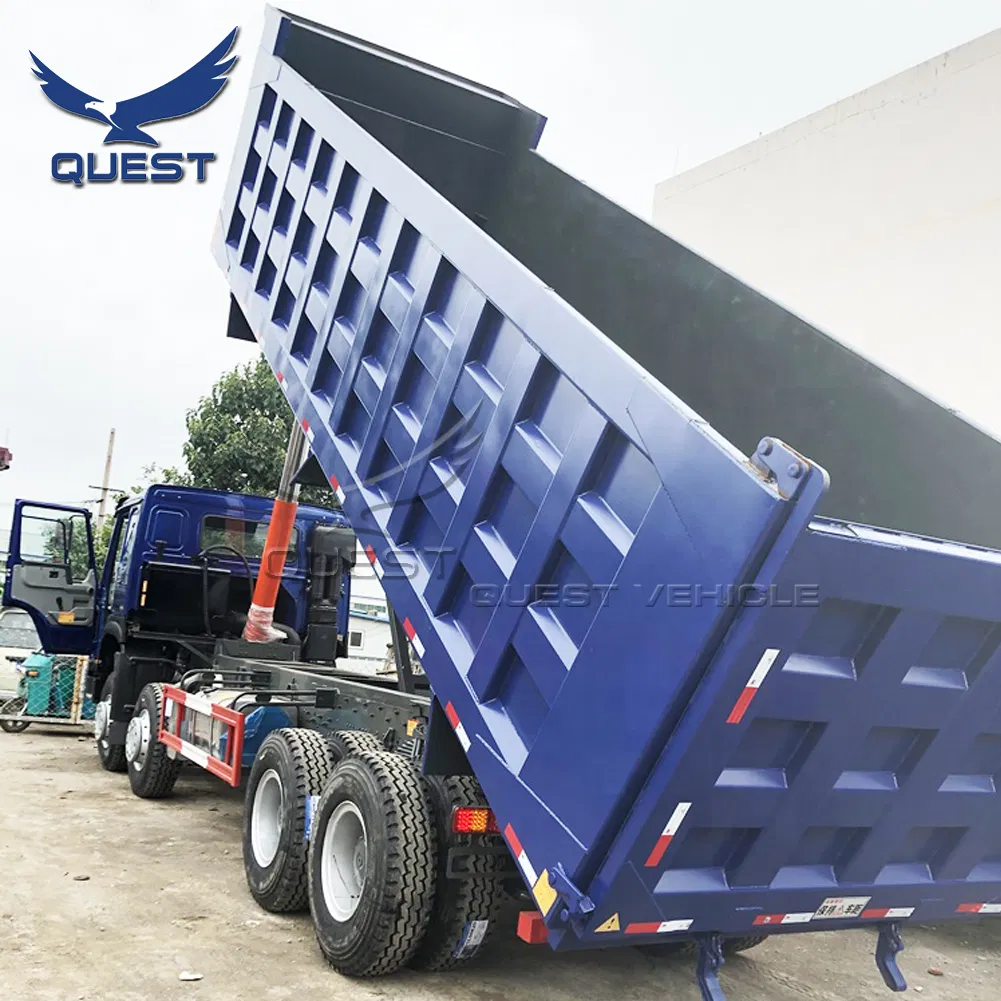

used 6x4 371hp rear dump truck end dumper for sale

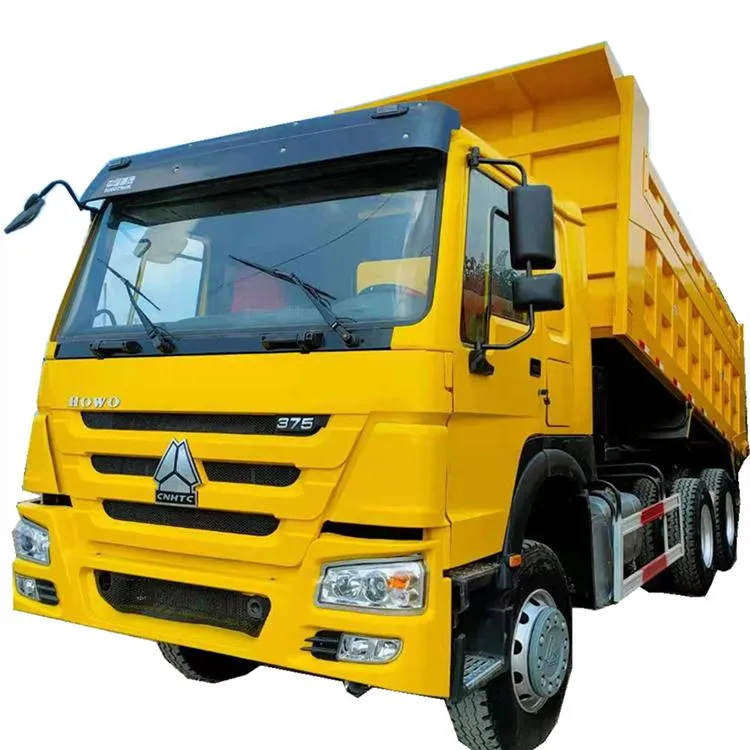

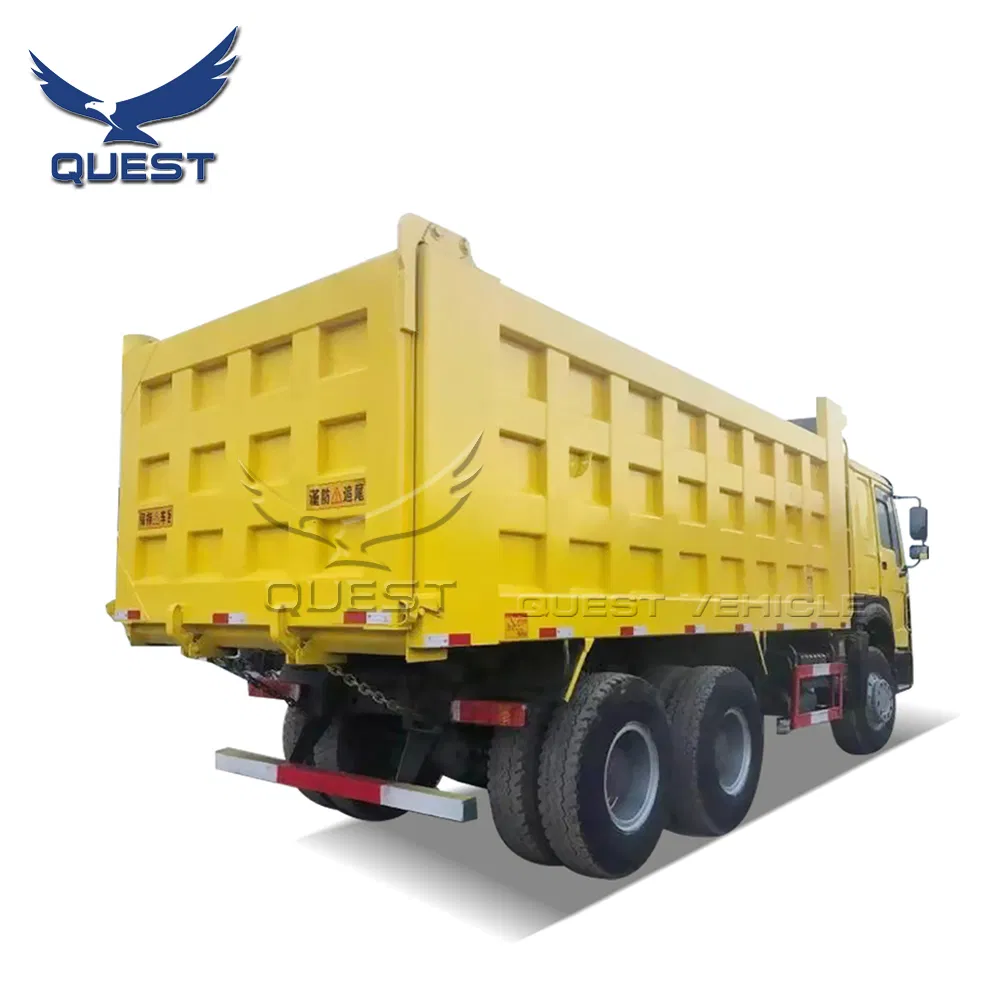

Used truck howo 375hp 6x4 20cbm dump truck for sale

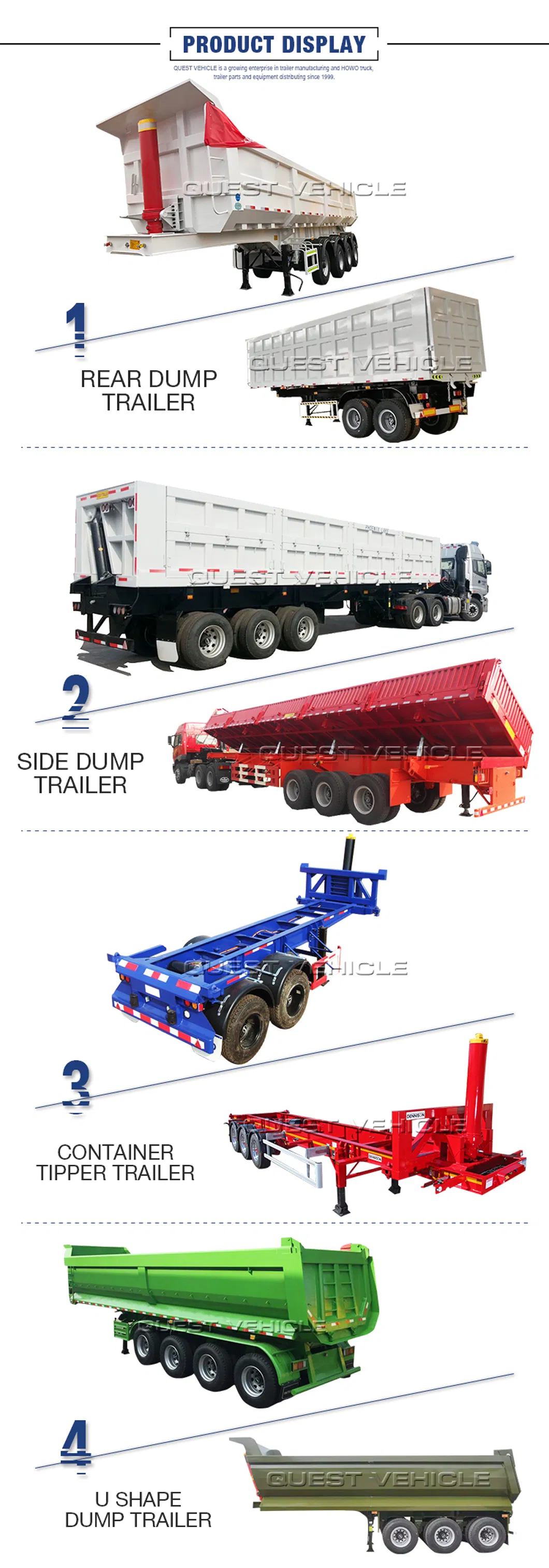

More type of semi trailer design:
Order information:
1, Payment terms: T/T or L/C.
2, Delivery time; Within 15 days after receipt the deposit
3, Packing: In nude with wax painting before deliver to port
4, Shipment type: By bulk ship, Ro-Ro or container
Buying Guides for Semi Trailers and truck
**You please send us your enquiry;
**We shall reply you with the quotation within 12 hours;
**We negotiate on the configuration that you need;
**Confirmation of the tech data → sign contract (P/I) → 30% deposit (or L/C issuing)→ production;
**Manufacturing process updated news → completing production;
**Balance payment → ex works → shipment → custom clearance → A/S service for 1 year.
FAQ:
A. What are our advantages compared with other manufacturers
- Competitive Price -- We work as the leading dealers of various leading China Semi Trailers manufacturers/factories.From numerous comparison and feedback from clients, our price is more competitive than manufacturers/factories.
- Quick Response-- Our team is consisted of a group of diligent and enterprising people, working 24/7 to respond client inquiries and questions all the time. Most problems can be solved within 12 hours.
- Fast delivery -- Normally it will take more than 25-45 days for manufacturers/ factories to produce the ordered trailers, while we have a variety of resources, locally and nation widely, to receive trailers in timely manner. In 80% circumstance, we can have a 15-20 days delivery of regular trailers for our clients.
- High Quality-----Every process of choose material ,welding ,sand blasting,painting with detailed inspection,accept 100% inspection during production and after production.
B. Which payment terms can we accept?
- Normally we can work on T/T term or L/C term.
- On T/T term, 30% down payment is required in advance, 70% balance shall be settled before delivery, or against the copy of original B/L for regular client.
- On L/C term, normally need 30% down payment by T/T, 70% by L/C at sight. a 100% irrevocable L/C without "soft clauses" can be accepted sometimes. Please seek the advice from the individual sales manager whom you work with.
C. How long will our price be valid?
- Price with long valid time -- We are a tender and friendly supplier, never greedy on windfall profit. Basically, our price remains stable through the year. We only adjust our price based on two situations: The rate of USD:RMB varies significantly according to the international currency exchange rates. Manufacturers/factories adjusted the trailer price, because of the increasing labor cost and raw material cost.
D. What logistics ways we can work for shipment?
- We can ship all trailer by various transportation tools.
- For 90% of our shipment, we will go by sea, to all main continents such as South America, Middle East, Africa, Oceania etc, either by container or RoRo/Bulk Shipment.
- For neighborhood countries of China, such as Russia, Tajikistan, Kazakhstan,Mongolia etc, we can ship trucks by road or railway.
- For light spare parts in urgent demand, we can ship it by international courier service, such as DHL, TNT, UPS, or Fedex.
