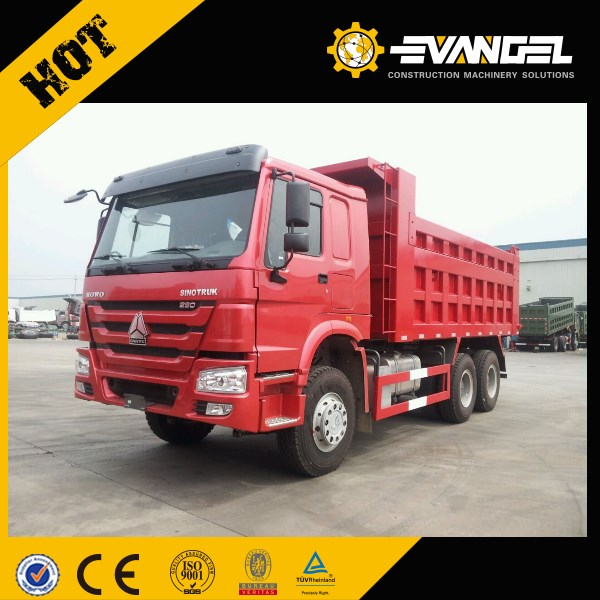

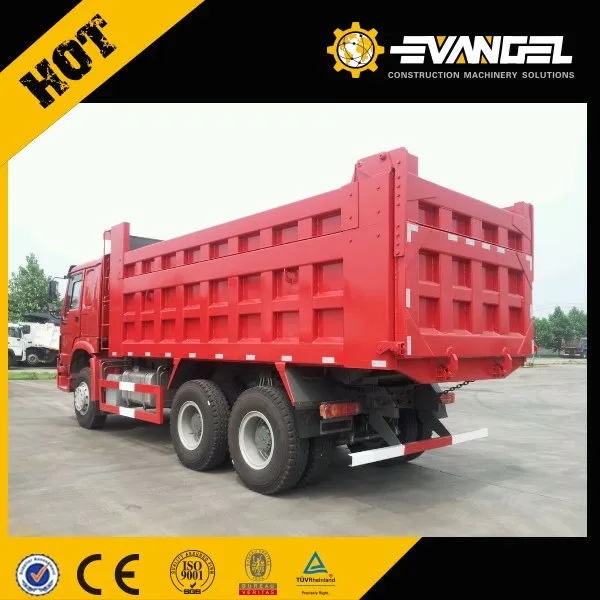

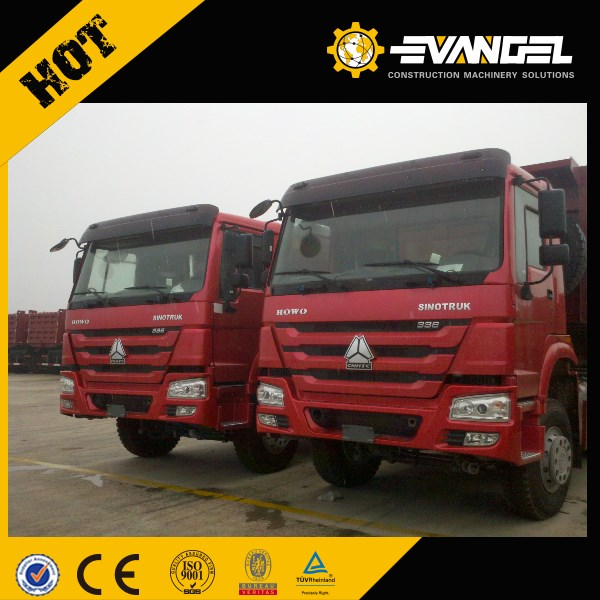

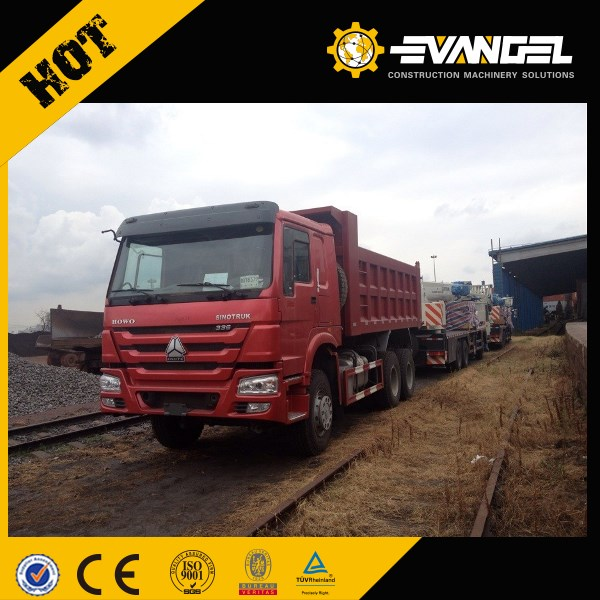

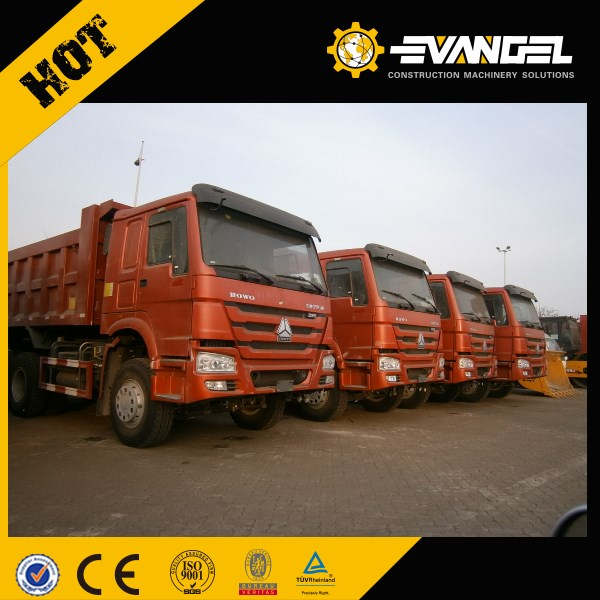

Sinotruck HOWO 10 Wheel Dump Truck for Sale

Product Description

SINOTRUK HOWO heavty duty truck 4X2 SMALL DUMP TRUCK FOR SALE

As authorized dealer,we specialize in exporting full kinds of construction machinery made by Chinese famous factory,including XCMG,SDLGCHANGLIN,FOTON,LIUGONG,CHENGGONG.

Our company will offer you the best quality products with reasonable
price,quick delivery,and professional after-sale service.
Please don't hesitate to let us know if you have any questions about
the products.Your reply would be highly appreciated.

HOWO 336HP 6X4 TRACTOR TRUCK EUROII
Engine	Manufacturer: SINOTRUK
	Diesel:4-Stroke direct injection diesel engine 6-cylinder in-line with water cooling, turbo-charging and intercooling
	Engine model: STEYR, Euro II,WD615.69
	Maximum output:336hp at 2200 rpm according to DIN
	Maximum torque:1500Nm at 1100-1600 rpm
	Displacement:9.726L
	Bore:126mm Stroke:130mm
Clutch	Φ430diaphragm spring clutch A-type,hydraulically operating with air assistance
Transmission	HW15710 10 Forward& 2 Reverse
Driving axle	HC16 Pressed axle housing, single reduction with hub reduction and with differential locks between axles and wheel
Front Axle	HF 9 Steering with double T-cross section beam
Chassis	Frame: U-profile parallel ladder frame with section of 850×80×8mm and reinforced subframe, all cold riveted cross members
	Rear suspentsion:12 leaf semi-elliptic springs ,and bogie springs, and stabilizer
	Fuel tank:300 L capacity with locking fuel cap, fitted to the off side of the chassis
Steering	Model ZF8098, hydraulic steering with power assistance
Braking System	Service brake: dual circuit compressed air brake
	Parking brake(emergency brake):spring energy, compressed air operating on rear wheels
	Auxiliary brake: engine exhaust valve brake
Wheel & Tyres	12.00-20 Bias tyres Rim: 8.5-20 No.tire: 10+1 spare
Dimensions in mm	Wheel base	3825+1350
	Front wheel track	2022
	Rear wheel track	1830
	Front overhang	1500
	Rear overhang	1870
	Approach angle(°)	19
	Departure angel(°)	23
	Overall length	9114
	Overall width	2496
	Overall height	3386
Cargo Tipper body	Body size(mm)	6000×2300×1500
	Capacity	21CBM
	Thickness of body steel(mm): floor 8 side & back 4
Weight in kg	Kerb weight	12270
	Front axle loading capacity	9000
	Rear axle loading capacity	16000x2
Performance	Maximum driving speed(km/h)	90
	Maximum gradeability(%)	30
