Product Description

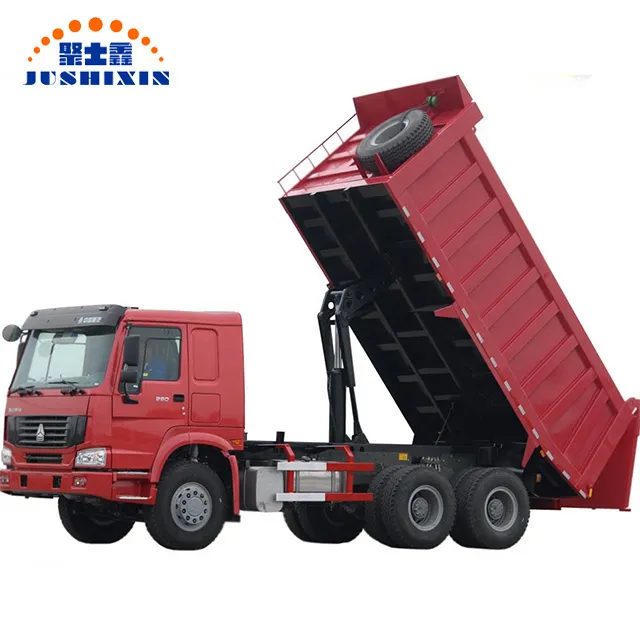

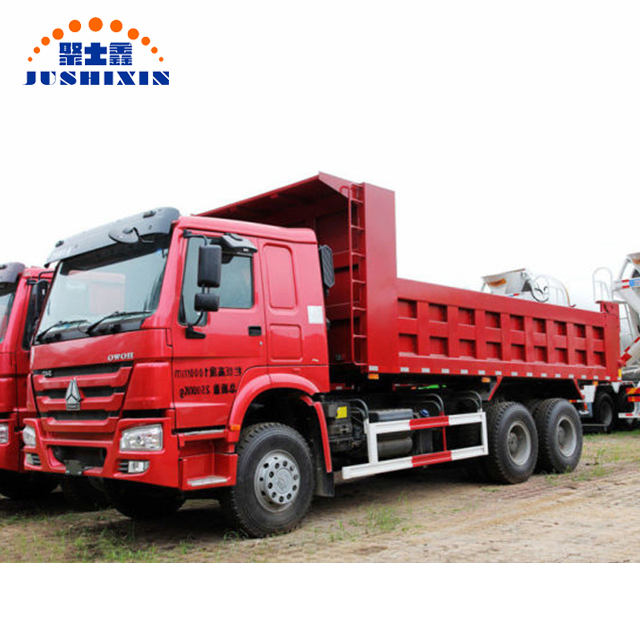

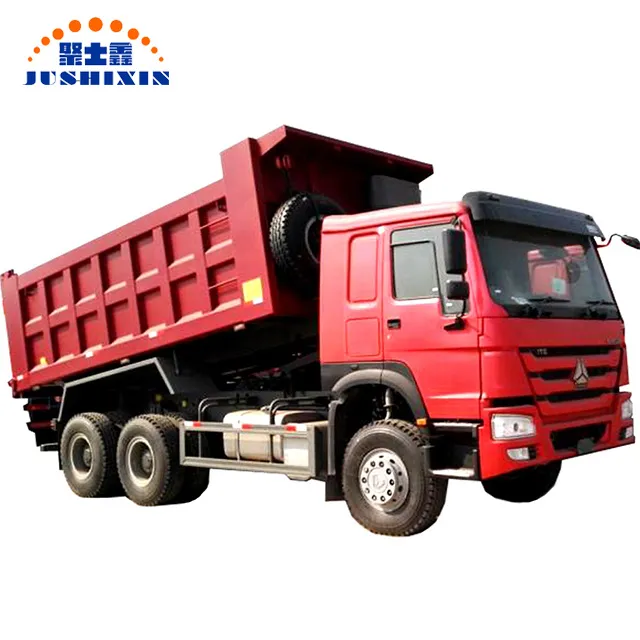

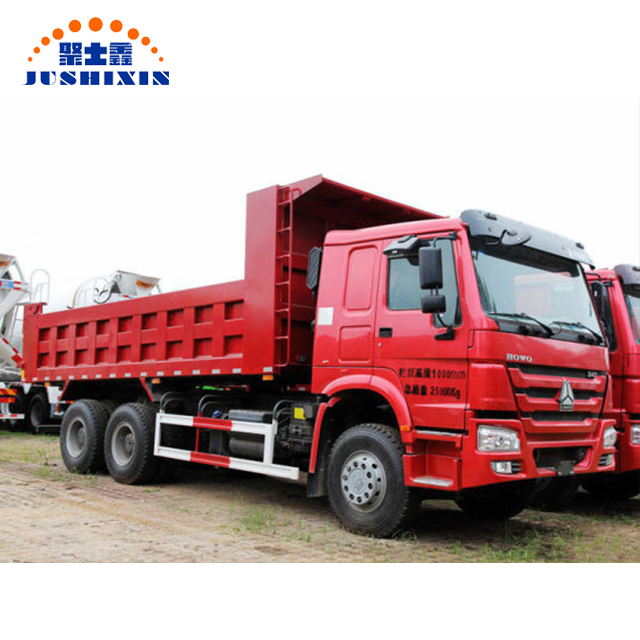

Jushixin 30ton Sinotruk HOWO Euro2 6*4 Front Lifting Dump/Tipper Truck
1.Product Funtions for dump truck
It is suitable for the short distance transportation of concrete, sand, earth, coal, ore and other bulk materials such as construction, water conservancy, road construction and mining.The main features of the project dumper
1. The product is designed and produced according to national standards, and all indicators of the product meet national standards.
2. Equipped with ZS1100 diesel engine and selected flat rotation to improve mechanical efficiency.
3. Equipped with hydraulic brake, which is stable, safe and reliable.
4. Gravity discharge is adopted for hopper, and the mechanical bucket of collision block type is easy to operate, and the dump and bucket are reliable.
5. Adopt direct shift, and shift gears easily and reliably.
6. Low fuel consumption. The adoption of direct injection engine improves the power transmission efficiency.
7.Convenient maintenance.
2.Product Discription for dump truck
SINOTRUK HOWO 6x4 336hp 30ton tipper truck | |
| Dump Body Size (LxWxH) | 5400X2300X1500 mm |
| 7835*2496*3170 mm | Ventral Lifting |
| Overall dimensions (LxWxH) | 7835*2496*3170 mm |
| Approach angle/Departure angle(°) | 19/27 |
| front/rear suspension (mm) | 1500/1560 |
| Axle base (mm) | 3425+1350 |
| Max speed(km/h) | 75 |
| Vehicle Curb weight(kg) | 12380 |
| Gross mass (kg) | 25000 |
| Engine | SINOTRUK WD615.69, 4-stroke direct injection diesel engine,6-cylinder in-line with water cooling,turbo-charging and intercooling |
| 336HP | |
| Euro 2 | |
| Transmission/Gear box | HW19710, 10 speeds forward ,2 reverse |
| Brake system | Service brake:Dual circuit compressed air brake |
| Parking brake:spring energy, compressed air operating on rear wheels | |
| Auxiliary brake:Engine exhaust brake | |
| Steering system | 8118,hydraulic steering with power assistance |
| Front axle | HF 9,drum |
| Driving axle | HC16,double reduction |
| Tire | 12.00R20,radial tyres; optiong:12.00-20 |
| Electric system | Battery:2x12V/165Ah; Alternator:28V-1500 KW; Starter:7.5 Kw/24 V; |

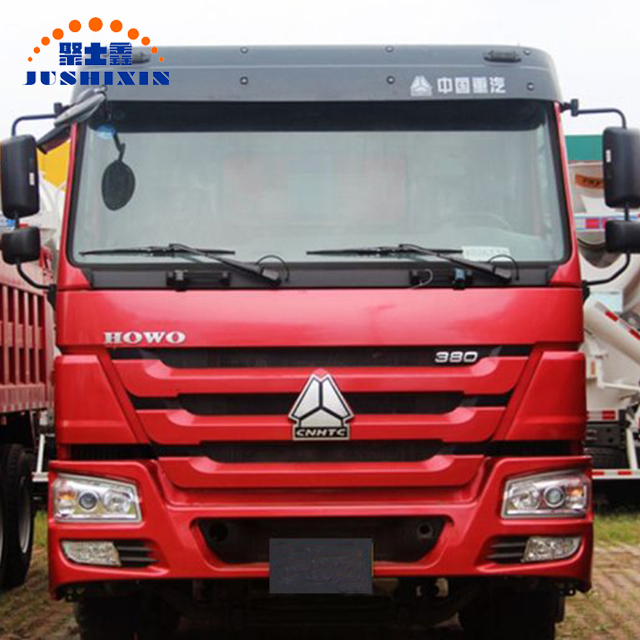

| Cabin | HW76,one bed. with A/C VOLVO technology ,comfortable cab.4-point support floating suspension and shock absorbers,up/down and front/back adjustable steering wheel,VDO instrument and control module,safety belt ,air horn,outer sun visor. |
Truck FAQ
Q1. What is the minimum order quantity? Can the product be customized?
A1:our MOQ is 1 unit. and yes, we can customized,we can produce trucks according to your special needs or requirements.
Q2. What should I do if I have problems during the use of the truck?
A2: We can supply English manual book and also take a video for showing how to resolve the problems, and you can also buy some spare parts together with your trucks.
Q3. How long is your delivery time?
A3: Trucks production time is about 20-30 working days.
Q4. What is your after-sales service system?
A4: trucks for 12 months warranty. Lifetime free technical consulting services and long-term factory price accessories support.
Q5: What are the modes of transportation?
A5: We can choose the Break Bulk, RORO, FR transportation and land transportation according to truck type and destination country.
Q6: What are the payment terms for trucks?
A6: We provide the EXW,FOB,CIF, DDU, DDP,etc.according to the specific situation.
Q7: Which brand of the trucks will you prefer to purchase?
A7: You can choose the brand of the HOWO, Sinotruk, Dongfeng, Shacman, FAW etc.
Q8: Is it available to print our own brand on our truck?
A8: Totally acceptable as you wish.
