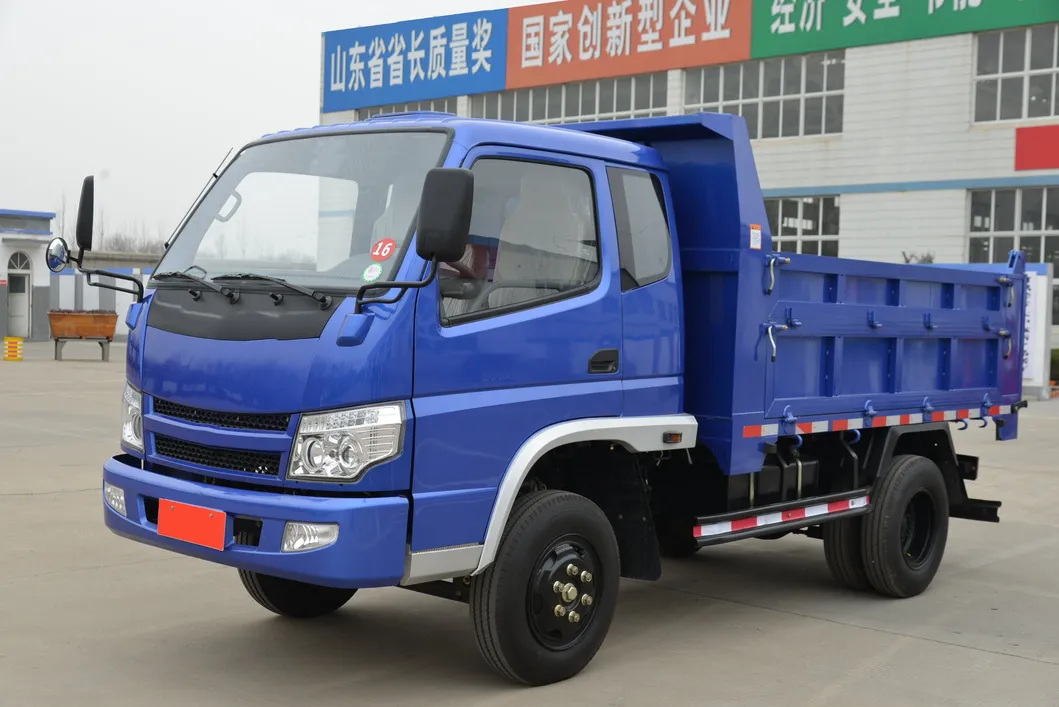

Good Quality Small Truck Euro 2 Dump Trucks
Good Quality Small Truck Euro 2 Dump TrucksTechnical Parameters DescriptionF1 Single Cabin Dump TruckDriveLHD/RHDModel No.SF2810DF1ColorRed, Blue, WhiteCabinSingle Row,Tilt CabinOverall Dimension4710*1780*2300mmCargo Box Inner Dimension3000*1700*(500+200)mmEngineFAW485(4 Cylinders)Out Put40KwDisplac......
Send Inquiry
Product Description
Technical Parameters
| Description | F1 Single Cabin Dump Truck |
| Drive | LHD/RHD |
| Model No. | SF2810DF1 |
| Color | Red, Blue, White |
| Cabin | Single Row,Tilt Cabin |
| Overall Dimension | 4710*1780*2300mm |
| Cargo Box Inner Dimension | 3000*1700*(500+200)mm |
| Engine | FAW485(4 Cylinders) |
| Out Put | 40Kw |
| Displacement | 2160cc |
| Fuel Tank Capacity | 57L |
| Fuel Consumption | 8.5L |
| Structure Weight | 2250kg |
| Max. Loading Capacity | 3000Kg |
| Tyre(F/R) | 7.00-16/7.00-16 |
| Wheelbase | 2350mm |
| Tread(F/R) | 1375/1260mm |
| Brake System | Hydraulic Vacuum Assisted |
| Max. Speed | 90km/h |
| No. of Gears | 5+1 |
| Clutch Model | Helical Spring Clutch |
| Gear Box | 525 |
| Front Axle Model | 1043-7 Square Type |
| Rear Axle Model | 1043, with auxiliary shock absorber |
| Emission Standard | Euro II |
| Welding | √ |
| Power Steering | √ |
| Seat belts | √ |
| Oil brake | √ |
| Rear bumper | √ |
Main Features
1.Strong Power:FAW490 Turbocharger Intercooler engine, with Strong output and high torque.
2.Extra loading capacity: 3 tons capacity.
3.Fuel consumption: economic, comparing lower than the current models.
4.Easily operation and maintenance: Spare parts and services are easily managed.
5.Technical supporting and Modification according to customers' requirements are available.
6.Driving Comfort: The vehicle cab interface adopts ergonomic design, thus reduces the fatigue of the driver.

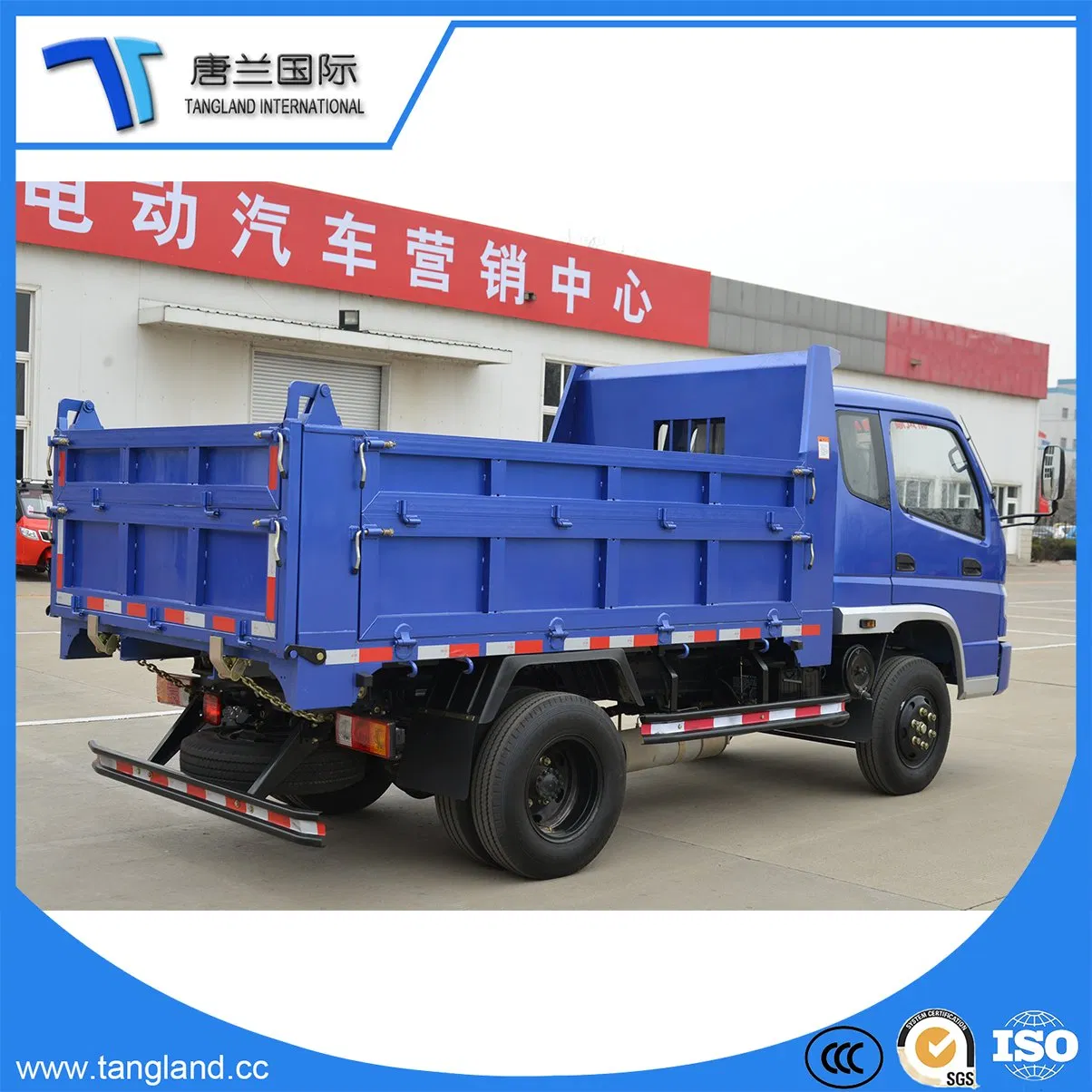

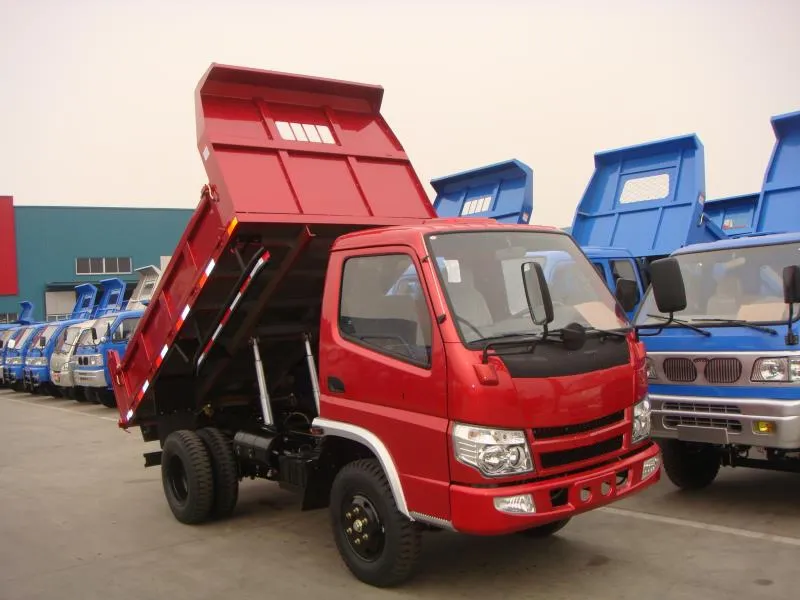

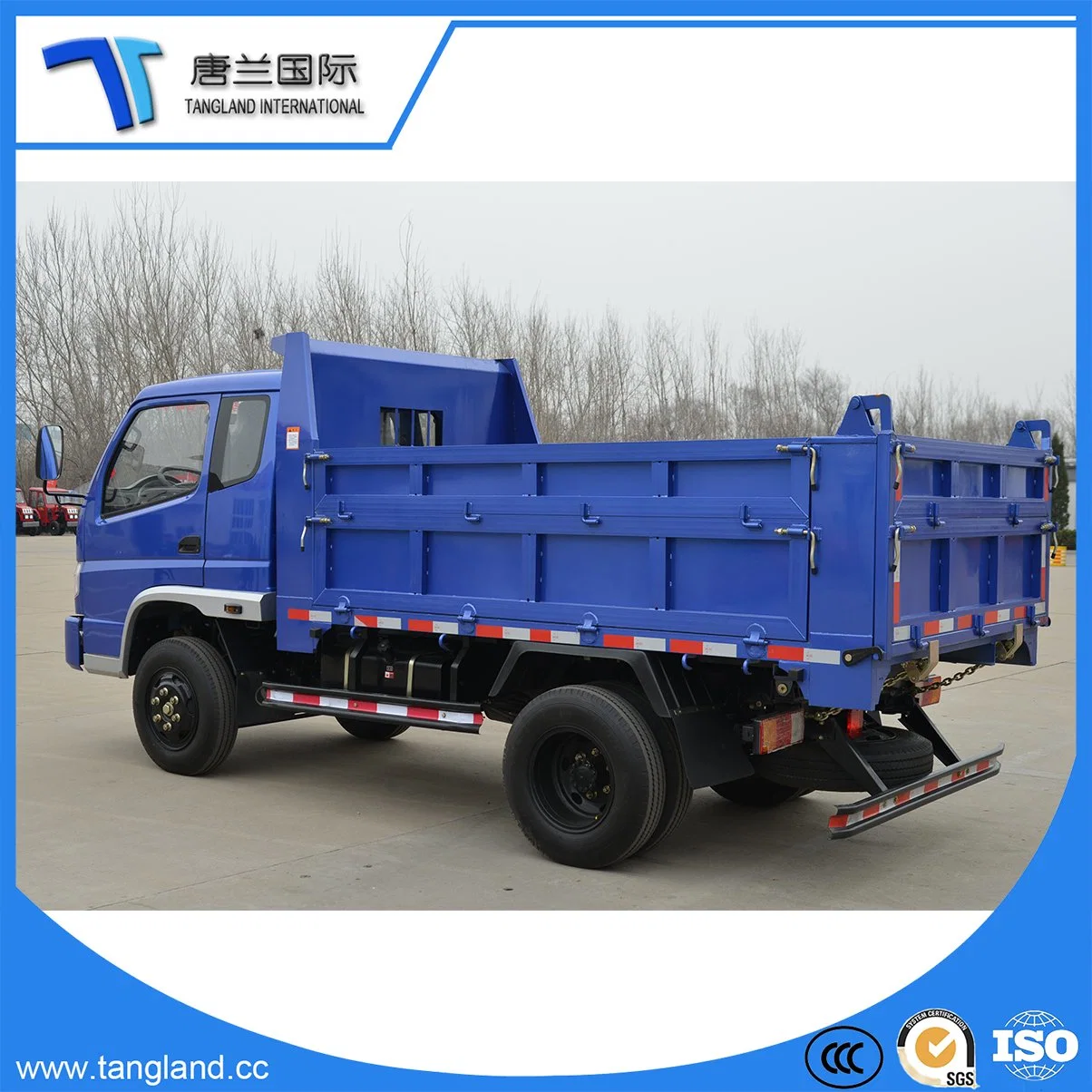

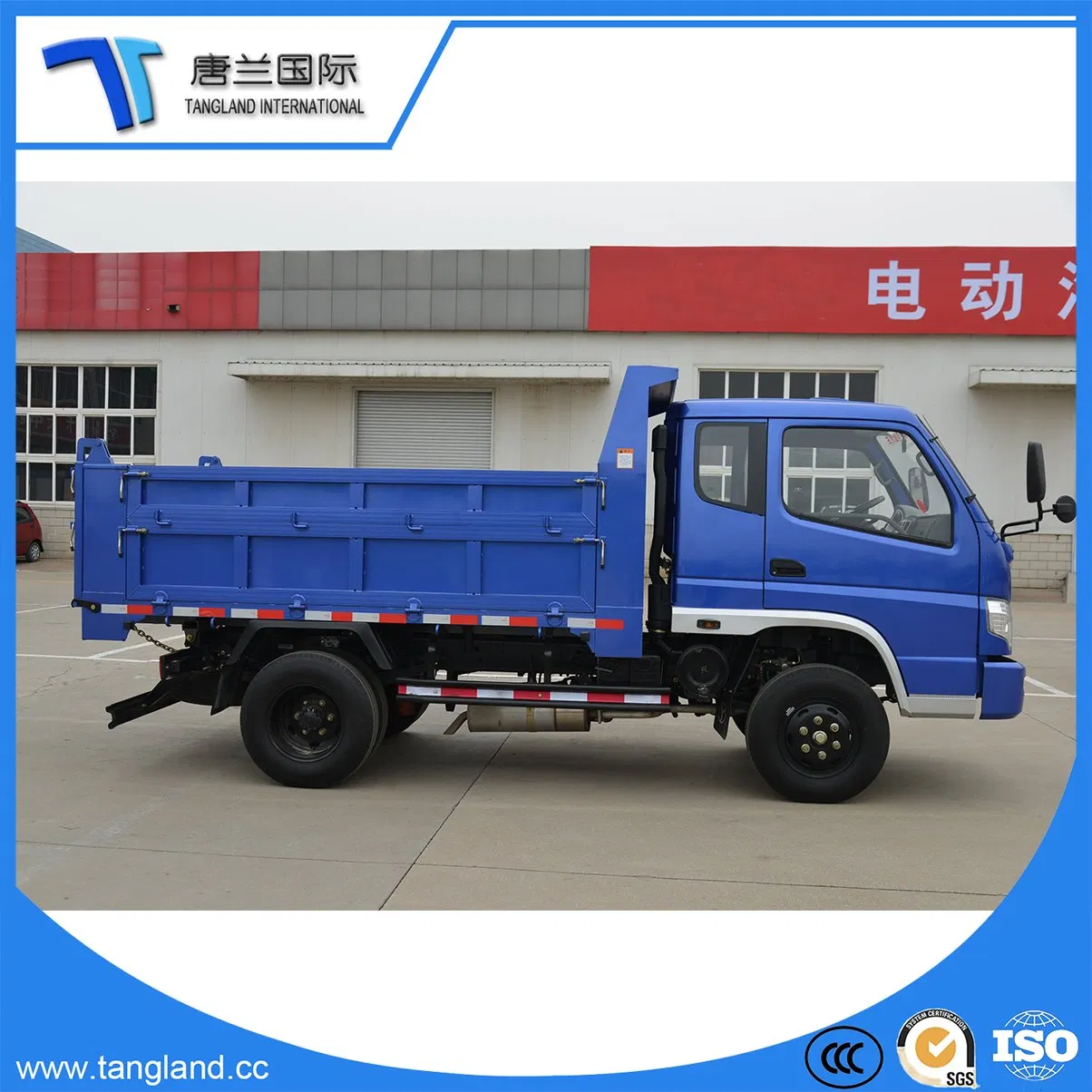

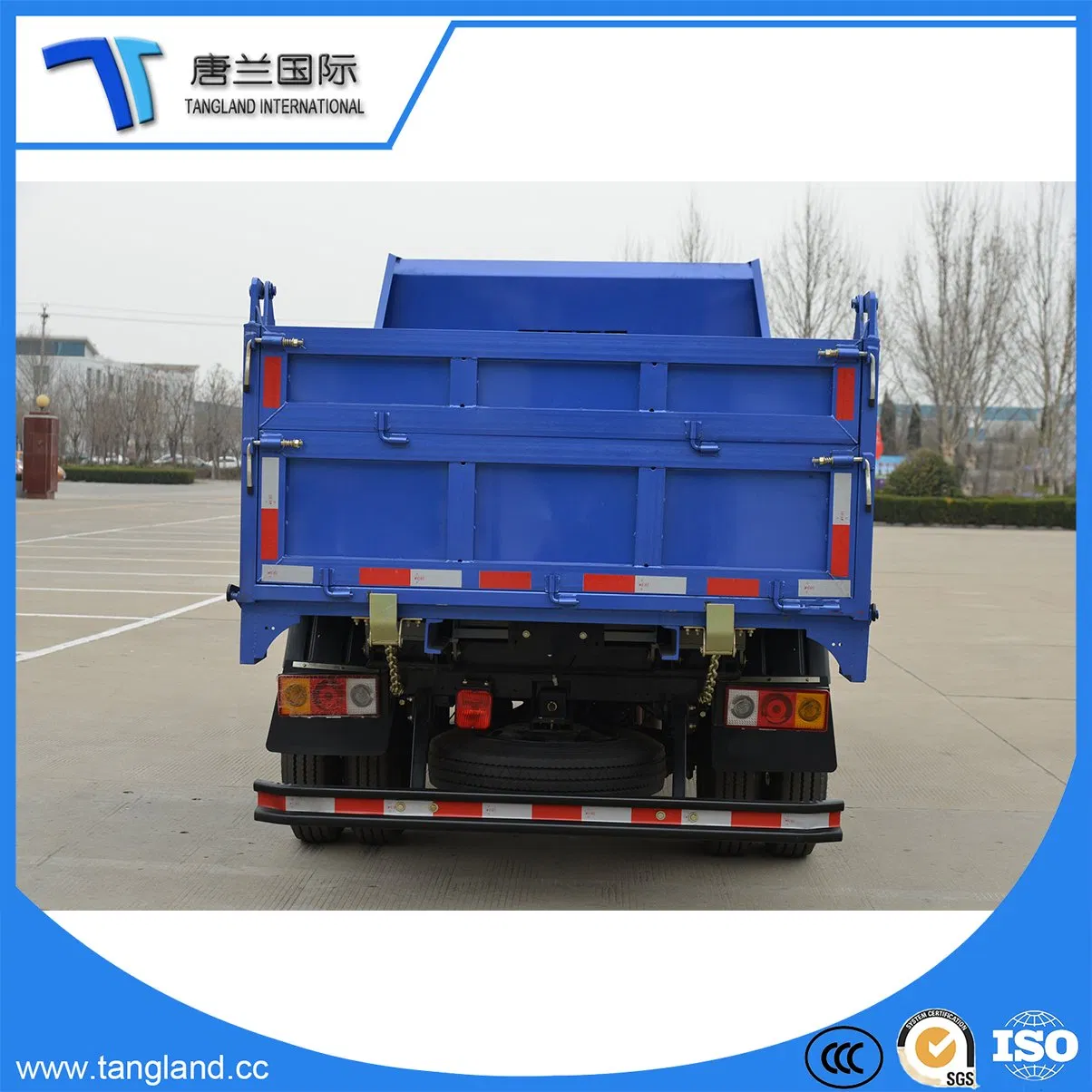

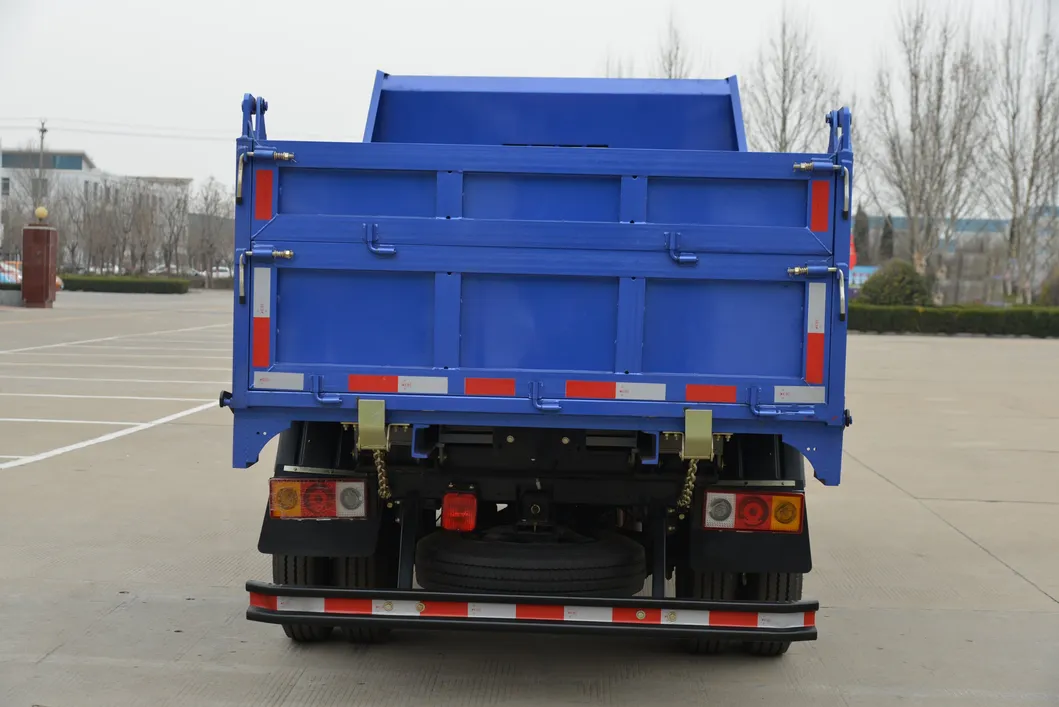

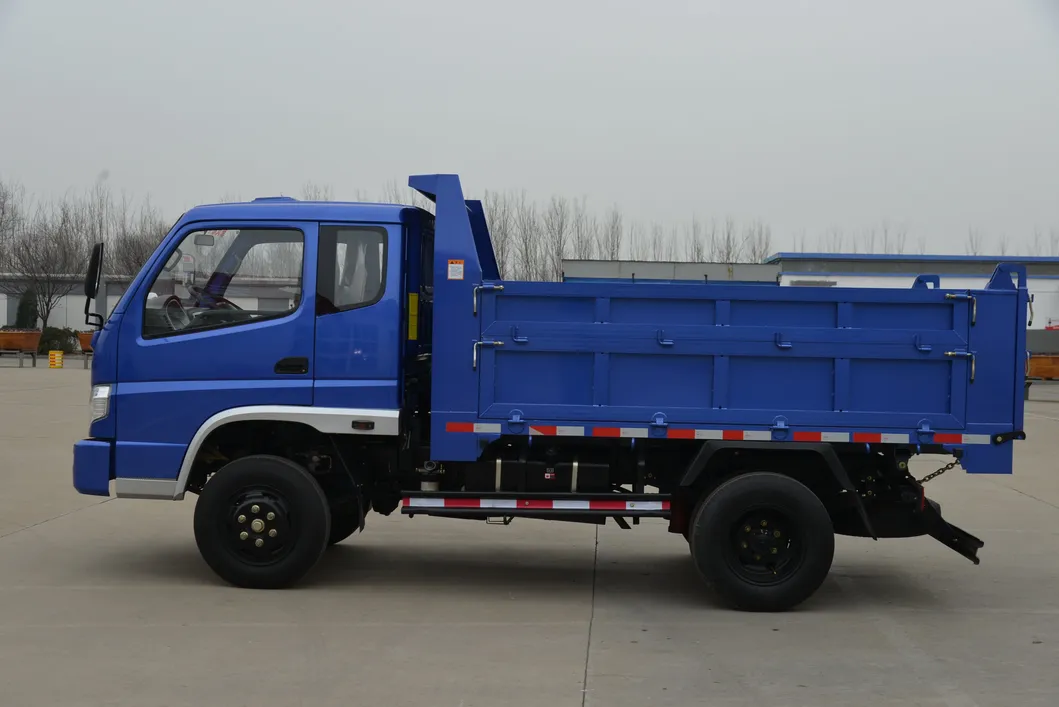

Detail pictures
Company Profile
TANGLAND International Company, is a wholly-owned subsidiary of TANGLAND GROUP, is the professional company for Trading & International Exchange and cooperation. We set up branches in Beijing, Shanghai and Qingdao, as well as overseas assembling plant, or/and showing room and service centre, in Pakistan, UAE, and some Asian & African countries. TANGLAND GROUP is a comprehensive company including manufacturing, assembling, Casting & Foundry, producing Casting parts, Electric Vehicle, Tractor, Light truck, Semi-trailer, Steel ball and Nylon 6 products, Running an Industrial products'Information & Exchange Platform, the headquarter is in Ji'nan, Shandong, and assembling, machining & foundry and castingplants are in Liaocheng, Jining, Tai'an and Weifang, theInformation and Exchange platform named-TANGLANDINFORMATION & TECHNOLOGY COMPANY.

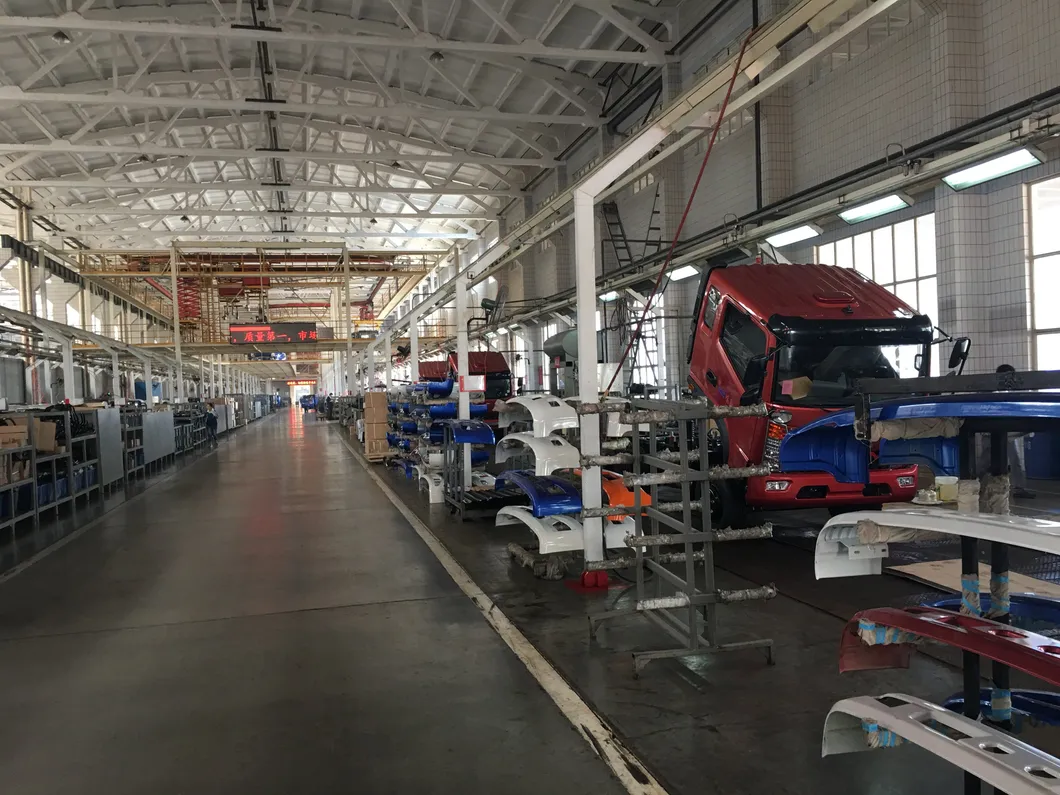

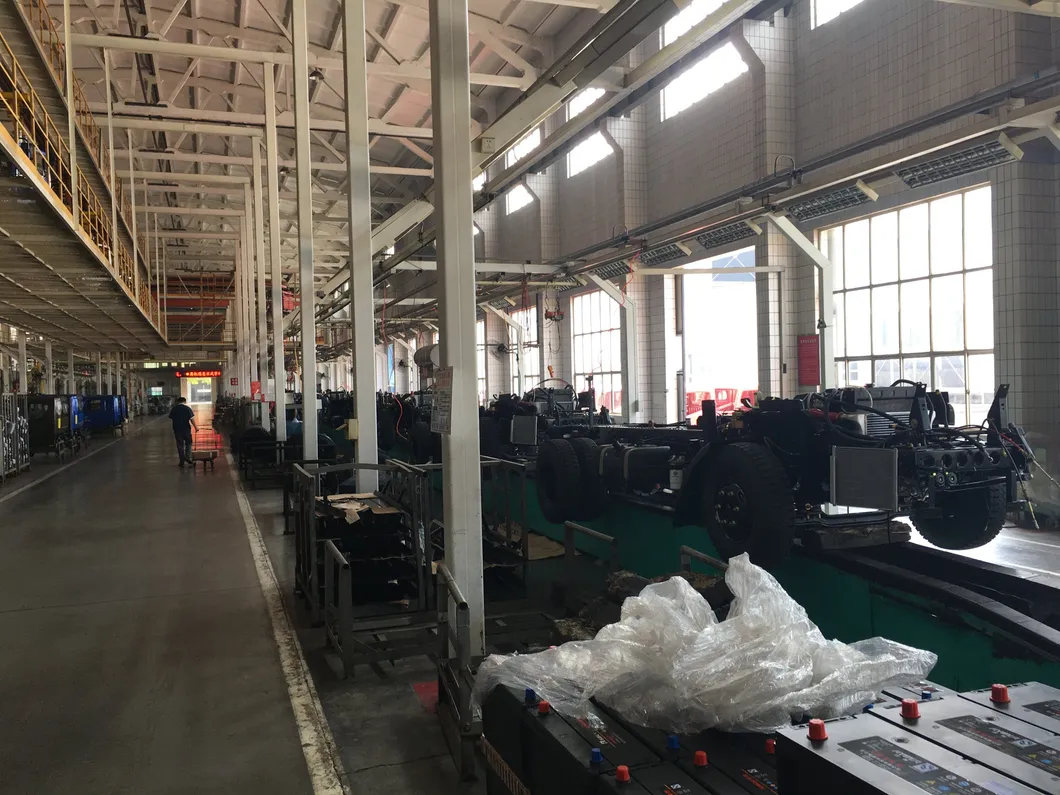

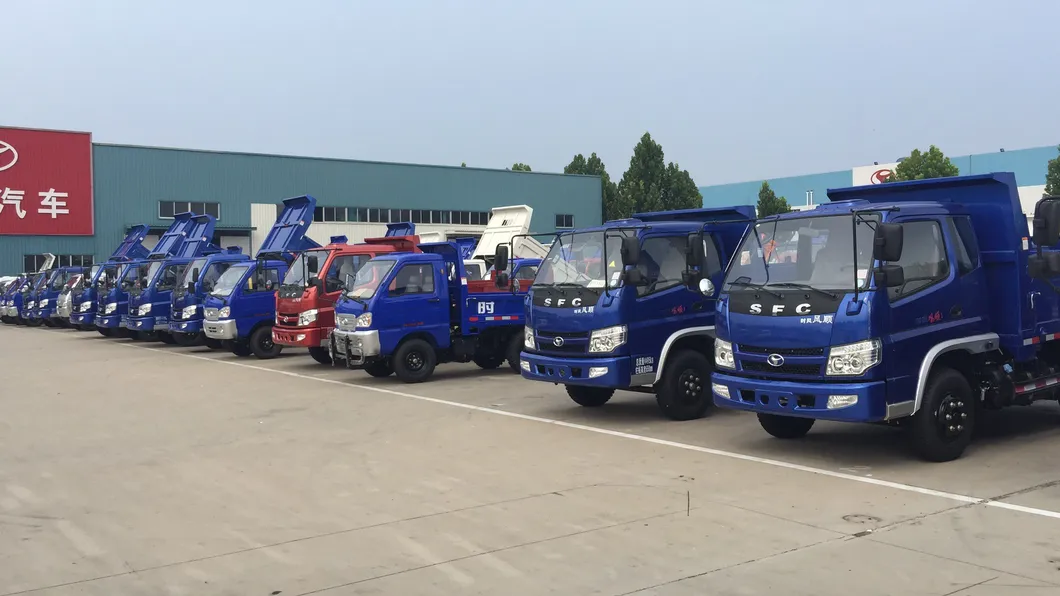

Workshop

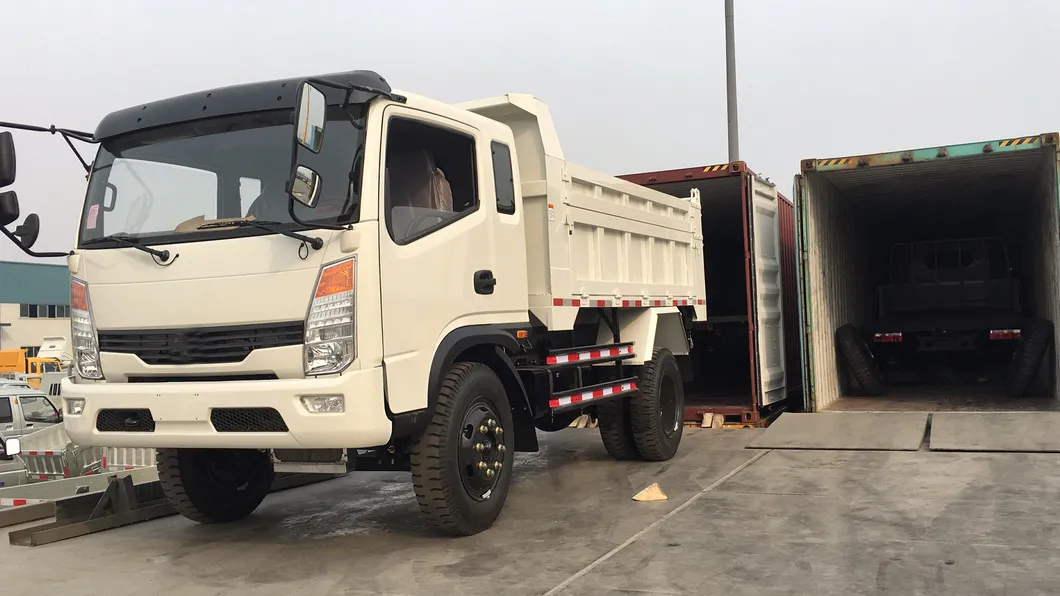

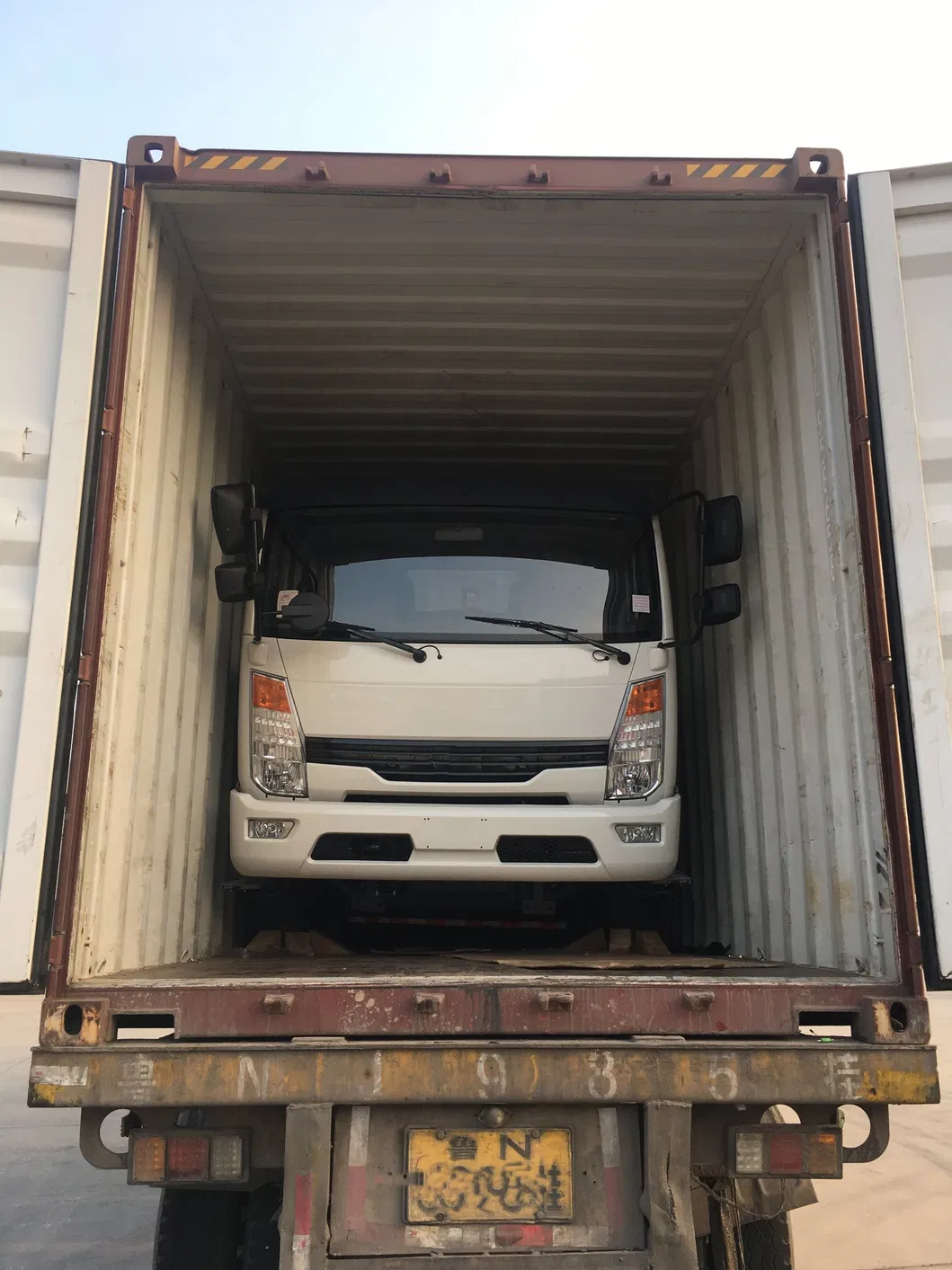

Package
Service
Pre-sales service
1.24 hours online .Your inquiry will be quick reply by email .
Also can go through all questions with you by any online chatting tools
2.Professionally and patiently introduction,details pictures and working video to show machine .
3.Visting our factory.
Service on sales
1.Test every machine and inspect the machine seriously .
2.Send the machine picture which you order , then packing it with standard export package after you confirm the machine is ok .
3.Delivery:If ship by sea .after delivery to seaport .Will tell you the shipping time and arrival time . Finally, send all original documents to you by Express. We will tell you the tracking number after we post the documents.
After-sales service
1. 24 hours online to solve any problem . Supply you English manual book and technical support , maintain and install video to help you solve the problem, or dispatch worker to your factory.
2. Training how to install the machine, training how to use, maintain and repair the machine.
FAQ
1.What is your terms of payment?
T/T 30% as deposit, and 70% before loading. We will show you the photos of the products and packages before you pay the balance.
2.What your terms of delivery?
EXW,FOB,CFR,CIF
3.How about your delivery time?
Generally, it will take about 13 days after receipt of deposit payment. The specific delivery time depends on the items and the quantity of your order.
4.What's your MOQ?
1 set
5.How should I do if meet some trouble while using?
We can supply English manual book and also take a video for showing how to resolve the problems or dispatch our worker to your factory.
