Dongfeng 4X2 4X4 3tons 4tons Full Wheel Drirving Mini Small Dump Tipper Truck for off Road Used Desert Tires Can Be Added off - Road
Dongfeng 4x2 4x4 3tons 4tons Full Wheel Drirving Mini Small Dump Tipper Truck for off Road Used Desert Tires Can Be Added Off-RoadDump truck is mainly used for engineering projects to transport dust , sand, rock ,stone,etc, also used in mining and coal site. This truck could be hermetic type. This t......
Send Inquiry
Product Description

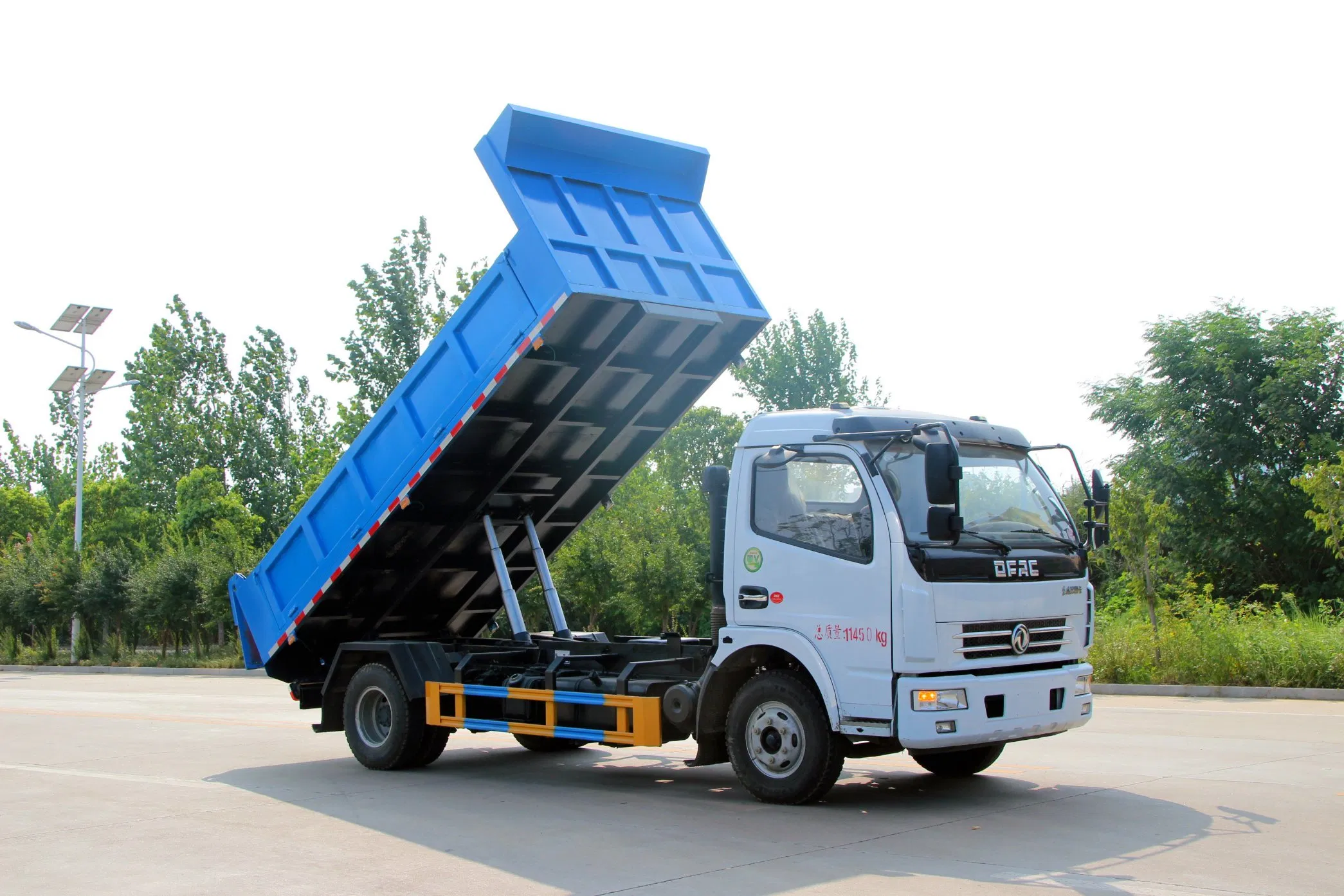

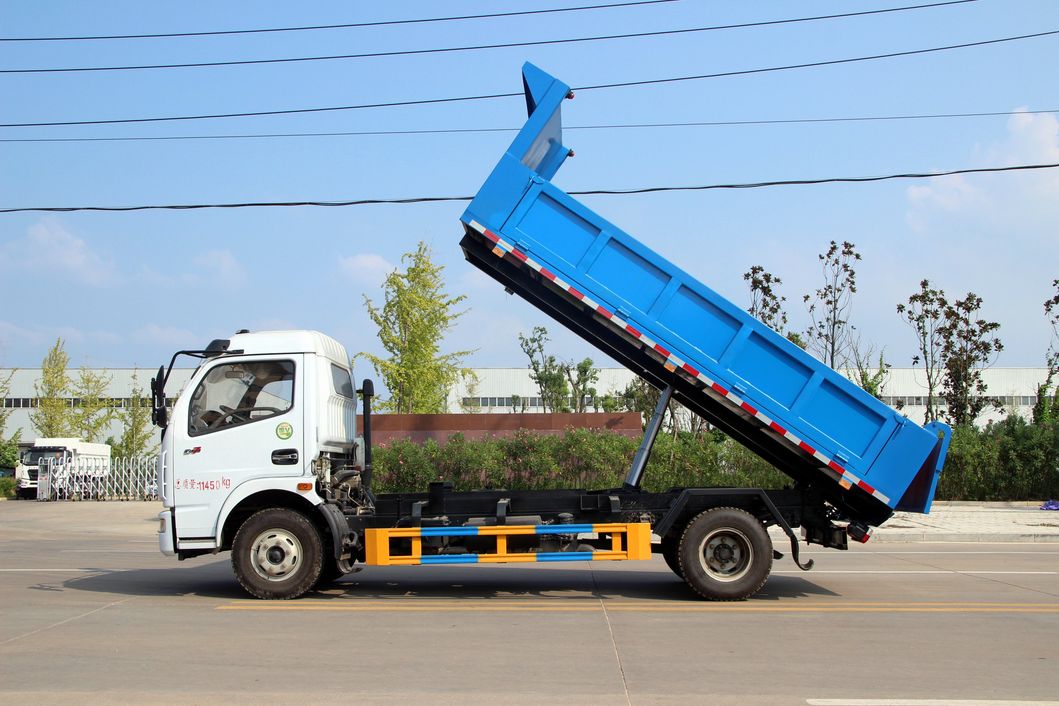

Dongfeng 4x2 4x4 3tons 4tons Full Wheel Drirving Mini Small Dump Tipper Truck for off Road Used Desert Tires Can Be Added Off-Road

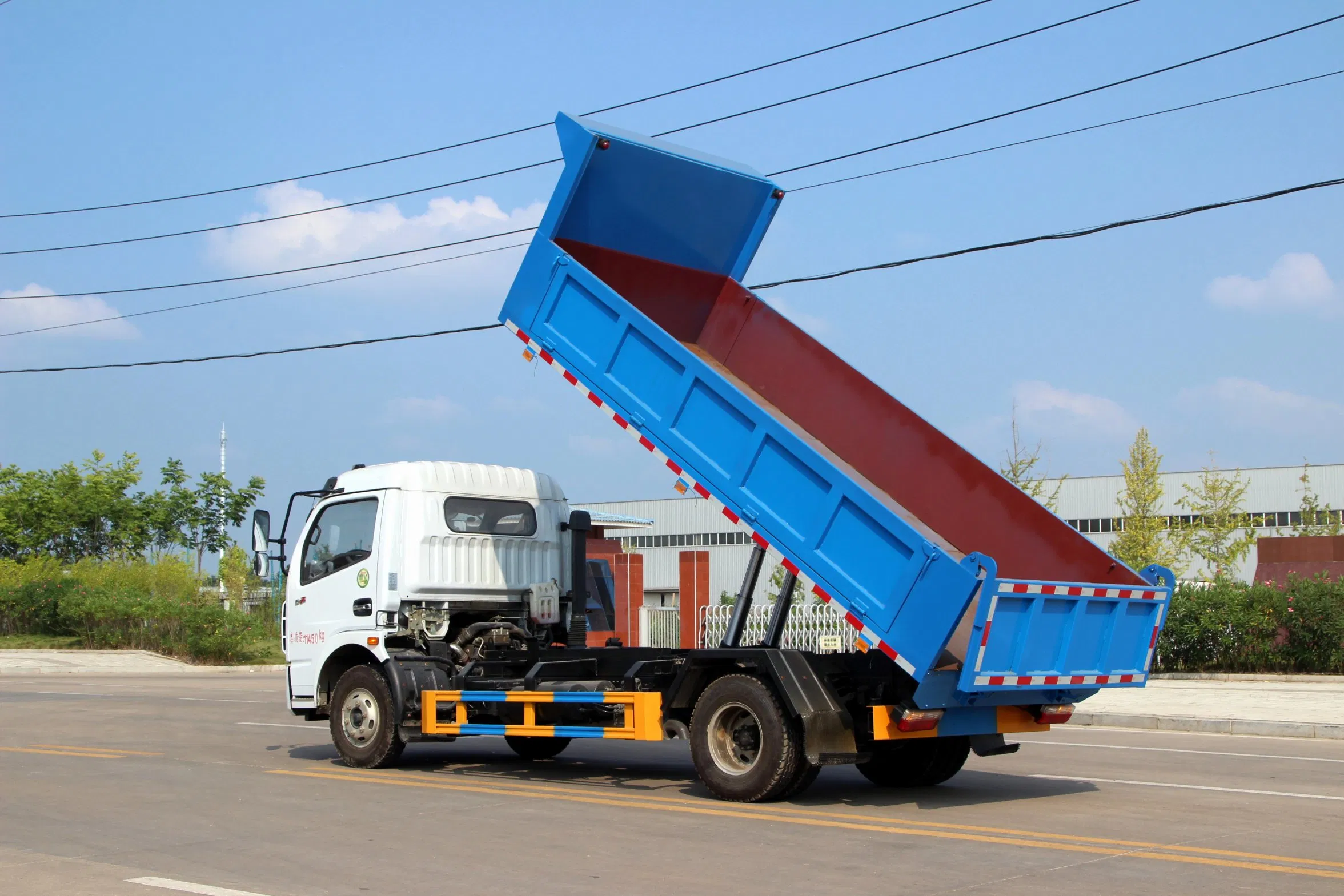

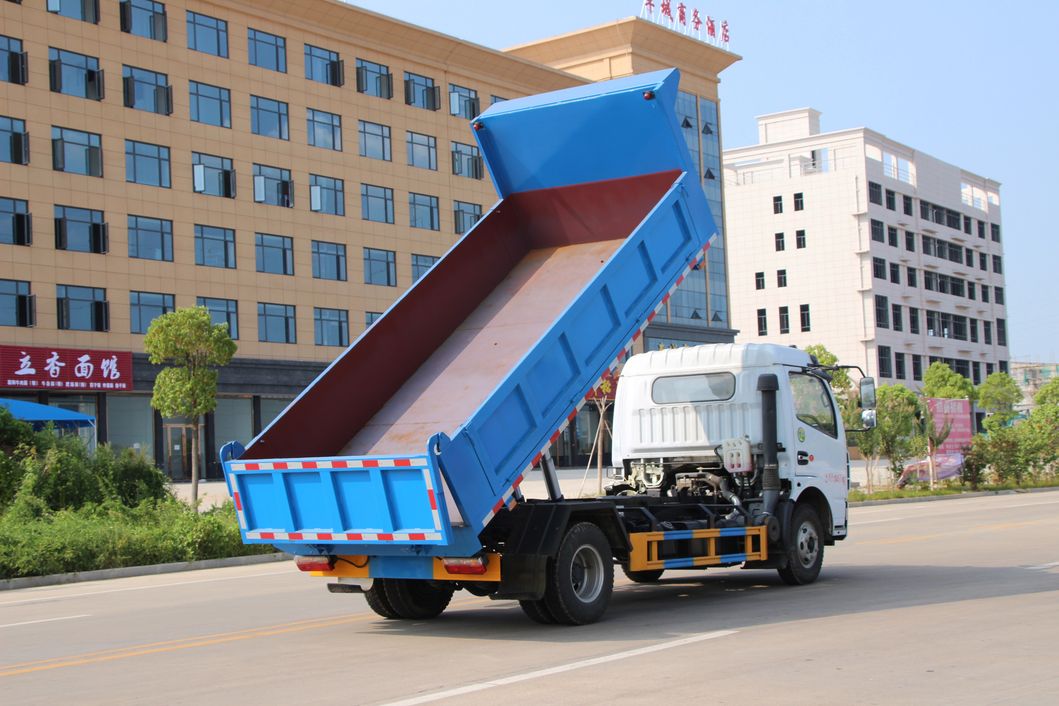

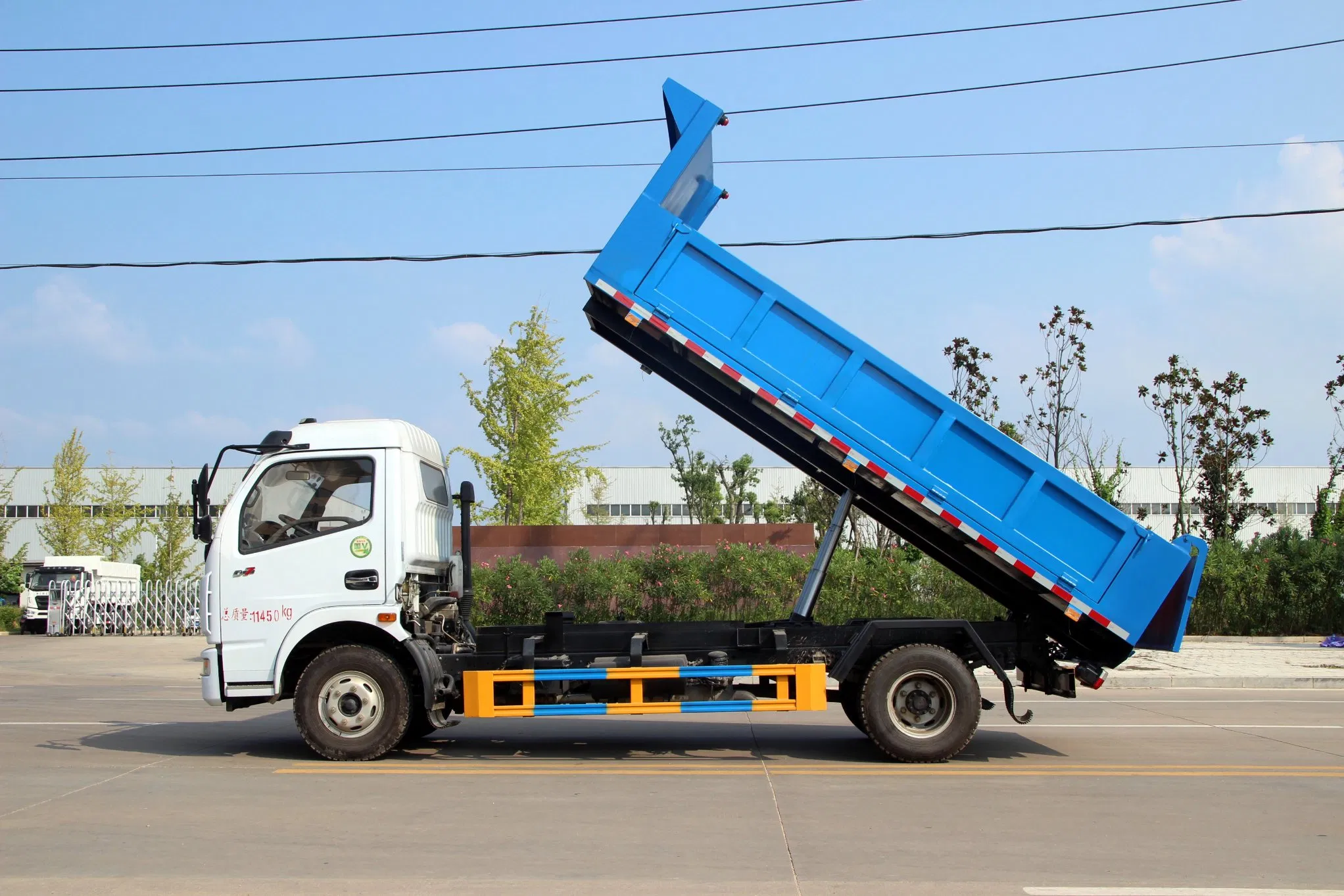

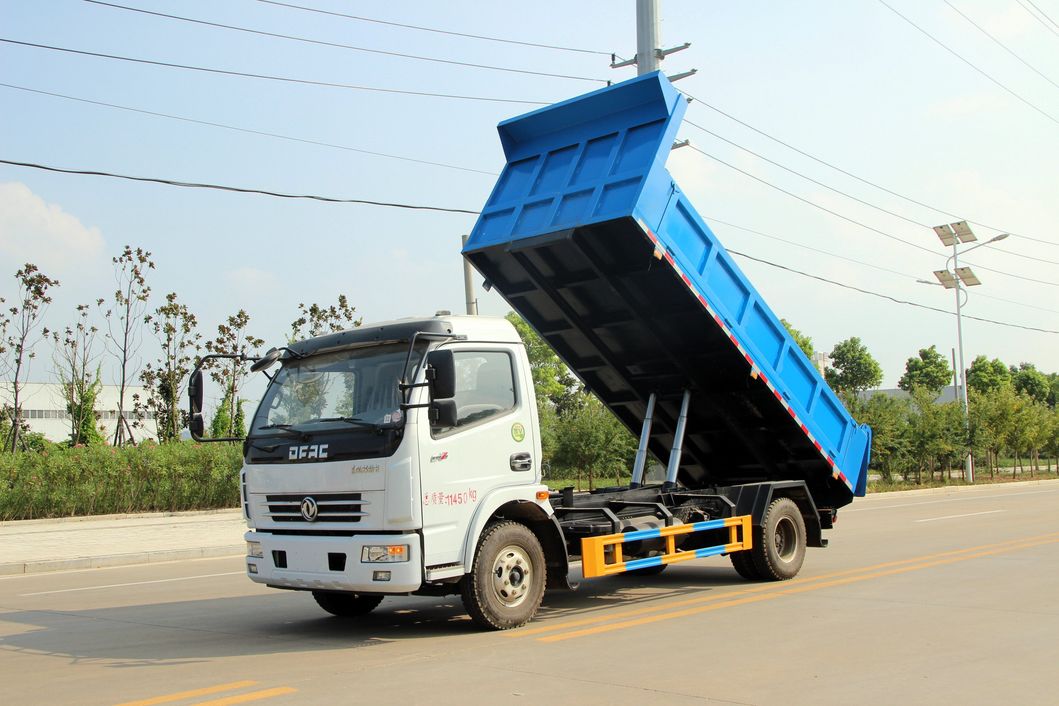

Dump truck is mainly used for engineering projects to transport dust , sand, rock ,stone,etc, also used in mining and coal site. This truck could be hermetic type. This type of truck twin cylinder lift ,stablely rise, easy to operate, rear dumping.
Product Parameters:
| Dongfeng mini 3tons 4 tons 5tons dump truck small dump truck philippines dump truck for sale | ||
| GVW 7360kg Driving Type 4x2 | ||
| Model | VLT5060 | |
| Cab | One row cab, tilted | |
| Engine(Hp) | 95 | |
| Power(Kw) | 70 | |
| Wheelbase | 3300 | |
| Front/Rear Suspension | 1040/1152 | |
| Steering | Power steering | |
| Approach/departure angle | 20/26 | |
| Wheels & tire | 7.0R16 | |
| Tire number | 6+1 | |
| Tank Dimensions(mm) | 3600×1800×600,800 | |
| Cubage (m3) | 4/5 | |
| Steel thickness | Side 3 ,Bottom 4 | |
| RHD or LHD | optional | |
| Overall Dimensions(mm) | 5500×2000×2300 | |
| Curb weight (Kg) | 4000 | |
| Engine | Model | CY4102-C3F |
| Horsepower | 95/120 | |
| Maximum output Kw | 70 | |
| Maximum torque N.m | ||
| Type | 4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine | |
| Displacement | 3.856L | |
| Chaoyang brand, Euro 3 | ||
| Driving passenger | 2,3 | |
| Transmission | 5 speed forward and one reverse, manual | |
| Front Axle | 1.8T | |
| Rear Axle | 3.5T | |
| Brake System | air brake | |
| exhaust brake | ||
| Color and LOGO | customized | |
| Electric system | 24V | |
| Standard configuration | The dump is unloaded from behind, hydraulic cover is optional. The side protection using cold-formed steel /Q235-A, bolt connection. The back protection using cold-formed steel /Q235-A, welding connection. Side 3mm, bottom 4mm. | |
| Delivery date | Within 20 days after receipt advance | |

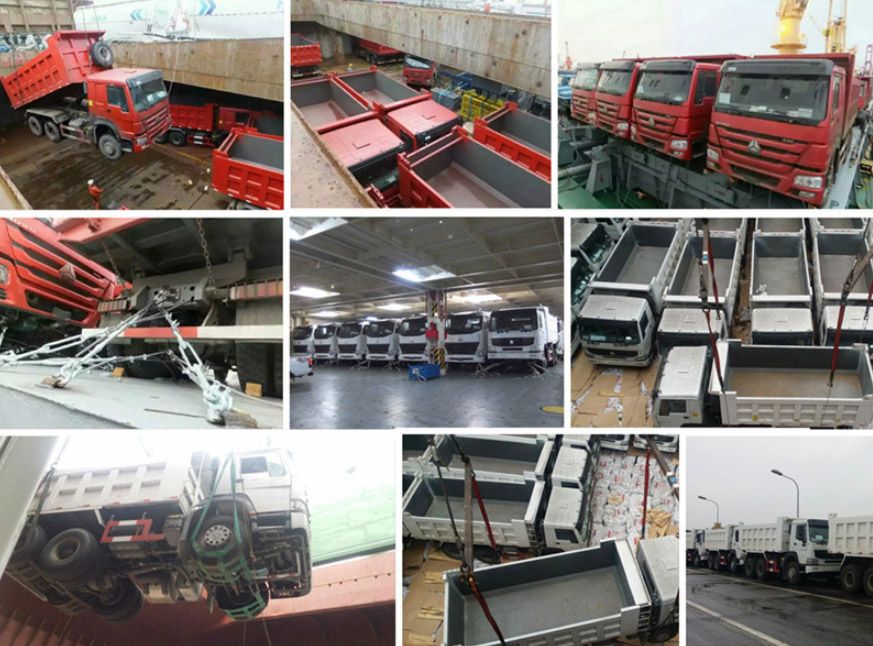

| Packing | Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. | |
