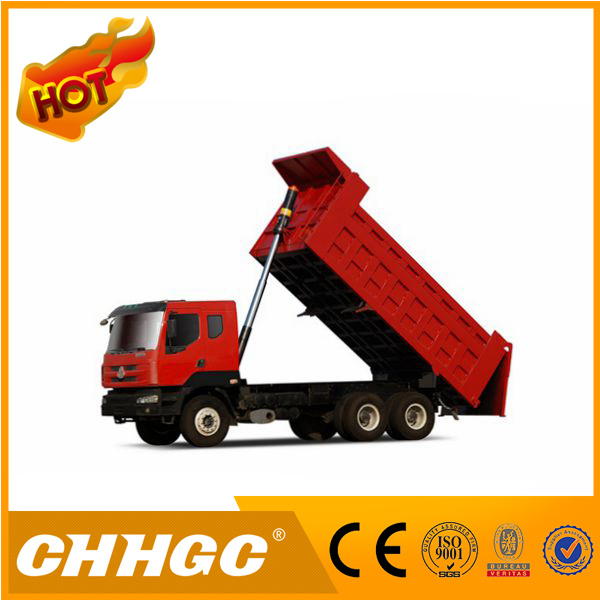

Chhgc 4axles 8*4 Dump Tipper

*Product parameters
*Why you trust and choose us

Widened and thickened pillars and ribs of the dump body are densely distributed to ensure powerful anti-expansion performance of the dump body.

The thickened channel steel of rear body and full welds guarantee high strength and impact/wear resistance.

Ultra-large cast steel lock hook and manual hook feature good sealing performance and high reliability.

Powerful pump and large pipes of the hydraulic system realize fast lifting speed, high dumping efficiency, and stable performance.

The widened and thickened high strength steel longitudinal beams and crossbeams of the frame are densely distributed to guarantee strong and impact resistant frame.

Reinforced tie rod: The triangular arm adopts patented"integral cast steel reinforced triangular arm"product, the integral cylinder base features high strength and high reliability, and the dump body features smooth lifting and fast dumping.


*Product Feature

Materials

The steel plates adopt the quality materials from domestic large steel works to guarantee the material performance, with plus thickness deviation and sufficient thickness.
Ility and safety guarantee.rock dump truck

Parts

Five major hydraulic adopt the specially customizes products from domestic renowned brands and the sealing units adopt the products from world's renowned brands, featuring durab

Production

There are many highly skilled personnel, the critical quality points are operated by professionally experienced senior technicians mand all operators are trained before assuming working post. The streamline and standardized operations and fine techniques guarantee the quality.used in mining

Appearance

All parts are shot blasted, all assemblies are painted before assembly, and the body plates are acid picked and phosphating treated to greatly improve paint adhesion and ensure shining and lasting paint

*Characteristic structure

Subframe structure

The subframe od the central-positioned dump truck is formed by snap-fit from high strength steel t ensure effectively the strength. The lower hinged joint for cylinder and tension arm is of integral structure to prevent the deviation.front T lift style

Rear body structure

The rear body adopts fully welded horizontal and vertical ribs and triangular box is added depending on the regional characteristics to effectively improve the impact resistance of the rear body.

Door operating mechanism

This mechanism is in multiple types, including tie rod type, steel hinge type, pneumatically operated type, and hydraulically operated type.

Lifting alarm

The alarm will buzz while the vehicle is being lifted, in order to eliminate potential safety hazard.

Baseplate damping structure

The new two-layer baseplate with rubber cushion in the middle is adopted to damp the impact force onto the baseplate by means of the damping function of rubber, which effectively improve the service life and practicability of the whole vehicle.

Anti-adhesion structure of dump body

For the dump trucks for transport of wet and sticky cargo, the adhesion of cargo and low dumping rate will lead to extremely low operation efficiency. We developed one synthetic resin plate with good slipping performance, which is assed to the four walls and baseplate of the dump body to effectively improve the adhesion symptom of cargo and promote the transport efficiency.

Exhaust gas recirculation device

The specially designed dumb body heater by engine exhaust gas, which not only effectively reduces the air contamination of the exhaust emission, but also sufficiently meets the winter construction and transport demands in cold regions by means of heating of sump body.

Double hinged hook seat

It effectively prevents the damage of rear body due to collision between rear body and the ground while the dump body is being lifted, in order to maximize the opening of the rear body gate.

*Factory photos




*Processing photos


*Advanced equipments


*Other products



*Company profile

Henan Haiheng Import and Export Co., Ltd has been Established in 2004.We have our producing  factory in henan.We are able to supply Semi-trailers(Stake semi-trailer train, Skeletal container trailer, Flatbed container semi trailer, Terminal trailer, Semi-trailer with side wall, Stake semi-trailer, Stake semi-trailer with goose neck, Stake semi-trailer with long/short locks, special semi-trailer for carrying coal, Curtain type semi-trailer), tank trailer series(Concrete mixer, Bulk grain semi-trailer, Bulk cement truck, Bulk cement semi-trailer, Chemical liquid semi trailer, oil tank semi-trailer with heating heating device, stainless fuel tank semi-trailer Aluminum fuel tank semi-trailer, Oil transport trailer train), dump truck series, Special purpose semi-trailer(Stake tipper trailer, side dumping semi trailer, Front-mounted dumping semi trailer, Tipper semi-trailer with front mounted cylinder, Coiled sheet transportation semi trailer, farm tractor with farm implements,Dental Products.

*FAQ

1. Can i have samples of this type of trailer to test the quality?

Yes, you can buy any samples to test the quality,our MOQ is 1 set.


2. What's the delivery time and can you lower the price?


It depends on your order. The delivery time is within 15 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lowered.


3. Can i customize the painting and the trailer design?


Yes, we offer customized design and logo for reasonable type.


4. What's the payment method?


TT 30% as Deposit, Balance Before shipment by TT or L/C at sight.
