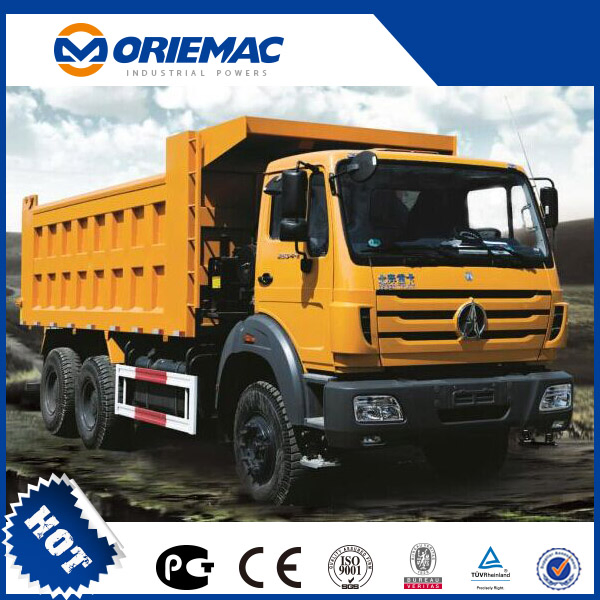

China Beiben (North Benz) 6X4 340HP Dump Truck

Product Description

BEIBEN (North Benz) 6X4 340hp 10 wheels Dump Truck

2634KY /6×4/3800+1450/Short Cab/LHD
SPECIFICATION
Dimension			834725003310mm
Upper body inner dimension			5600x2300x1500mm
Approaching angle/Departure angle			26/30°
Overhang(front/rear)			1410/1687mm
Wheel base			3800+1450mm
Max speed			90km/h
Curb weight			12200kg
Loading capacity			13800kg
Slope climbing capability			Max.30%
Engine		Model	WP10.340E32,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection
		Displacement	9.726L/Diesel
		Stroke	126/130mm
		Max. power	250/2200 (kw/rpm)
		Max.torque	1350/1200-1600(Nm/rpm)
		Emission stantard	EuroIII
Fuel tanker capacity			300L
Clutch			∮430, Single dry frictional disc,Hydraulic boosting
Gearbox			12JS160T, mechanism,12 forward gears,2 reverse gear, with overspeed gear, manual operated,
Gear ratio of gear box			15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33
Suspension system		Front	Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs
		Rear	Non-free standing stablization spring, balance suspension system, 13pcs
Brake system	Service brake		Brake gap can be adjusted automatically, double circulation air brake system
	Assistant brake		Engine exhaust brake
	Park brake		Potential springs pressing on middle and rear wheels
Steering system			ZJ120D,whole circulation in ball, hydraulic booster
Frame			straight beam width
Front axle (Mercedes Technology)			Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle (Mercedes Technology)			Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
Tyre			12.00R20 Radial
Electrical system	Battery		2X12V/135Ah
	Generator		28V-35A
	Starter		5.4Kw/24V
Cabin			Short cabin ; Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back with arm seat for driver, high back seat for co-driver; With inner A/C
