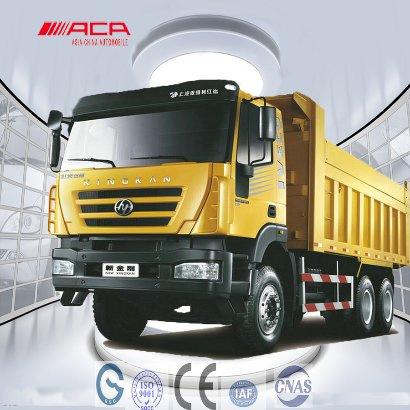

8X4 New Kingkan Dumper (WP10.375)

Product Description

8X4 hongyan new kingkan dump truck:

1. Adopt Italian advanced techonology;
2. Flexible sales system, competitive price;
3. Excellent quality, best after-sale services and mature spare parts system.

If you are interested in this model, please feel free to send your inquiry, and we will always be glad to quote.

TECHNICAL SPECIFICATION
NO.	SPECIFICATION	PARAMETER	NOTE
1	Model	CQ3314HMG336
2	Cab	New KINGKAN Flat-roof cab, Left-Hand drive, with AC	Yellow/Red/White
3	Drive	8×4
4	Rated Payload(kg)	15940
5	Kerb Weight(kg)	14930
6	Gross Vehicle Weight(kg)	31000
7	Overall Dimension(mm)	9685×2500×3510(L×W×H)
8	Dump Box Dimension(mm)	7000×2300×1200(L×W×H)
9	Dump Box Volume (m 3 )	19
10	Thickness of Dump Box	Bottom 8mm,side 6mm
11	Lifting Cylinder	Hyva 150	Front lift
12	Max Speed(km/h)	96
13	Wheelbase(mm)	1800+3300+1350
14	Engine	WP10.375	Euro III
15	Engine Output(HP)	380HP
16	Gearbox	12JSD200T	Fuller technology
17	Steering gear	Germany Technology ZF steering gear
18	Frame	Outside width 865mm, longeron cross section 325x(8+8)mm
19	Front Axle	Iron Cast I-Shaped Axle, Capacity: 6500 kg x2
20	Driving axle	Full floating, double reduction with differential cast steel driving axle, Capacity:18000 kg
21	Tyre	12.00R20
22	Oil Tank	350L Aluminum-Magnesium Alloy

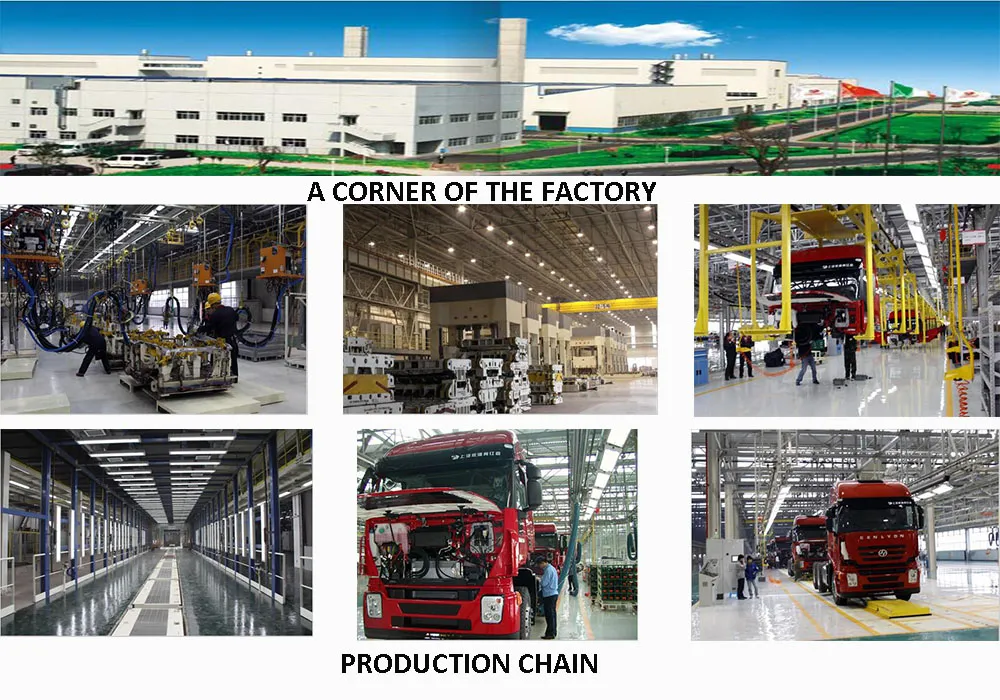

SAIC-IVECO HONGYAN Company is an experienced heavy duty truck manufacturer. Based in Chongqing city, China, we design, manufacture a wide range of heavy duty trucks and special trucks based on heavy duty trucks such as tractor unit, dump truck, cargo truck, tanker truck, and some construction engineering vehicles like concrete mixer truck. SIH is based on China state owned enterprise.
8X4 New Kingkan Dumper (WP10.375)

SIH implemented a series of effective quality control measures , introduced advanced IVECO prototype vehicle technology, acquired state-of-the-art production and inspection equipment, employed experienced staff, and strictly implemented the ISO9001:2000 quality management system to monitor every production process. In addition, we provide continuous training to improve employee efficiency, which greatly reduces our production costs, thus enabling us to provide our heavy trucks at lower price.

8X4 New Kingkan Dumper (WP10.375)

We have twelve subsidiary company and offices in China and overseas. The average sales has reached to 2500 units per year in china while the export amount is more than thousands units. And the annual income has surpassed 80 million dollars.Because of excellent quality, flexible sales model, complete unit of accessories, our company set up impressive image in China automobiles field. Recent years, our company is dedicating in extending overseas market. Our products have exported to more than 20 countries, primarily to markets in Vietnam, Tadzhikistan, Saudia Arabia, Algeria, Congo, Nigeria, ivory Coast, Ghana and etc. At the same time, our sales and service team accumulated a lot of experience in international trade and established complete sales and service network in Africa and Central Asia. What's more, we enjoyed excellent reputation among our customers.
8X4 New Kingkan Dumper (WP10.375)
