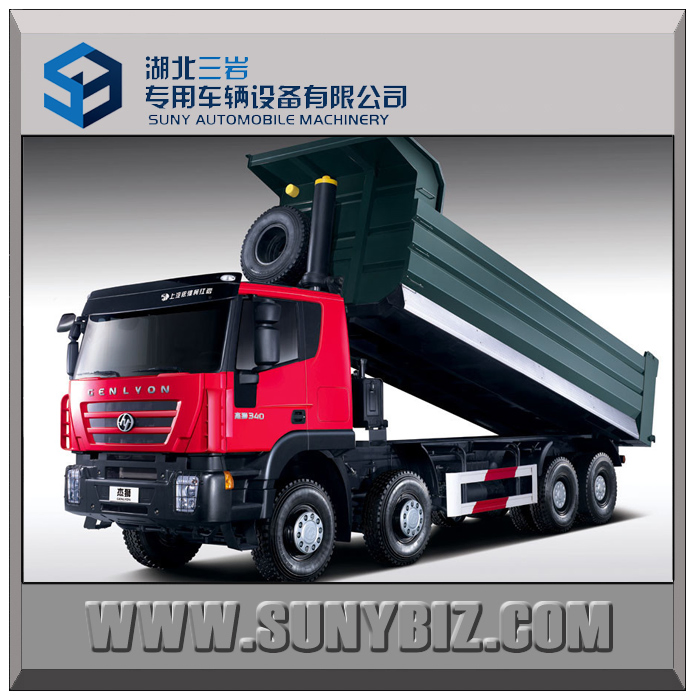

390HP 60tons Iveco 8X4 Heavy Dump Truck
390hp iveco hongyan genlyon 8x4 Dump Truck / Tipper truckiveco cabin with A/C,sleeper,Cursor9 engien 350hp Euro 4 engine.8x4 dumper Load capacity 50tons 55tons 60tons 65tons.Chassis Info:IVECO HANGYAN GENLYON BRANDDiesel engine&......
Send Inquiry
Product Description
390hp iveco hongyan genlyon 8x4 Dump Truck / Tipper truck
iveco cabin with A/C,sleeper,Cursor9 engien 350hp Euro 4 engine.
8x4 dumper Load capacity 50tons 55tons 60tons 65tons.
Chassis Info:
IVECO HANGYAN GENLYON BRAND
Diesel engine, 287kw / 390hp,FAST 12-speed Manual Gearbox,Dual-circuit air brake,24V.
Dump Cargo body:
Size:8300/8500*2300*1500/1800mm ,
28CBM Dump Truck,30CBM Dump Truck,32cbm Dump Truck/35cbm Tipper truck
Equipped with material of carbon steel Q235,Side 6mm thickness;bottom 8mm thickness,
Equipped with front hydraulic ram(Optional HYVA Brand),Single rear door.
Optional Dump Type:
1.Truck:(rear)Dump truck,Side dump truck; 40ton~65ton side tipper truck
2.Trailer: (rear)Dump trailer,Side dump trailer,Front side dump,rear dump trailer; 50ton ~ 100ton side tipper trailer
3.Full trailer and Side dump full trailer. 15ton~20ton~25ton~30ton full trailer
4.flatbed dump truck and faltbed dump trailer. 30ton~35ton~40ton~45ton~50ton~60ton flatbed tipper truck
5.U-Type dump truck & Dump truck crane (with XCMG,UNIC,SANY,Crane) & Mining Dump truck. 25ton ~ 80ton
We also have IVECO HONGYAN water tank truck,Oil tank truck,Garbage truck,Van truck,Flatbed Truck,Dump truck,Truck with crane,etc
Other brand of Chassis eg,Dongfeng-DFAC,FOTON-AUMAN-FORLAND,FAW-J5-J6,SHACMAN-F3000-M3000-X3000,SIONTRUK-HOWO-A7,Beiben,IVECO-HONGYAN-GENLYON,JAC,JMC,YUEJIN,KAMA,T-KING,UD,HINO,ISUZU,etc.
Product Series:
1. Fuel tank truck/trailer/semi-trailer/container.
2. Water tank truck/trailer/semi-trailer/container.
3. Chemical tank truck/trailer/semi-trailer/container.
4. Bitumen tank truck/trailer/semi-trailer/container.
5. Bulk powder tank truck/trailer/semi-trailer/container.
6. Gas tank truck/trailer/semi-trailer/container.
7. Dump truck/trailer/semi-trailer
8. Truck mounted crane
9. Fecal suction truck.
10. Sewage suction vacuum tank truck.
11. High pressure washing truck.
12. Sewage suction vacuum tank and high pressure washing truck.
13. (vacuum)Sweeper truck.
14. Garbage truck(swing arm type,sealed dump type,compression type,hanging barrel type,docking type)
15. Concrete mixer truck
16. Fire truck
17. Wrecker
18. Refrigerator truck/trailer/semi-trailer
19. Platform transported truck/trailer/semi-trailer
20. Van truck/trailer/semi-trailer
21. High-altitude operation truck
Packaging & Shipping
Truck is nude packing, shipping by container, bulk cargo, ro-ro.
We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!
Customer service
We supply sincerity, efficient, professional, happiness service on pre-sale, in the sale, after-sale
Any requiry will be replied within 24 hours.
High quality ,competitive&reasonable price, fast lead time.
Our products are direct from factory,there is no middle man,no high markup,so we can provide quality items yet very competitive price.
We guarantee that all our goods has gone through strict quality control and testing to ensure that it is in good condition before ship out.We strive for 100% customer satisfaction on every sale we complete.
Fast delivery time: within about 10~~20 working days.
We provide 13 months warranty.
We supply quick-wear parts and spare parts in time for customer .
If you have any questions please let Adam Li know.
iveco cabin with A/C,sleeper,Cursor9 engien 350hp Euro 4 engine.
8x4 dumper Load capacity 50tons 55tons 60tons 65tons.
Chassis Info:
IVECO HANGYAN GENLYON BRAND
Diesel engine, 287kw / 390hp,FAST 12-speed Manual Gearbox,Dual-circuit air brake,24V.
Dump Cargo body:
Size:8300/8500*2300*1500/1800mm ,
28CBM Dump Truck,30CBM Dump Truck,32cbm Dump Truck/35cbm Tipper truck
Equipped with material of carbon steel Q235,Side 6mm thickness;bottom 8mm thickness,
Equipped with front hydraulic ram(Optional HYVA Brand),Single rear door.
| Products Technical Specification | ||
| Brand-Series | HONGYAN-Genlyon | |
| Product Name | 8*4 Dump truck | |
| Chassis Model | CQ3315HTG466 | |
| Emission Standard | Euro 4 | |
| Fuel type | Diesel | |
| Cabin | Flat top,With A/C,Sleeper | |
| Whole vehicle main dimensions (mm) | Overall dimensions (L×W×H) | 11435*2500*3480 |
| Cargo body siez | 8300/8500*2300*1500/1800 | |
| Wheel base | 1800+4600+1400 | |
| Front overhang | 1435 | |
| Rear overhang | 2085 | |
| Min. ground clearance | 500 | |
| Weight data (kg) | G.V.W | 31000 |
| Curb weight (chassis) | 15220 | |
| Load capacity | 65000 | |
| Whole vehicle main performance | Max. speed (km/h) | 80 |
| Max. slope of climb (%) | 30 | |
| Engine | Model | F2CE3681E*P |
| Maximum power | 287kw / 390hp | |
| Number of cylinders | 6 | |
| Displacement (L) | 8.709 | |
| Engine Manufacturer | SAIC Fiat Powertrain Hongyan Co.Ltd | |
| Transmission | Brand | FAST |
| Number of gears | 12 forward gear & 2 reverse | |
| Axle | Rear Load capacity (ton) | HONGYAN 16T |
| Suspension | Leaf spring | `8/8/12 |
| Steering Wheel | left/right hand drive | LHD |
| Brake system | Service brake | Dual-circuit air brake |
| Electric device | Rated voltage | 24V |
| Tyres & Quantity | 11.00R 20 & 8+1 | |
| Cargo body Description | ||
| Cargo body dimensions (mm) | 8300/8500*2300*1500/1800 | |
| Cargo body material | Equipped with material of carbon steel Q235 | |
| Cargo body thickness | Side 6mm thickness;bottom 8mm thickness | |
| Lifting System | Equipped with Front hydraulic ram, one back door | |
| Optional Configuration | ||
| HYVA Brand lifting system,Radial tires,Van thickness,side door,etc. | ||
Optional Dump Type:
1.Truck:(rear)Dump truck,Side dump truck; 40ton~65ton side tipper truck
2.Trailer: (rear)Dump trailer,Side dump trailer,Front side dump,rear dump trailer; 50ton ~ 100ton side tipper trailer
3.Full trailer and Side dump full trailer. 15ton~20ton~25ton~30ton full trailer
4.flatbed dump truck and faltbed dump trailer. 30ton~35ton~40ton~45ton~50ton~60ton flatbed tipper truck
5.U-Type dump truck & Dump truck crane (with XCMG,UNIC,SANY,Crane) & Mining Dump truck. 25ton ~ 80ton
We also have IVECO HONGYAN water tank truck,Oil tank truck,Garbage truck,Van truck,Flatbed Truck,Dump truck,Truck with crane,etc
Other brand of Chassis eg,Dongfeng-DFAC,FOTON-AUMAN-FORLAND,FAW-J5-J6,SHACMAN-F3000-M3000-X3000,SIONTRUK-HOWO-A7,Beiben,IVECO-HONGYAN-GENLYON,JAC,JMC,YUEJIN,KAMA,T-KING,UD,HINO,ISUZU,etc.
Product Series:
1. Fuel tank truck/trailer/semi-trailer/container.
2. Water tank truck/trailer/semi-trailer/container.
3. Chemical tank truck/trailer/semi-trailer/container.
4. Bitumen tank truck/trailer/semi-trailer/container.
5. Bulk powder tank truck/trailer/semi-trailer/container.
6. Gas tank truck/trailer/semi-trailer/container.
7. Dump truck/trailer/semi-trailer
8. Truck mounted crane
9. Fecal suction truck.
10. Sewage suction vacuum tank truck.
11. High pressure washing truck.
12. Sewage suction vacuum tank and high pressure washing truck.
13. (vacuum)Sweeper truck.
14. Garbage truck(swing arm type,sealed dump type,compression type,hanging barrel type,docking type)
15. Concrete mixer truck
16. Fire truck
17. Wrecker
18. Refrigerator truck/trailer/semi-trailer
19. Platform transported truck/trailer/semi-trailer
20. Van truck/trailer/semi-trailer
21. High-altitude operation truck
Packaging & Shipping
Truck is nude packing, shipping by container, bulk cargo, ro-ro.
We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!
Customer service
We supply sincerity, efficient, professional, happiness service on pre-sale, in the sale, after-sale
Any requiry will be replied within 24 hours.
High quality ,competitive&reasonable price, fast lead time.
Our products are direct from factory,there is no middle man,no high markup,so we can provide quality items yet very competitive price.
We guarantee that all our goods has gone through strict quality control and testing to ensure that it is in good condition before ship out.We strive for 100% customer satisfaction on every sale we complete.
Fast delivery time: within about 10~~20 working days.
We provide 13 months warranty.
We supply quick-wear parts and spare parts in time for customer .
If you have any questions please let Adam Li know.
