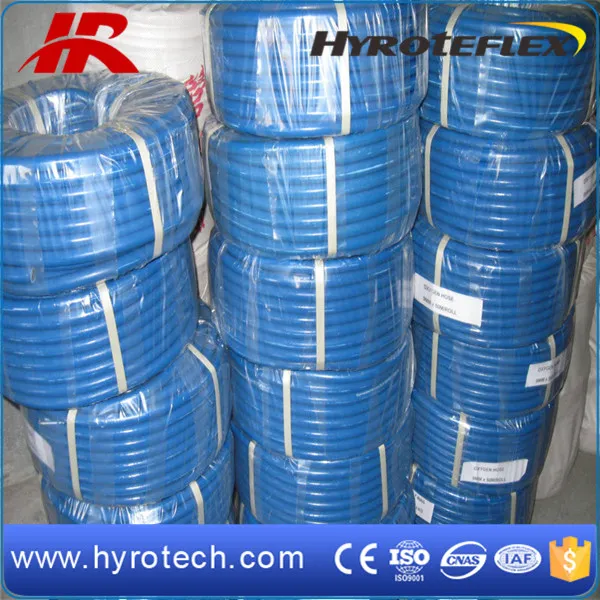

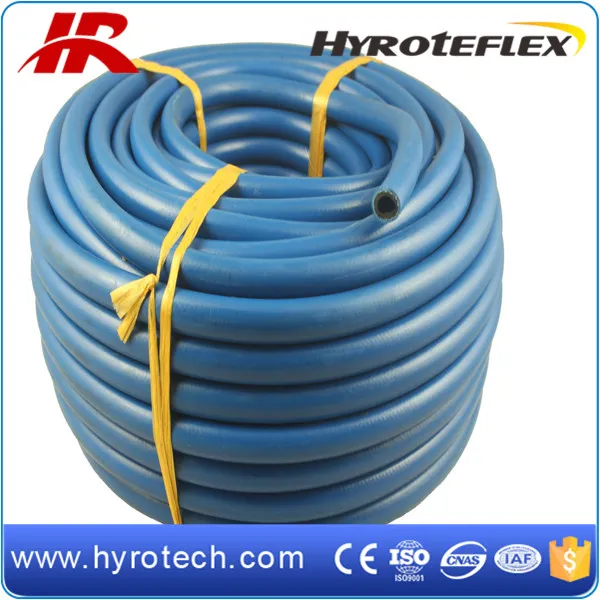

Oxygen Hose with Wp 20bar
Oxygen HoseTube: EPDM/SBR blended, black and smoothReinforcement: textile braided high tensile synthetic yarnCover: EPDM/SBR blended, blue, smooth weather and ozone, abrasion resistantApplication: for conveying welding gasesTemperature: -40ºC~+90ºCBranding: as requestStandard: ISO ......
Send Inquiry
Product Description

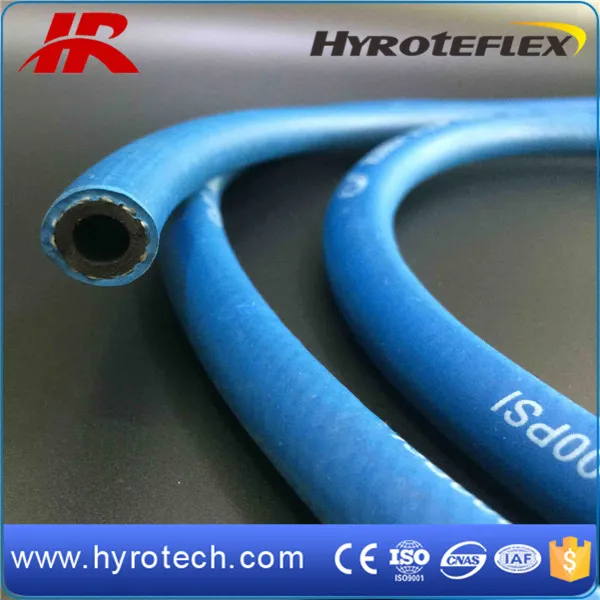

Oxygen Hose
Tube: EPDM/SBR blended, black and smooth
Reinforcement: textile braided high tensile synthetic yarn
Cover: EPDM/SBR blended, blue, smooth weather and ozone, abrasion resistant
Application: for conveying welding gases
Temperature: -40ºC~+90ºC
Branding: as request

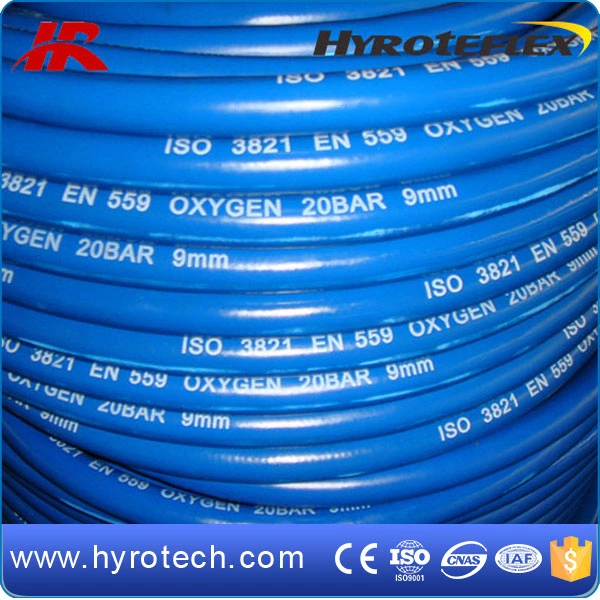

Standard: ISO 3821, GOST 9356-75
Length: 30m~100m
Packing: P.V.C. Film
Color: Blue,Green,Black etc
| ID (mm) | Wall thickness (mm) | Working pressure (bar) | Burst pressure (bar) | Bending radius (mm) | Weight (kg/m) |
| 5 | 3.2 | 20 | 60 | 30 | 0.15 |
| 6 | 3.5 | 20 | 60 | 35 | 0.17 |
| 8 | 3.5 | 20 | 60 | 50 | 0.25 |
| 9 | 3.5 | 20 | 60 | 50 | 0.27 |
| 10 | 3.5 | 20 | 60 | 60 | 0.29 |
| 13 | 4.5 | 20 | 60 | 60 | 0.39 |
| 16 | 4.5 | 20 | 60 | 70 | 0.45 |
| 19 | 5.5 | 20 | 60 | 80 | 0.58 |

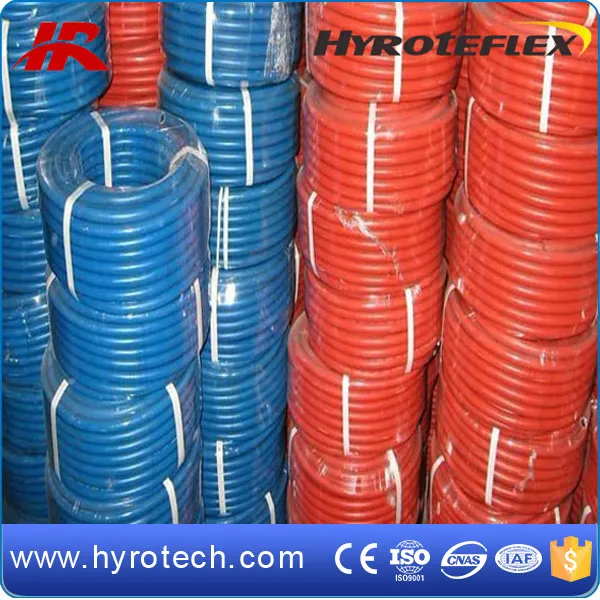

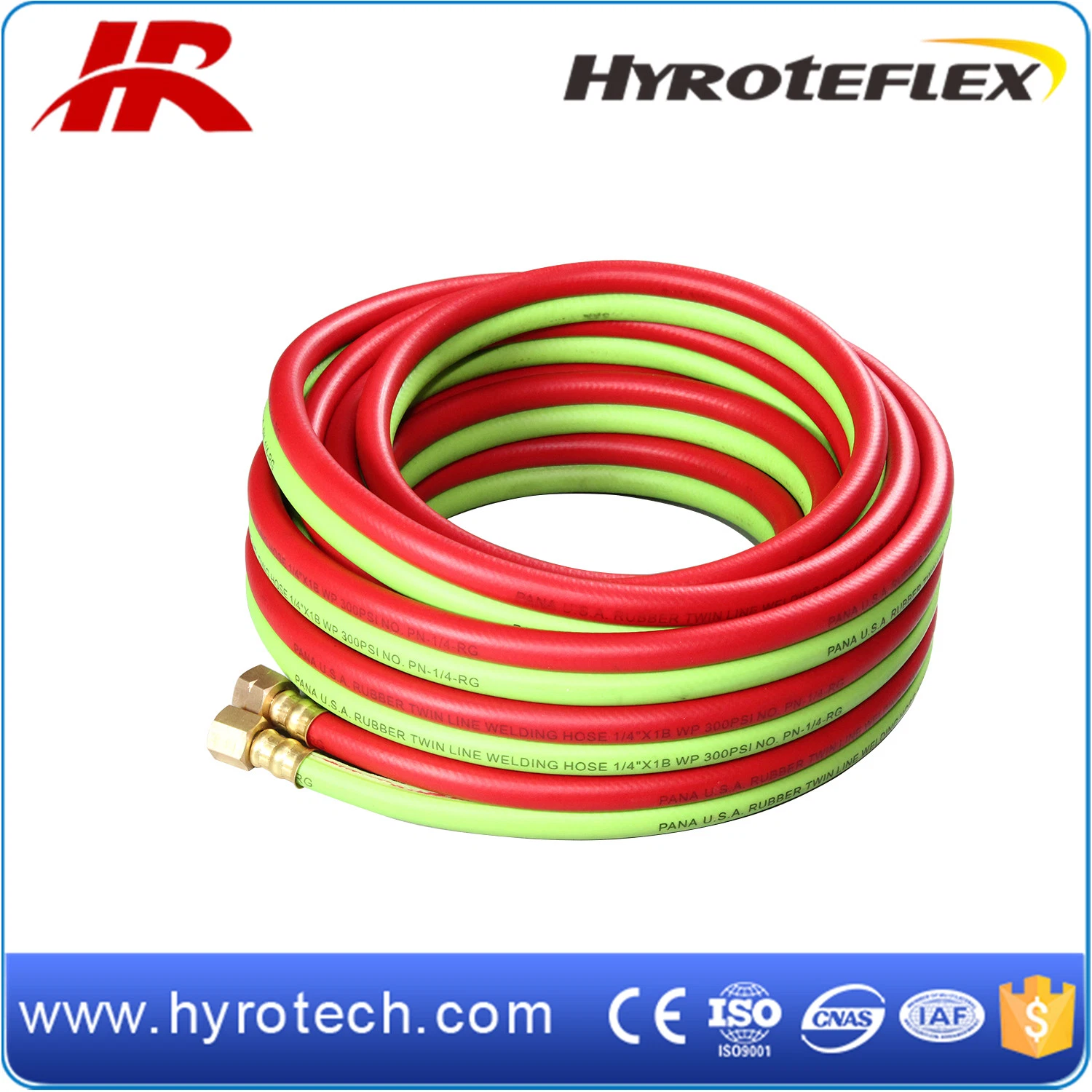

Oxygen Hose/Welding Hose
