Iguang Td Gplus Aluminum Processless Fujifilm Thermal CTP Plate
Huaguang thermal positive CTP PLATE offsetSingle Layer Thermal Ctp Plate is kind if plate specialized for violet ctp platesetters for hight-level printing ,Positive Double Layer Thermal Ctp Platecan be scanned by 410mm laser ontrolled by computer ,and mounted on the press for printing after preheati......
Send Inquiry
Product Description
Huaguang thermal positive CTP PLATE offset
Single Layer Thermal Ctp Plate is kind if plate specialized for violet ctp platesetters for hight-level printing ,Positive Double Layer Thermal Ctp Platecan be scanned by 410mm laser ontrolled by computer ,and mounted on the press for printing after preheating ,rising ,developing,etc. The plate isapplid many latest technologies like excellent roughed aluminum substrate,high-resolution formulation design and advanced mlti-layer coationg technology. These avanced technologiedensure the quality and stable property.
UV-PH HIGH SENSITIVITY POSITIVE CTCP PLATE | |
Plate Type | UV-PH type UV-CTP plate, also used as high sensitivity PS PLATE. |
Application | Commercial sheetfed and rotary press printing |
Substrate | Electrochemically grained and anodized aluminum |
Gauge | 0.15/0.20/0.25/0.30/0.40mm |
Maximum width | 1320mm |
Spectrum scope | 350-460nm UV light, especially 400-410nm UV laser |
Sensitivity | 40±5 mw(Cron UV-4632CI platesetter Parameter 1000 rpm) |
Safe light | UV filtered or Yellow light |
Coating color | Blue-Green |
Dot reproduction | 2-98% @ 250 lpi |
Applicable platesetter | main UV-CTP platesetters such as Cron,luscher,Amsky,basysPrint. |
Run length | Above 100,000,which may vary against the different press, ink and stock condition |
Developer | Common positive offset plate developer |
Development | Conductivity: min 55ms, max 65ms Temperature: 20-25°C PH 13.00-13.40 |
Packaging | 0.15mm 100 pieces/box 0.25/0.30mm 50 pieces/box if length <1030mm; 30 pieces/box if length ≥1030mm; 25 pieces/box if the area > 1m2 |
Shelf life | 18 months when stored in a light-free area away from excessive cold, heat and high humidity |
Transport and storage | Store plates at in their packaging, away from excessive cold, heat or high humidity. Recommended condition is: temperature 10-26°C & RH between 40 - 70%. |

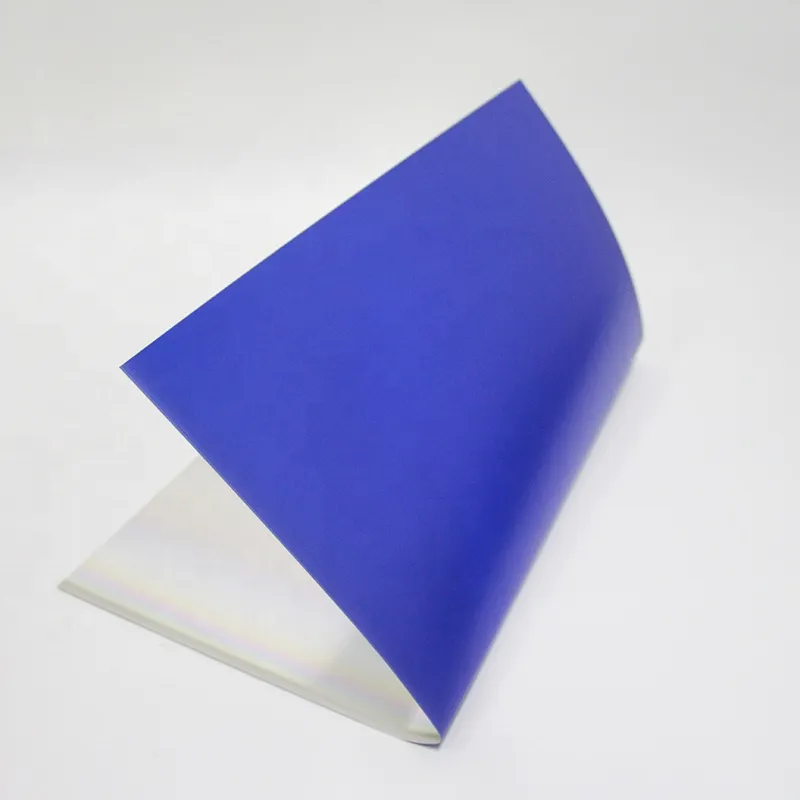

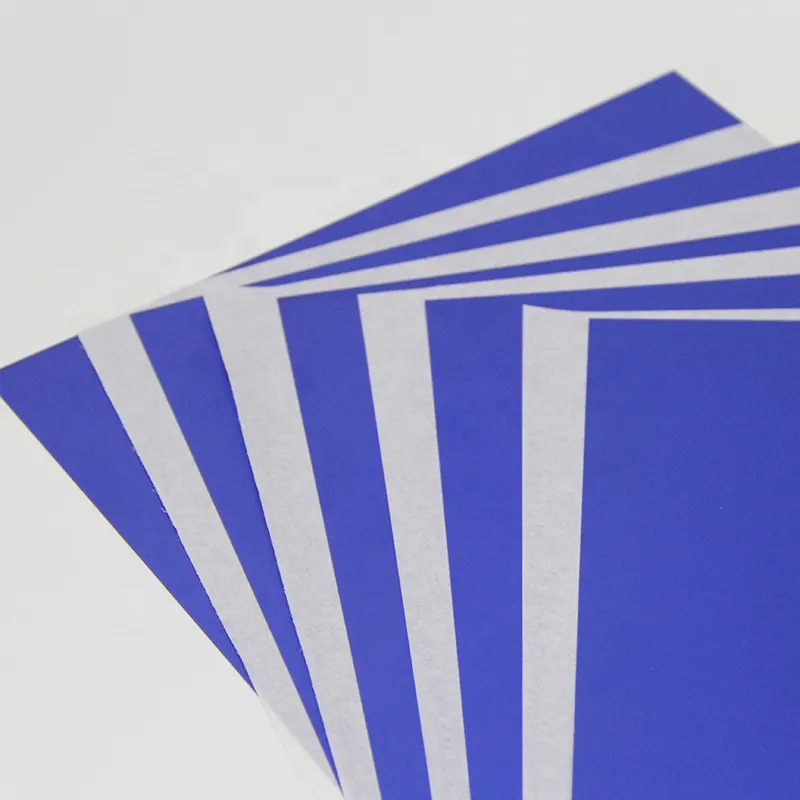

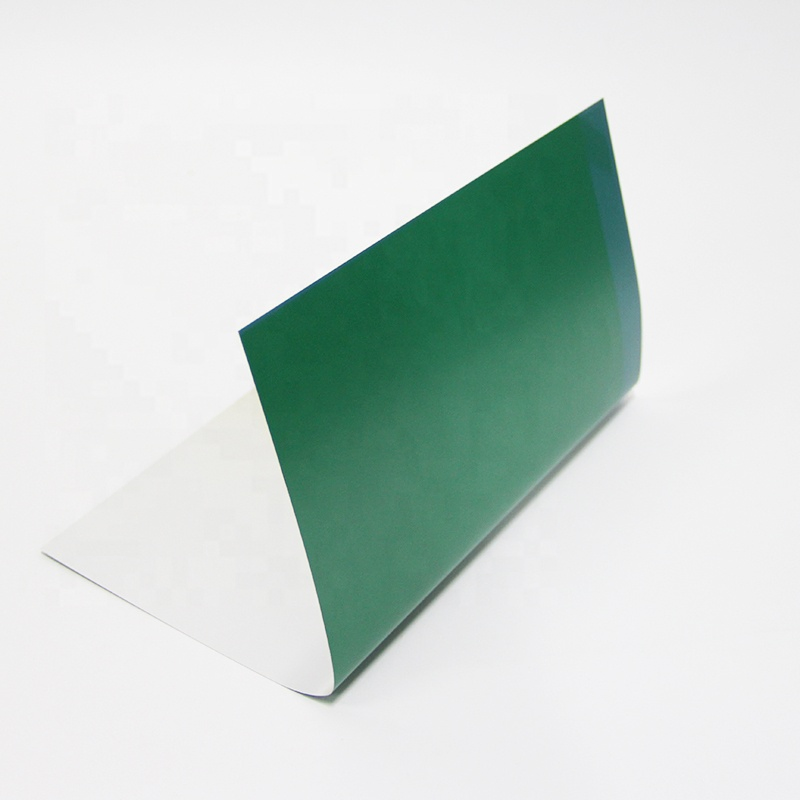

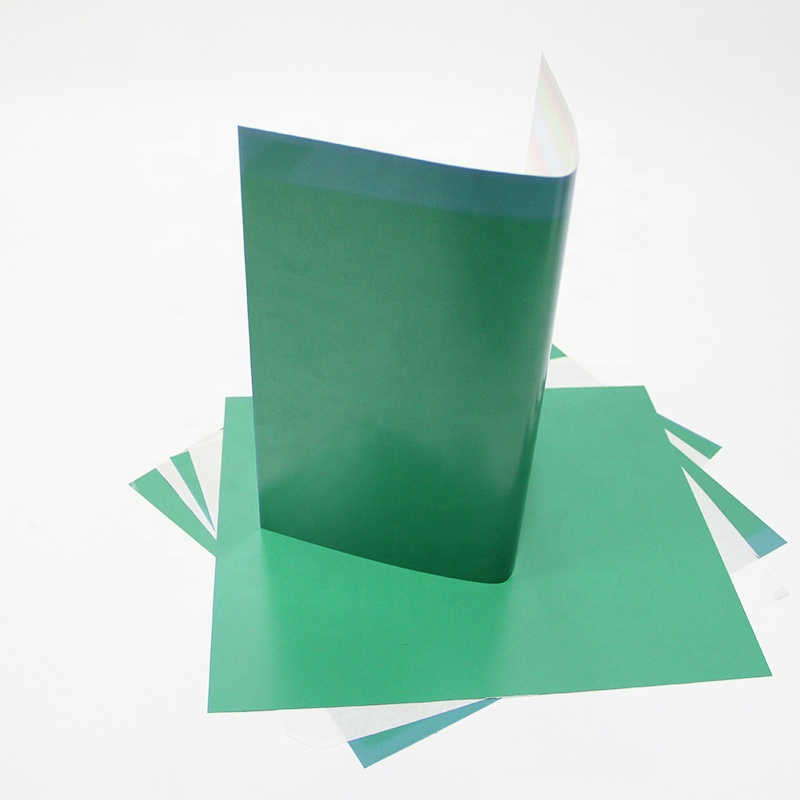

PRODUCT SHOW
Looking for ideal 2020 New Technology Ctp Plate Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Aluminum Offset Printing Violet Photopolymer Plate are quality guaranteed. We are China Origin Factory of Negative Violet Photopolymer Digital Plate. If you have any question, please feel free to contact us.
