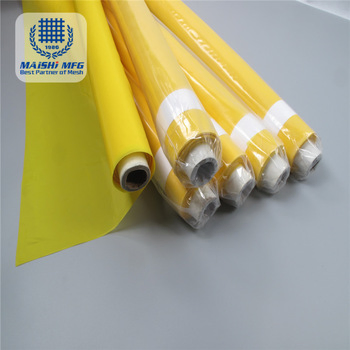

High Tension Polyester Silk Screen Printing Mesh

Product Description

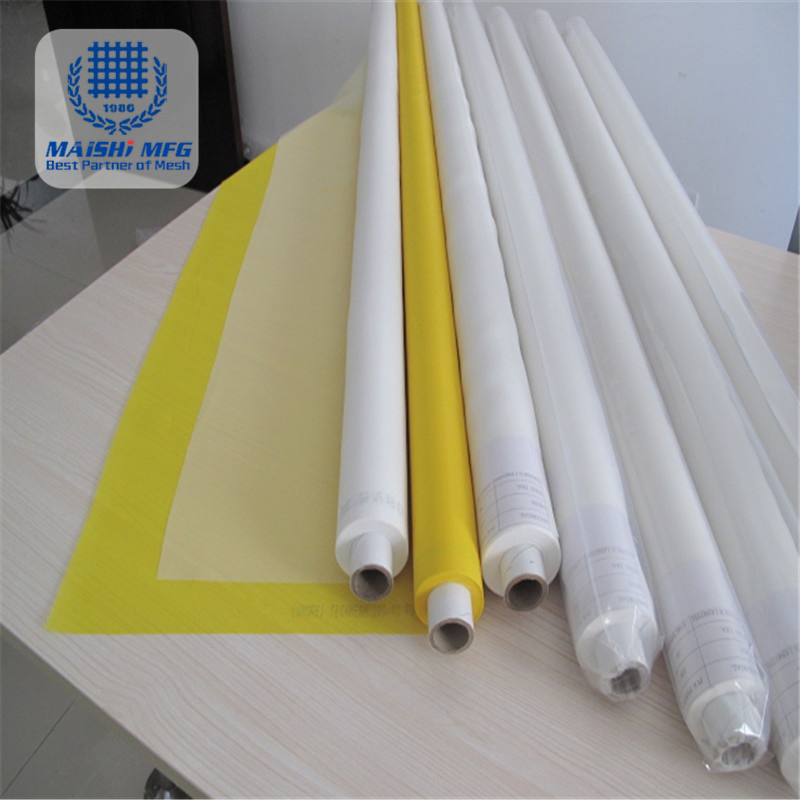

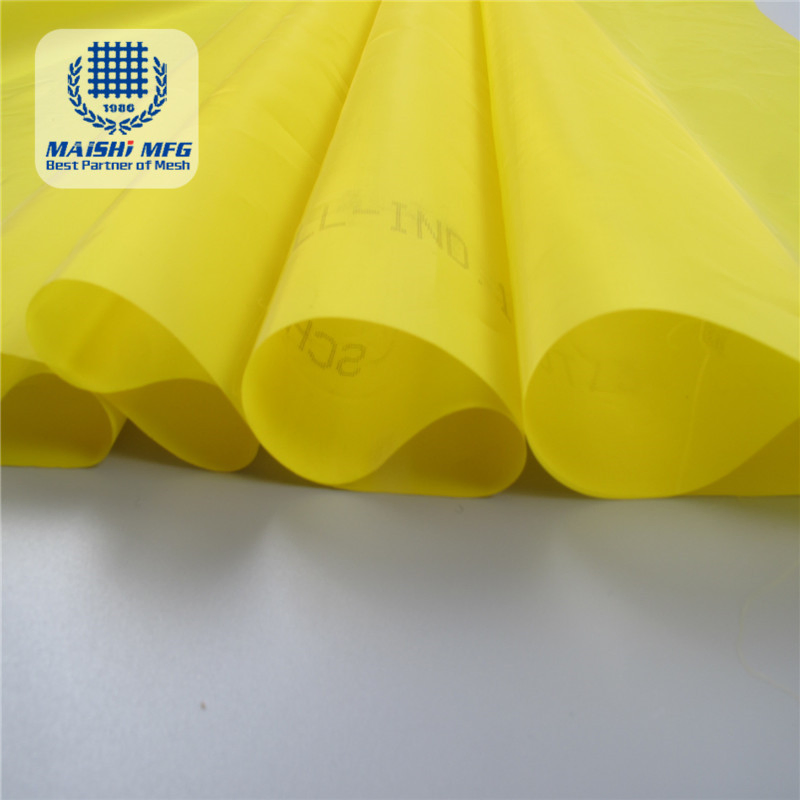

100% monofilament polyester silk mesh for screen printing

MAISHI WIRE MESH GROUP produces high quality100% polyester silk screen printing mesh since 1995, and we use the best jintong yarn, which is the best yarn in China to make polyester mesh and eusure our mesh quality.Our polyester mesh is widely used for printing, please kindly contact us if you have inquiry for polyester mesh product.

1. Material: 100%Polyester

2. Function: Printing

3. Mesh count: 15mesh-420mesh/ inch; 6T-165T( mesh per cm)

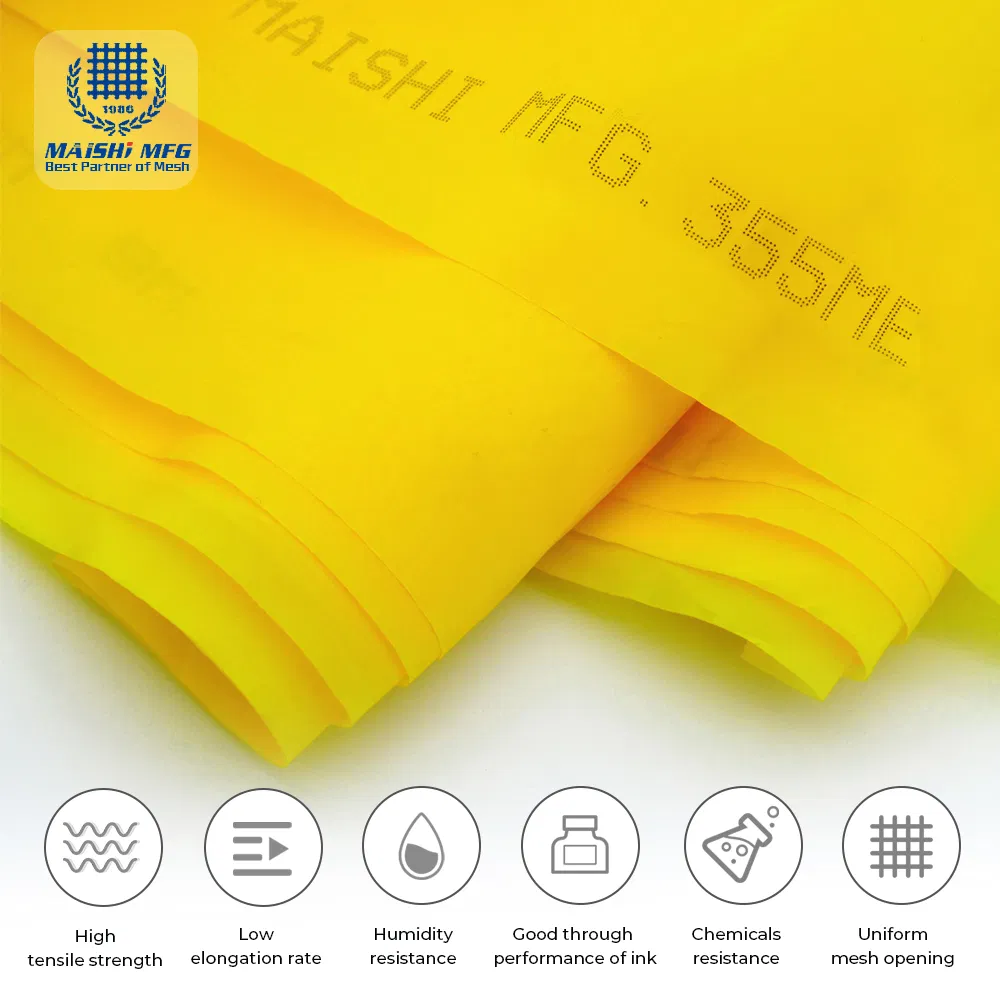

4. Characteristic: high tensity,low elongation,excellent dimensional stability

5. Width: 30inch-145inch

6. Length: 30m/roll, 50m/roll or at request
High Tension Polyester Silk Screen Printing Mesh

TYPE	MESH COUNT	APERTURE	THREAD DIAMETER	OPENING	THICKNESS	INK THROUGH VOLUME THEORETICALLY	TENSILE STRENGTH
	(mesh/inch)	(micron)	(micron)	(%)	(micron)	(cm³/m²)	TENSILE STRENGTH (N/CM)
6-400	15	1300	400	65	780-810	560	110
7-350	18	350	1067	55	585-598	389	110
8-300	20	970	300	58	550-580	406	100
10-250	25	700	250	49	508-518	355	85
12-140	30	685	140	68	273-275	189	65
12-150	30	696	150	67	270-274	180	50
12-250	30	610	250	53	495-505	305	85
15-250	38	467	250	49	489-501	213	83
16-120	40	515	120	65	225-230	147	62
16-140	40	461	140	58	230-238	139	65
16-150	40	485	150	58	282-292	164	65
16-200	40	403	200	44	329-341	151	70
16-250	40	356	250	34	420-425	145	85
18-150	45	410	150	53	255-275	138	50
20-80	50	399	80	69	132-142	92	36
20-100	50	380	100	62	165-172	105	50
20-150	50	358	150	50	252-257	126	55
21-80	55	378	80	68	125-140	125	36
21-150	55	330	150	46	260-280	123	55
24-80	60	343	80	65	132-136	86	42
24-100	60	316	100	57	188-195	109	49
24-120	60	303	120	51	230-240	104	51
24-150	60	273	150	42	249-255	100	60
28-80	70	80	262	58	130-138	79	40
28-100	70	100	243	50	165-174	85	45
30-120	75	213	120	41	235-245	102	52
32-64	80	236	64	60	105-110	68	31
32-80	80	237	80	55	120-130	110	40
32-100	80	212	100	46	145-155	69	48.5
34-100	85	198	100	44	165-172	71	50
36-80	90	202	80	51	145-150	70	45
36-90	90	185	90	45	155-165	65	49
36-100	90	182	100	41	175-185	60	51
39-55	100	195	55	56	88-96	55	24
39-80	100	176	80	48	148-153	73	31
39-100	100	154	100	37	168-173	60	42
43-80	110	147	80	40.8	125-131	53	31
47-55	120	152	55	51	88-96	47.6	29
48-70	120	135	70	41	108-120	45.5	30
51-55	51	134	55	50	92-98	47	28
53-48	135	139	48	55	85-90	48	26
53-55	135	128	55	47	88-96	44.5	29
54-64	137	115	64	38.5	88-105	38.9	30
54-70	137	108	70	34	108-120	40	31
58-55	145	118	55	38	89-94	39.5	30
59-45	150	124	45	54	83-87	29	31
59-48	150	121	48	51	85-89	43	29
59-55	150	114	55	45	85-90	38	30
59-64	150	105	64	36	103-108	39	25
61-48	155	115	48	49	76-83	41	30
62-64	155	105	64	42	98-107	33	31
64-45	160	105	48	43	73-82	36.5	30
64-53	160	105	53	44	78-86	34	30
64-55	160	98	55	38	85-95	36.1	30
64-64	160	88	64	30	95-105	30.7	31
68-55	175	85	55	34	85-95	29.2	30
68-64	175	78	64	29	108-110	32.0	32
72-48	180	90	48	36	75-84	33.1	28
72-55	180	80	55	33	89-95	31	29
77-48	195	81	48	34	80-85	29	28
77-55	195	75	55	28	86-92	26.6	29
80-48	200	72	48	33	75-84	28.7	27
90-48	230	56	48	25	77-85	23.5	25
100-40	250	58	40	37	66-73	21.3	28.5
110-40	280	52	40	33	78-85	20.5	29.6
120-31	305	49	31	36	50-55	19.5	29
120-34	305	45	34	30.5	52-57	18.4	30.5
120-40	305	37	40	21	65-67	13.5	32
130-34	330	42	34	30	50-55	16.5	31
130-40	330	31	40	17	63-68	12	32
140-31	355	34	31	25	48-53	13	29
140-34	355	31	34	19.5	56-62	14.4	31
150-31	380	36	31	29	43-47	13.1	30.5
150-34	380	30	34	20.5	56-62	14.9	30.5
165-31	420	31	31	22.5	52-58	12.5	28.9

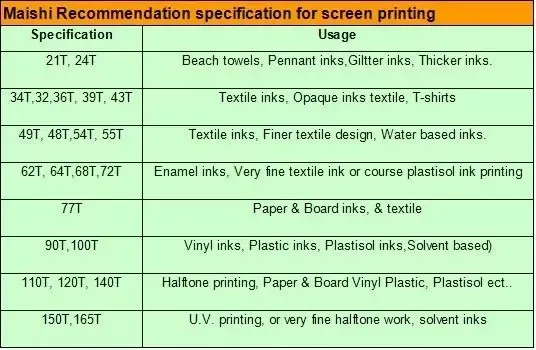

Used:our screen printing mesh is widely used for T-shirt printing, garment printing, graphics printing, ceramics, glass, cosmetic bottles, printed circuit boards, uv printing, ink etc.

Other Application:

Maishi ensure the quality of polyester silk screen printing mesh

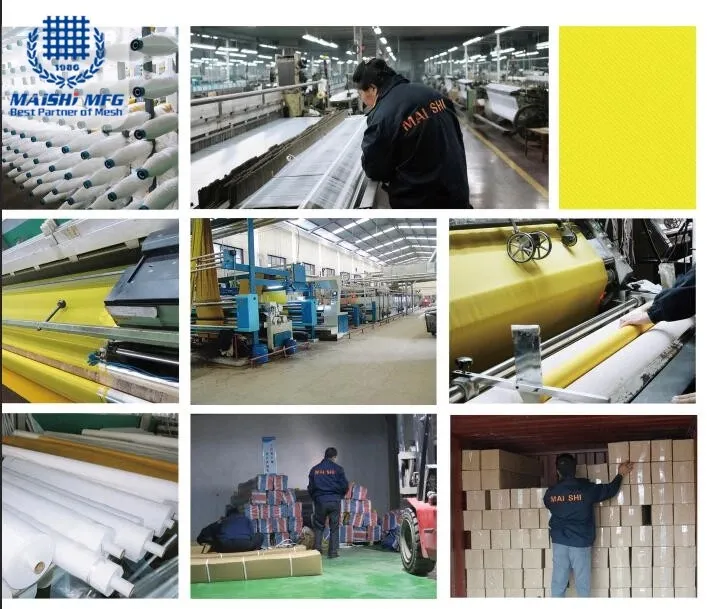

We buy yarn from Jintong,we inspect the yarn when they unloaded in our factory. (tolerance, tensile strength, physics test etc.).

After that, we put the warp wire on beam, draw the warp wire into heddle and reed. Then our experienced weaver will start weaving according to orders.

Initial survey will be done after weaving. Then start heat setting treatment and physical properties inspection, before we get tentative finished rolls(60-500 meters big rolls).

In the end, we'll cut the small rolls(20m-50m) according to customer orders after a final inspection.
High Tension Polyester Silk Screen Printing Mesh
MAISHI WIRE MESH GROUP makes strict test before the goods dispatched from our factory to ensure the quality of polyester silk screen printing mesh.Make sure customers get perfect quality.

· Mesh Count inspect
· Thickness inspect
· Thread diameter& Hole size inspect
· Tensile Strength inspect
· Surface Tension test

High Tension Polyester Silk Screen Printing Mesh

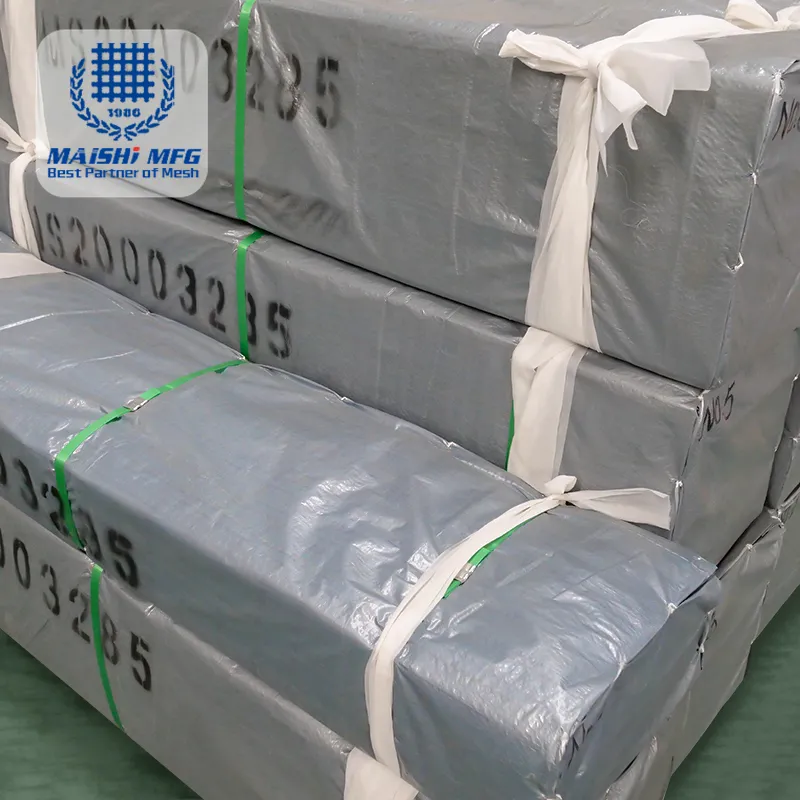

Packing

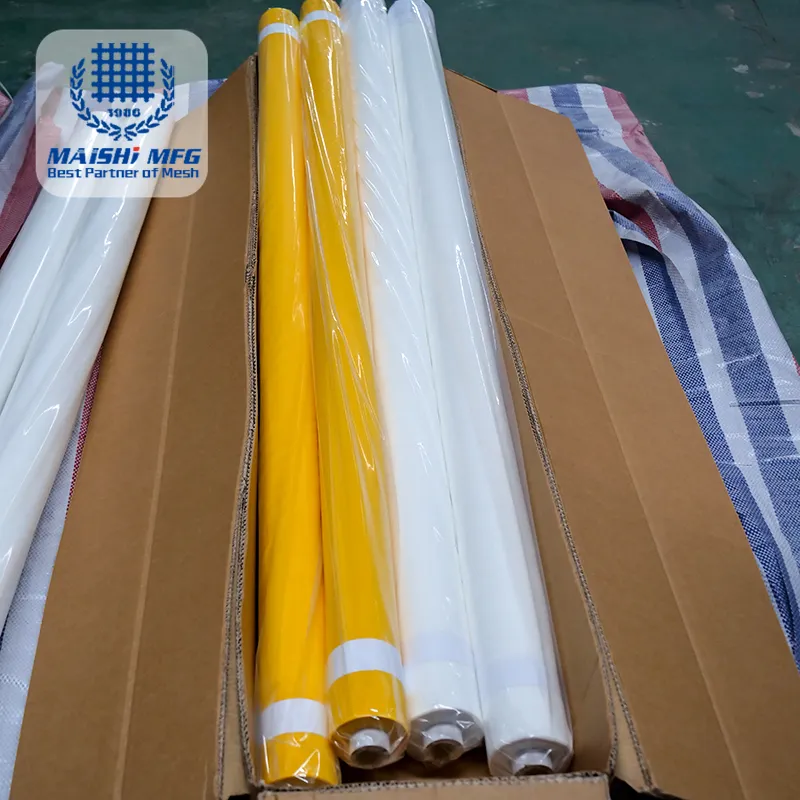

1. Folding the mesh each roll and packed with plastic bag, then in cartons. Suitable for small quantity and have no requirement for the crease.
2. Rolling the mesh into papertube each roll and packed with plastic bag, then in carton. Suitable for large quantity and the mesh has better surface than folding type.
High Tension Polyester Silk Screen Printing Mesh
Delivery Time
Usually we can ship the goods within 5-30days accordingto different quantity as we have stocks 500-2000m for different mesh count.
The exact delivery time will be checked according to final order quantity and our production status .

Company Profile

MAISHI WIRE MESH GROUP adhere to the globai implementation of the sustainable development strategy, regard helping every customer to achieve healthy development as its responsibility, to achieve the harmonious coexistence bet-ween company, employees and partners.

Advantage
· Dedicated and experienced weavers.
· Consistent quality products.
· On-time delivery.
· We have 15 R&D technical staffs,with more than 10 years experience.
· 80% repeat customers.
· Reasonable claim refund system.
