What is the structure of the camera module?

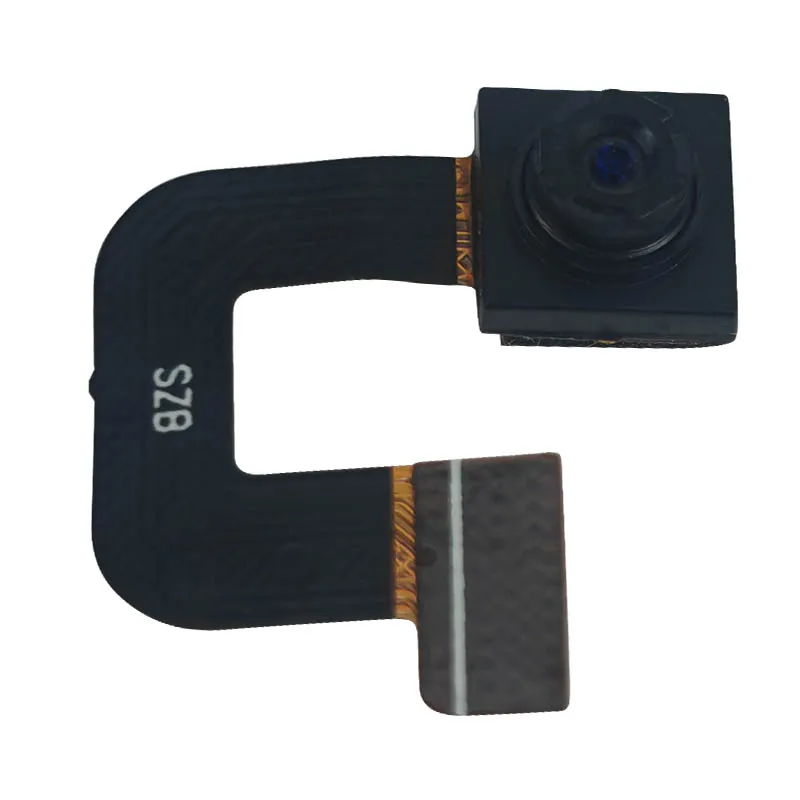

The camera module is a compact assembly used in devices like smartphones, tablets, laptops, drones, and IoT devices to capture images and videos. It integrates various components that work together to produce high-quality visuals. Here is a breakdown of the structure of a typical camera module:

1. Lens Assembly

The lens is a critical component that focuses light onto the image sensor. It typically consists of multiple optical elements (glass or plastic) to minimize aberrations and enhance image clarity.

- Lens Stack: A series of lenses arranged to control the focus and field of view.

- Aperture: A small opening that controls the amount of light entering the camera.

- Focus Mechanism: Can be fixed focus, auto-focus (AF), or manual focus. Auto-focus systems may use:

 - Voice Coil Motors (VCM): Moves the lens to achieve focus.

 - PDAF (Phase Detection Auto Focus): For faster focus acquisition.

 - Laser AF: Uses a laser to measure distance for quick focusing.

2. Image Sensor

The image sensor converts the light from the lens into electrical signals. It is the core component that determines the image quality.

- Types of Sensors:

 - CMOS (Complementary Metal-Oxide-Semiconductor): Common in most modern devices due to its low power consumption and fast processing.

 - CCD (Charge-Coupled Device): Used in some high-end cameras for better image quality in low light.

- Resolution: Measured in megapixels (MP), which indicates the sensor's ability to capture detail.

- Pixel Size: Larger pixels capture more light, improving performance in low-light conditions.

3. Image Signal Processor (ISP)

The ISP processes the raw data from the image sensor to create a final image or video. It performs tasks such as:

- Noise reduction.

- Color correction.

- HDR (High Dynamic Range) processing.

- Image compression (e.g., JPEG or HEVC encoding).

4. Infrared (IR) Filter

The IR filter blocks unwanted infrared light, which could distort the colors in the captured image. It ensures that the sensor captures only visible light.

5. Shutter

In compact modules, the shutter is usually electronic, controlled by the image sensor. It determines how long light is allowed to hit the sensor (exposure time).

6. Printed Circuit Board (PCB)

The PCB connects the image sensor and other components to the device’s main processor. It facilitates power supply and data transfer.

7. Housing/Structure

The housing provides structural support and protects internal components from dust, vibration, and other environmental factors.

- Often made from plastic or metal for durability.

- Includes mounting points for integration into the host device.

8. Connectivity Interface

The camera module includes connectors for communication and power. Common interfaces include:

- MIPI CSI-2: Standard interface for high-speed communication between the camera module and the device processor.

- I2C: Often used for controlling camera settings.

- FPC/FFC Connectors: Flexible connectors for compact integration.

9. Additional Components

Some camera modules may include additional components for enhanced functionality:

- Flash LED: Provides illumination in low-light conditions.

- Optical Image Stabilization (OIS): Mechanically stabilizes the lens or sensor to reduce blur from hand movements.

- Depth Sensor: For 3D imaging or background blurring (bokeh effect).

- Time-of-Flight (ToF) Sensor: Measures distance to create depth maps for augmented reality or improved focus.

Types of Camera Modules

1. Fixed Focus Modules: Simple, with no moving parts; used in webcams or basic devices.

2. Auto Focus Modules: Incorporate mechanisms to adjust focus dynamically.

3. Zoom Modules: Feature optical or digital zoom capabilities.

4. Dual/Triple/Quad Camera Modules: Multiple sensors and lenses for specialized tasks (wide-angle, macro, depth sensing).

Applications of Camera Modules

- Consumer Electronics: Smartphones, laptops, and tablets.

- Automotive: Backup cameras, ADAS (Advanced Driver Assistance Systems).

- Industrial: Inspection systems, barcode scanning.

- Healthcare: Endoscopes, diagnostic tools.

- Security: Surveillance cameras, facial recognition systems.

By combining these components into a compact structure, camera modules deliver high-quality imaging while maintaining versatility and adaptability for various applications.
