What does a combiner box do?

2023-12-14

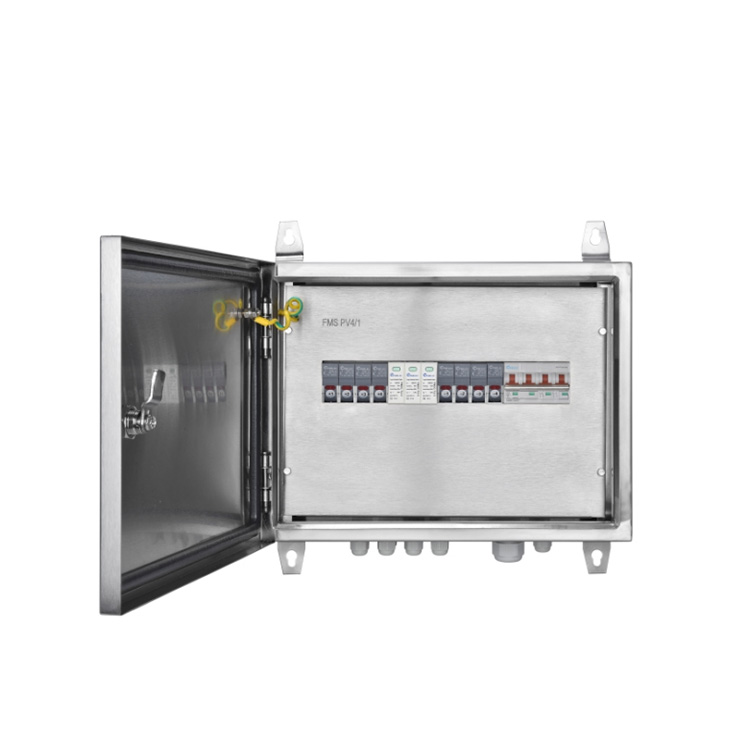

A combiner box plays a crucial role in the operation of solar photovoltaic (PV) systems. Its primary function is to consolidate the electrical outputs from multiple strings of solar panels (solar arrays) into a single output.


Here's a breakdown of what a combiner box does and its key functions:

1. Combining Multiple Strings of Solar Panels: In larger solar PV installations, there are often multiple strings of solar panels connected together. Each string consists of several solar panels wired in series or parallel. A combiner box collects the electrical outputs from these individual strings.


2. Electrical Protection and Management: Combiner boxes contain fuses, circuit breakers, or other protective devices for each string of solar panels. These devices serve to protect the system from overcurrent, short circuits, or other electrical faults that may occur within the solar array.


3. Consolidating Outputs: By consolidating the electrical outputs from multiple strings of solar panels, the combiner box simplifies the wiring and reduces the number of connections required further downstream in the system. This single output is then transmitted to the next stage, typically the inverter or another electrical component.


4. Monitoring and Disconnecting: Some combiner boxes may include monitoring devices or disconnect switches that enable operators to monitor the performance of individual strings of solar panels or to disconnect specific strings if needed, for maintenance or safety purposes.


5. Simplifying Maintenance: In addition to aiding installation by consolidating wiring, combiner boxes also facilitate maintenance. By grouping multiple strings into one enclosure, it becomes easier for technicians to access and service the electrical connections and protective devices.


Overall, a combiner box is an essential component in solar PV systems, providing both electrical protection and consolidation of outputs from multiple strings of solar panels before transmitting the power further downstream for conversion (through inverters) into usable electrical energy or for other applications.
