A hydraulic pump is a critical component in hydraulic systems, used to convert mechanical energy into hydraulic energy. It moves fluid through the system to perform work like lifting, pushing, or moving loads. The basic parts of a hydraulic pump depend on the type (gear, vane, piston, etc.), but there are several common elements found in most hydraulic pumps. Here's a general breakdown of the parts:
1. Pump Housing (Casing):
- Function: The outer shell or body that contains all internal components of the hydraulic pump.
- Material: Usually made of steel, aluminum, or cast iron to provide durability and withstand high pressure.
2. Inlet (Suction Port):
- Function: Where hydraulic fluid enters the pump from the reservoir. The suction port allows fluid to be drawn in by the pump mechanism.
3. Outlet (Discharge Port):
- Function: The port through which pressurized hydraulic fluid exits the pump and enters the hydraulic system.
4. Drive Shaft:
- Function: Connects the pump to an external power source (such as an electric motor or engine) and transmits mechanical energy to the pump.
- Material: Usually made from high-strength steel to handle torque and rotational force.
5. Rotors or Gears (in Gear or Vane Pumps):
- Function: These are the moving components inside gear or vane pumps. They rotate to generate flow. In gear pumps, gears mesh to move the fluid, while in vane pumps, rotating vanes slide in and out to push the fluid.
- Types:
- Internal/External Gears (Gear Pump)
- Rotors and Vanes (Vane Pump)

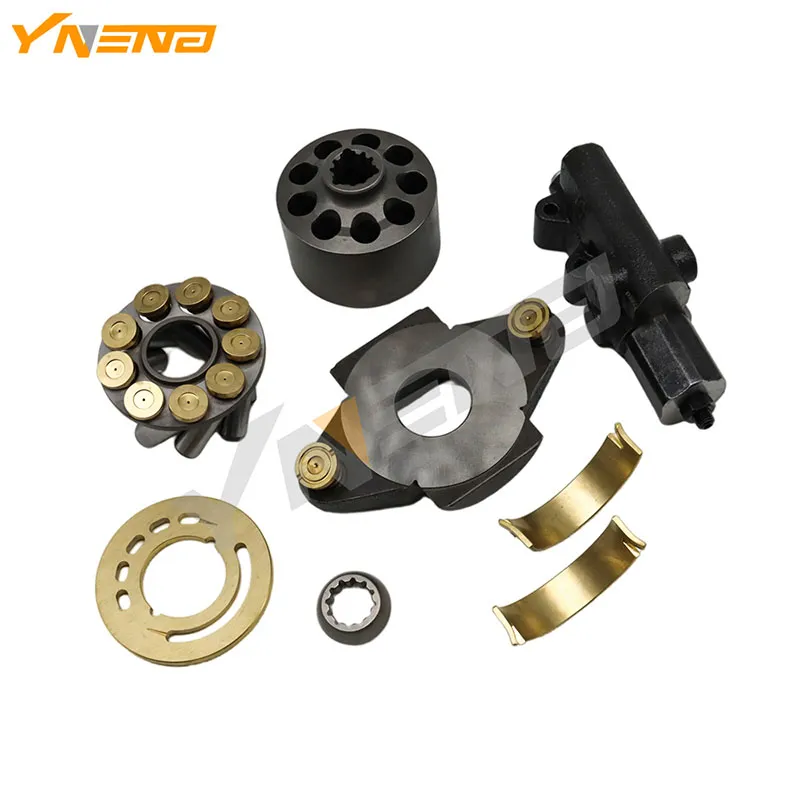

6. Pistons (in Piston Pumps):
- Function: In piston pumps, multiple pistons move back and forth to draw in and push out hydraulic fluid, creating pressure.
- Arrangement: Can be axial or radial depending on the pump type.
7. Valve Plate:
- Function: Controls the opening and closing of fluid passages in the pump. It directs the flow between the suction and discharge ports.
8. Cylinder Block (in Piston Pumps):
- Function: Houses the pistons and rotates with them, allowing fluid to be drawn into and expelled from the pump.
9. Bearings:
- Function: Bearings support the drive shaft and other rotating parts, reducing friction and ensuring smooth operation.
10. Seals and Gaskets:
- Function: Used to prevent fluid leakage and ensure that the hydraulic fluid stays contained within the pump. These are usually placed around the shaft and at various joint points in the pump housing.
11. Pressure Plate:
- Function: Helps maintain internal pressure and ensure tight clearances between the moving parts to avoid fluid leakage.
12. Check Valves (optional in some designs):
- Function: Prevents backflow of fluid within the pump, ensuring the fluid flows in the correct direction during operation.
13. Swash Plate (in Variable Displacement Piston Pumps):
- Function: A movable plate that changes the stroke length of the pistons, controlling the pump's output flow rate by adjusting its angle.
Key Types of Hydraulic Pumps:
- Gear Pump: Uses meshing gears to move fluid.
- Vane Pump: Uses sliding vanes in a rotor to create pressure.
- Piston Pump: Uses pistons driven by a cylinder block to move fluid (can be axial or radial).
Each type of hydraulic pump will have its specific internal components depending on its operating mechanism, but these are the general parts that most hydraulic pumps contain.
