Techniques for Stringing Blocks with Precision

Stringing blocks are essential tools used in various industries, including construction, electrical line installation, and telecommunications, for guiding wires, cables, or ropes over long distances. These blocks ensure that cables are installed smoothly, reducing friction and preventing damage to the cables. Precision in stringing blocks is critical, especially when dealing with complex or high-stakes projects like power transmission lines. In this blog, we’ll explore techniques for using stringing blocks with precision to ensure efficiency, safety, and optimal performance.

1. Selecting the Right Stringing Block

Choosing the appropriate stringing block is the first step in achieving precision during cable or wire installation. Different stringing blocks are designed for various purposes, such as pulling heavier cables, working with high-voltage lines, or navigating difficult terrains.

- Consider Load Capacity: Select a block with a load capacity that matches or exceeds the weight of the cable or wire. This prevents excessive strain and potential failure.

- Check for Cable Compatibility: Ensure the block’s groove size and shape are compatible with the diameter and type of cable being used. This reduces friction and prevents cable damage.

- Materials: Depending on the environment, choose a block made from materials suited to the task. For example, aluminum and nylon stringing blocks are lightweight and resistant to corrosion, while steel blocks offer superior strength for heavy-duty applications.

2. Positioning Stringing Blocks Correctly

Precise positioning of stringing blocks is essential for minimizing friction and ensuring that the cable follows the intended path without deviation. Misaligned blocks can cause cable wear, increase tension, or result in inefficient cable installation.

- Align with the Cable Route: Ensure the blocks are aligned with the intended cable path. This reduces friction and minimizes the risk of the cable being pulled off track.

- Ensure Stable Mounting: Secure the blocks properly to stable structures, such as poles or towers. Loose or unstable blocks can lead to misalignment, increasing the risk of cable damage or failure.

- Use Guide Lines: Employ guidelines or markers to check the straightness and alignment of each block, especially when installing long-distance power lines.

3. Reduce Friction with Proper Lubrication

Friction can lead to cable wear, making precision in stringing blocks crucial for reducing drag during installation. Using the right lubrication techniques can prevent wear and tear, ensuring smooth cable installation.

- Apply Cable Lubricants: Use specialized lubricants designed for cable stringing to reduce friction. Ensure that the lubricant is applied evenly to the cable surface before passing it through the block.

- Use Blocks with Ball Bearings: Stringing blocks equipped with ball bearings offer smoother rotation, reducing resistance and the need for manual lubrication. These blocks are ideal for high-tension installations.

4. Employ Tension Monitoring Systems

When stringing heavy or high-tension cables, monitoring and controlling tension is vital for precision. Incorrect tension can cause excessive strain on both the cables and blocks, leading to mechanical failure or even injury.

- Install Tension Monitors: Modern stringing operations often employ electronic tension monitoring systems that provide real-time data on the tension levels. By keeping tension within safe limits, operators can avoid overloading stringing blocks.

- Tensioning Best Practices: Start with a lower tension and gradually increase it, ensuring that the cable moves smoothly through each block without jerking or excessive pulling force.

5. Using Pilot Lines for Initial Setup

Precision in stringing operations begins with the correct setup. Pilot lines are thin, lightweight ropes used as a precursor to pulling heavier cables. These lines allow for testing and fine-tuning the block positioning and tension before the actual cable is pulled through.

- Run the Pilot Line First: Use a pilot line to check for any obstacles or misalignments in the stringing blocks. This ensures the main cable or wire can be pulled smoothly without interruptions.

- Adjust Block Positions: After running the pilot line, make any necessary adjustments to block positions. Correct any misalignments or blockages to ensure precision before proceeding with the main cable.

6. Employ a Sagging Method for Long Distances

For installations over long distances, such as power lines, sagging becomes an important factor in maintaining cable tension and alignment. Precision stringing blocks play a key role in keeping the cable properly sagged during installation.

- Use a Sagging Chart: Reference a sagging chart to determine the correct amount of sag for the specific cable type and distance. Improper sagging can lead to cable stretching or excess tension on the blocks.

- Constant Monitoring: As the cable is pulled through, regularly monitor the sag at multiple points. Adjust the tension to ensure even distribution and reduce the risk of block misalignment.

7. Utilize Aerial Stringing for High-Elevation Projects

Aerial stringing is a technique used in projects that require cables to be installed at high elevations, such as between transmission towers. Stringing blocks must be precisely positioned to ensure that cables are installed safely and securely.

- Helicopter-Assisted Stringing: In some high-elevation installations, helicopters are used to string cables through blocks. The helicopter assists in placing the cable while operators on the ground ensure precision in block placement and tension control.

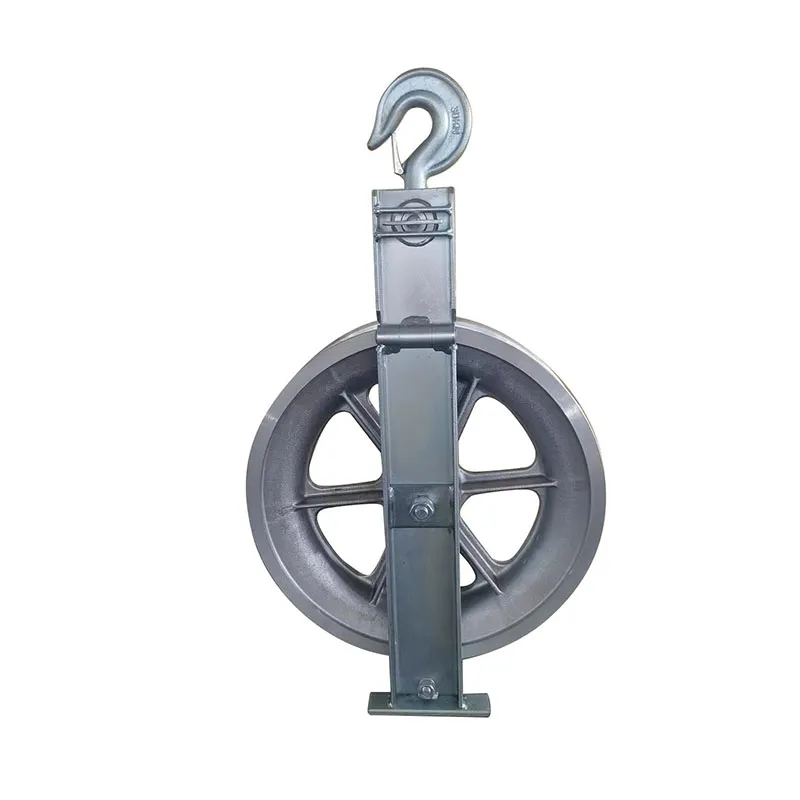

- Aerial Block Adjustments: Use specialized aerial stringing blocks designed for high elevations. These blocks are lightweight, easy to maneuver, and often come with advanced tension control systems to handle the increased stress.

8. Regular Inspection and Maintenance of Blocks

Precision in stringing block usage requires consistent maintenance and inspection to ensure that all equipment is functioning properly. Neglecting regular checks can lead to unexpected failures or reduced efficiency in the stringing process.

- Check for Wear and Tear: Inspect the grooves, bearings, and mounting systems of stringing blocks for signs of wear. Replace any worn-out components before starting a new stringing operation.

- Lubricate Moving Parts: If your blocks are not self-lubricating, apply appropriate grease or oil to the bearings and other moving parts to maintain smooth rotation.

- Ensure Block Integrity: Check the block frames and suspension points for cracks or deformation. Overloading or frequent use can cause damage, which might go unnoticed without regular inspections.

9. Training and Safety Measures

Proper training for operators is essential when using stringing blocks with precision. Operators should be well-versed in safety protocols, correct block usage, and the technical aspects of stringing operations.

- Conduct Regular Training: Provide comprehensive training for operators on how to use stringing blocks efficiently. Include practical sessions on tension control, alignment, and block maintenance.

- Adhere to Safety Guidelines: Follow all safety regulations and guidelines related to stringing operations. Ensure that operators are equipped with the necessary safety gear and that all equipment is used within its specified capacity.

Conclusion

Stringing blocks are invaluable tools in many industries, and using them with precision is essential for smooth, efficient cable installation. By selecting the right block, positioning it correctly, managing tension, and maintaining equipment, operators can ensure successful and safe stringing operations. Whether stringing electrical cables, ropes, or other materials, these techniques will help achieve precision, reducing downtime and ensuring optimal performance on the job.
