Structure of Printer Ribbon

2023-11-24

Printer ribbons are an essential component in certain types of printers, particularly impact printers like dot matrix printers. The structure of a printer ribbon can vary slightly based on the printer model and technology used, but a typical ribbon structure consists of the following components:

1. Fabric or Plastic Base: The base of the ribbon is usually made of a durable material, such as fabric or plastic. This base provides stability and support to the ribbon.


2. Ink Layer: The ink layer is the part of the ribbon that transfers ink or toner onto the printing surface (usually paper). For impact printers like dot matrix printers, the ink is typically in the form of a special inked fabric or carbon film that's coated onto the ribbon.

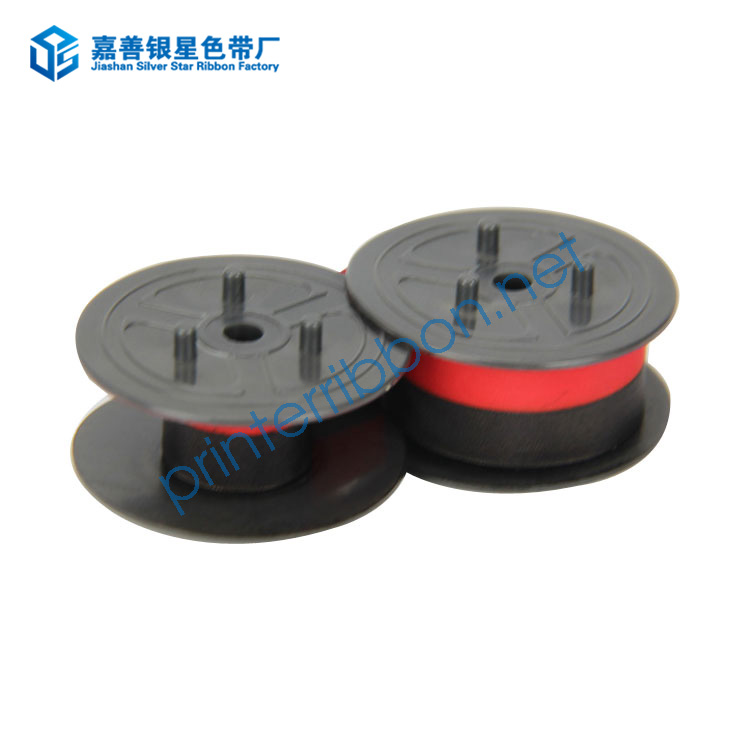

3. Spools or Cartridges: The ribbon is wound around spools or contained within cartridges that fit into the printer. These spools or cartridges allow the ribbon to move smoothly during the printing process.


4. Feed Holes or Notches: Many printer ribbons have feed holes or notches along the edges that help the printer mechanism advance the ribbon accurately. These holes or notches are used for proper positioning and movement within the printer.


5. Protective Covering: Some ribbons have a protective covering, such as a plastic shield or cover, to prevent ink smudging or drying out when not in use. This covering is removed or pierced when the ribbon is installed in the printer.


The printer ribbon works by being passed between the print head and the paper during the printing process. The print head strikes the ribbon against the paper to transfer ink onto the paper, forming characters or images.


Remember, the specific structure of printer ribbons can vary depending on the type of printer (dot matrix, thermal transfer, etc.) and the manufacturer's design. Different types of printers might use different technologies and ribbon compositions to achieve printing.
