Product Description

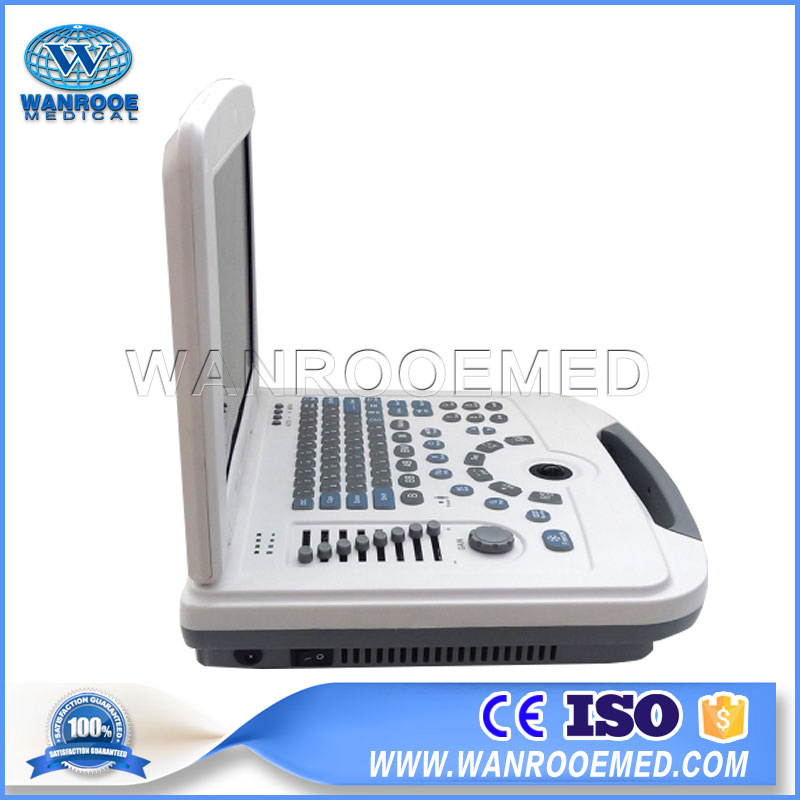

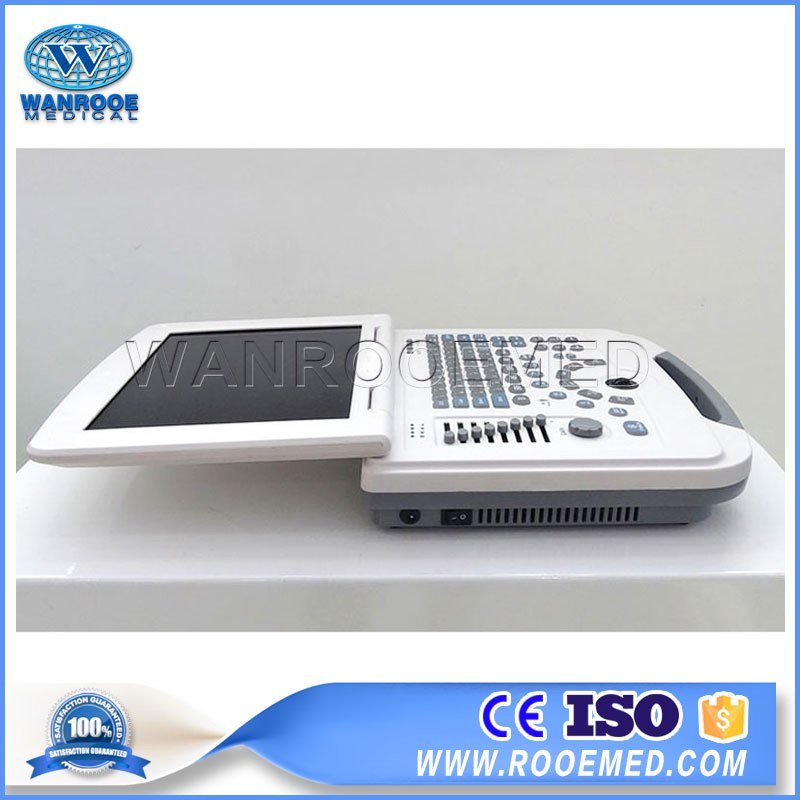

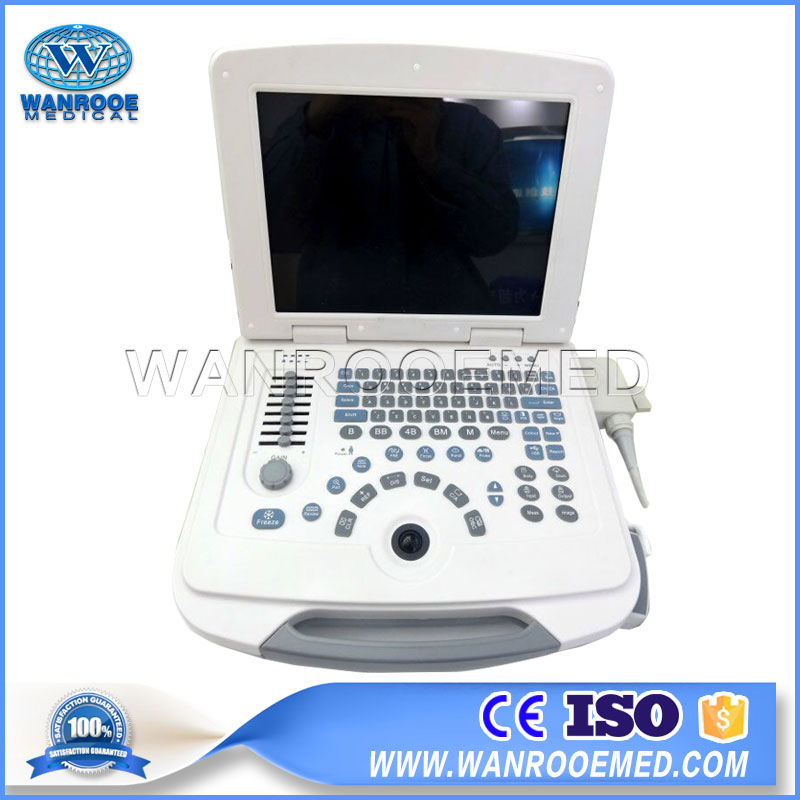

US500 Hospital Portable Notebook Digital Diagnostic LED Ultrasound Scanner

Flexible and convenient operating system
A type of high array, high definition, multi-function full-digital real 96elements laptop ultrasonic diagnostic apparatus.
Light and portable, more clearer,delicate and smooth image, convenient to operate, and powerful electrical power ability supports the machine for consultation in various environment of cities, towns, outdoor.
A variety of charging to ensure the examination consultation under different environments.
Supernormal battery life 5-8 hours
12.1 inch LED shows the images with more flexible ways.
USB port: storable and readable
1.First-class digital imaging technology, more clearer image:
2. Full-digital beam imaging technology
3.Real-time dynamic receiving focus point by point
4.Real-time dynamic sound velocity changed
5.High-accuracy DSC Digital image formation technology
6.Intelligentized 8-segment TGC adjustment
7.Progressive SMT components technology to ensure machine reliability

Technical Specification
Scanning mode: convex / linear / micro-convex
Probes: 96 elements convex probe,trans-vaginal probe, trans-rectal probe, high frequency linear probe, visual artificial abortion probe
Operation panel: user-friendly, convenient and flexible with back-lit silica gel keyboard & track ball operation
Monitor: 12 inch high resolution LED
Display mode: B, B+B, B+M, M, 4B
Detecting depth: ≥242mm
Resolution: lateral≤2mm, axial≤1mm
Blind Zone: ≤3mm
Geometry precision: lateral≤5%, axial≤5%
Gray scale: 256
Electronical focusing: 2 focuses combination randomly
USB port: storable and readable
Image storage: 8
Local zoom can be used at real time.
Body marks: 30
Pseudo color: 7
Magnification: ×0.8, ×0.8, ×0.90, ×0.95, ×1.0, ×1.05, ×1.10, ×1.20, ×1.30, ×1.40, ×1.50, ×1.60, ×1.80, ×2.0, ×2.2, ×2.5.(16 kinds)
Cine loop: 256 frames, realized in automatic successive playback and manual single step forward, backward playback
Image processing: up/ down, left / right, black / white convertion, edge enhancement, gamma correction, frame correlation, pseudo color processor( need external color display).
Measurement: distance, perimeter, area, volume, heart rate, gestational week, FW, AFI, EDD , maternity table, heart package etc.
Note: date, time, name, sex, age, doctor, hospital, comment, Chinese/ English conversion.
Output interface: PAL-D, SVGA (SVGA color monitor), USB port .
With the puncture guiding function, line position can be adjusted,With gravel positioning, dynamic target area tracking function
Main power supply: AC220V±22V , 50/60Hz

Standard Configuration
12 inch LED display

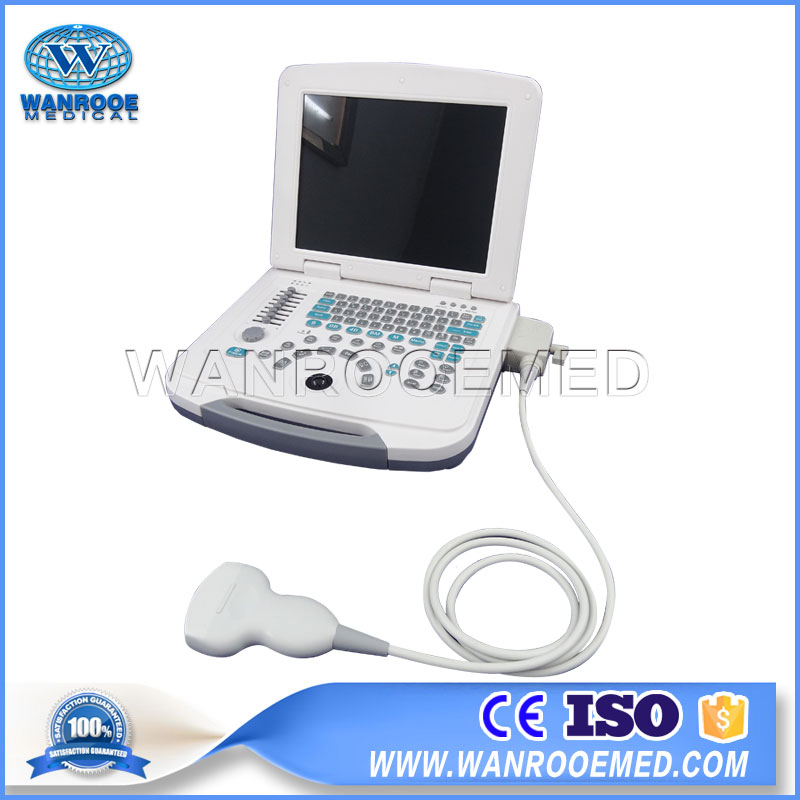

3.5MHz Multi-frequency convex probe(2.5MHz-5.0MHz)
Aluminum plastic multi-layer package

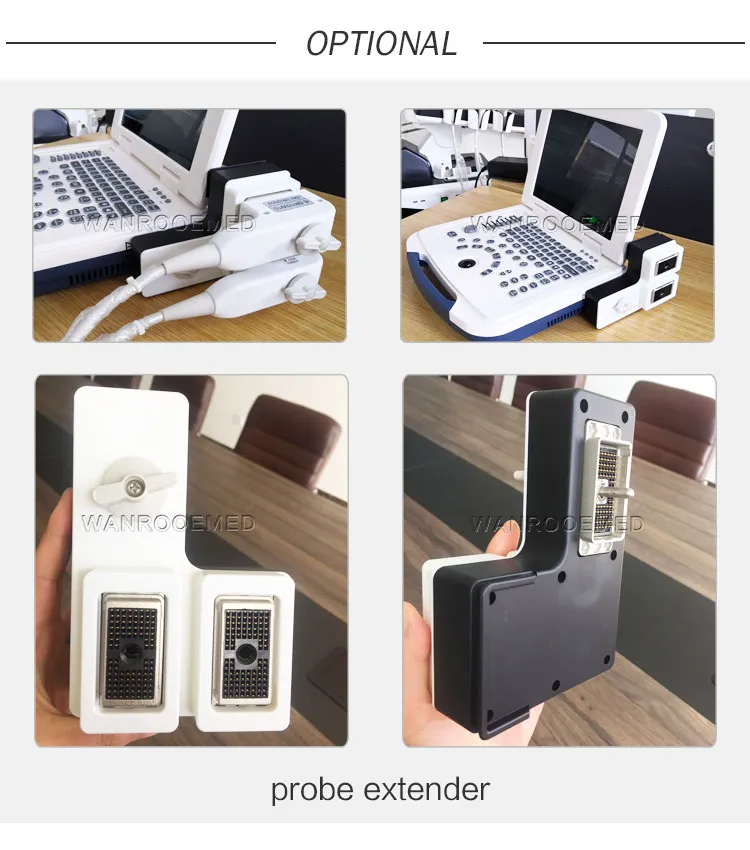

Options
Ultrasound image workstation
6.5MHz High frequency Trans-vaginal probe (5.5MHz-7.5MHz)
7.5MHz High frequency Liner probe(6.5MHz-8.5MHz)
Trolley

Packaging:
Aluminum plastic multi-layer package.
Laptop size: 33*29.5*6.5 cm
package size: 47.5*40*21.5 cm
net weight: 4.7kg
gross weight: 9.5kg
Aluminum plastic multi-layer package:44.5*37*18.5cm, 2.95kg .
The Aluminum plastic multi-layer package is for free, you can choose it or not.

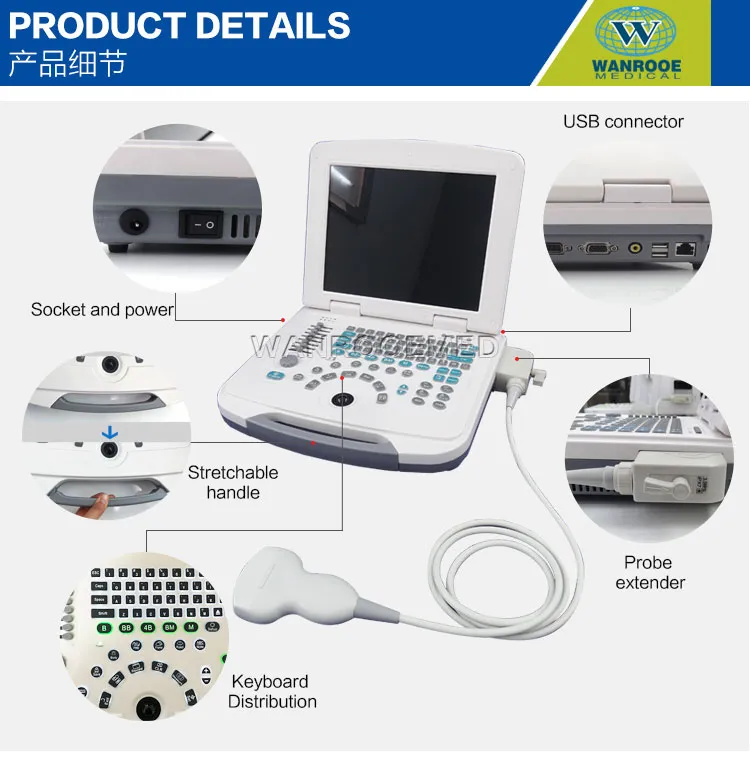

Product Details:
Us500 Hospital Portable Notebook Digital Diagnostic LED Ultrasound Scanner
