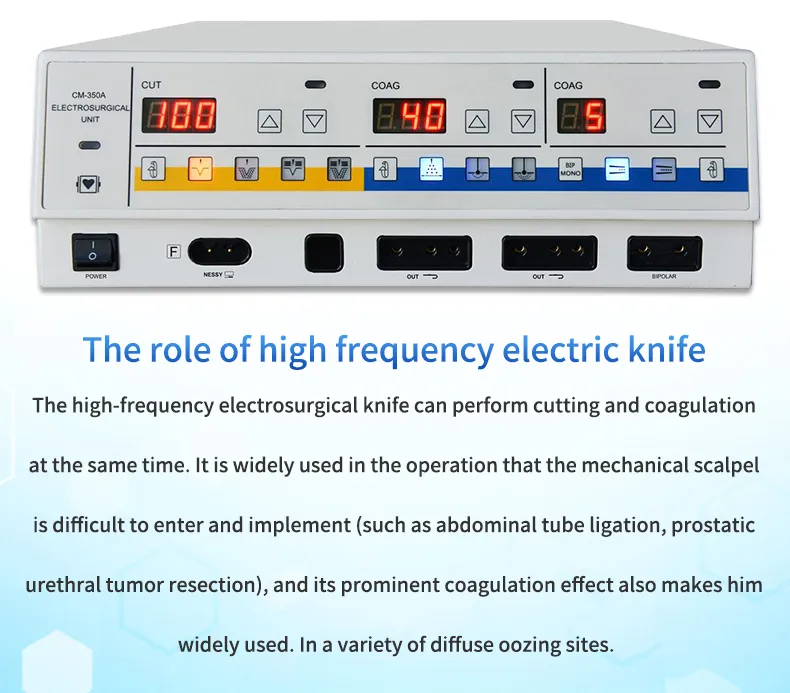

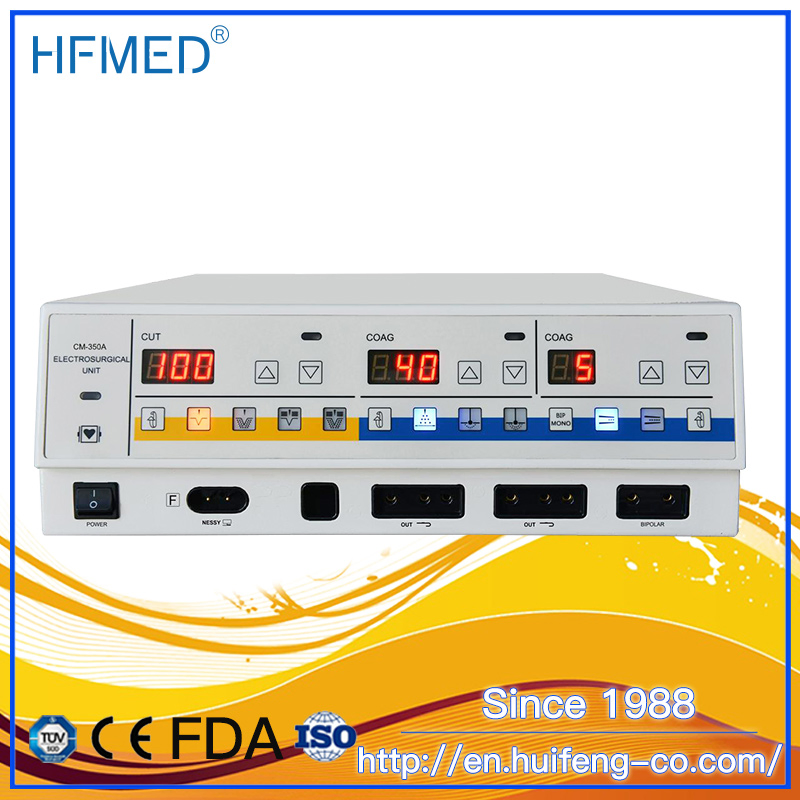

Orthopedics, Obstetrics and Gynecology Electro-Surgical Unit High Frequency Electric Unit with Generator Knife for Endoscope Interface

Description:

It has high performance neutral electrode contact inspection system, which can detect electrode contact area, and system will test and evaluate the effective contact area between electro and derma, if the contact area was found low to a danger level, system will automatic cutout and gives alarm indication.

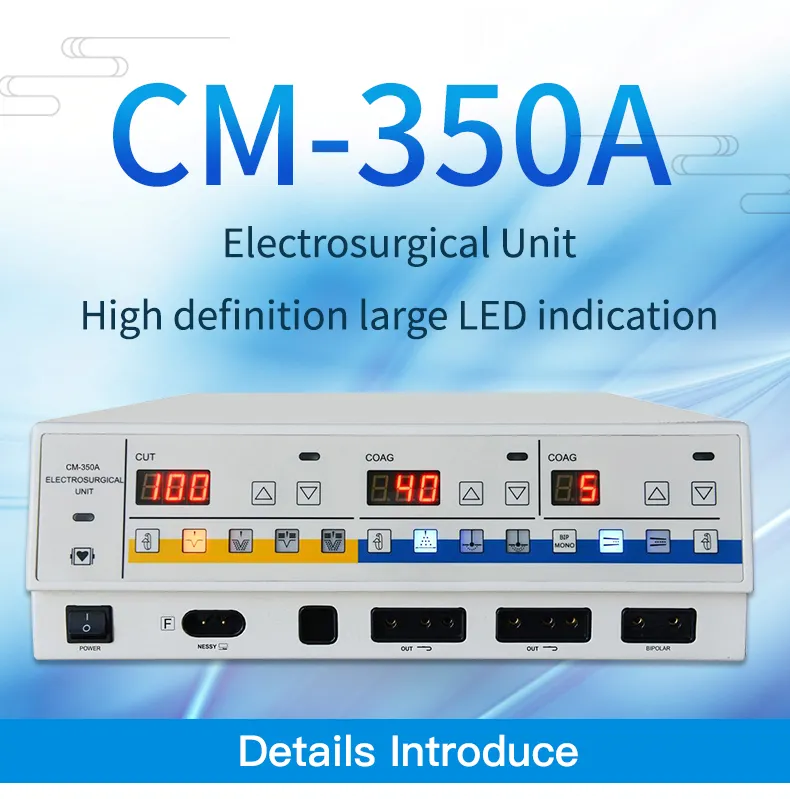

High definition large LED indication, with audio & visual indication.

Main unit has automatic monitoring function and mistake indication function.

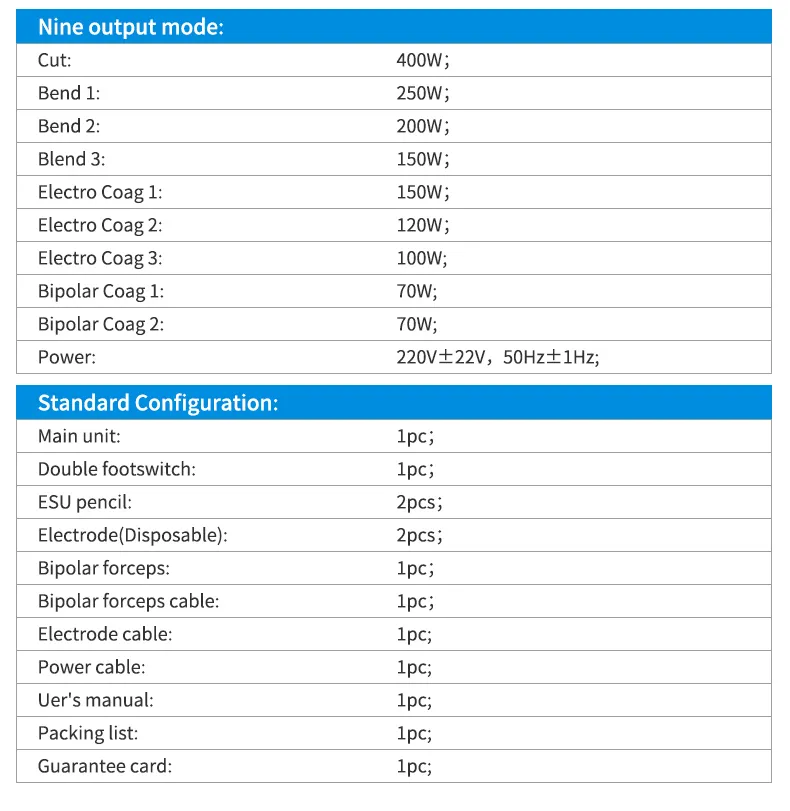

Nine output mode

Output Rating:

a) Cut: 400W

b) Blend 1: 250W

c) Blend 2: 200W

d) Blend 3: 150W

e) Electro Coag 1: 150W

f) Electro Coag 2: 120W

g) Electro Coag 3: 100W

h) Bipolar Coag 1: 70W

i) Bipolar Coag 2: 70W

Power: 220V±22V, 50Hz±1Hz

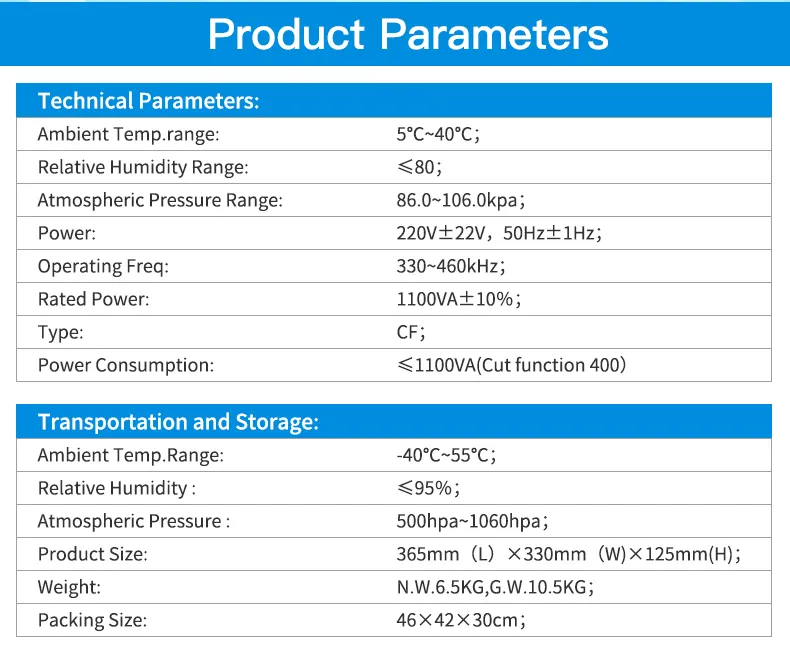

Technical Parameters:

1. Ambient temp. range: 5ºC~40 ºC      2. Relative Humidity Range: ≤80

3. Atmospheric Pressure Range: 86.0~106.0kpa   4. Power: 220V±22V, 50Hz±1

5. Operating Freq.: 330~460kHz  6. Rated Power: 1100VA±10%

7. Type: CF

Power Consumption: ≤1100VA(Cut function 400W)

Transportation and Storage:

a) Ambient Temp. Range: -40 ºC~55 ºC    b) Relative Humidity: ≤95%

c) Atmospheric Pressure: 500hpa~1060hpa

Application:

Applicable for general surgery, thoracic surgery, orthopedics, obstetrics and gynecology, urologic surgery, cerebral surgery, microsurgery, ENT surgery and etc.

Cut:  Pure cut, can make easy operation for any organic, the effect is refine cut, no escharosis on the surface.

Blend 1:  The effect is cut with coagulation.

Blend 2:  The effect is offering a better coagulation during cut.

Blend 3:  The effect is offering a better coagulation during cut, can use this function together with Endoscope.

Electro Coag1: Called soft electrocoagulation, or called Point coagulation, small effect area, for a deep coagulation layer for organic. Can use this function together with Endoscope;

Electro Coag2: Called strength electrocoagulation, or called surface coagulation, for a faster coagulation, big effect area.

Electro Coag 3: Called spray electrocoagulation, offers effective non-contact coagulation, Can

use this function together with Argon.

Bipolar Coag 1:  Called rapid Bipolar coagulation, to provide coagulation function rapidly at boot, which can reduce mis-operation rate during operation.

Bipolar Coag 2:  Called refine Bipolar coagulation, to provide coagulation function rapidly at

boot, automatic cutoff when organic solidified, which offers perfect coagulation

and can prevent organic's adhesion.

Independent output interface, ensured that only the opened interface can gives output, other closed interface has no output, which is more safe.

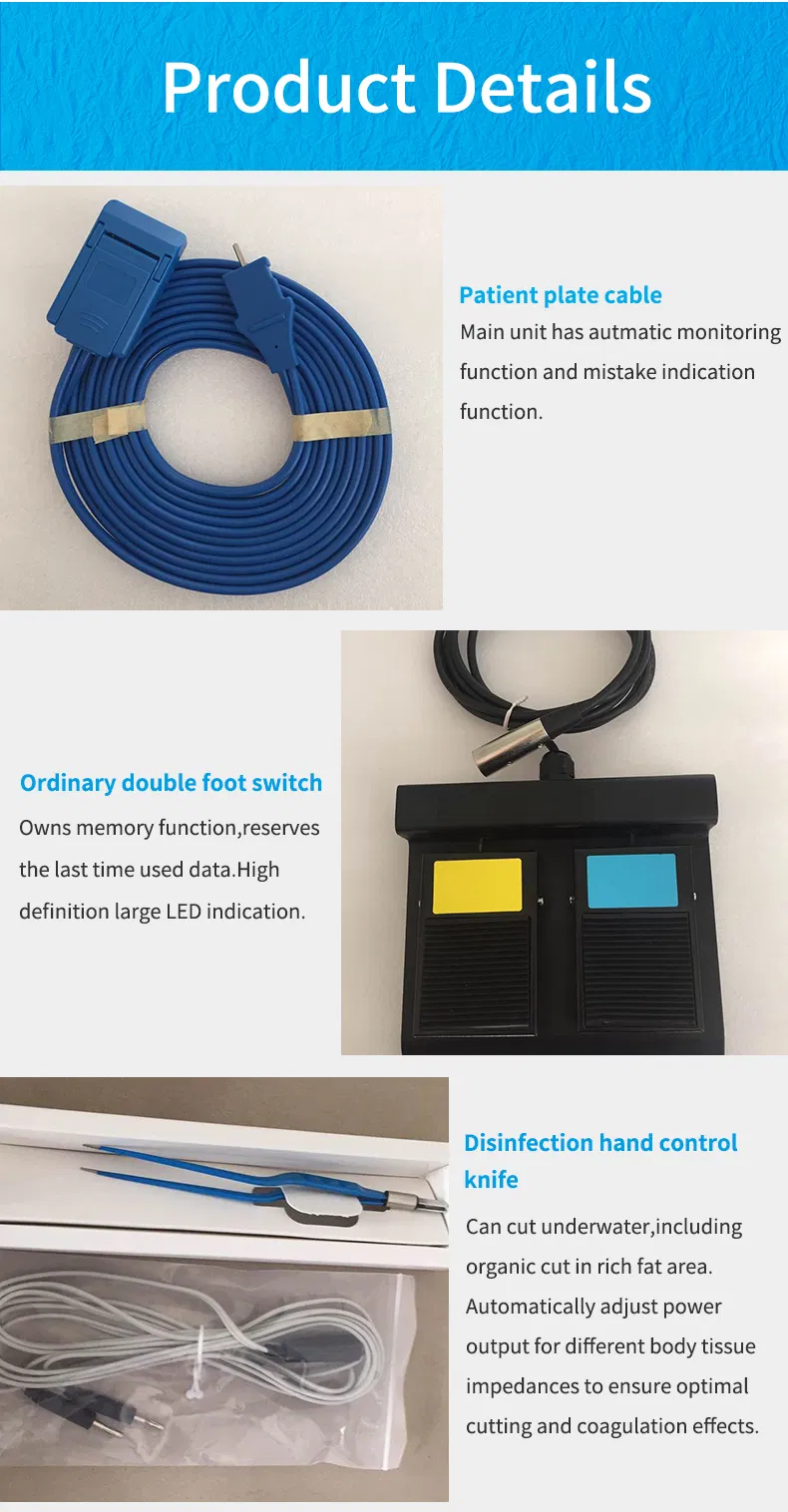

Can cut underwater, suitable for use with Argon system, Endoscope, uteroscope etc.

including organic cut in rich fat area.
