Product Description

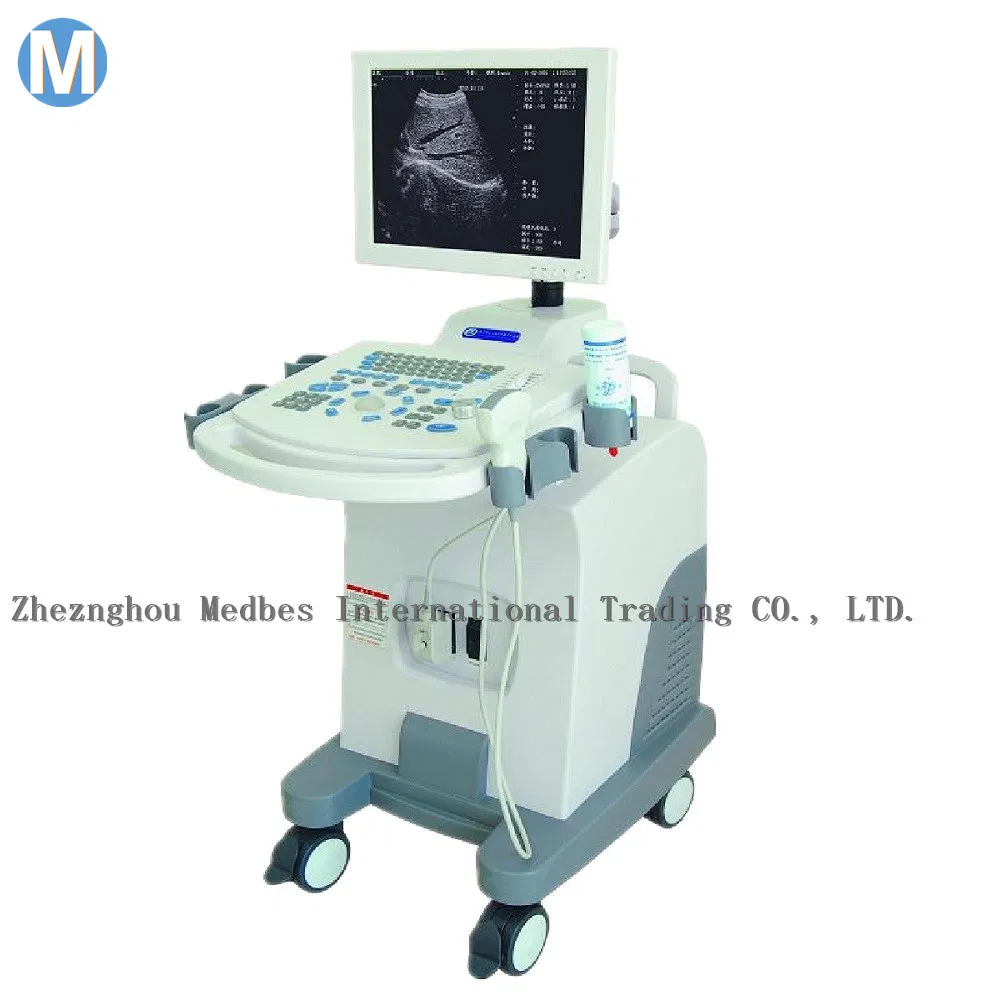

M-B350T Full Digital Trolley Ultrasound Scanner -- 80 elements
'M-B370T Full Digital Trolley Ultrasound Scanner -- 96 elements'

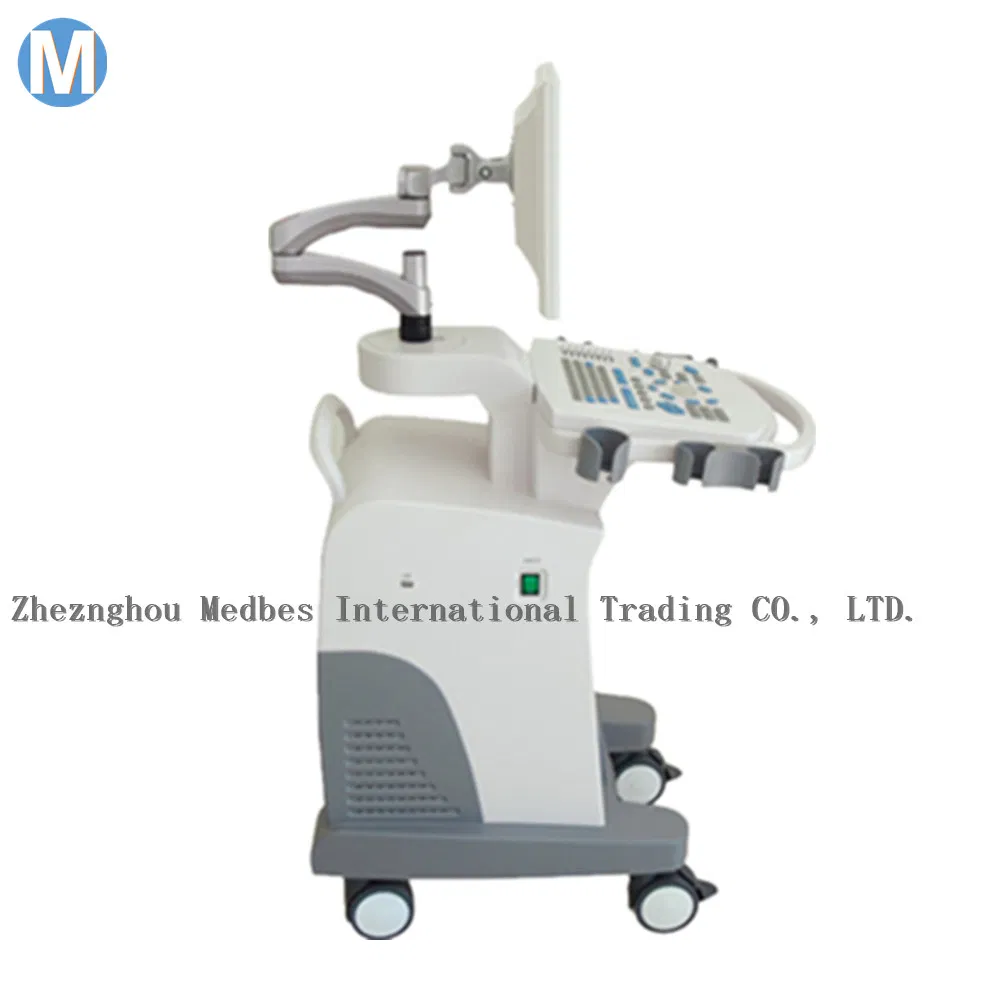

Movalbe Ultrasound Scanner Trolley Made in China

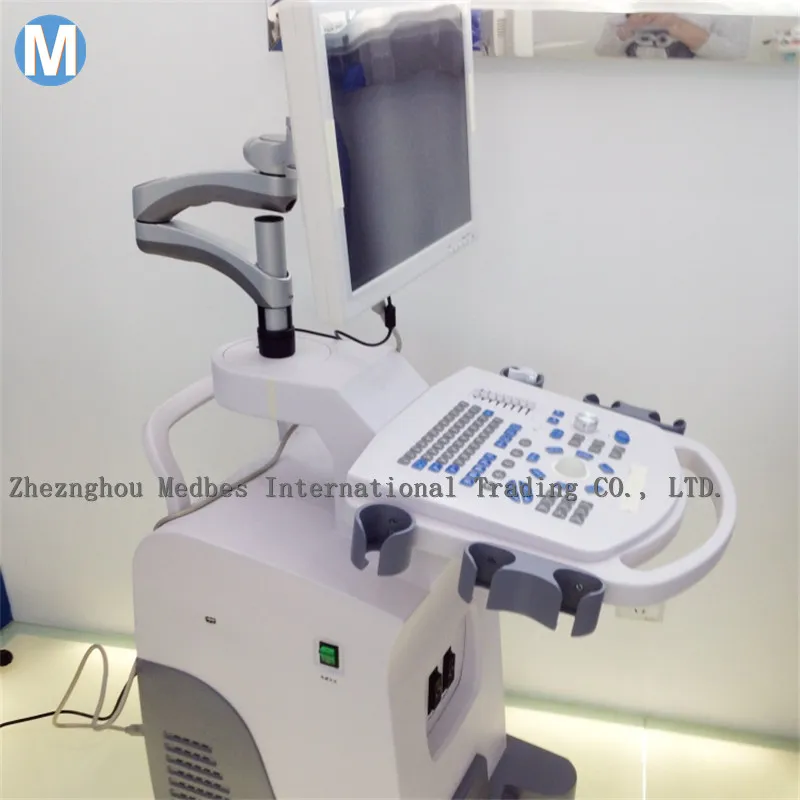

Movalbe Ultrasound Scanner Trolley Made in China

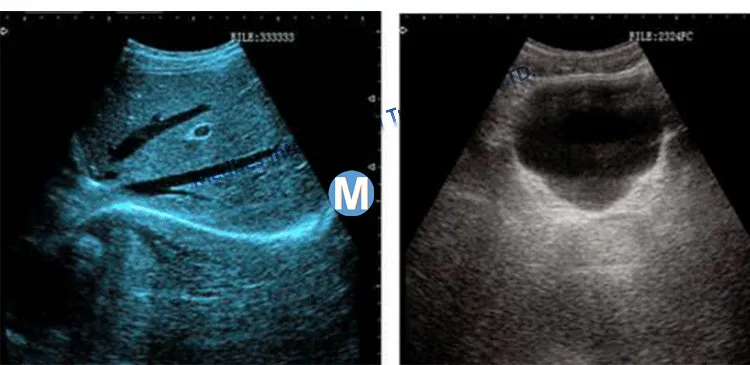

First-class digital imaging technology, more clearer image:
Full-digital beam imaging technology
Real-time dynamic receiving focus point by point
Real-time dynamic sound velocity changed
High-accuracy DSC Digital image formation technology
Intelligentized 8-segment TGC adjustment
Progressive SMT components technology to ensure machine reliability
USB port: storable and readable
THI and Histogram function
Support OB Report
Support: Chinese/English/Spanish/French/Portuguese/Russian/
Flexible and convenient operating system:

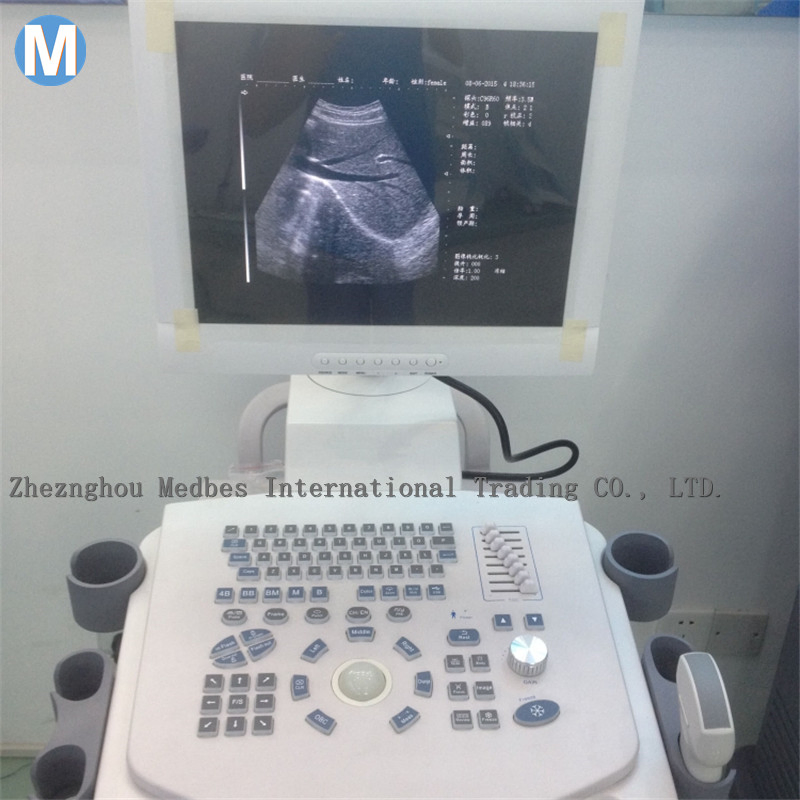

15 inch LED liquid crystal display, angle range is more flexible to adjust

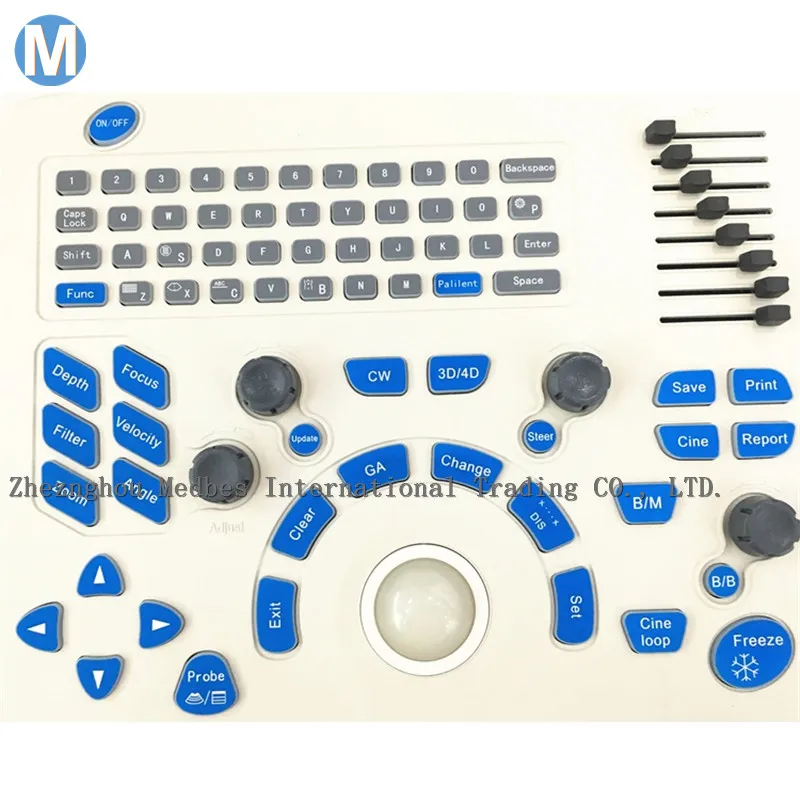

Back-lit keyboard silicon gel,more comfortable and wearable,no trouble in using in the darkroom
Intelligentized menu,man-machine diaglogue is easy and quick
Puncture guide line can display under B mode, angle and position are adjustable
More magnification display, Disease diagnosis more accurate

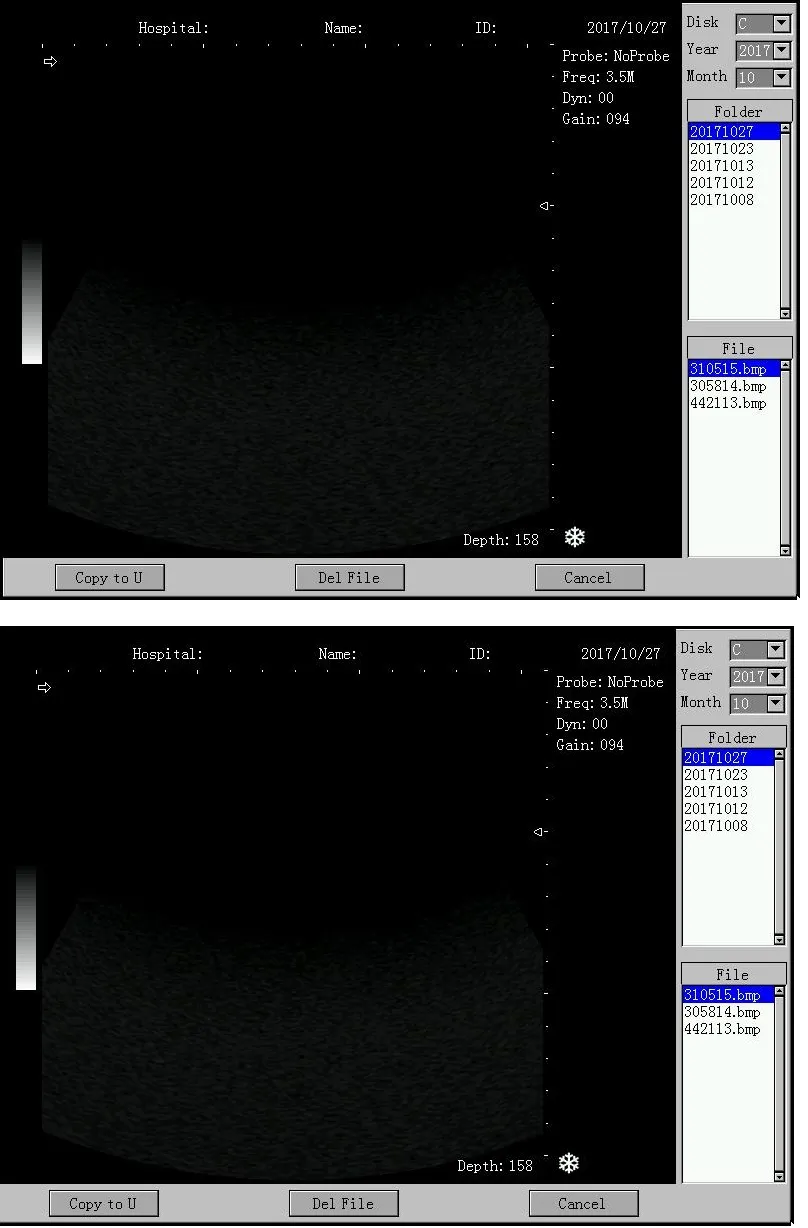

USB storage is connected outside, more convenient to upload pictures
Large capacity of cine loop, image can display circularly and automatically.
Specifications:

Probe Depth	16 levels
Probe Frequency	5 levels
Main gain	0-100%
8 TGC	adjustable
Focus	4
Image storage	4920 images
Pseudo color	0-7
Scanning area(angle)	3 levels
Edge enhancement	0-3
Linear correlation	0-5
Gamma correction	0-7
Frame correlation	0-3
Dynamic range	0-135
Cine loop	512 frames
Body mark	97 kinds
U Disk support	FAT32 format
Image reversal	up/down, left/right, black/white
Measurement	General measurement, GYN & OB measurement package, Andrology measurement , Cardiac measurement
OB-1	GS,BPD,CRL,FL,HL,TAD,LV,OFD,AC,HC,AFI
OB-2	FTA,TTD,APTD,THD,TCD,CI,EFW,Input LMP,Growth Curve

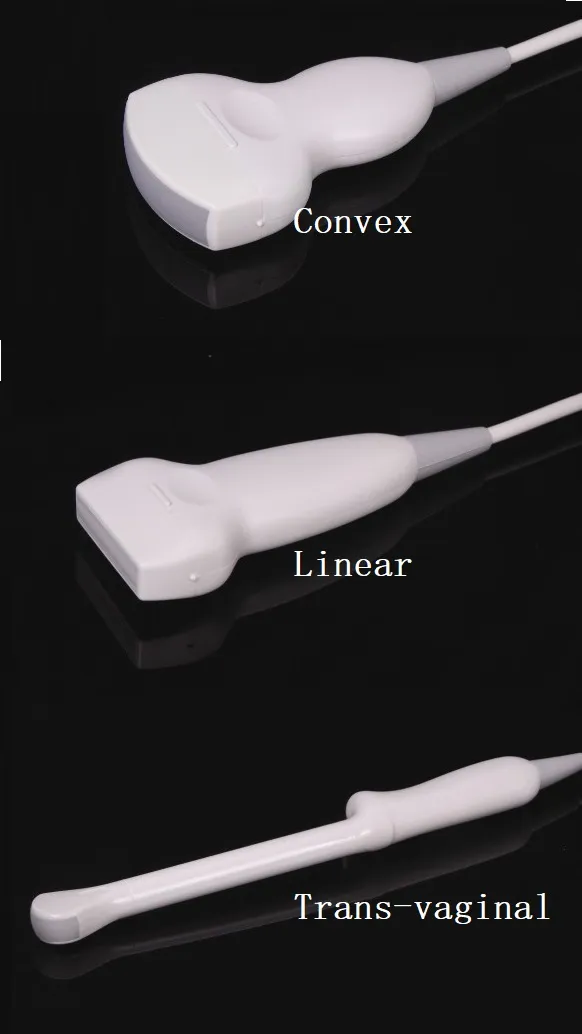

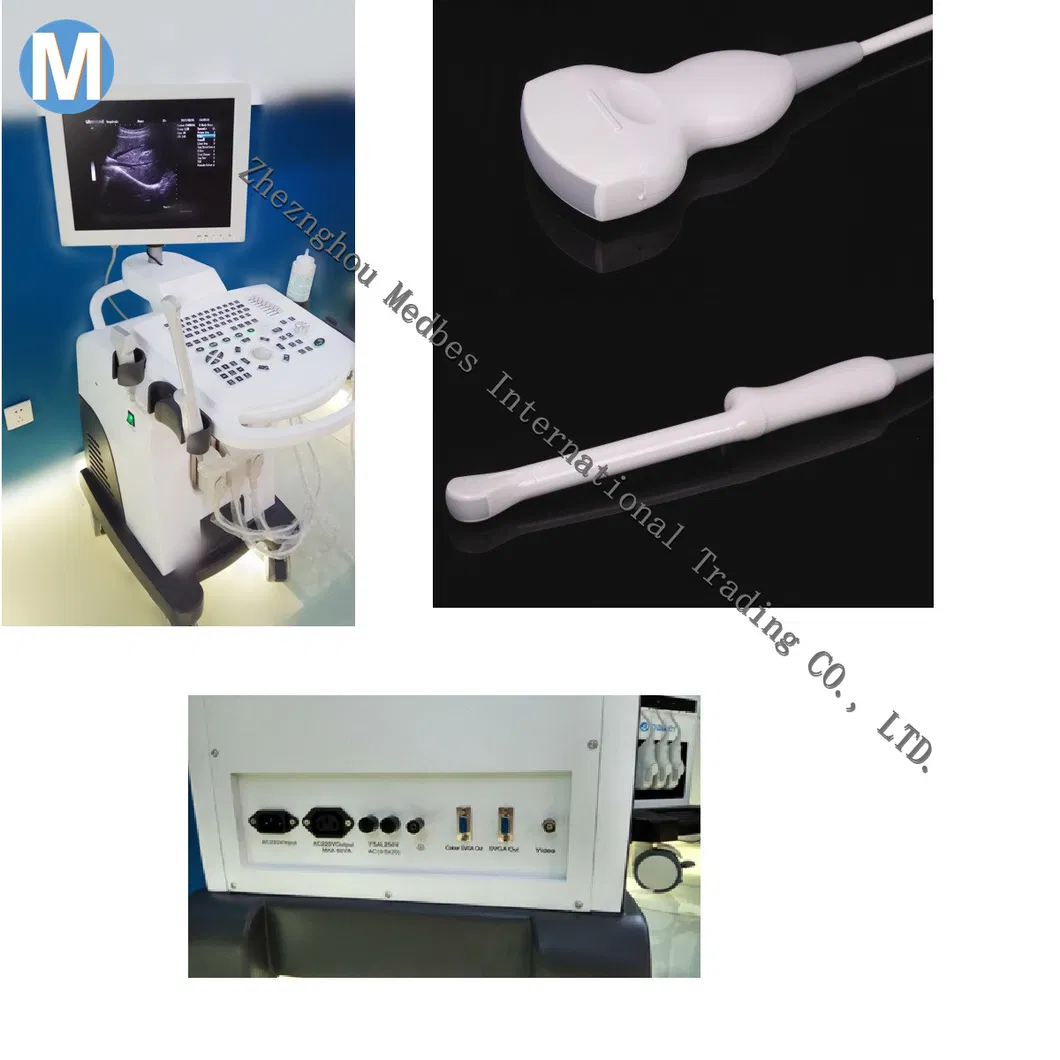

Various Probes (80 elements):
Convex probe (2.0 - 5MHz)
Linear probe (5.5 - 9.0MHz)
Trans-vaginal probe (5.0 - 8.5MHz)
Micro-convex probe (4.0 - 7.0MHz)

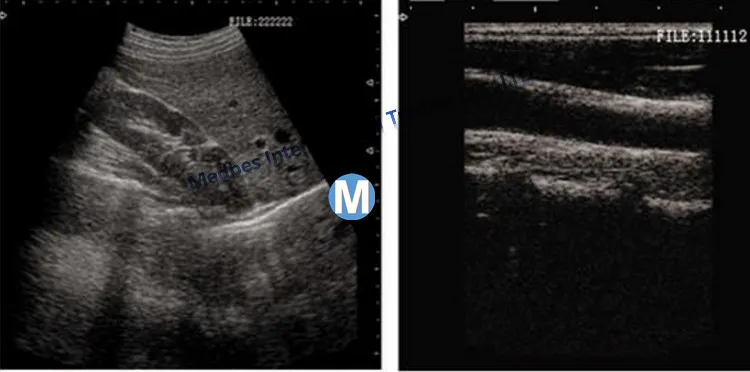

Movalbe Ultrasound Scanner Trolley Made in China

Probe frequency:
Convex probe
Frequency: 2.0MHz,2.5MHz,3.5MHz,4.0MHz,5MHz
Depth: 16 level
(126,142,158,173,189,197,205,213,221,229,237,245,253,261,269,307mm)
Linear probe
Frequency: 5.5MHz,6.5MHz,7.0MHz,7.5MHz,9.0MHz
Depth: 16 level (35,42,49,62,69,76,83,90,97,104mm)
Trans-vaginal probe
Frequency: 5.0MHz,5.5MHz,6.5MHz,7.5MHz,8.5MHz
Depth: 16 level (62,69,76,83,90,97,104,111,125,139mm)
Micro-convex probe
Frequency: 4.0MHz,4.5MHz,5.0MHz,6.5MHz,7.0MHz
Depth: 16 level (62,69,83,97,111,125,139,152,166,180mm)

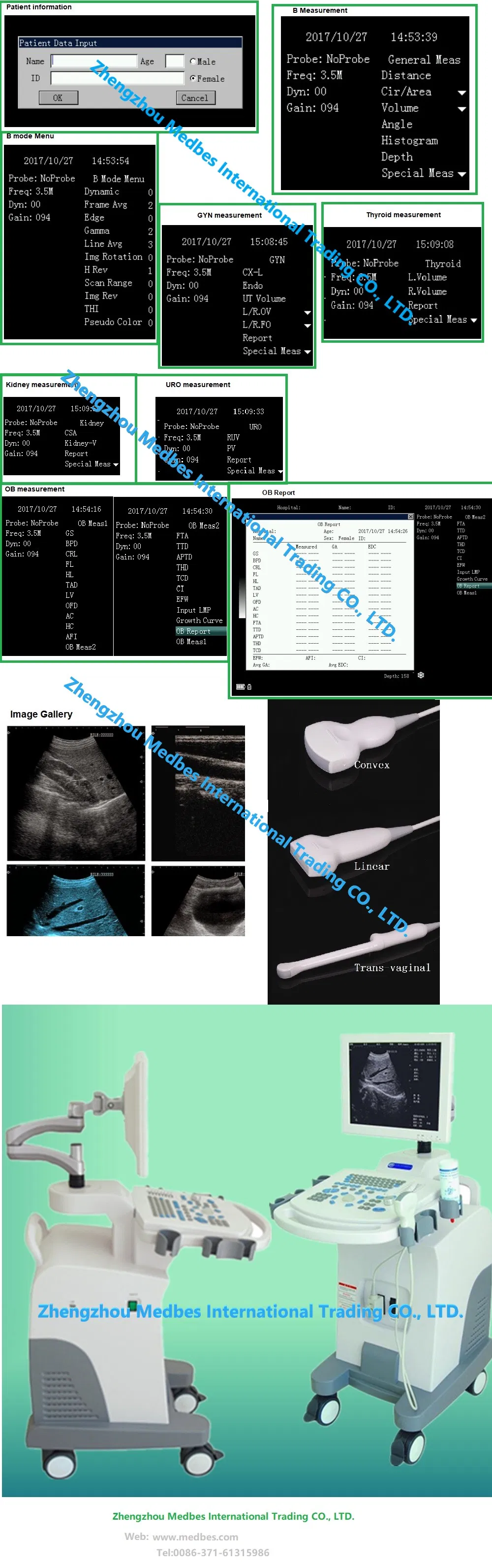

Upgraded Data sheet:
Patient information
