Hot Selling Full-Digital Color Doppler Ultrasound Scanner (YJ-U60PLUS)
Packaging & DeliveryPackaging DetailsGross weight12 kgNet weight7 kgFull Digital Color Doppler Ultrasound Diagnostic System AppearanceSmart, compact and clamshell design12 inch LED monitorBacklit operation panel, 8TGCFloating keyboardTwo active probe connectorsTwo probe holders ApplicationsAb......
Send Inquiry
Product Description
Packaging & Delivery

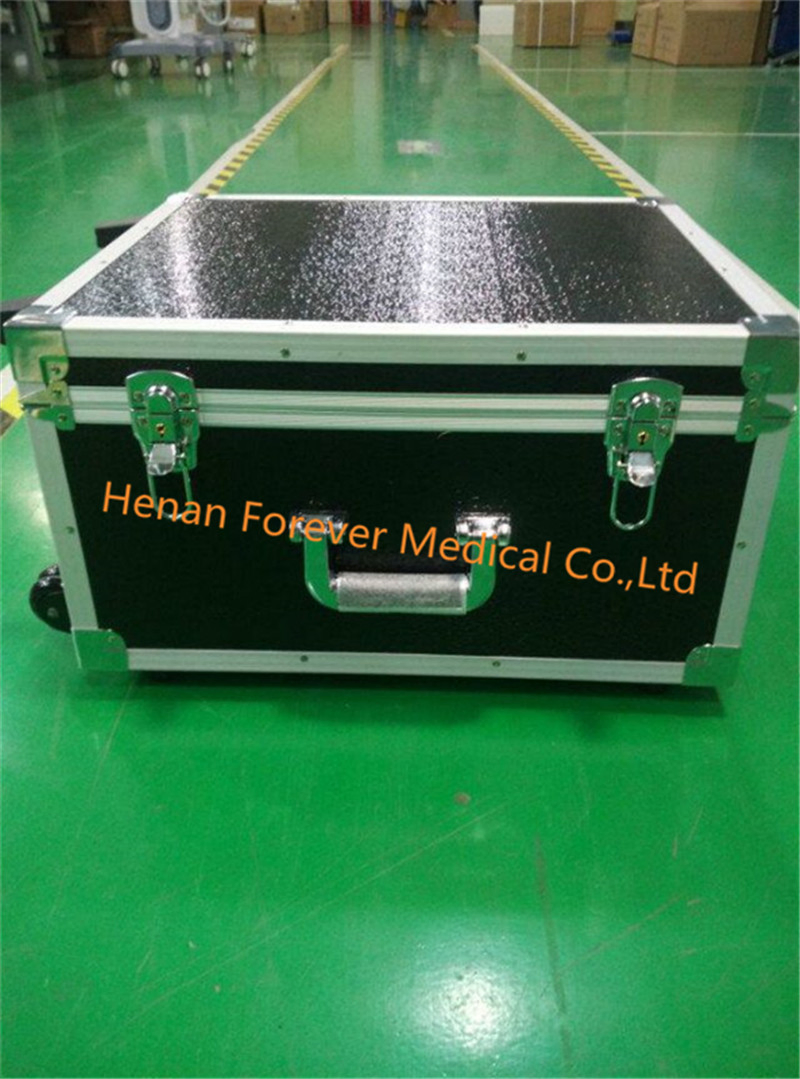

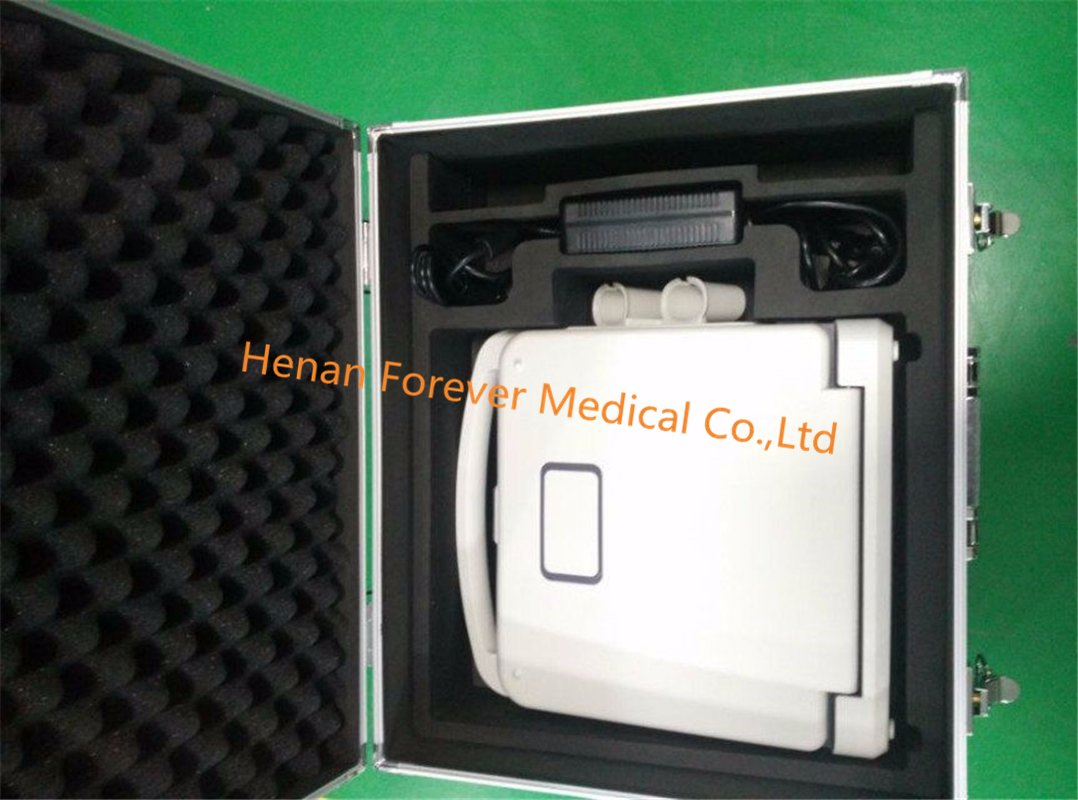

Packaging Details
Gross weight12 kg
Net weight7 kg

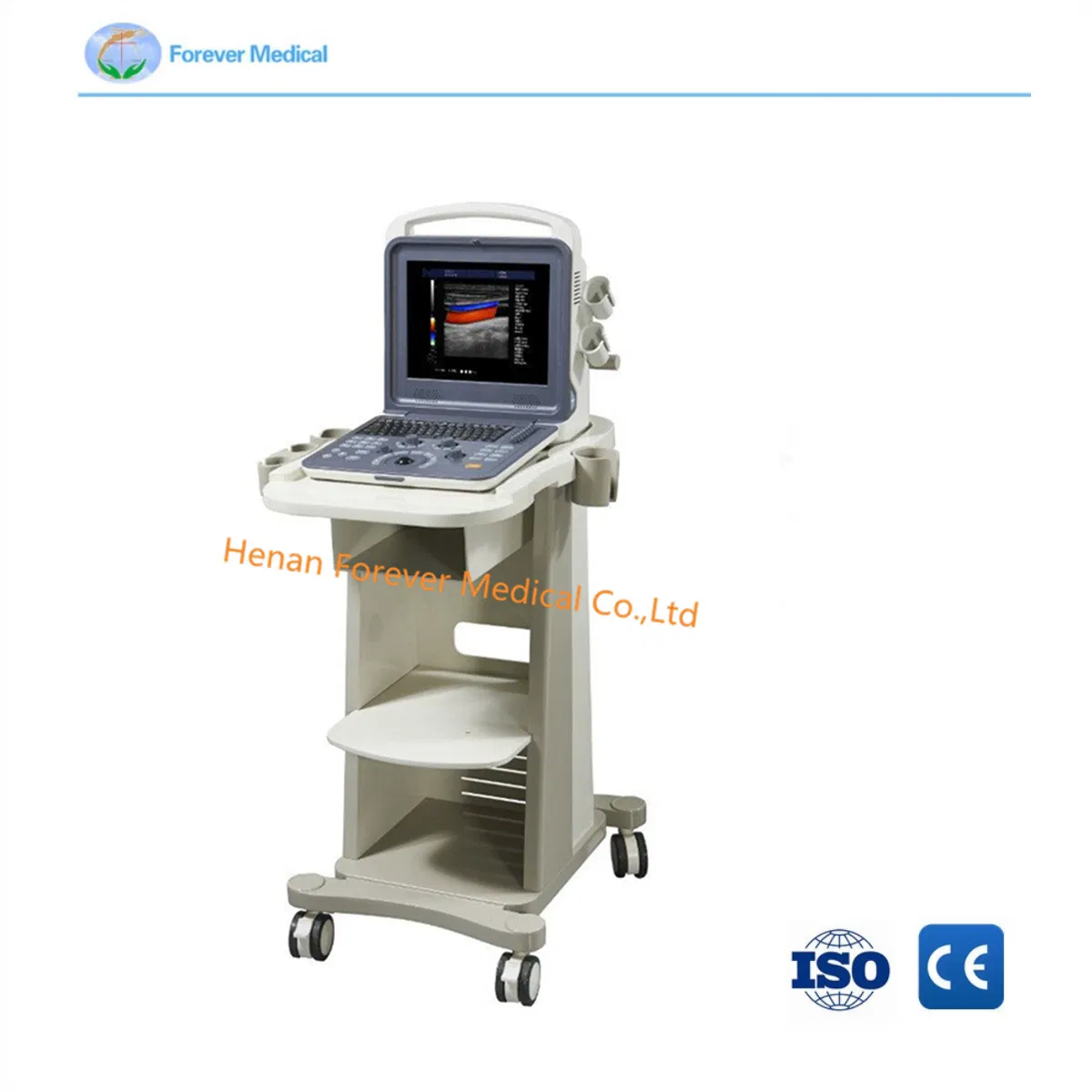

Full Digital Color Doppler Ultrasound Diagnostic System
Appearance
Applications
Memory
Cine‐memory
Technical specifications
Probes information
Company Information
Contact Us
FAQ
Packaging Details
Gross weight12 kg
Net weight7 kg
Full Digital Color Doppler Ultrasound Diagnostic System
Appearance
- Smart, compact and clamshell design
- 12 inch LED monitor
- Backlit operation panel, 8TGC
- Floating keyboard
- Two active probe connectors
- Two probe holders
Applications
- Abdomen, Obstetrics, Gynecology, Pediatrics,Small parts, Artery, Superficial organ, Orthopedics, Cardiology, Musculoskeletal, Vascular, etc
- Auto Image Optimization
- Tissue Harmonic imaging
- iClear (Speckle Noise Reduction)
- iBeam (Spatial Compound Image)
- iZoom
- PIHI (Pulse-Inverse Harmonics Imaging)
- SA (Synthetic Aperture ultrasonic Imaging)
- Panoramic Image (Option)
- Trapezoid Image (Option)
- Continuous Wave Doppler(Option)
Memory
Cine‐memory
- B‐mode
- M‐mode
- SSD (Solid State Disk) 64G
Imaging Processing
| B mode |
|
| M mode |
|
C mode |
|
| PW mode |
|
Technical specifications
| Gross dimension Net dimension | 510 mm X 500 mm X 330mm 330mm X 150 mm X 380mm |
| Gross weight Net weight | 12 kg 7 kg |
| Voltage | AC 100V to 240V±10% |
| Frequency | 50Hz±1Hz |
| Rated Power | 250VA |
| Ambient temperature | 0ºCto +40ºC |
| Relative humidity | 38% to 85% |
| Atmospheric Pressure | 700hPa to 1060hPa |
| Display mode | B, B|B,4B, B|M,M,B|D,PW,B|PW, CF Duplex/Triplex mode CW (option) 4D mode (option) |
| Zoom | Real time zooming 10 Steps: ×1.0, ×2.0, ×3.0, ×4.0, ×5.0, ×6.0, ×7.0, ×8.0, ×9.0, ×10.0 Selectable zooming position |
| Focus | Continuous dynamic focus 1~16 selectable transmit focus Acoustic lens focus 1, 2, 3, 4 focus |
Probes information
Probe | 5 Steps Multi-frequency |
| 3.5Mhz abdominal probe | 2.0, 3.0, 3.5, 4.0, 5.5Mhz |
| 6.5Mhz transvaginal probe | 5.0, 6.0, 6.5, 7.5, 9.0Mhz |
| 7.5Mhz linear probe | 6.0, 6.5, 7.5, 10.0, 12.0Mhz |
| 3.5Mhz micro-convex probe | 2.0,2.5, 3.5, 4.5 ,5.0Mhz |
| 3.0Mhz phased array probe | 2.0, 3.0, 3.5, 4.0 , 5.5Mhz |
| 4D volume probe | 2.0/ 3.0/ 3.5/ 4.0/ 5.5Mhz |

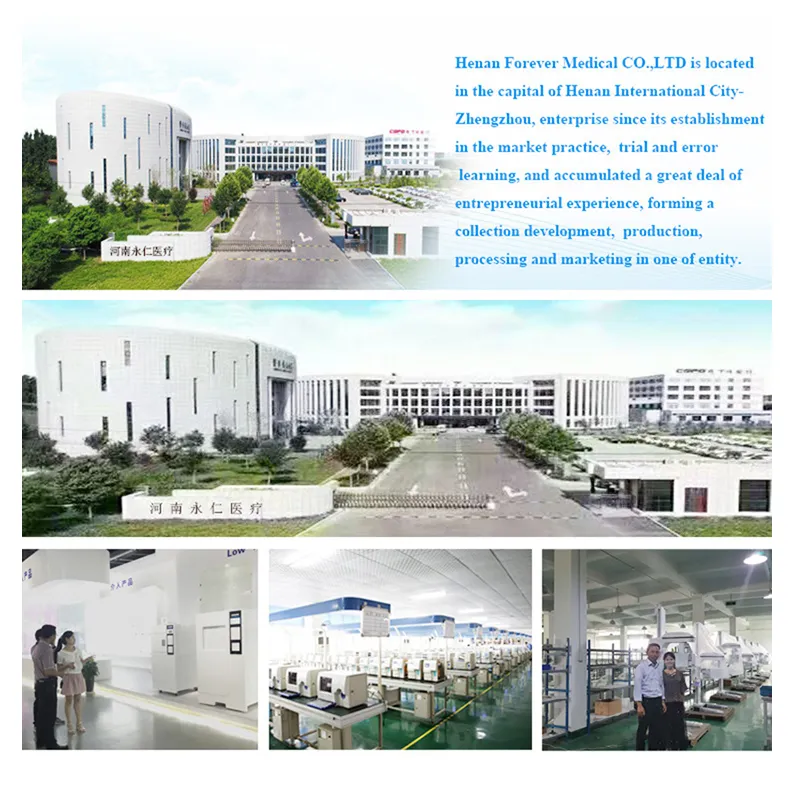

Company Information
Contact Us
FAQ
Q:What's the minimum order quantity (MOQ)?
A:For most of our medical products, even order for only one unit is warmly welcomed.
Q: Can you do OEM/ private label?
A: Of course we can do OEM/private label for you.
Q: What is your terms of payment ?
A: We accept T/T ,LC,Western Union ,Paypal and more.Please suggest your preferred payment method.
If you have any other questions, you can contact us at any time.
