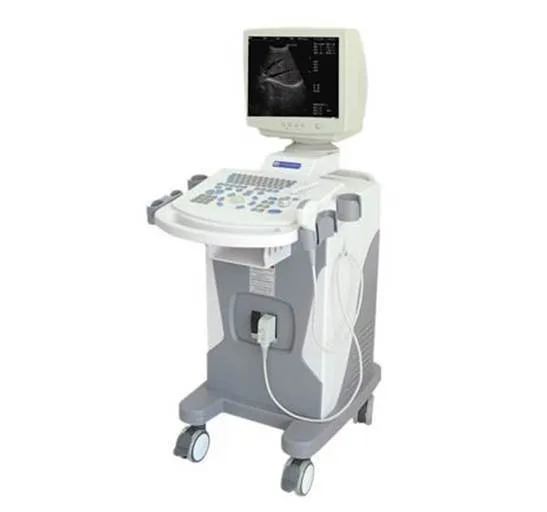

Hospital Equipment Full-Digital Trolley Ultrasound Scanner

Product Description

Product Description

Medical Supply SVGA Full-digital Trolley Ultrasound Scanner

Hospital Equipment Full-Digital Trolley Ultrasound Scanner

Full Digital CE Approval Ultrasound Diagnostic System

14 inch SVGA non-interlaced high resolution monitor,
Exquisite image quality and excellent stability,

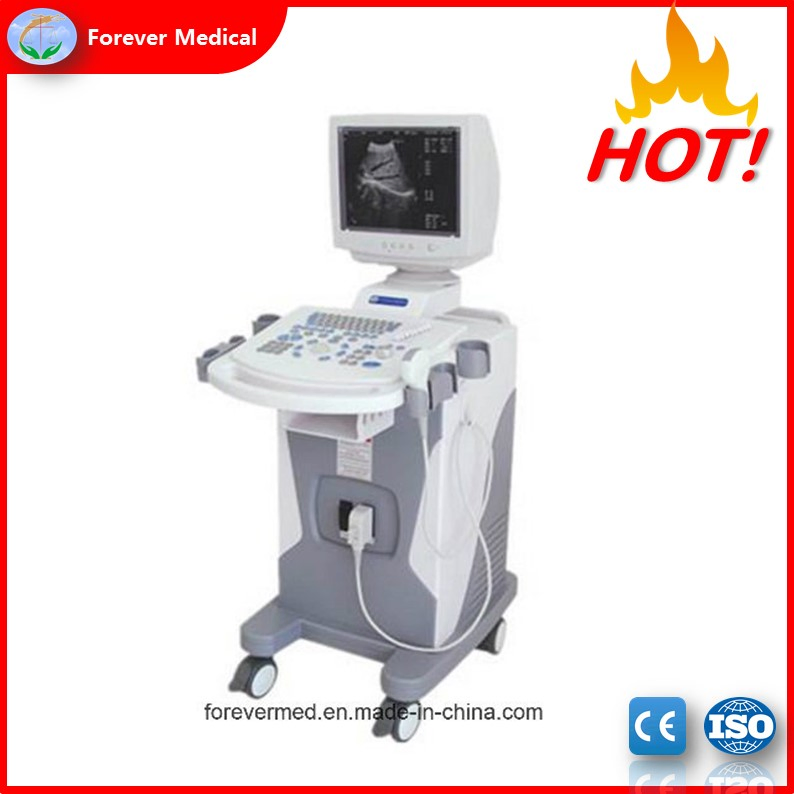

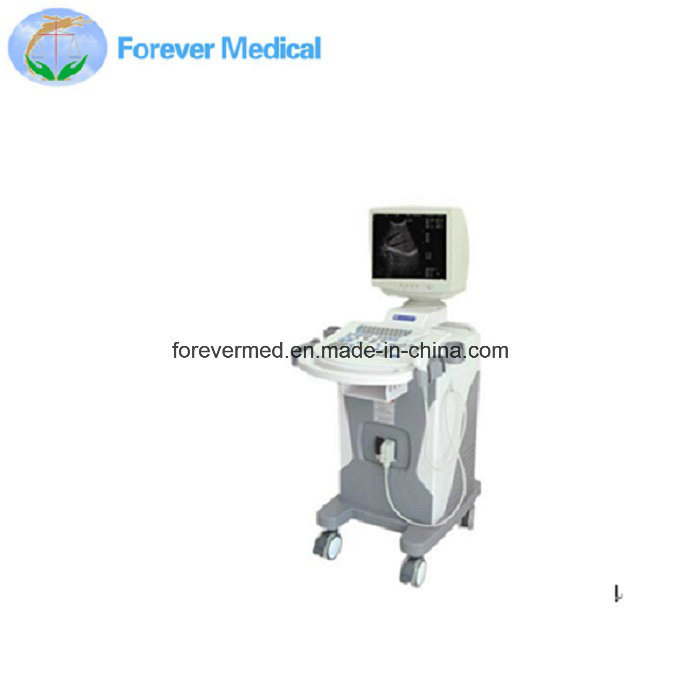

YJ-U310T Full-digital Trolley Ultrasound Scanner

Model	YJ-U310T
Display mode	B, B+B, 4B, B+M, M

Application
Human Body &Veterinary
Abdomen, Obstetrics, Gynecology, Pediatrics,Small parts, Artery,
Superficial organ, Orthopedics, Musculoskeletal, Vascular, etc.

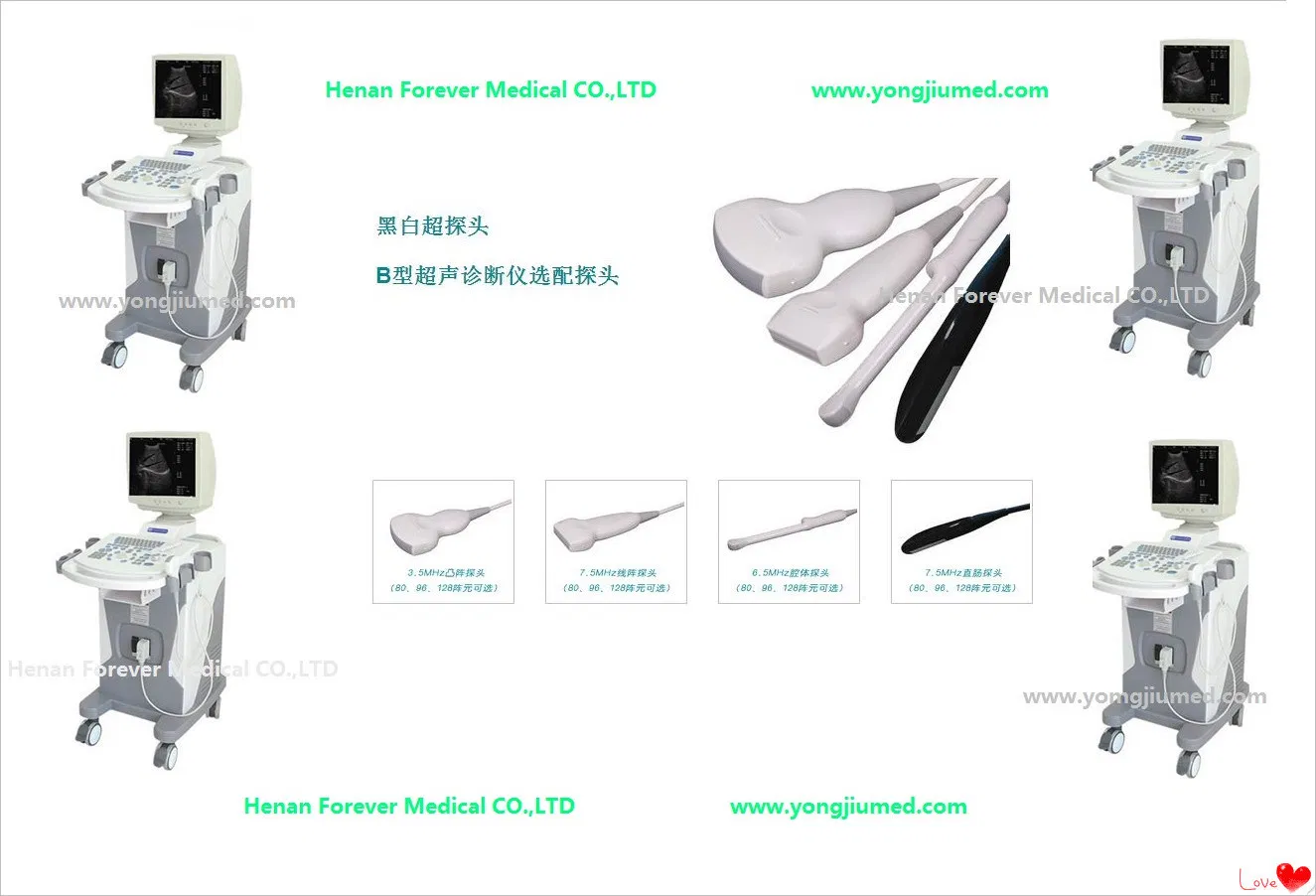

Probe
Transducer Types

Probe	5 Steps Multi-frequency
3.5Mhz convex probe	(2.0/ 3.0/ 3.5/ 4.0/ 5.5Mhz)
6.5Mhz transvaginal probe	(5.0/ 6.0/ 6.5/ 7.5/ 9.0Mhz)
7.5Mhz linear probe	(6.0/ 6.5/ 7.5/ 10.0/ 12.0Mhz)
3.5Mhz micro convex probe	(2.0/ 2.5/ 3.5/4.5/ 5.0Mhz)
3.5Mhz phased array probe	(2.1/ 3.0/ 3.5/ 4.0/ 5.0Mhz)

Main features

1. High-accuracy DSC digital scan conversion
2. Intelligentized TGC gain control of the whole paragraph 8
3. Photoelectricity track control
4. 14 inch SVGA non-interlaced high resolution monitor
5. Focus: Focus on multi-stage firing, the whole dynamic receiving focusing
6. Backlit silicone keyboard

Technical specification

Scanning mode: convex / linear / micro-convex
Display:14 inch non-interlaced high resolution monitor
Display mode:B, B+B, 4B, B+M, M.
Detecting depth: 220mm
Lateral resolution ≤2mm (depth≤80mm)
               ≤3mm (80< depth≤130mm)
Axial resolution ≤1mm (depth≤80mm)
                     ≤ 2mm (80< depth≤130mm)
Blind Zone ≤3 mm
Geometry precision  lateral≤5% ,axial≤5%

Magnification:×0.8, ×1.0, ×1.2, × 1.5,×1 .8, ×2.0
Local zoom
Dynamic scope: 0~100dB, visible & adjustable
Electronical focusing multi-point or dynamic focusing
Pseudo color: 16
Note: ID, gender, age, hospital, doctor, comment, date, time.
Body marks:16
Probe interface:2
Image storage:128

Puncture guide:The puncture guide line can be displayed under B mode.
Gain control:The total gain, 8-segment TGC
Image conversion: up/ down, left / right, black / white
Cine loop: 256 frames

Image review:Images can be reviewed successively or checked one by one.
Measurement:
distance, perimeter, area, heart rate, gestational week (BPD, CRL, GS, FL, HC).
Video output:SVGA (SVGA color monitor), PAL-D
Main power supply:AC220V±22V, 50/60Hz

Standard configuration

Backlit silicone keyboard
14 inch high resolution CRT
3.5MHz Multi-frequency convex probe(2.5MHz-5.0MHz)

Options
6.5MHz Trans-vaginal probe(5.5MHz-7.5MHz)
7.5MHz High frequency linear probe(6.5MHz-8.5MHz)
USB port
two-screen setup
