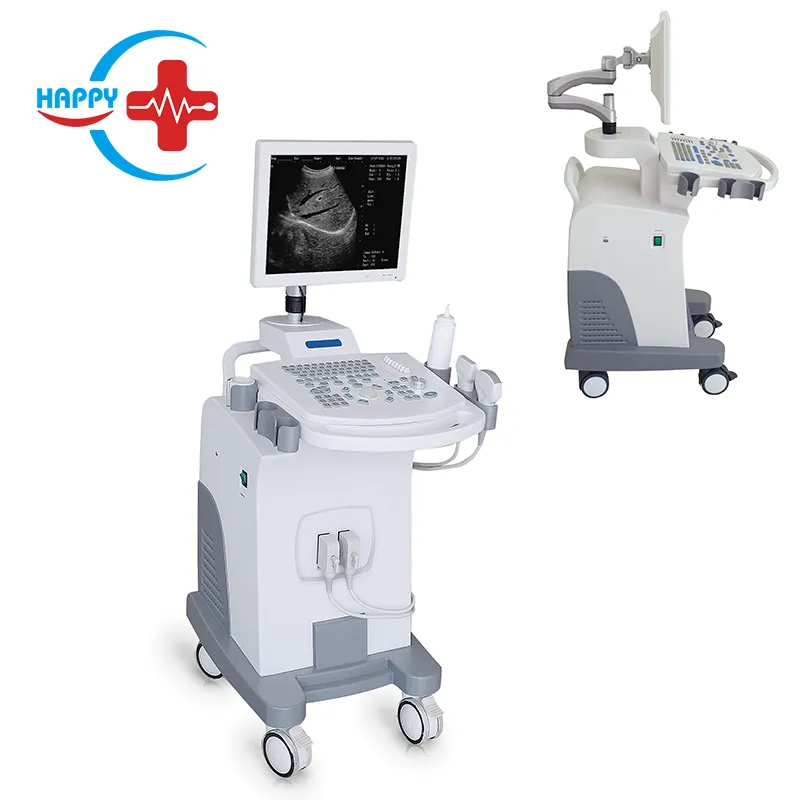

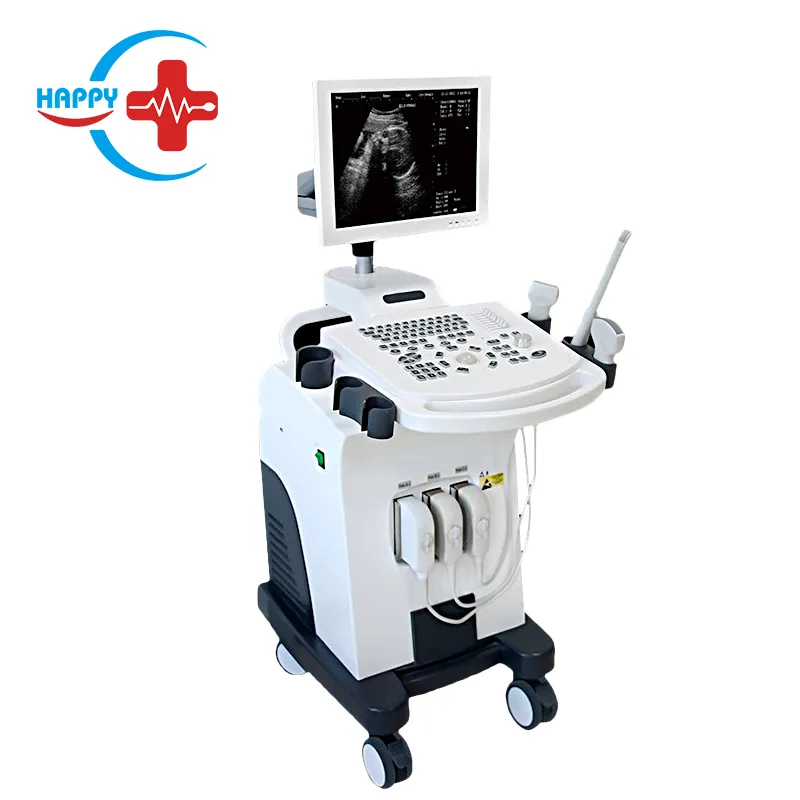

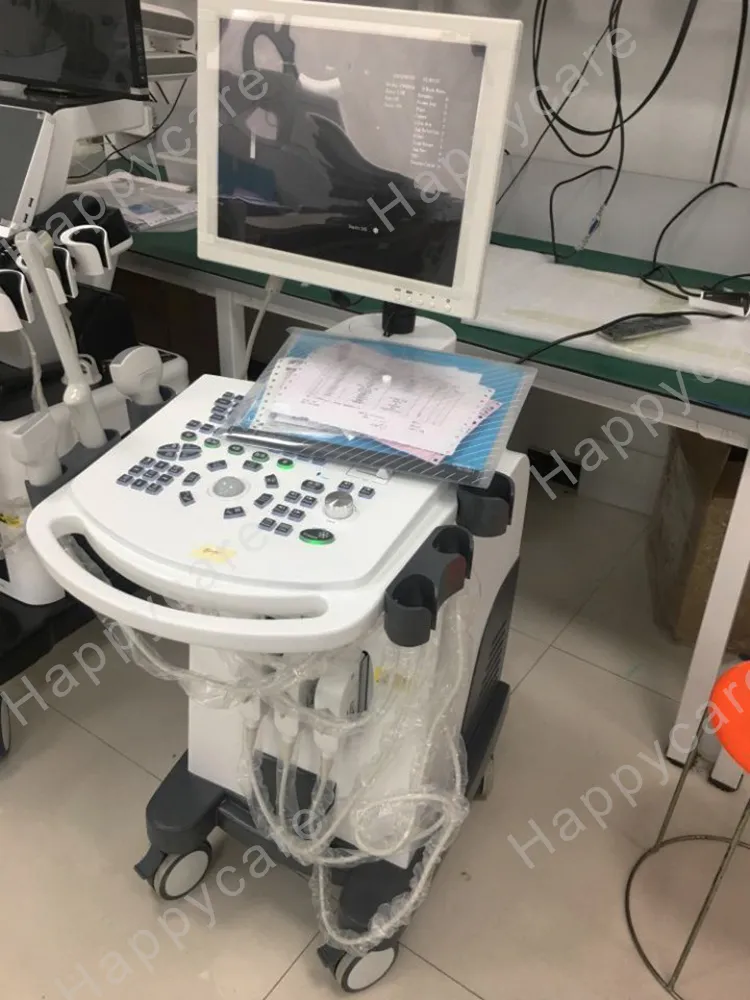

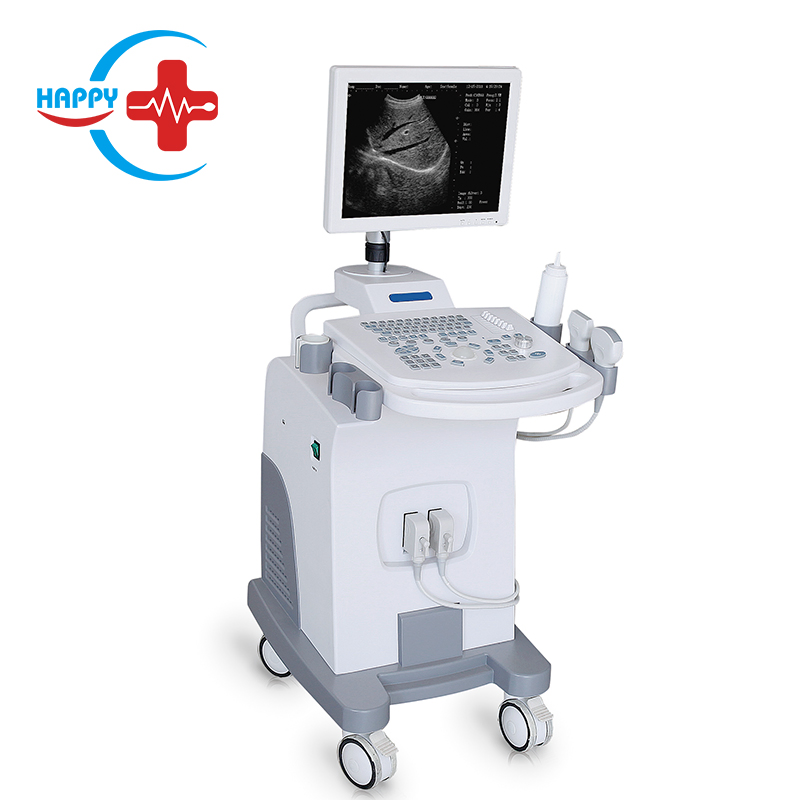

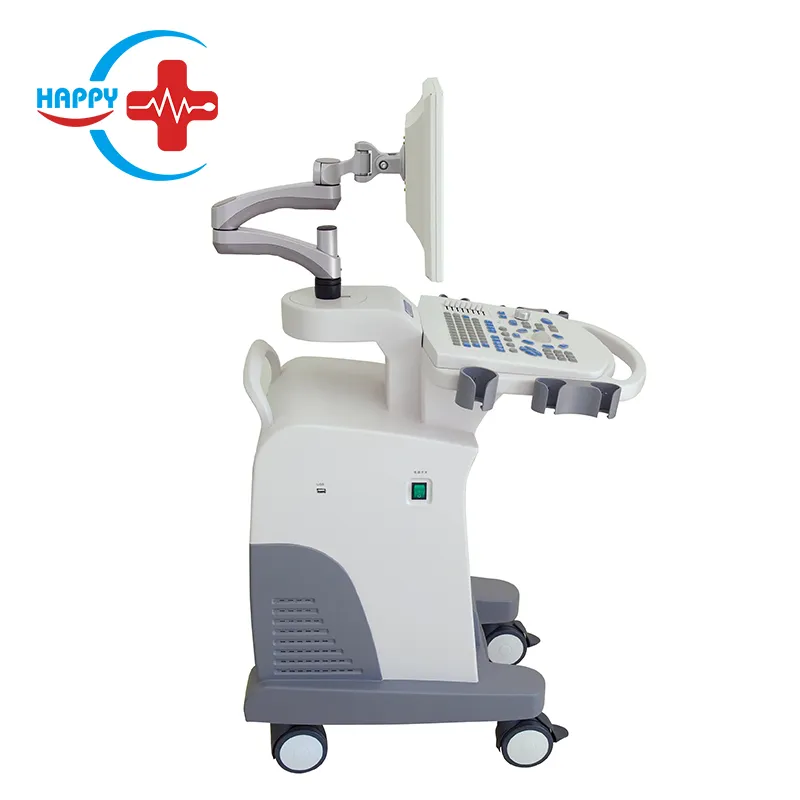

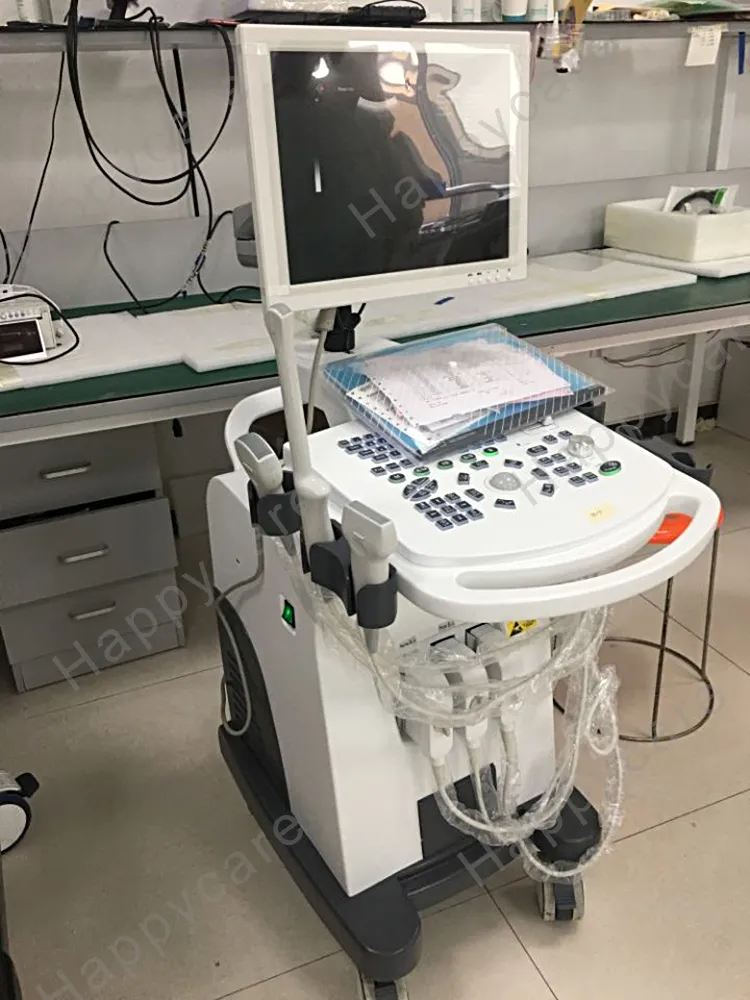

HC-A010 Cheap price NEWEST VERSION Full digital B ultrasound trolley scanner/trolley ultrasound machine

Product Description

Features for ultrasound trolley:

Flexible and convenient operating system:

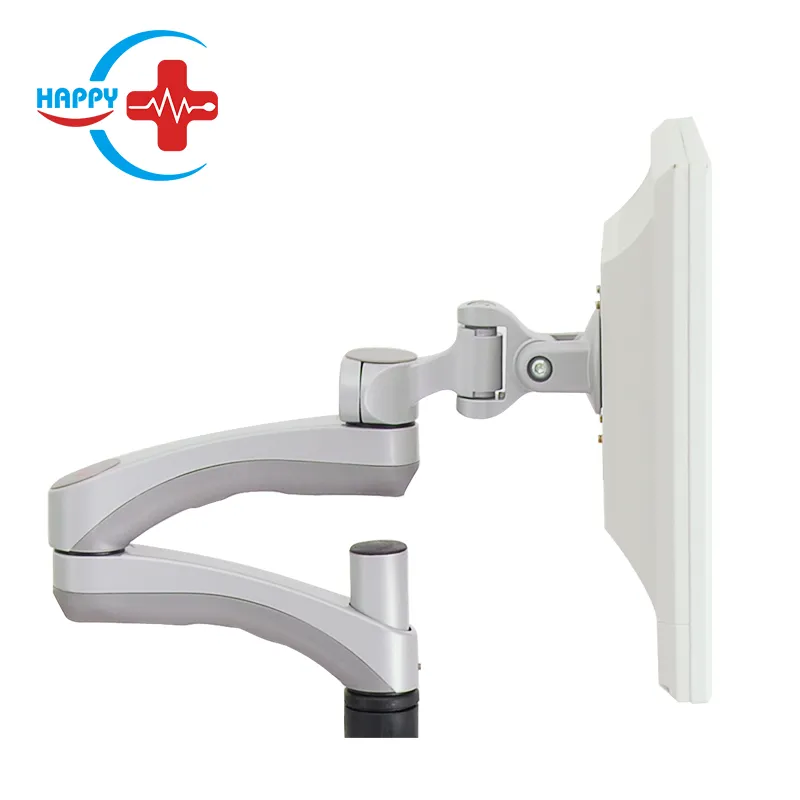

15 inch LED liquid crystal display, angle range is more flexible to adjust
Back-lit keyboard silicon gel,more comfortable and wearable,no trouble in using in the darkroom
Intelligentized menu,man-machine diaglogue is easy and quick
Puncture guide line can display under B mode, angle and position are adjustable
More magnification display, Disease diagnosis more accurate
USB storage is connected outside, more convenient to upload pictures
Large capacity of cine loop,image can display circularly and automatically

Technical Specification :
Scanning mode: convex / linear / micro-convex

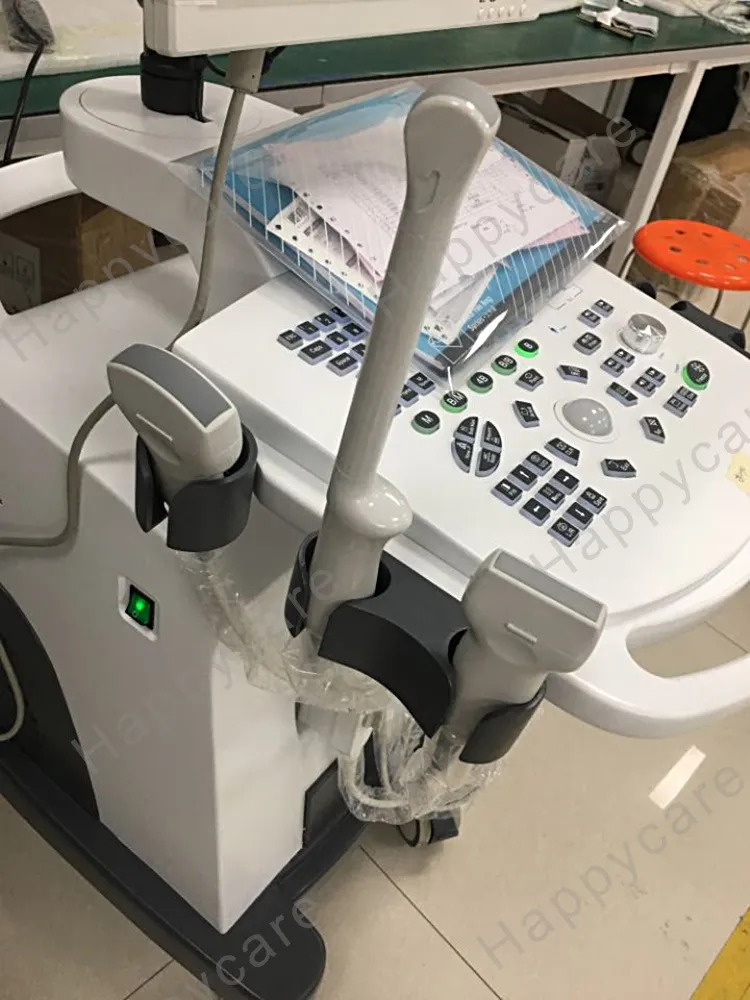

Probes: 96 elements convex probe,trans-vaginal probe, trans-rectal probe, high frequency linear probe
Monitor: 15 inch high resolution LED

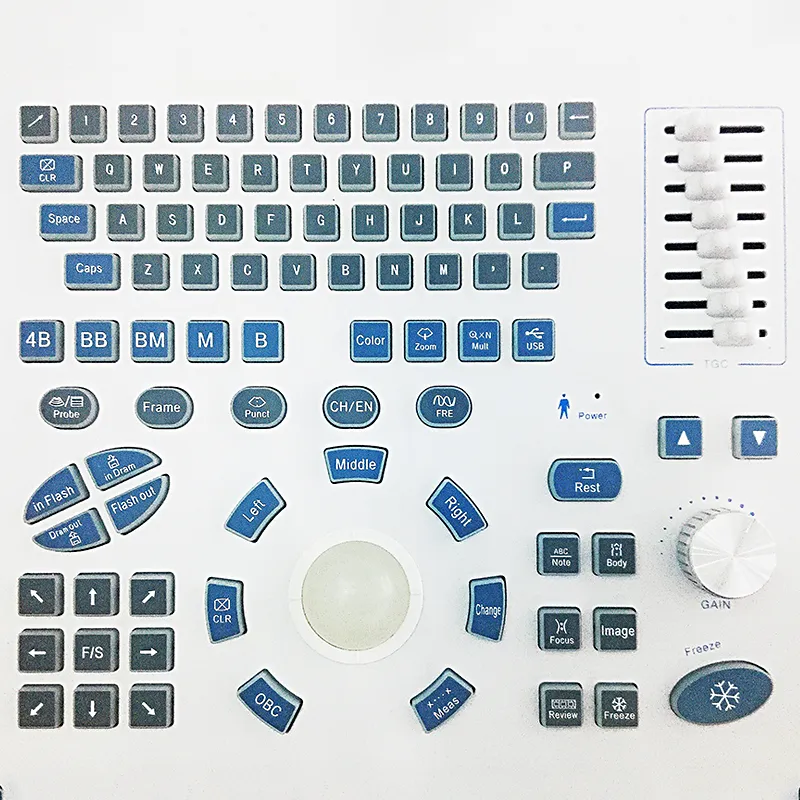

Operation panel: user-friendly, convenient and flexible with back-lit silica gel keyboard & track ball operation
Display mode: B, B+B, B+M, M, 4B
Detecting depth: ≥242mm
Resolution: lateral≤2mm, axial≤1mm
Blind Zone: ≤3mm
Geometry precision: lateral≤5%, axial≤5%
Gray scale: 256
Electronical focusing: 2 focuses combination randomly
Cine loop: 256 frames, realized in automatic successive playback and manual single step forward, backward playback
USB port: storable and readable
Image storage: 8
Local zoom can be used at real time.
Magnification: ×0.8, ×0.8, ×0.90, ×0.95, ×1.0, ×1.05, ×1.10, ×1.20, ×1.30, ×1.40, ×1.50, ×1.60, ×1.80, ×2.0, ×2.2, ×2.5.(16 kinds)
Body marks

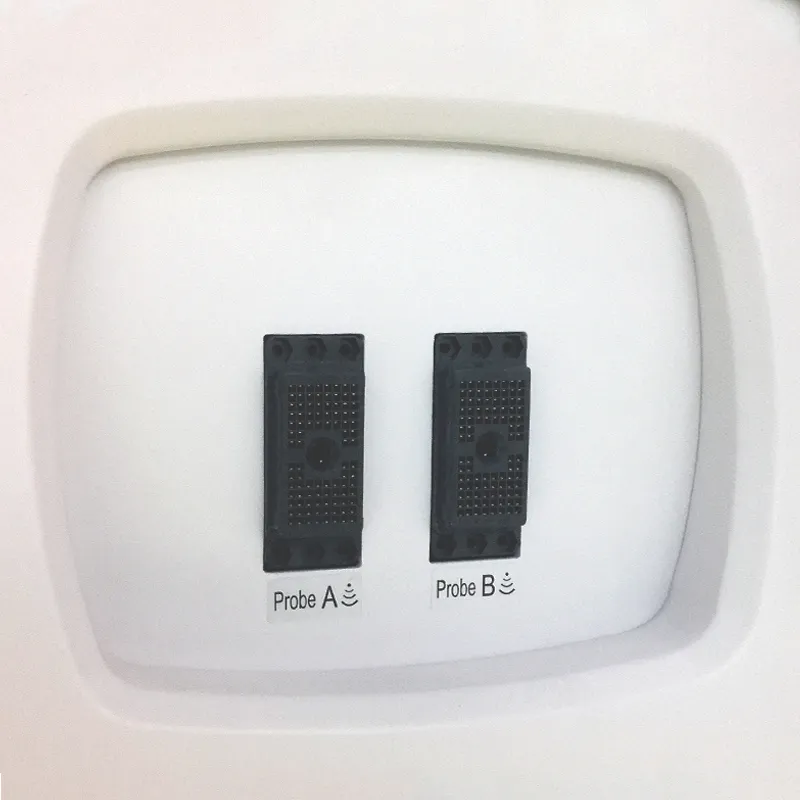

Probe interface: 2
Image processing,: up/ down, left / right, black / white convertion, edge enhancement, gamma correction, frame correlation, pseudo color processor( need external color display).
Measurement: distance, perimeter, area, volume, heart rate, gestational week, FW, AFI, EDD , maternity table, heart package etc.
Note: date, time, name, sex, age, doctor, hospital, comment, Chinese/ English conversion.
Output interface: PAL-D, SVGA (SVGA color monitor), USB port .
With the puncture guiding function, line position can be adjusted
With gravel positioning, dynamic target area tracking function.
