Product Description

HC-A003 High Quality Full digital portable laptop ultrasound scanner

Features for HC-A003 High Quality Full digital portable laptop ultrasound scanner :

Light and portable, much clearer image and convenient to operate. It has an extra-long battery life with over 8 hours of standby time and 4 hours of working time - useful for consultation in various environment of cities, towns, outdoor. A variety of charging to ensure the examination consultation under different environments.

* 12.1 inch HD LCD display
* Rechargeable battery
* THI and Histogram function
* Support OB Report

Basic Parameters:
Probe Depth: 16 levels
Probe Frequency: 5 levels
Main gain: 0-100%
8 TGC: adjustable
Focus: 4
Image storage: 4920 images
Pseudo color: 0-7
Scanning area(angle): 3 levels
Edge enhancement: 0-3
Linear correlation: 0-5
Gamma correction: 0-7
Frame correlation: 0-3
Dynamic range: 0-135
Cine loop: 512 frames
Body mark: 97 kinds
U Disk support: FAT32 format
Image reversal: up/down, left/right, black/white
Measurement: General measurement, GYN & OB measurement package, Andrology measurement , Cardiacmeasurement
OB-1: GS,BPD,CRL,FL,HL,TAD,LV,OFD,AC,HC,AFI
OB-2: FTA,TTD,APTD,THD,TCD,CI,EFW,Input LMP,Growth Curve
Various Probes (80 elements):
Convex probe (2.0 - 5MHz)
Linear probe (5.5 - 9.0MHz)
Trans-vaginal probe (5.0 - 8.5MHz)
Micro-convex probe (4.0 - 7.0MHz)
Probe frequency:
Convex probe
Frequency: 2.0MHz,2.5MHz,3.5MHz,4.0MHz,5MHz
Depth: 16 level [126,142,158,173,189,197,205,213,221,229,237,245,253,261,269,307mm]

Micro-convex probe
Frequency: 4.0MHz,4.5MHz,5.0MHz,6.5MHz,7.0MHz
Depth: 16 level [62,69,83,97,111,125,139,152,166,180mm(Not finalized)]
Light and portable, much clearer image and convenient to operate. It has an extra-long battery life with over 8 hours of standby time and 4 hours of working time - useful for consultation in various environment of cities, towns, outdoor. A variety of charging to ensure the examination consultation under different environments.
* 12.1 inch HD LCD display
* Rechargeable battery
* THI and Histogram function
* Support OB Report

Trans-vaginal probe
Frequency: 5.0MHz,5.5MHz,6.5MHz,7.5MHz,8.5MHz
Depth: 16 level [62,69,76,83,90,97,104,111,125,139mm(Not finalized)]

Linear probe
Frequency: 5.5MHz,6.5MHz,7.0MHz,7.5MHz,9.0MHz
Depth: 16 level [35,42,49,62,69,76,83,90,97,104mm(Not finalized)]

Basic Parameters:
Probe Depth: 16 levels
Probe Frequency: 5 levels

Main gain: 0-100%
8 TGC: adjustable
Focus: 4
Image storage: 4920 images
Pseudo color: 0-7
Scanning area(angle): 3 levels
Edge enhancement: 0-3
Linear correlation: 0-5
Gamma correction: 0-7
Frame correlation: 0-3
Dynamic range: 0-135
Cine loop: 512 frames
Body mark: 97 kinds
U Disk support: FAT32 format
Image reversal: up/down, left/right, black/white
Measurement: General measurement, GYN & OB measurement package, Andrology measurement , Cardiacmeasurement
OB-1: GS,BPD,CRL,FL,HL,TAD,LV,OFD,AC,HC,AFI
OB-2: FTA,TTD,APTD,THD,TCD,CI,EFW,Input LMP,Growth Curve
Various Probes (80 elements):
Convex probe (2.0 - 5MHz)
Linear probe (5.5 - 9.0MHz)
Trans-vaginal probe (5.0 - 8.5MHz)
Micro-convex probe (4.0 - 7.0MHz)
Probe frequency:
Convex probe
Frequency: 2.0MHz,2.5MHz,3.5MHz,4.0MHz,5MHz
Depth: 16 level [126,142,158,173,189,197,205,213,221,229,237,245,253,261,269,307mm]

Linear probe
Frequency: 5.5MHz,6.5MHz,7.0MHz,7.5MHz,9.0MHz
Depth: 16 level [35,42,49,62,69,76,83,90,97,104mm(Not finalized)]

Trans-vaginal probe
Frequency: 5.0MHz,5.5MHz,6.5MHz,7.5MHz,8.5MHz
Depth: 16 level [62,69,76,83,90,97,104,111,125,139mm(Not finalized)]

Micro-convex probe
Frequency: 4.0MHz,4.5MHz,5.0MHz,6.5MHz,7.0MHz
Depth: 16 level [62,69,83,97,111,125,139,152,166,180mm(Not finalized)]

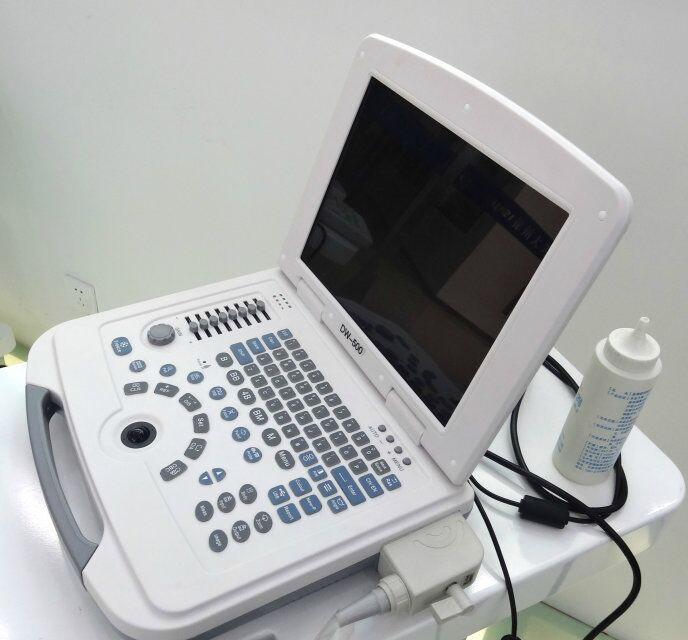

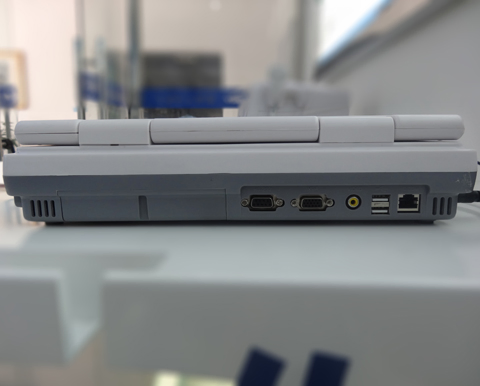

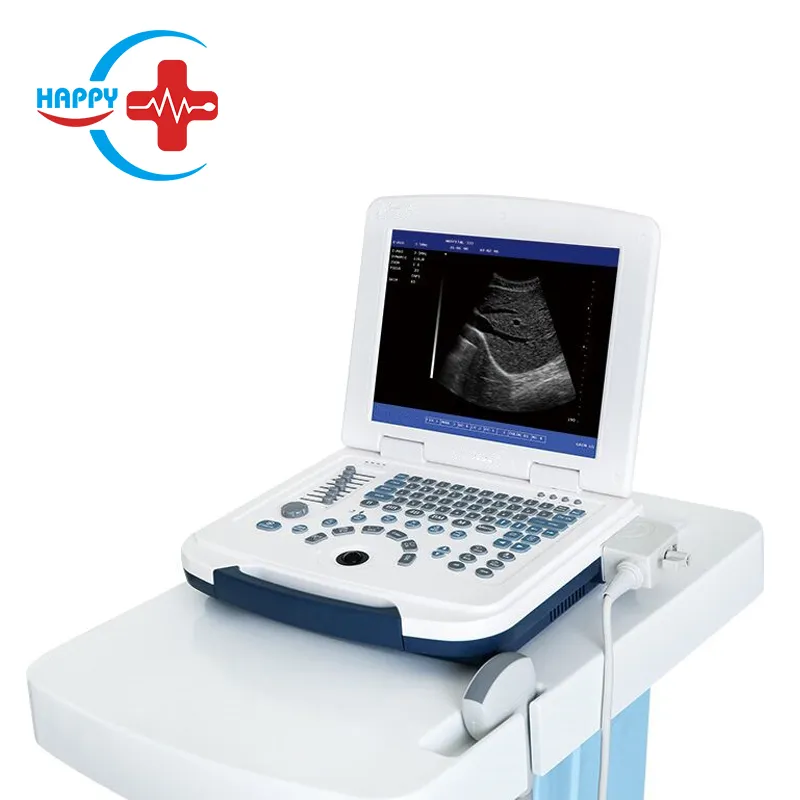

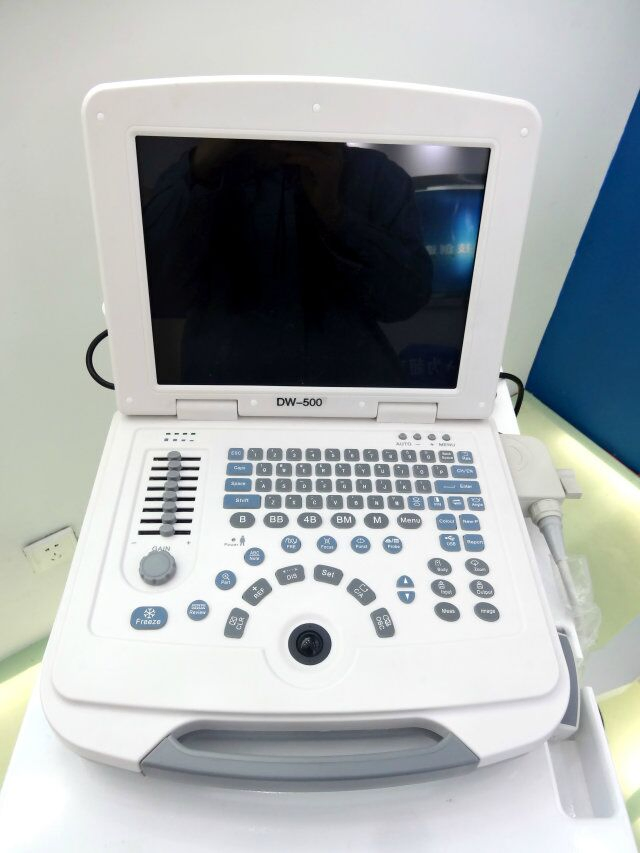

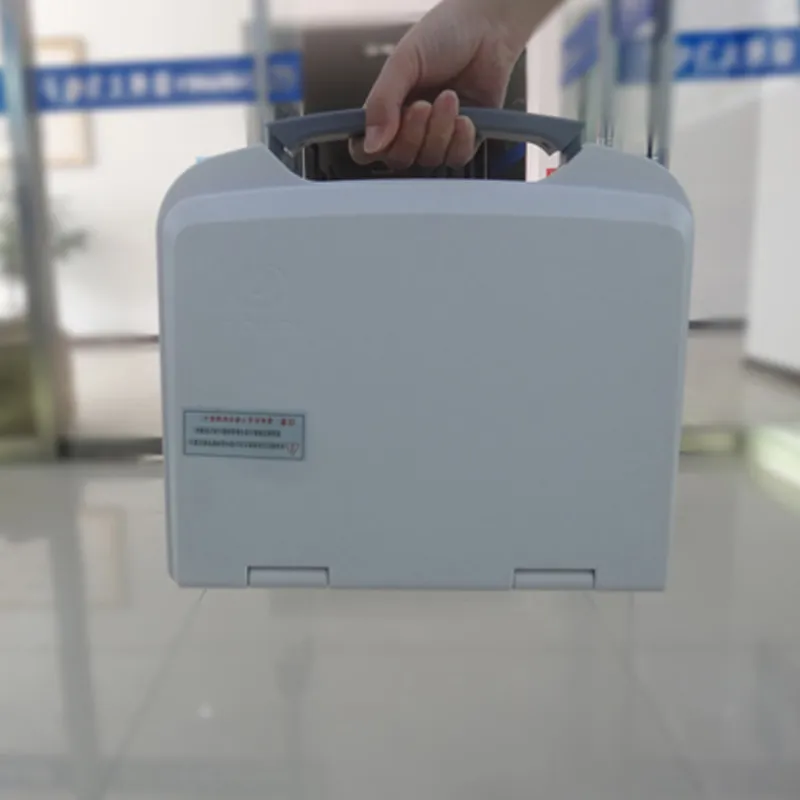

Picture for HC-A003 High Quality Full digital portable laptop ultrasound scanner:

FAQ:

A: Firstly we confirm product details and then send the Proforma Invoice,

You make payment to us throughT/T, Western Union or MoneyGram,

after we confirm your payment then ship the product to you once finished production.

2. For HC-A003 High Quality Full digital portable laptop ultrasound scanner product,What's the minimum order quantity (MOQ)?

A: For disposable material,We have our own MOQ,For our HC-A003 High Quality Full digital portable laptop ultrasound scanner our MOQ:1pc,

3. What is your warranty?

A: For most products the warranty is for 12 months, some products we provide 18 months warranty.

For HC-A003 High Quality Full digital portable laptop ultrasound scanner, we provide 12 months warranty.

4. What's your delivery time?

A: Generally it is 5 working days if goods in stock. within 10 working days if the goods need production, And also the delivery time depands on quantity.

For HC-A003 High Quality Full digital portable laptop ultrasound scanner, the delivery time is 10 working days.
