Product Description

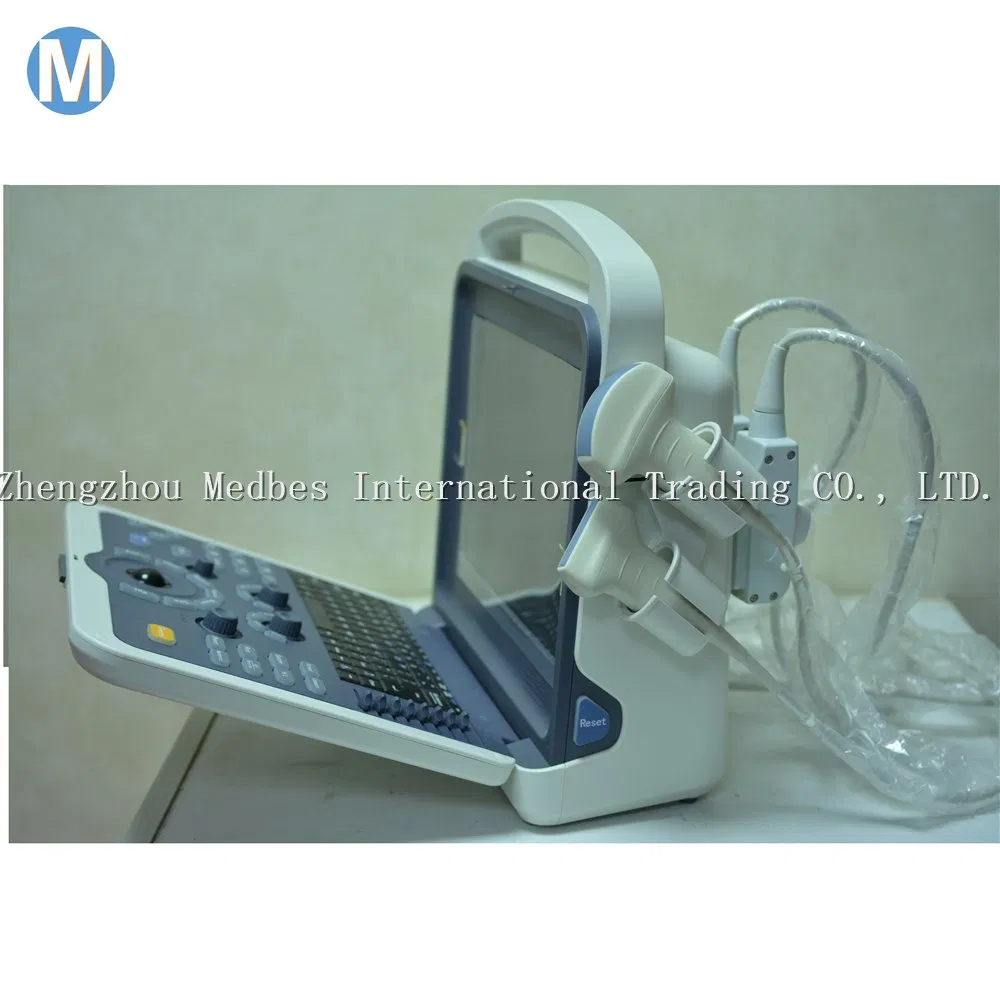

M-K0 Portable 2D Color Doppler Ultrasound

Economical Digital Pregnancy Ultrasonic Ultrasound Scanner

1.Smart design and Features
lHigh Resolution Imaging System
lEasy-operation Ergonomic Design
lBetter Optimize Image Quality
lSmart and Light -Weight Design

Element	80

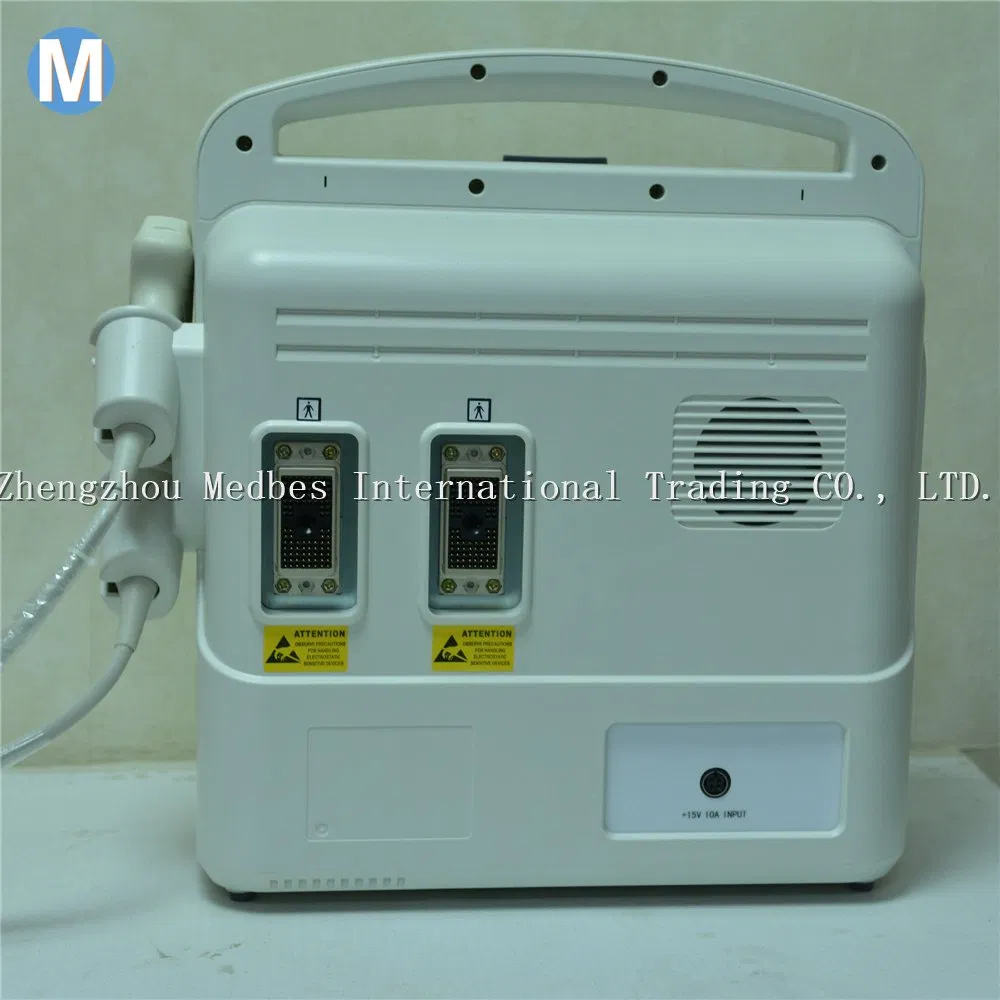

Probe Sockets	2
Probe holders	2
Color	2D
General measurement	Normal, MSK, ABD, OB, Pelvic,Urology, Cardiac, Small Parts, Vascular

2.Probes information

Probes	5 Steps Multi-frequency	Image
3.5Mhz abdominal probe	2.0, 3.0, 3.5, 4.0, 5.5Mhz
7.5Mhz linear probe	6.0, 6.5, 7.5, 10.0, 12.0Mhz
6.5Mhz transvaginal probe	5.0, 6.0, 6.5, 7.5, 9.0Mhz

3.Parameters

Displaying mode	B,B/B,4B,B/M,M, B/C,B/C/D,B/D, duplex, triplex, CFM, PW
Signal processing:	Full-digital beam forming, dynamic filter, dynamic real time receiving focusing, spectral processing, CFM processing, real-time dynamic focusing, dynamic aperture in all fields
Image processing:	THI Storage: 16G Power adjustable Smoothing function Edge enhancement One-key optimization Image conversion Wall filter adjustable Base line adjustable PRF adjustable AIO-Auto image optimization IZoom: Instant full screen image I-Image: intelligent optimization MBF: Multi Beam Former SA: Synthetic Aperture Ultrasonic imaging Iclear: Speckle Noise Reduction CDF: Contunuous Dynamic Focusing
General measurement	Normal, MSK, ABD, OB, Pelvic,Urology, Cardiac, Small Parts, Vascular
Normal measurement	Volume, V3L, STD_S, Area Trace,Mtime, MHR, D Time, DV, D Common, D Auto, Area, Angle, CrossLine, STD D, ParalleLine, Mdist,MV, D HR, DA, D Trace
ABD packages	ABD, Aorta, R_Kidney & L_Kidney, Bladder, Prostate
OB Packages	Early_OB, Rt-Ovary, Lt-Ovary, Uterus, Fetal_Biome, Long_Bones, AFI
Pelvic Packages	Uterus, Rt/Lt - Ovary, Rt/Lt-Follicle,
Urology packages	Rt/Lt- kidney measurement, Bladder, Prostate,Rt/Lt_Testicle
Small Parts	Rt/Lt_Thyroid, Rt/Lt_Testicle, Vessel, Breast
Vascular	Stenosis D, senosis A, Intima, Arterial, Venous
MSK	Distance, Area, Hip_Angle
Scanning depth	≥260mm
Probe elements	80
Gray	256
Cine loop	Automatically & manually
Image storage format	BMP, JPEG, PNG, DICOM(Option)

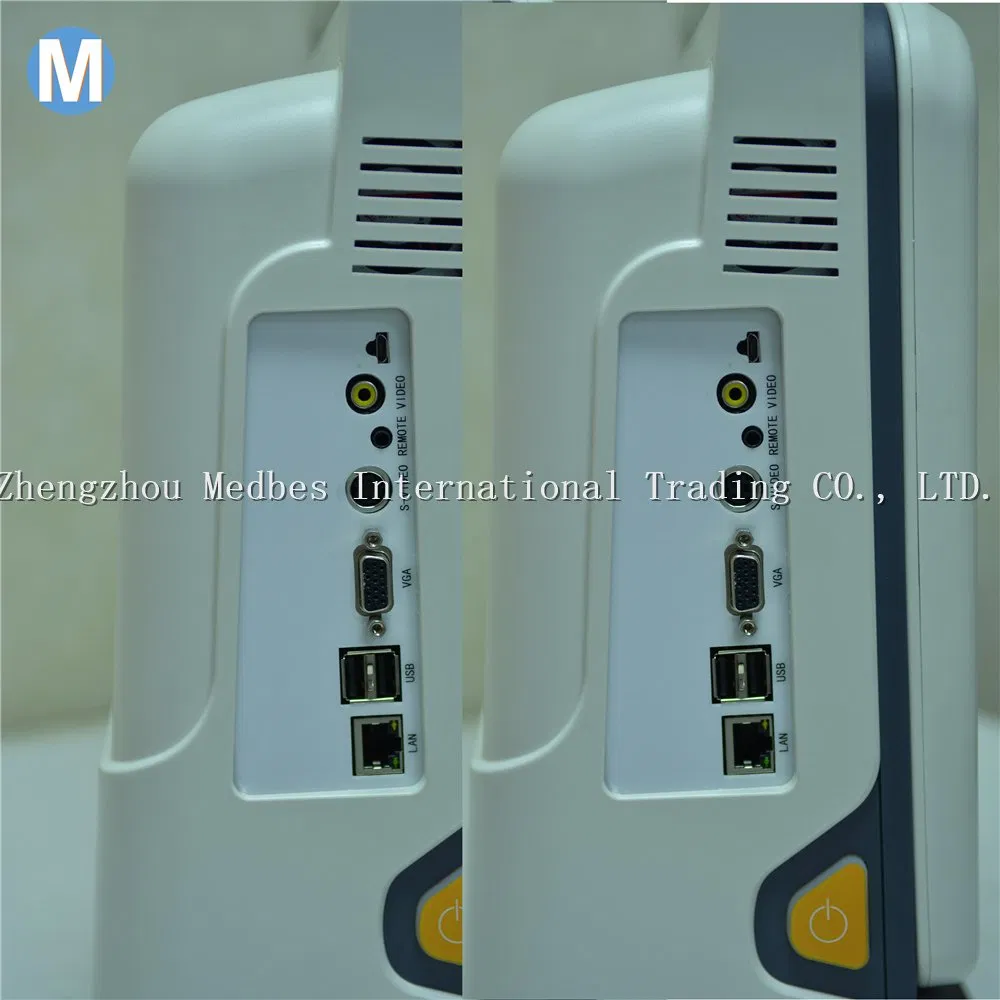

Input/output ports	Video Port, S-Video Port, Remote Port, LAN1/2 Port, VGA
Standard Configuration	Main unit, 12 inch LED monitor, 3.5Mhz convex probe, 7.5Mhz linear probe, 2 Probe connectors, User's Manual, hard disk (SSD)
Options	6.5Mhz Transvaginal Probe, Trolley, Printers, Biopsy kit,Aluminum case
Applicable Printers	HP Laser Jet P2035 HP Laser Jet 1022 HP Laser Jet 1020 SONY UP-D898MD SONY UP-X898MD
