2021 China Full-Digital Color Doppler Ultrasound Scanner Yj-U60plus
Packaging DetailsGross weight12 kgNet weight7 kg Full Digital Color Doppler Ultrasound Diagnostic System AppearanceSmart, compact and clamshell design12 inch LED monitorBacklit operation panel, 8TGCFloating keyboardTwo active probe connectorsTwo probe holders ApplicationsAbdomen, Ob......
Send Inquiry
Product Description
Packaging Details
Gross weight12 kg
Net weight7 kg

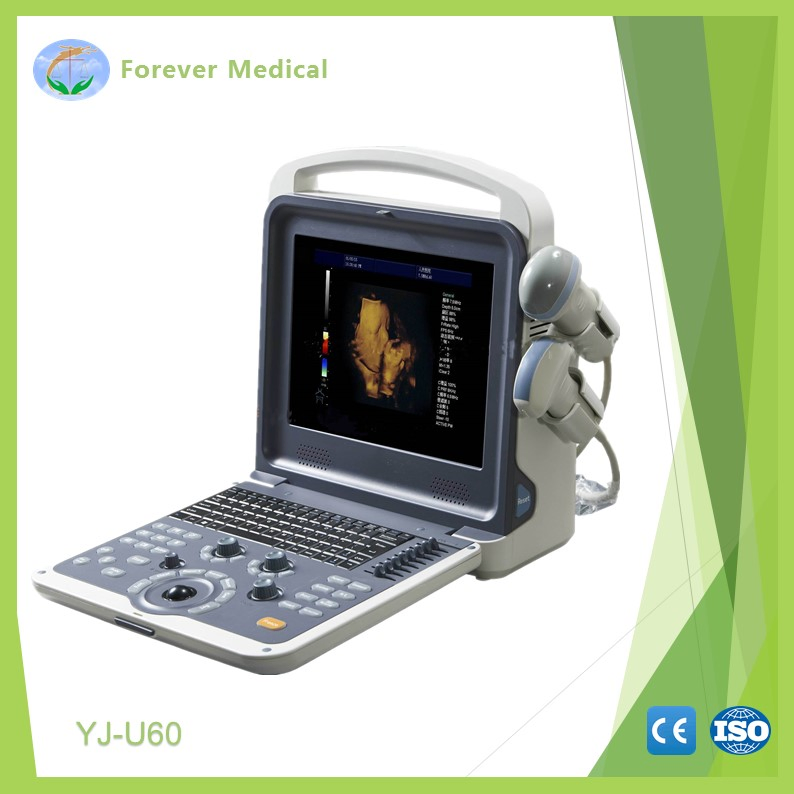

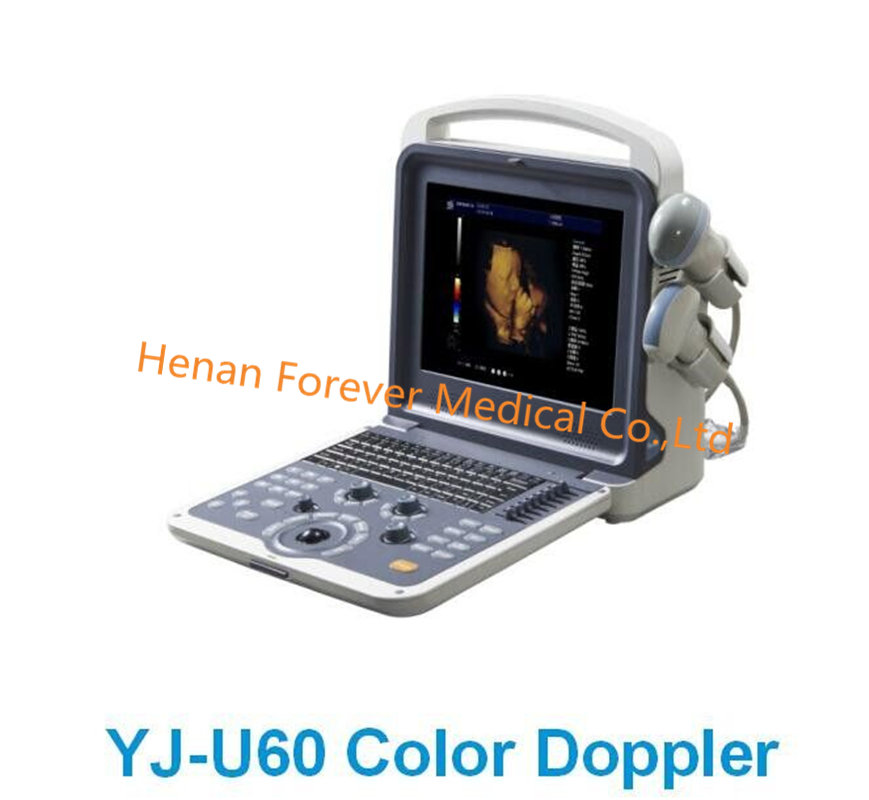

Full Digital Color Doppler Ultrasound Diagnostic System
Gross weight12 kg
Net weight7 kg
Full Digital Color Doppler Ultrasound Diagnostic System

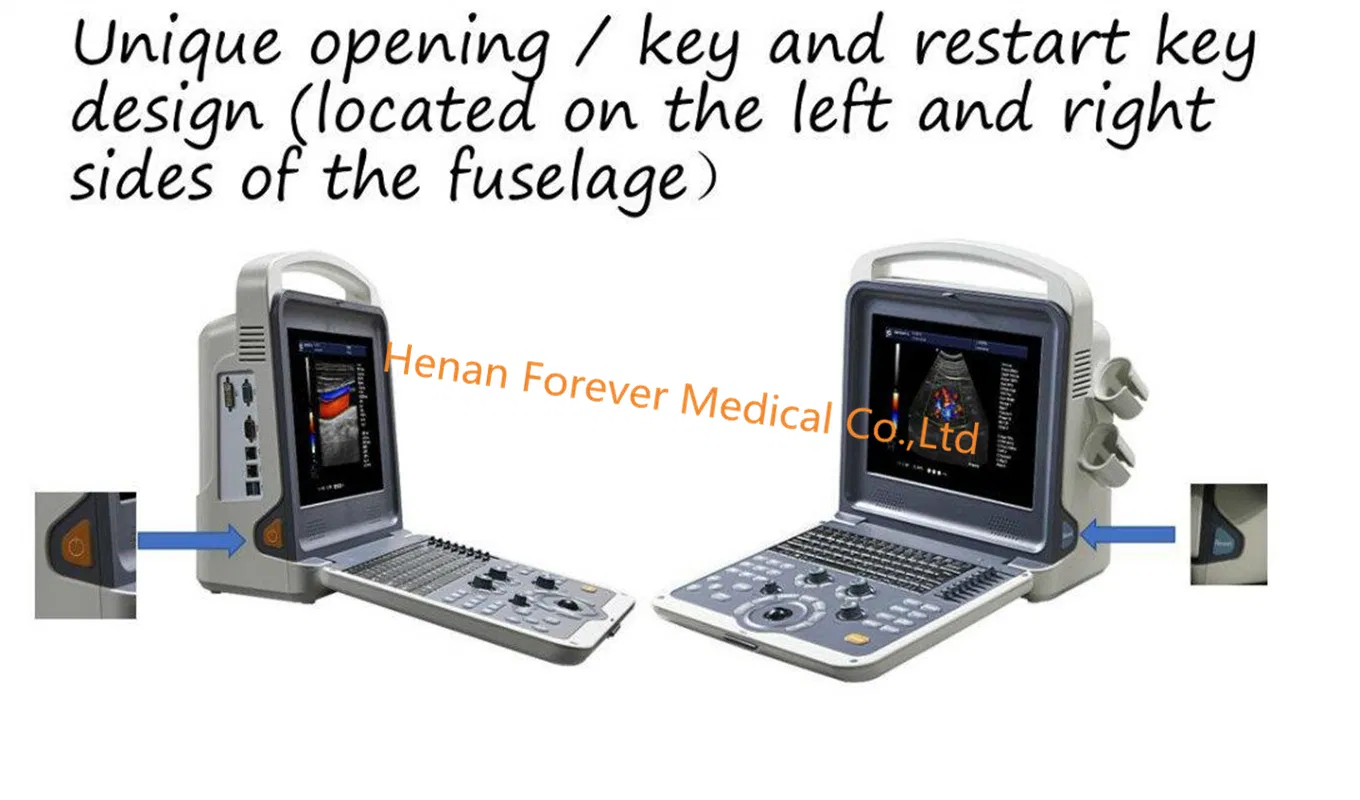

Appearance
Applications
Technical specifications
Probes information
- Smart, compact and clamshell design
- 12 inch LED monitor
- Backlit operation panel, 8TGC
- Floating keyboard
- Two active probe connectors
- Two probe holders
Applications
- Abdomen, Obstetrics, Gynecology, Pediatrics,Small parts, Artery, Superficial organ, Orthopedics, Cardiology, Musculoskeletal, Vascular, etc
- Auto Image Optimization
- Tissue Harmonic imaging
- iClear (Speckle Noise Reduction)
- iBeam (Spatial Compound Image)
- iZoom
- PIHI (Pulse-Inverse Harmonics Imaging)
- SA (Synthetic Aperture ultrasonic Imaging)
- Panoramic Image (Option)
- Trapezoid Image (Option)
- Continuous Wave Doppler(Option)
Memory
Cine‐memory
Cine‐memory
- B‐mode
- M‐mode
- SSD (Solid State Disk) 64G
Imaging Processing
| B mode |
|
| M mode |
|
C mode |
|
| PW mode |
|
Technical specifications
| Gross dimension Net dimension | 510 mm X 500 mm X 330mm 330mm X 150 mm X 380mm |
| Gross weight Net weight | 12 kg 7 kg |
| Voltage | AC 100V to 240V±10% |
| Frequency | 50Hz±1Hz |
| Rated Power | 250VA |
| Ambient temperature | 0ºCto +40ºC |
| Relative humidity | 38% to 85% |
| Atmospheric Pressure | 700hPa to 1060hPa |
| Display mode | B, B|B,4B, B|M,M,B|D,PW,B|PW, CF Duplex/Triplex mode CW (option) 4D mode (option) |
| Zoom | Real time zooming 10 Steps: ×1.0, ×2.0, ×3.0, ×4.0, ×5.0, ×6.0, ×7.0, ×8.0, ×9.0, ×10.0 Selectable zooming position |
| Focus | Continuous dynamic focus 1~16 selectable transmit focus Acoustic lens focus 1, 2, 3, 4 focus |
Probes information
Probe | 5 Steps Multi-frequency |
| 3.5Mhz abdominal probe | 2.0, 3.0, 3.5, 4.0, 5.5Mhz |
| 6.5Mhz transvaginal probe | 5.0, 6.0, 6.5, 7.5, 9.0Mhz |
| 7.5Mhz linear probe | 6.0, 6.5, 7.5, 10.0, 12.0Mhz |
| 3.5Mhz micro-convex probe | 2.0,2.5, 3.5, 4.5 ,5.0Mhz |
| 3.0Mhz phased array probe | 2.0, 3.0, 3.5, 4.0 , 5.5Mhz |
| 4D volume probe | 2.0/ 3.0/ 3.5/ 4.0/ 5.5Mhz |
For more Hospital machine detailed information, please feel free to contact with our sales team.We are always here to service for you!
