Portable 800kg Wire Rope Puller
Portable 800kg Wire Rope PullerDescription of WIre rope PullerPart of cranesMechanism:Need not accompany a wire-dum for rolling up wire rope, and is therefore small in size, light in weight. By movingthe handle, left and right, wire rope passes through, as if it were hauled hand by means of two chuc......
Send Inquiry
Product Description

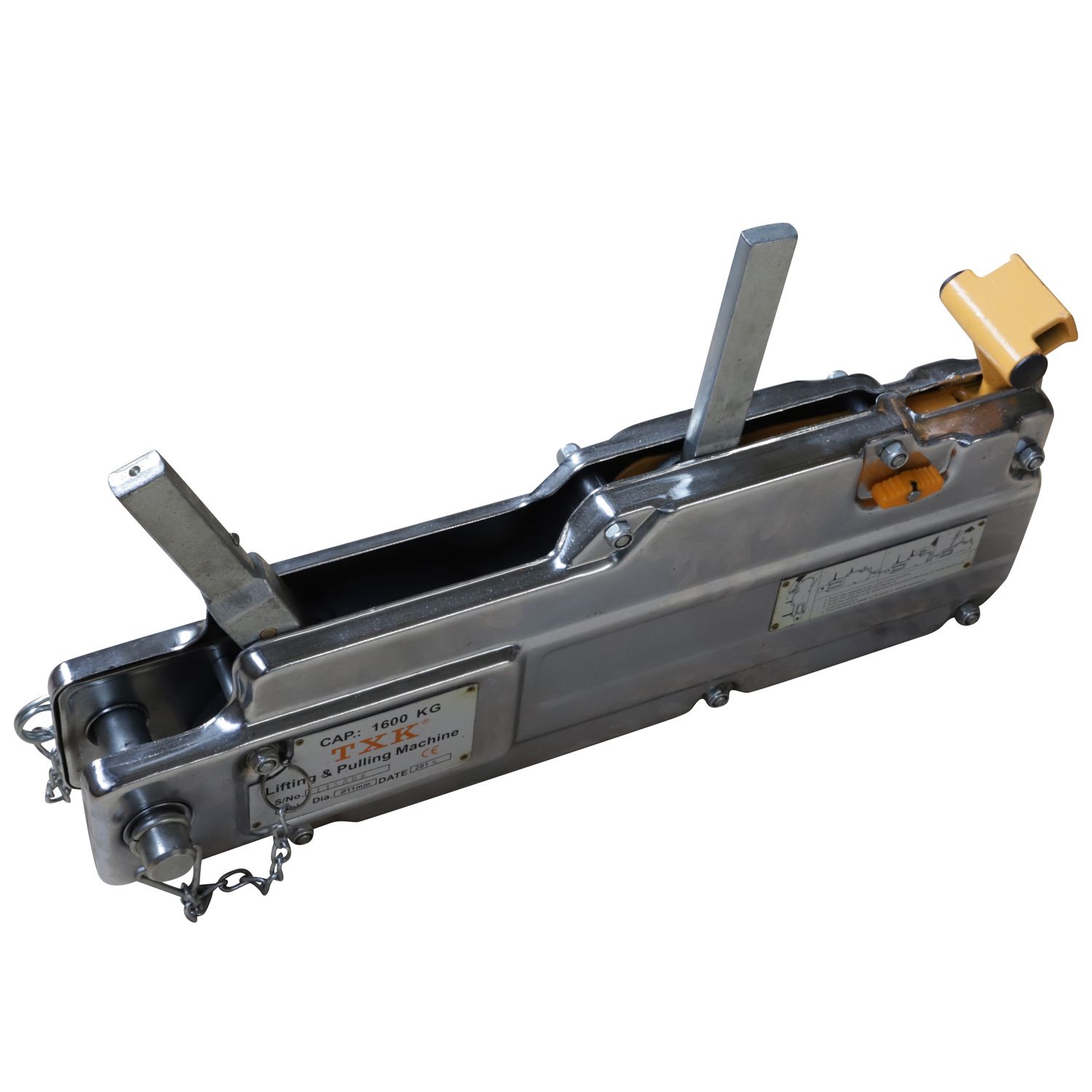

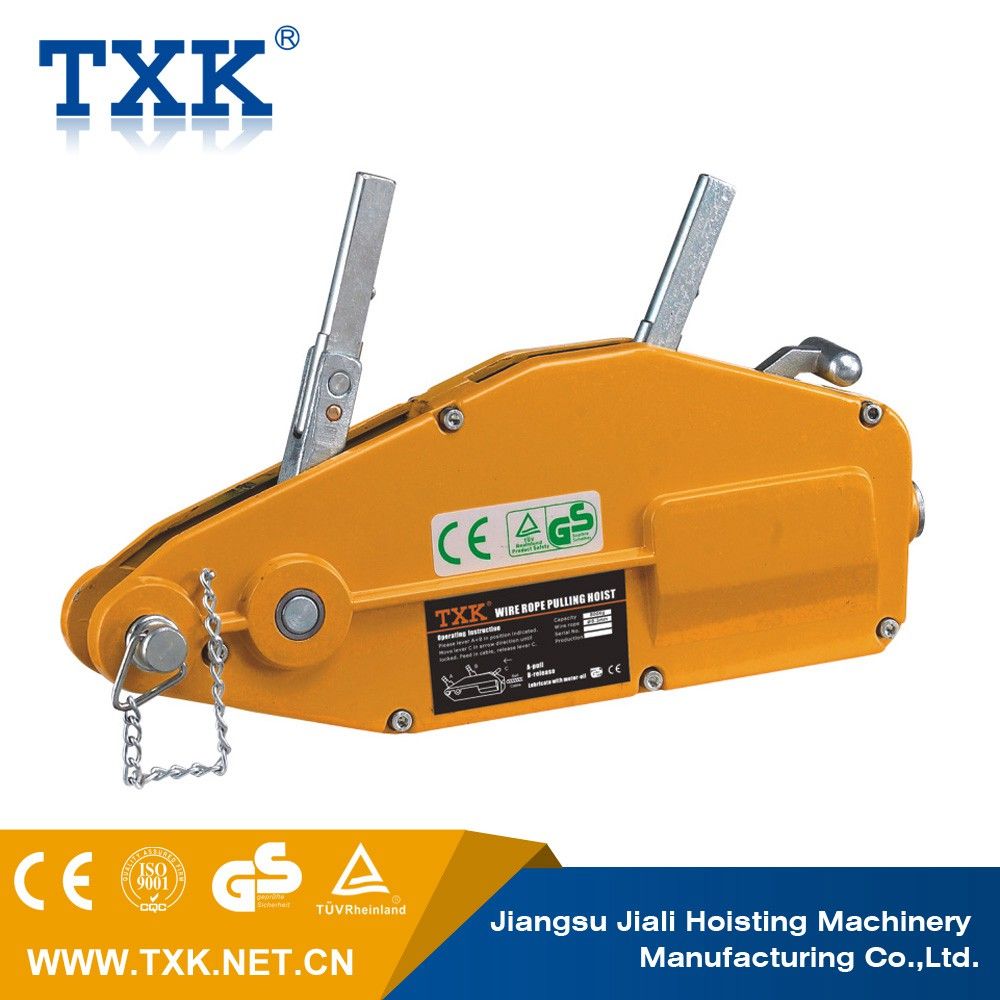

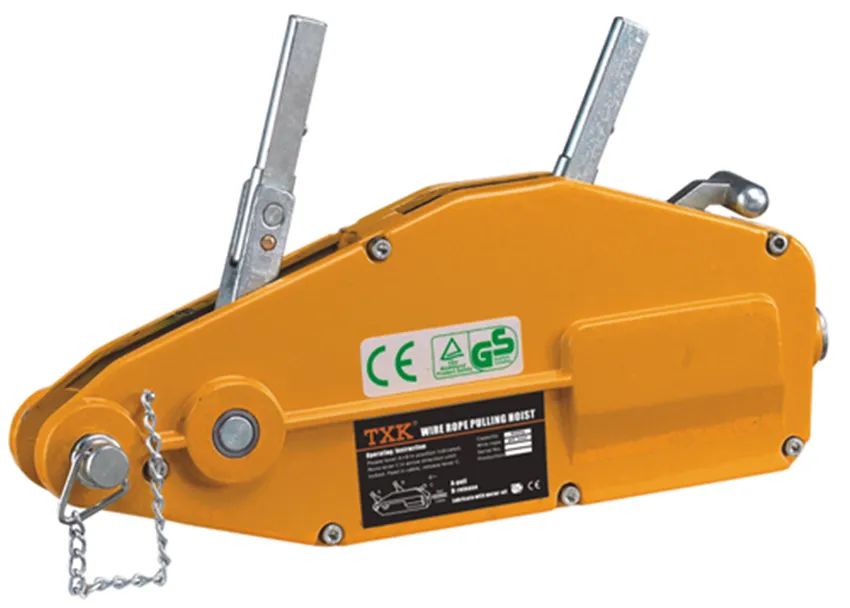

Portable 800kg Wire Rope Puller
Description of WIre rope Puller
Part of cranes

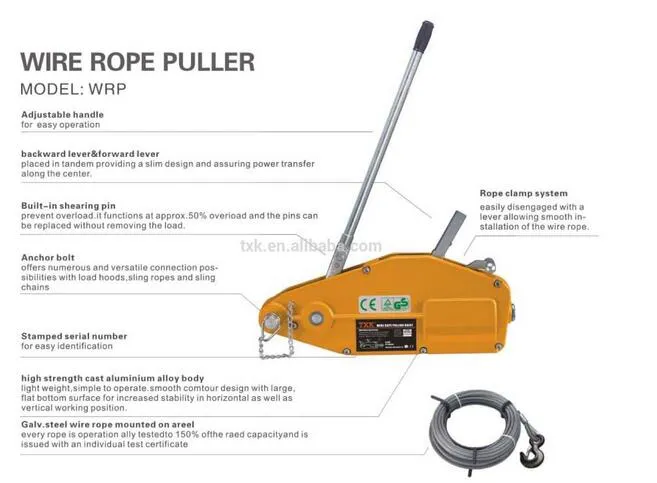

Mechanism:
Need not accompany a wire-dum for rolling up wire rope, and is therefore small in size, light in weight. By moving
the handle, left and right, wire rope passes through, as if it were hauled hand by means of two chucks equipped
inside the body. This is very simply done and no experience in necessary.
Features:
1. Measures small and light
2. Equipped with two safety devices, and this guarantees safe operations.
3. Wire rope is drawn out straight, by distant operations regardless of wire lengths.
4. Transmission at a speed of 3 meters per minute, and this is the fastest speed among all hand-driven hauling devices.
5. Wire rope can be used at any working temperature degrees.
6. Equipped with a safety hook, preventing wire rope from coming off while operation.
7. Most rationally paned, designed and durably.
Light, powerful, easy to move and to use, these machines make it possible to solve the numerous pulling and lifting
problems in a practical and safe manner.
Construction:
Dam structures-pulling of frame
Laying of steel of concrete pipe
Concrete pile laying
Seat pile pulling
Combine of fume tube
Railway:
Pulling of rail
Removal of van or wagon
Laying of track
Shunting and maintenance of rolling stock
Shipbuilding
Man oeuvering of locks
Stowing of cargo
Shipping of dinghies
Transport
Positioning of boiler
Machines
Maintenance
Loading of car
Emergency
Loading and unloading of bulky and heavy packages
Technical Parameters
Company Profile
TXK was founded in 1997 with 1.5 million USD registered fund in the very beginning and grow up as a leading manufacturer of
electric chainhoist, manual chain hoist, electric wire rope hoist and various lifting and material handling equipments with more than
15 years experience andhard work.

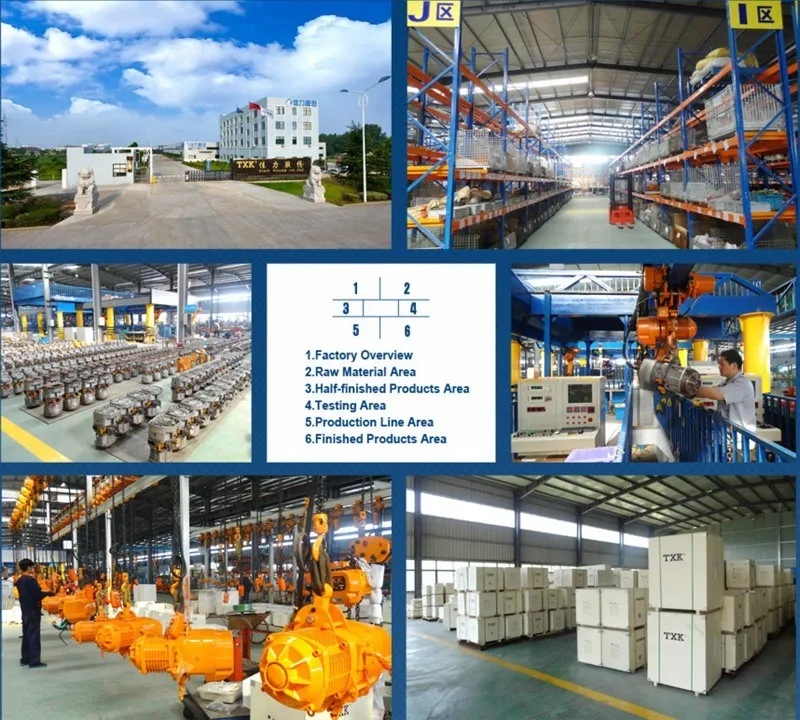

Our factory cover an area of 66000 square meters, the biggest workshop in the electric hoist industry in China.
We provide quality, safe and stable products to meet the highest industrial standards. We are ISO9001: 2008 and TUV certified manufacturer,
our products are CE, GS, SGS certified, serving all spheres of industry in the world.
Our products are widely used in industry and manufacturing industry and other special purpose, such as mold, wind power, logistics,
railway,shipbuilding, bridge construction, factory assembly line, mechanical maintenance platform etc.
The company establishes a global marketing network with exportation to Germany, Norway, Poland, United States, Canada, Mexico,
Peru,Brazil, Argentina, Egypt, Saudi Arabia, South Africa, India, Indonesia, Malaysia and total more than 50 countries and regions.
Certificates
Why Choose Us
1.Longest history and longevity - TXK is one of the oldest established electric chain hoist manufacturers in China,with almost 20 years.
2.Largest factory and production capability - TXK factory is the biggest factory covering more than 56,000 square meters territory.
3.Widest products and servuce providing - TXK can provide widest products itema include electric & manual lifting equipments.
4.Richest experience in world business - TXK has more than 10 years experience on international trade business.
5.Fastest lead times - TXK factory is equipped with most efficient producing line which handled by skillful workers.
6.Fullest certifications - TXK factory and products are well certified by CE,GS,TUV,ISO,SGS,etc.
7.Highest reputation - TXK products are well sold in more than 50 countries.
Partners with US
Our Main Products
TXK manufactures and markets a wide range of hoists and overhead cranes for use in a variety of industries around the world.
From our 250kg. capacity Series 602 mini ratchet lever hoist that can fit in your lunch box to our 60-ton, high-capacity electric
wire rope models, we have the right hoist for your application. We carry an extensive line of powered hoists, including electric
and pneumatic chain and wire rope hoists. We also offer a full line of manual hoists, both hand chain and lever tools. Although
many hoists are standard "off the shelf" units, we can modify most hoists to meet your exact requirements.We provide complete
solutions to lift your business operations to newer heights.
FAQ
1:What is the MOQ:
MOQ can be one set
2,How about the payment?
We accept the T/T and LC at sight
3.What is the sample policy?
We could send the 1 set sample to your test before place the order
4.What is the lead time for your goods?
Normally is the 10-15days after confirm the order
5,What should I provide if i want to order the products?
The more information you provide, the accurate solution we can prepare for you!
A-Capacity?
B-Lifting height?
C-what is lifting material? How about working environment?
D- Power supply and control voltage?
Description of WIre rope Puller
Part of cranes
Mechanism:
Need not accompany a wire-dum for rolling up wire rope, and is therefore small in size, light in weight. By moving
the handle, left and right, wire rope passes through, as if it were hauled hand by means of two chucks equipped
inside the body. This is very simply done and no experience in necessary.
Features:
1. Measures small and light
2. Equipped with two safety devices, and this guarantees safe operations.
3. Wire rope is drawn out straight, by distant operations regardless of wire lengths.
4. Transmission at a speed of 3 meters per minute, and this is the fastest speed among all hand-driven hauling devices.
5. Wire rope can be used at any working temperature degrees.
6. Equipped with a safety hook, preventing wire rope from coming off while operation.
7. Most rationally paned, designed and durably.
Light, powerful, easy to move and to use, these machines make it possible to solve the numerous pulling and lifting
problems in a practical and safe manner.
Construction:
Dam structures-pulling of frame
Laying of steel of concrete pipe
Concrete pile laying
Seat pile pulling
Combine of fume tube
Railway:
Pulling of rail
Removal of van or wagon
Laying of track
Shunting and maintenance of rolling stock
Shipbuilding
Man oeuvering of locks
Stowing of cargo
Shipping of dinghies
Transport
Positioning of boiler
Machines
Maintenance
Loading of car
Emergency
Loading and unloading of bulky and heavy packages
Technical Parameters
| Item No | WRP08 | WRP16 | WRP32 | WRP54 | |||
| Lifting Capacity (kg) | 800 | 1600 | 3200 | 5400 | |||
| Pulling Capacity (kg) | 1300 | 2800 | 6000 | 10125 | |||
| Tested to (kg) | 1500 | 3000 | 6000 | 10125 | |||
| Steel wire rope dia. (mm) | IWRC8.3 | IWRC11 | IWRC16 | IWRC20 | |||
| Wire rope safety factory load capacity(mm) | 5xWLL | 5xWLL | 5xWLL | 5xWLL | |||
| Breaking strength of wire rope (kg) | 5430 | 9680 | 17200 | 27000 | |||
| Overall structure breaking Strength | 4xWLL | 4xWLL | 4xWLL | 4xWLL | |||
| Ransmission | 3mtrs | 3mtrs | 3mtrs | 3mtrs | |||
| safety device | safety pins | safety pins | safety pins | safety pins | |||
| Net weight(without wire rope) (kg) | 6.4 | 12 | 23 | 28 | |||
Company Profile
TXK was founded in 1997 with 1.5 million USD registered fund in the very beginning and grow up as a leading manufacturer of
electric chainhoist, manual chain hoist, electric wire rope hoist and various lifting and material handling equipments with more than
15 years experience andhard work.
Our factory cover an area of 66000 square meters, the biggest workshop in the electric hoist industry in China.
We provide quality, safe and stable products to meet the highest industrial standards. We are ISO9001: 2008 and TUV certified manufacturer,
our products are CE, GS, SGS certified, serving all spheres of industry in the world.
Our products are widely used in industry and manufacturing industry and other special purpose, such as mold, wind power, logistics,
railway,shipbuilding, bridge construction, factory assembly line, mechanical maintenance platform etc.
The company establishes a global marketing network with exportation to Germany, Norway, Poland, United States, Canada, Mexico,
Peru,Brazil, Argentina, Egypt, Saudi Arabia, South Africa, India, Indonesia, Malaysia and total more than 50 countries and regions.
Certificates
Why Choose Us
1.Longest history and longevity - TXK is one of the oldest established electric chain hoist manufacturers in China,with almost 20 years.
2.Largest factory and production capability - TXK factory is the biggest factory covering more than 56,000 square meters territory.
3.Widest products and servuce providing - TXK can provide widest products itema include electric & manual lifting equipments.
4.Richest experience in world business - TXK has more than 10 years experience on international trade business.
5.Fastest lead times - TXK factory is equipped with most efficient producing line which handled by skillful workers.
6.Fullest certifications - TXK factory and products are well certified by CE,GS,TUV,ISO,SGS,etc.
7.Highest reputation - TXK products are well sold in more than 50 countries.
Partners with US
Our Main Products
TXK manufactures and markets a wide range of hoists and overhead cranes for use in a variety of industries around the world.
From our 250kg. capacity Series 602 mini ratchet lever hoist that can fit in your lunch box to our 60-ton, high-capacity electric
wire rope models, we have the right hoist for your application. We carry an extensive line of powered hoists, including electric
and pneumatic chain and wire rope hoists. We also offer a full line of manual hoists, both hand chain and lever tools. Although
many hoists are standard "off the shelf" units, we can modify most hoists to meet your exact requirements.We provide complete
solutions to lift your business operations to newer heights.
FAQ
1:What is the MOQ:
MOQ can be one set
2,How about the payment?
We accept the T/T and LC at sight
3.What is the sample policy?
We could send the 1 set sample to your test before place the order
4.What is the lead time for your goods?
Normally is the 10-15days after confirm the order
5,What should I provide if i want to order the products?
The more information you provide, the accurate solution we can prepare for you!
A-Capacity?
B-Lifting height?
C-what is lifting material? How about working environment?
D- Power supply and control voltage?
