Factory Price Diesel Version Small Combine Rice Mill Machine Model: 4n-4bd
The Description of Combine Rice Mill/Milling MachineI. Structure: This machine is mainly composed of four parts including rice machine, pulverizer, motor and frame. The rice machine is composed of machine cover, middle seat, rice roller, rice sieve, huller blade, feeder, separator, gravity sieve sep......
Send Inquiry
Product Description
The Description of Combine Rice Mill/Milling Machine

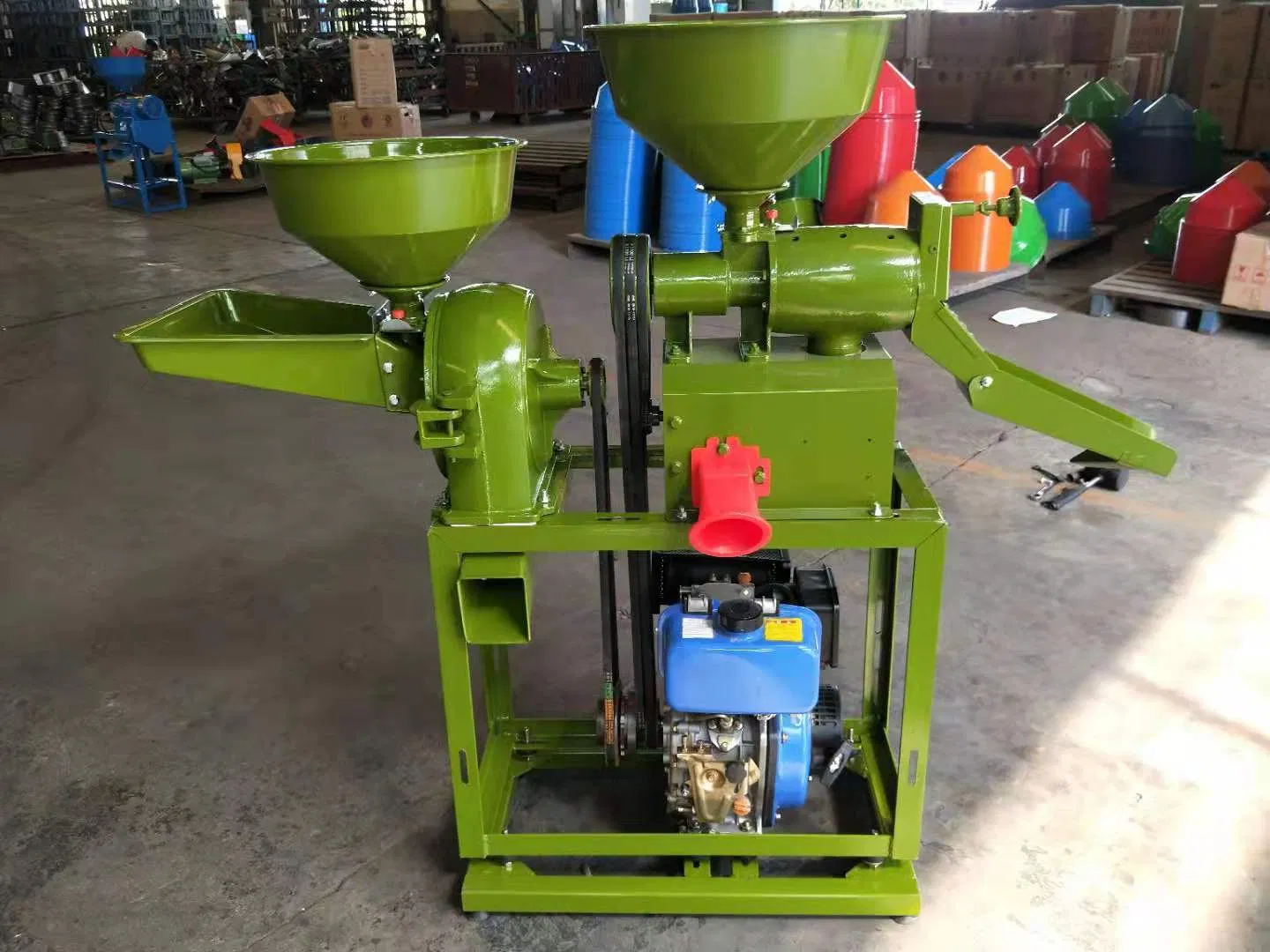

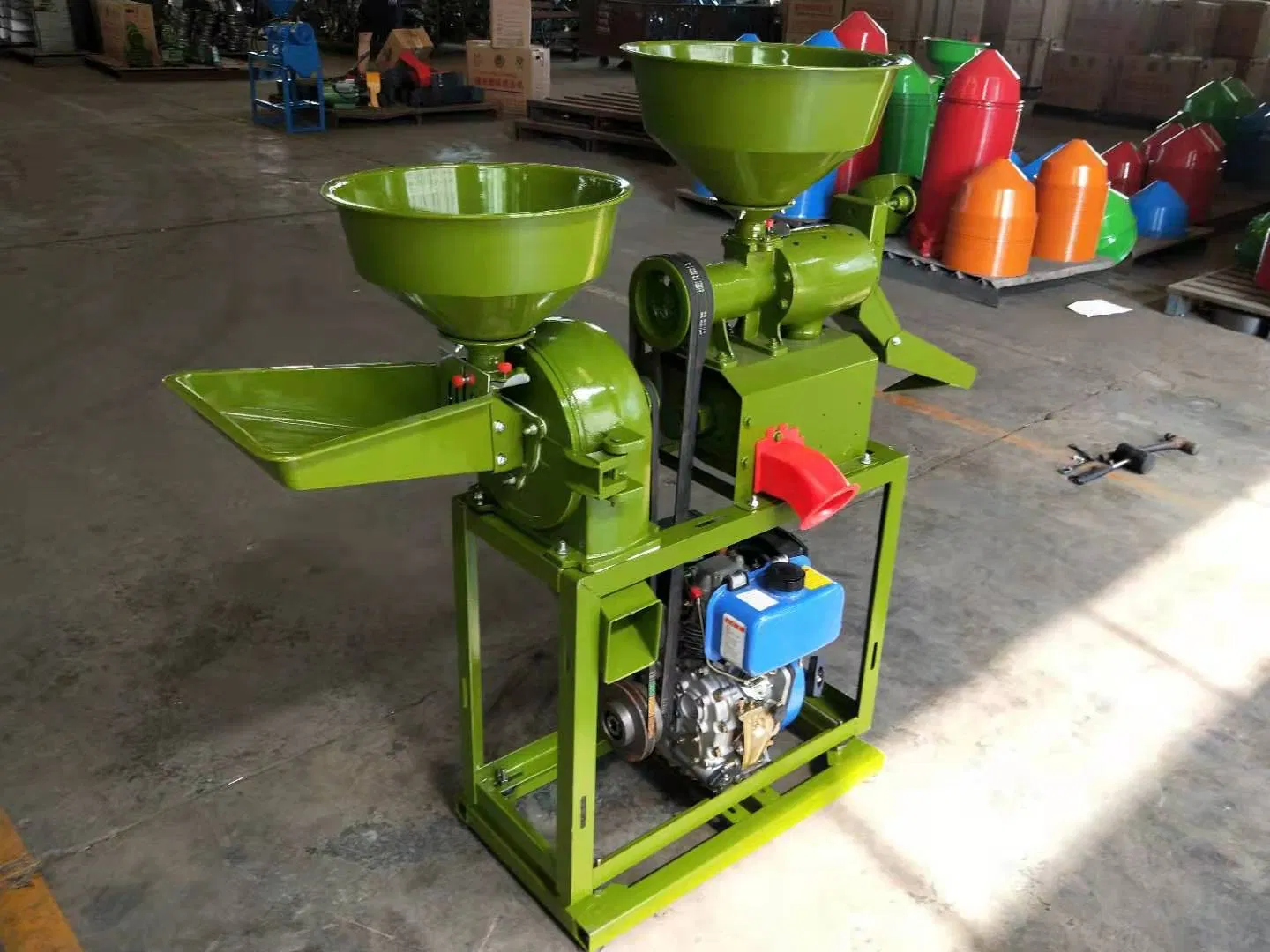

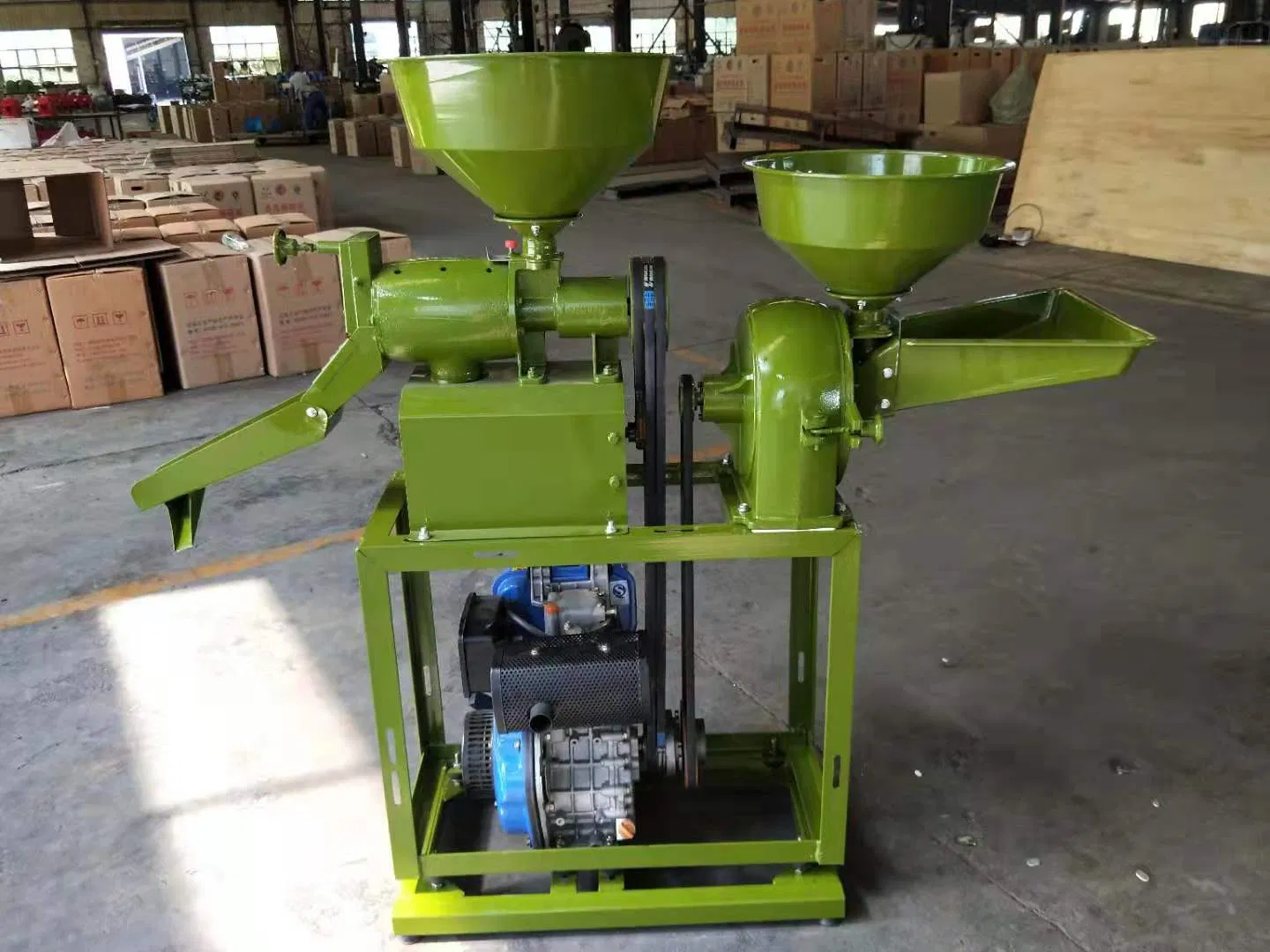

I. Structure: This machine is mainly composed of four parts including rice machine, pulverizer, motor and frame. The rice machine is composed of machine cover, middle seat, rice roller, rice sieve, huller blade,
feeder, separator, gravity sieve separator, belt wheel and adjusting device; The pulverizer is composed of
body shell, feed hopper and discharge hopper.
II. Usage: The milling part of the machine can process unhusked rice into rice in one lot and
simultaneously finish the separation of rice, bran and broken rice in one lot. The pulverizer can
be used to pulverize unhusked rice, corn, sorghum, beans, potato and stem, and so on.
III. Performance: This machine has many advantages, such as reasonable structure, compact
model, simple operation, convenient repairing, fast milled rice rate, less power consumption,
safety, reliability etc.
IV. Technical parameters
| Overall Dimension(mm) | 1270*440*1150 |
| Packing Size(mm) | 750*330*590 |
| Rated Power(KW) | 2.2kw |
| Voltage(V) | 220v |
| Motor Speed (R/Min) | 2800 |
| Total Weight (kg) | 76kg |
| Productivity(kg/h) | Milling part≥180kg |
V. Technical Parameters of Diesel Engine
| Type | Single cylinder, vertical, Four - Stroke, Air cooled, Direct Injection |
| Cylinder Dia. × Stroke(mm) | 70×59 |
| Displacement(L) | 0.227 |
| Compression Ratio | 20±1 |
| Rated Power(Kw) | 3.00/3000 3.50/3600 |
| Rated Speed(r/min) | 3000/3600 |
| Start-up Mode | Recoil starting by hand or electric starting |
| Direction of Rotation | Anticlockwise(From the power output end) |
| Oil Tank Capacity(L) | 2.5 |
| Fuel Consumption Rate(g/kW.h) | ≤288.3 |
| Fuel Oil | 0#(Summer)or-11#(Winter) Light Diesel Oil |
| Engine Oil Capacity(L) | 0.75 |
| Lubrication Oil | SAE10W31(CC Grade Above) |
| PTO Shaft | Camshaft or Bent Axle |
| Overall Dimension(L×W×H)(mm) | 332×376×415 |
| Net Weight(kg) | ≤27 |
