Product Description

electric macadamia nut pine nut palm kernel peanut roasting machine equipment coffee pumpkin seed peanut dry roaster

Product Description

1) There are two types: electric and gas type. You can choose the one you prefer.
2) It can aslo be used for roasting peanuts, sesame, grains, cashew nuts, sunflower seeds etc, it is multi functional.
3) It is full stainless stell. What is more, we can customized the rotary drum--stainleess steel, not the iron.

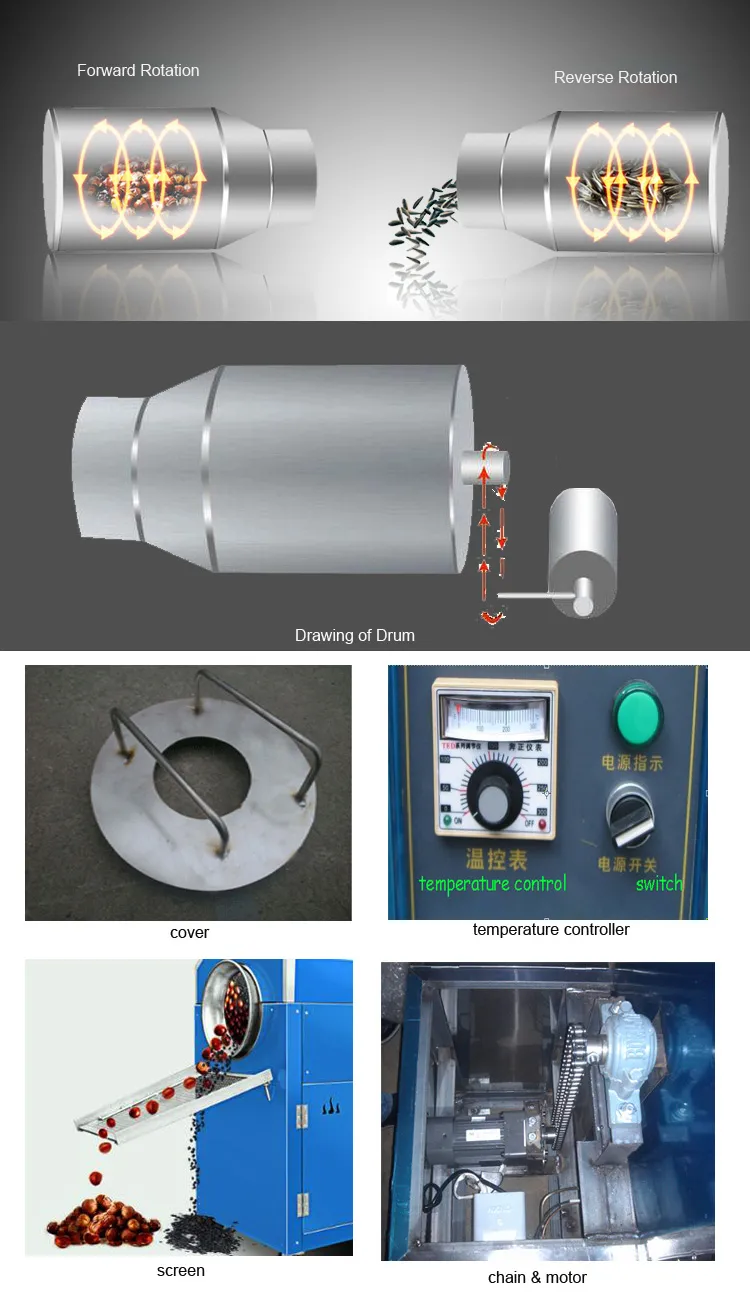

4) For this machine, by reverse direction, it can pour out the materials. It is more convenient.
5) When roasting materials, you can also add some oil or salt to make different flavors.

Technical Parameters

Model	Voltage	Power	Capacity		Size	Weight
25RS	220V	0.37kw	4-7.5kg/time	25 minutes/time	9748107cm	65kg
25DS	220V	5.5kw	4-7.5kg/time	30 minutes/time	9748107cm	65kg

Electric Macadamia Nut Pine Nut Palm Kernel Peanut Roasting Machine Equipment Coffee Pumpkin Seed Peanut Dry Roaster

Features:
1.This machine is very easy to control and operate
2.Occupy small space, convenient to move different place
3. Many kinds of fuel can be used, such as, coal, gas, electricity, etc
4.This roasting machine is used for frying different food stuff, such as pellets, nuts, and chips etc.
5.Most kinds of nuts can be fried by this machine and get a stable and uniform result.
6.Low manpower cost,one person can achieve.
7.High efficient and low price

Operation Methods
a, Gas/coal Heating
1,Please check the circuit junctions and insulation condition first
2,Fix the low pressure valve onto the gas tank and connect the soft tube for supplying gas. Then connect power.
3,Revolving take down the sealing cover of roller, load the materials, then revolving seal the cover. Turn on the power switch fist and then open gas tank and fire. Then the roasting starts.
4,After finishing roasting, close the gas valve and turn off electricity. Fix the screen to the roller exit, and take down the cover of roller and switch on the motor reverse turning button, the roasted food will come out and separate automatically.
5,Close the gas source and cut off power then the operator can leave.

b , Electricity Heating
1,Please check the circuit junctions and insulation condition first
2,Revovling take down the sealing cover of roller, load the materials, then revolving seal the cover. Turn on the motor switch frist and then open the heating switch and preset the temperature and start roasting. The temperature controller can set the heating temperature.
3,After finishing roasting, turn off heating and motor switch orderly . Fix the screen to the roller exit, and take down the cover of roller and switch on the motor reverse turning button, the roasted food will come out and separate automatically.
4,Cut off power source then the operator can leave.
Electric Macadamia Nut Pine Nut Palm Kernel Peanut Roasting Machine Equipment Coffee Pumpkin Seed Peanut Dry Roaster

Precautions
1,Check the connections and valve will not leak for the gas heating type and ensure no heating source or danger around the gas tank. Cut off the gas source after finishing work.
2,When the motor switch is in the clockwise (reverse) condition, first dial it to the stop position and wait for 2 seconds then make it to the reverse(clockwise) position, in order to ensure the motor's service life.
3,The ball bearing need be lubricated every half a month and reduction gearbox every half a year.

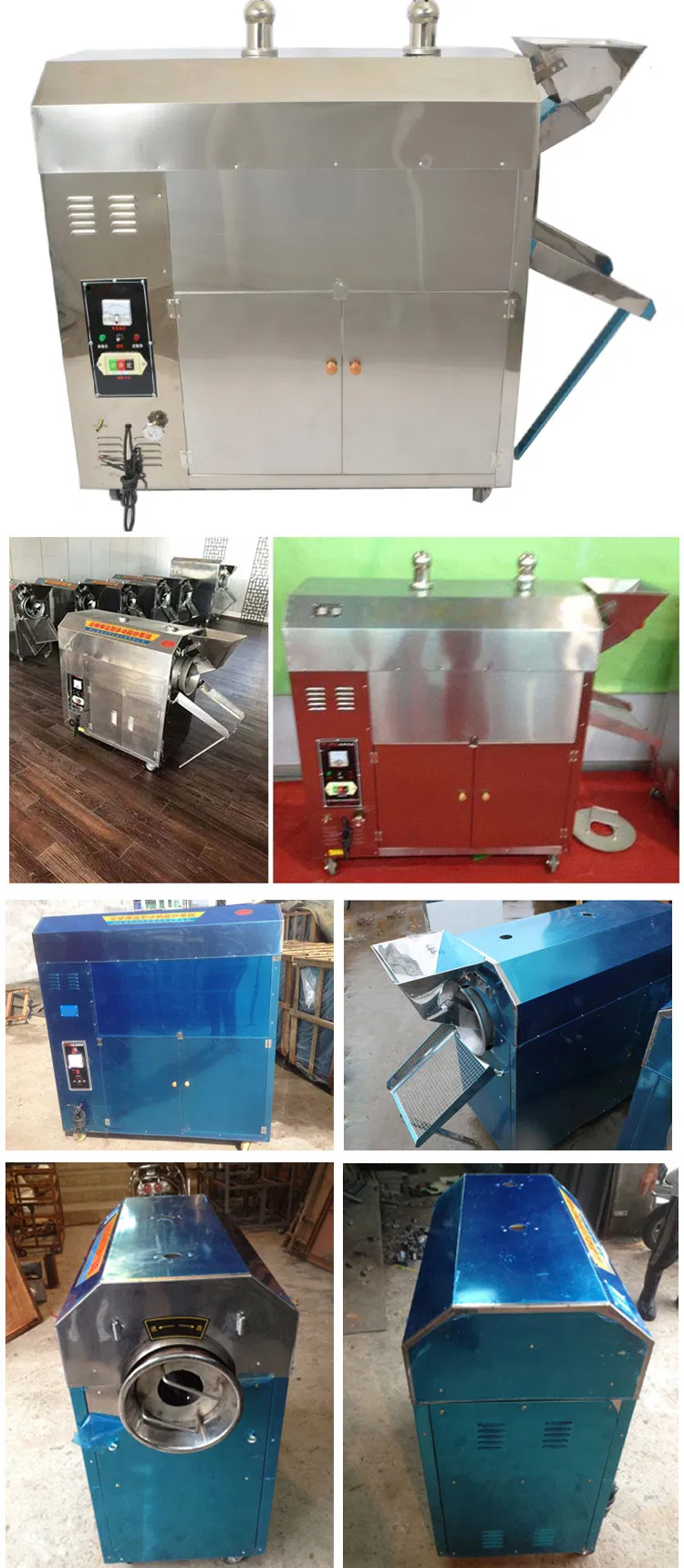

Detailed Images

aplication areas

Snack Food Industry: melon seeds, peanuts, cashews, almonds, chestnuts, walnut oil press: sesame seeds, rapeseed, soybeans

Tea industry: fixing, drying Pharmaceutical industry: Chinese planing condiment industry: pepper, pepper, anise, fennel

Chemical industry: drying and heating of chemical raw materials Tobacco processing industry: baking process

Feed industry: raw materials roasted mixed cereals Processing industry: corn, sorghum, rice, barley, wheat

Packing & Delivery
